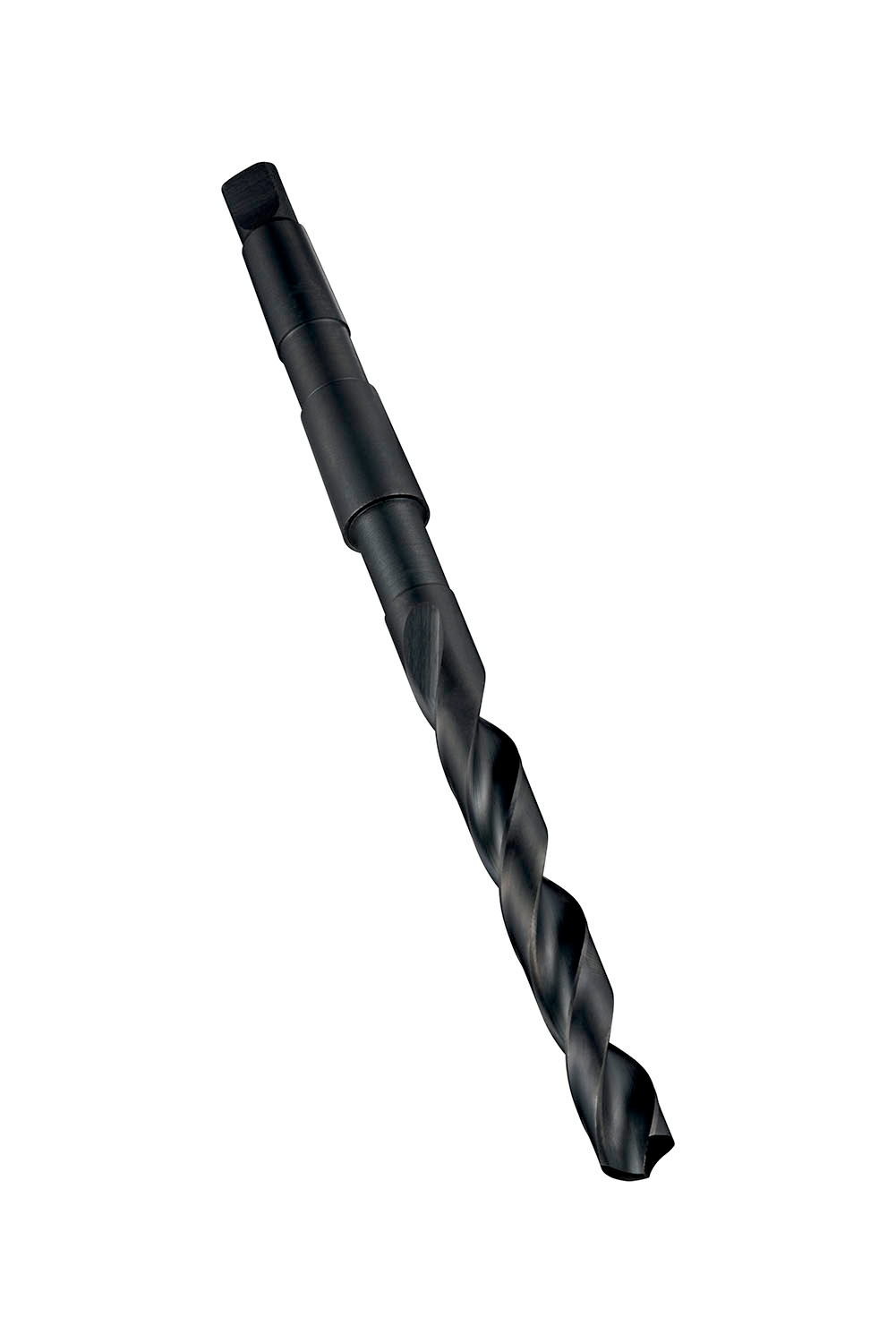

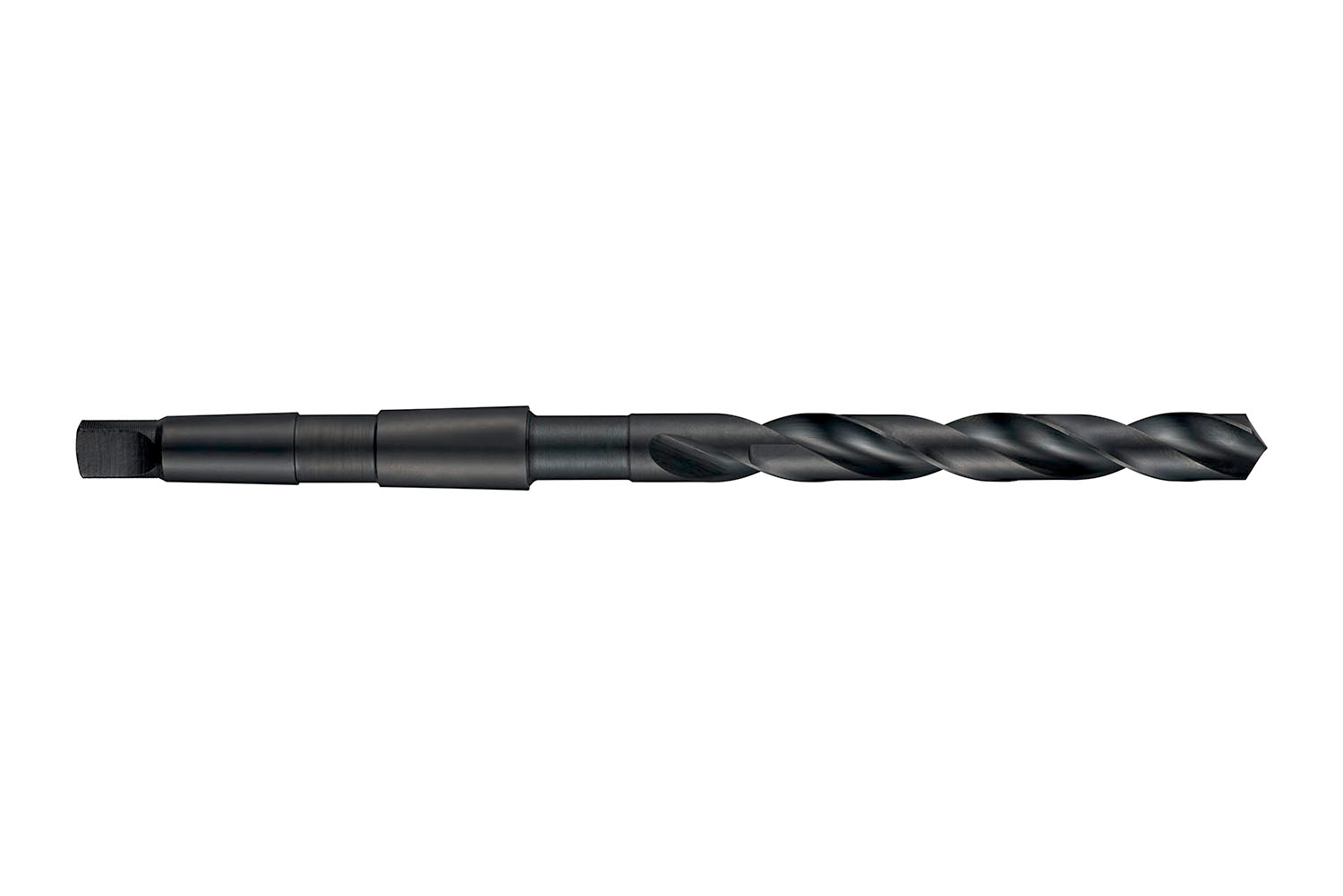

DORMER A13013/16 Taper Shank Drill

Product Code: A13013/16

$173.35$157.59 Ex. GST

Product Code: A13013/16 SKU A13013/16 Categories , ,
DORMER A13013/16 Taper Shank Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with taper shank, diameter 0.8125″ (13/16) with an overall length of 243mm and flute length of 145mm according to DIN 345 standard with 118° thinned conical point, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.1683 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760022580
Product number (SAP): 86009628
Ordering code ANSI: A13013/16
Gross weight – grams: 390.1

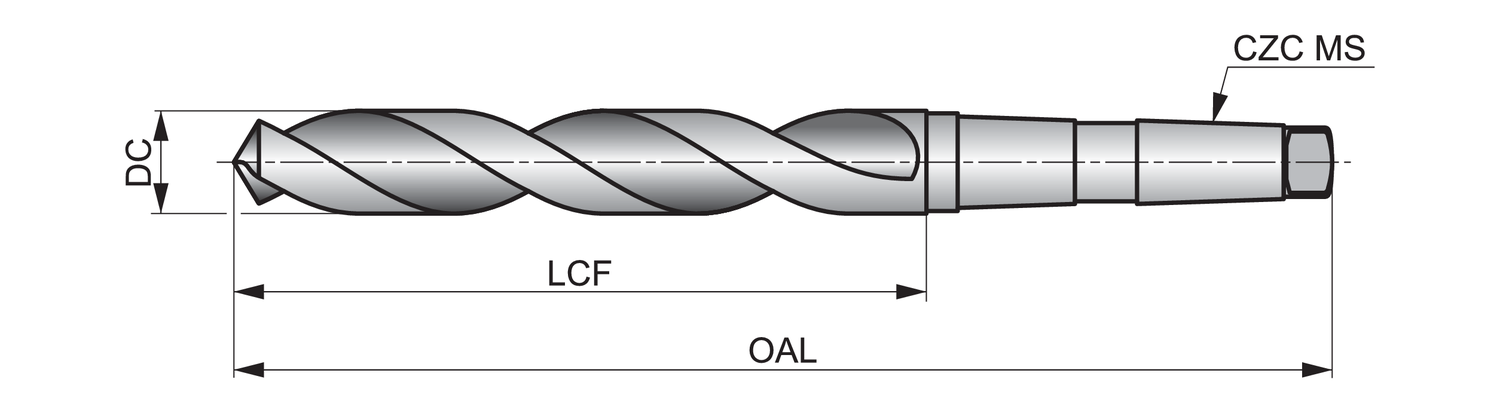

Cutting diameter – fractional inch (DC): 13/16
Cutting diameter – millimeter (DC): 20.64 mm
Cutting diameter – inch (DC): 0.8125 inch
Length chip flute – millimeter (LCF): 145 mm
Overall length – millimeter (OAL): 243 mm
Connection size code machine side (CZC MS): MK 2
Length chip flute – inch (LCF): 5.7087 inch
ISO: A13013/16

Brand

DORMER
