DORMER A13013.8 Taper Shank Drill

Product Code: A13013.8

$130.30$118.45 Ex. GST

Product Code: A13013.8 SKU A13013.8 Categories , ,

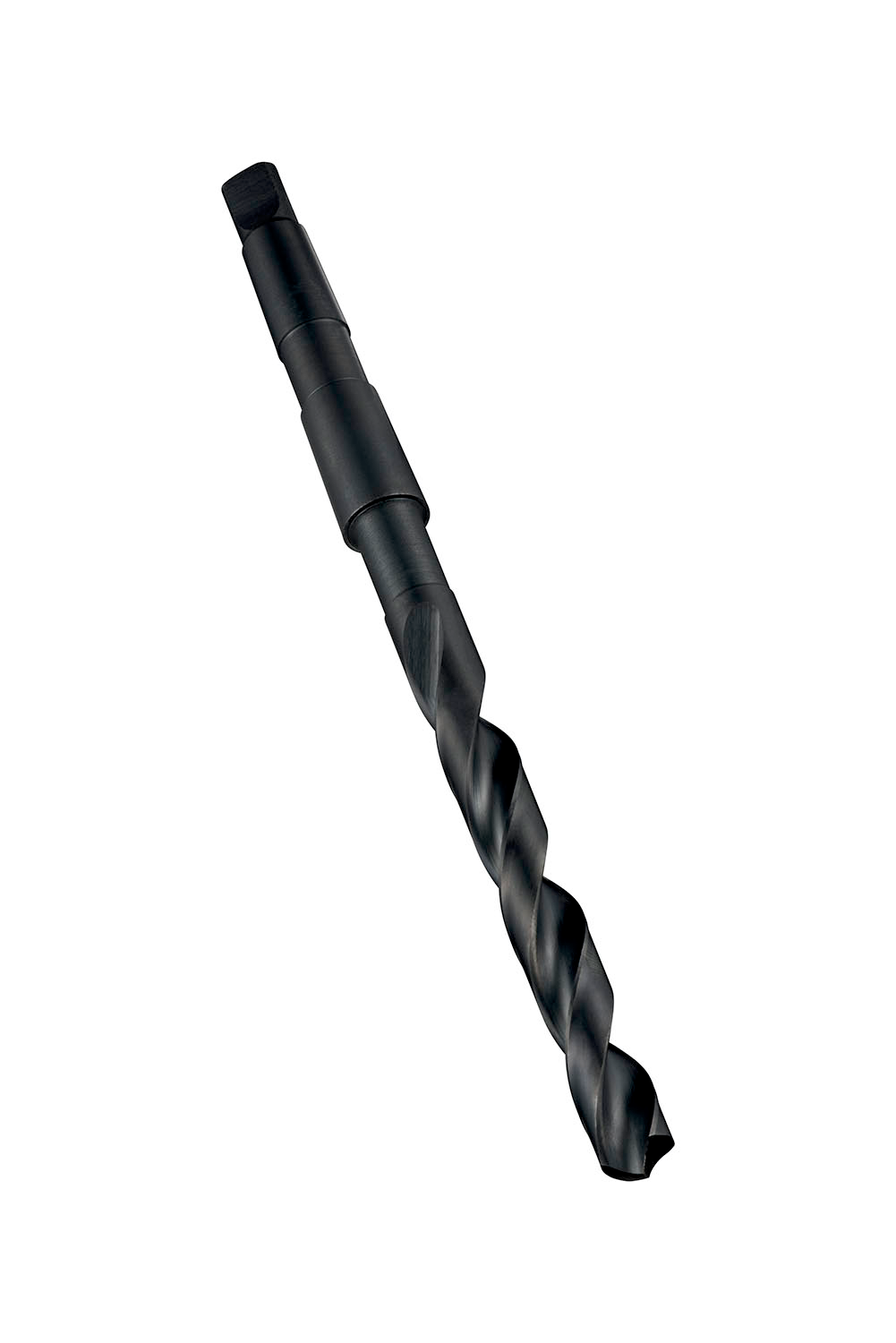

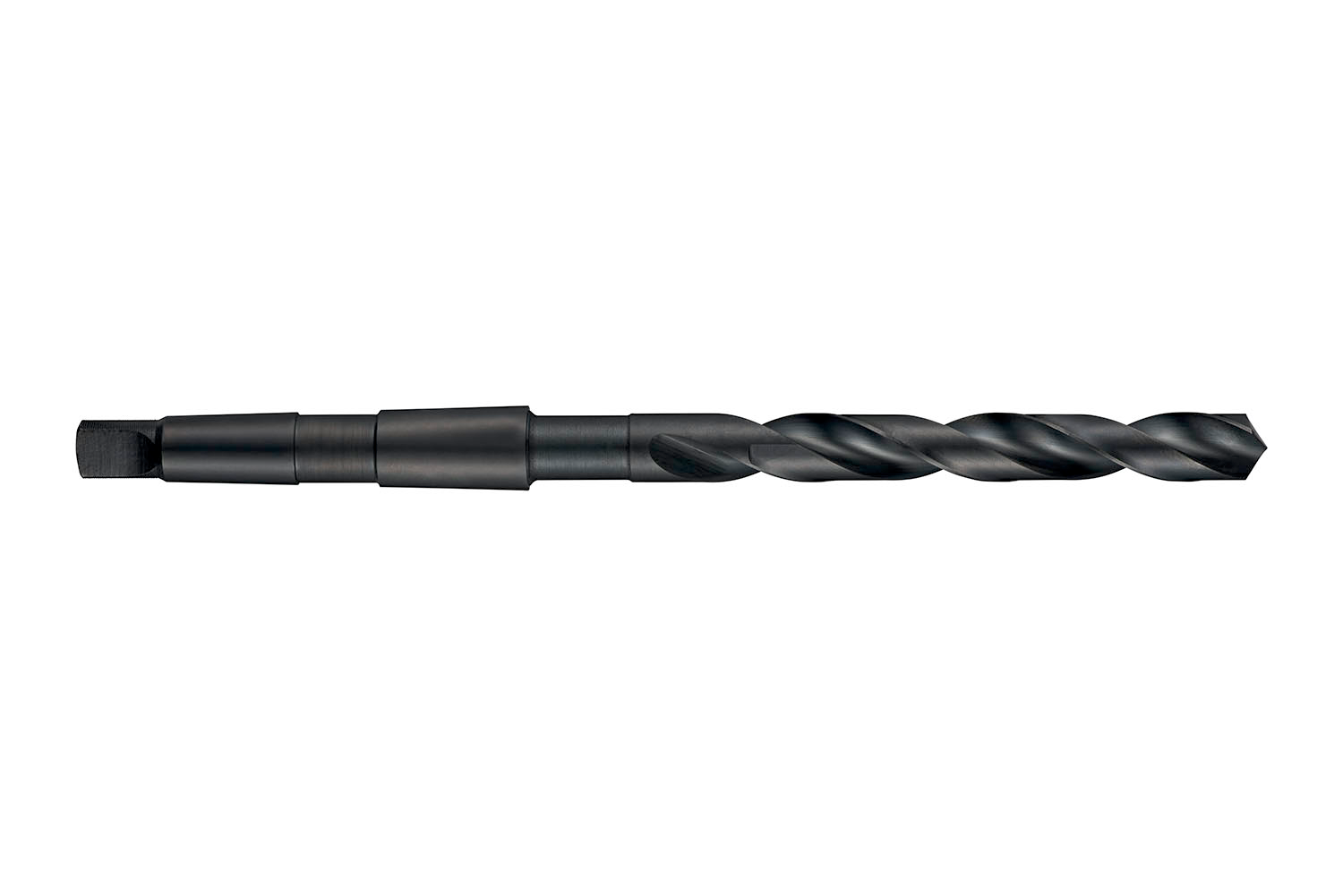

DORMER A13013.8 Taper Shank Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with taper shank, diameter 13.8mm with an overall length of 189mm and flute length of 108mm according to DIN 345 standard with 118° thinned conical point, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.1265 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760022566
Product number (SAP): 86009626
Ordering code ANSI: A13013.8
Gross weight – grams: 143.5

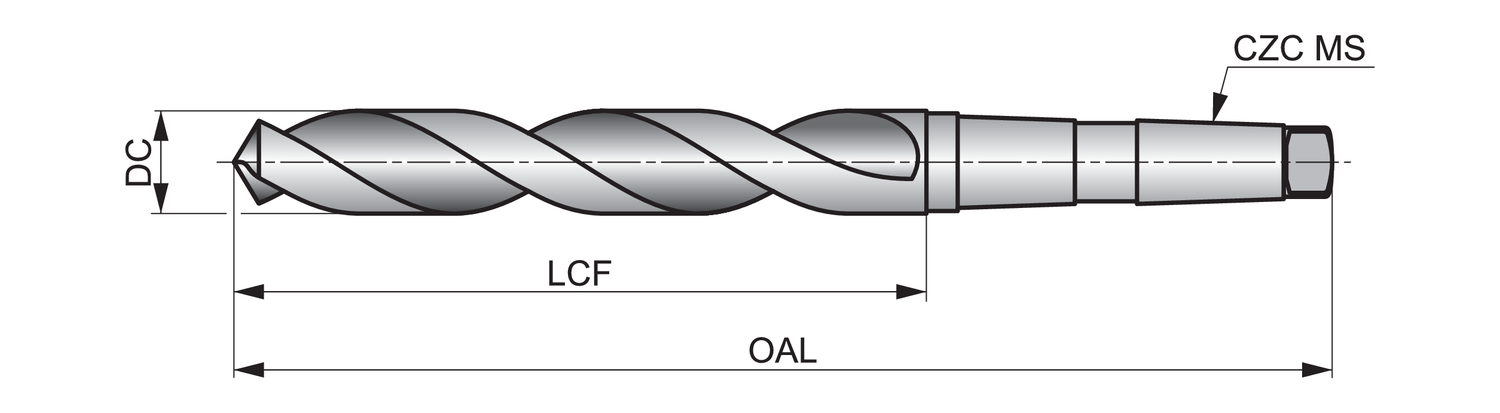

Cutting diameter – millimeter (DC): 13.8 mm
Cutting diameter – inch (DC): 0.5433 inch
Length chip flute – millimeter (LCF): 108 mm
Overall length – millimeter (OAL): 189 mm
Connection size code machine side (CZC MS): MK 1
Length chip flute – inch (LCF): 4.252 inch
ISO: A13013.8

Brand

DORMER
