DORMER A13015.25 Taper Shank Drill

Product Code: A13015.25

$139.36$126.69 Ex. GST

Product Code: A13015.25 SKU A13015.25 Categories , ,
DORMER A13015.25 Taper Shank Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

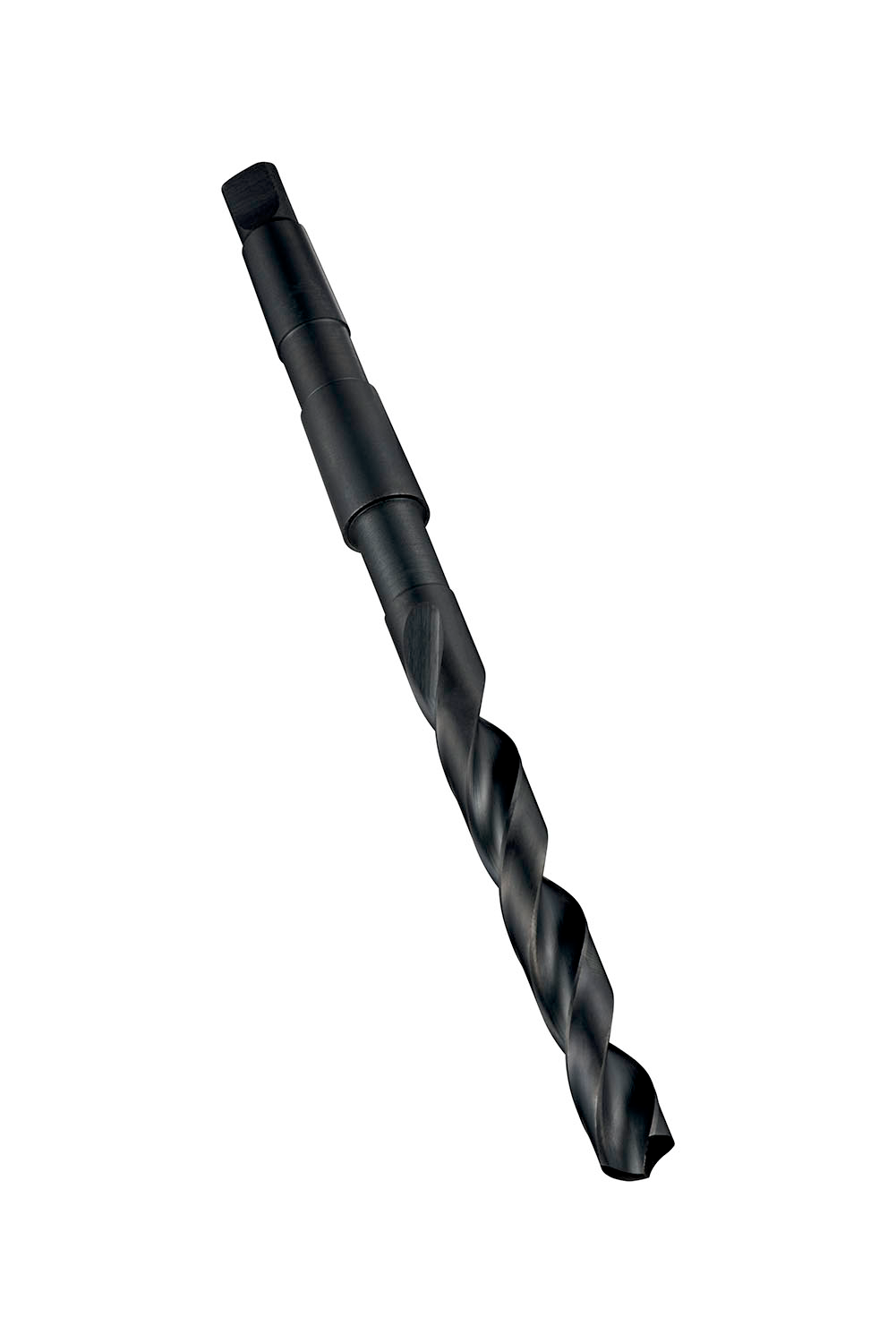

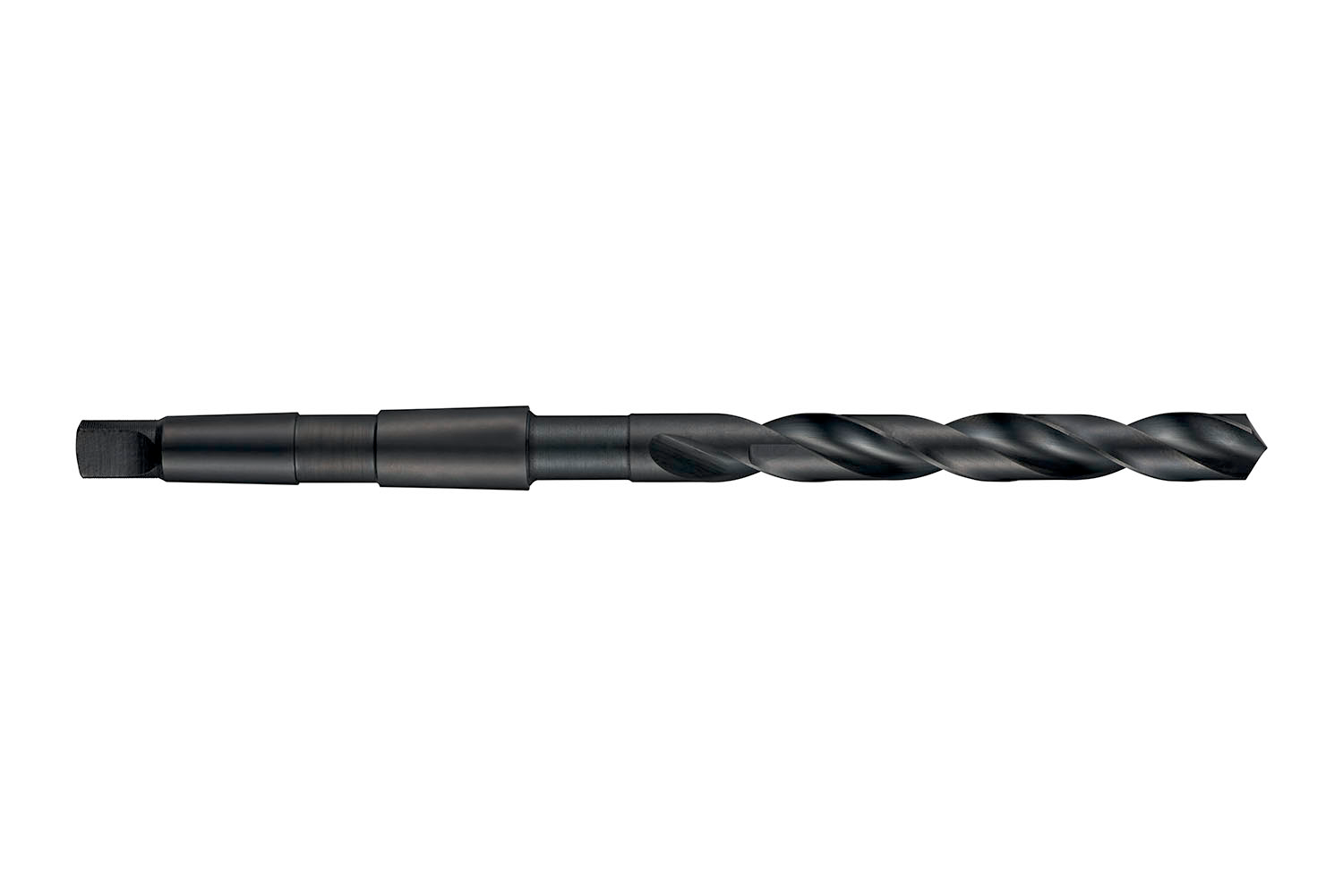

Jobber length drill with taper shank, diameter 15.25mm with an overall length of 218mm and flute length of 120mm according to DIN 345 standard with 118° thinned conical point, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.1353 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760022771
Product number (SAP): 86009646
Ordering code ANSI: A13015.25
Gross weight – grams: 240.3

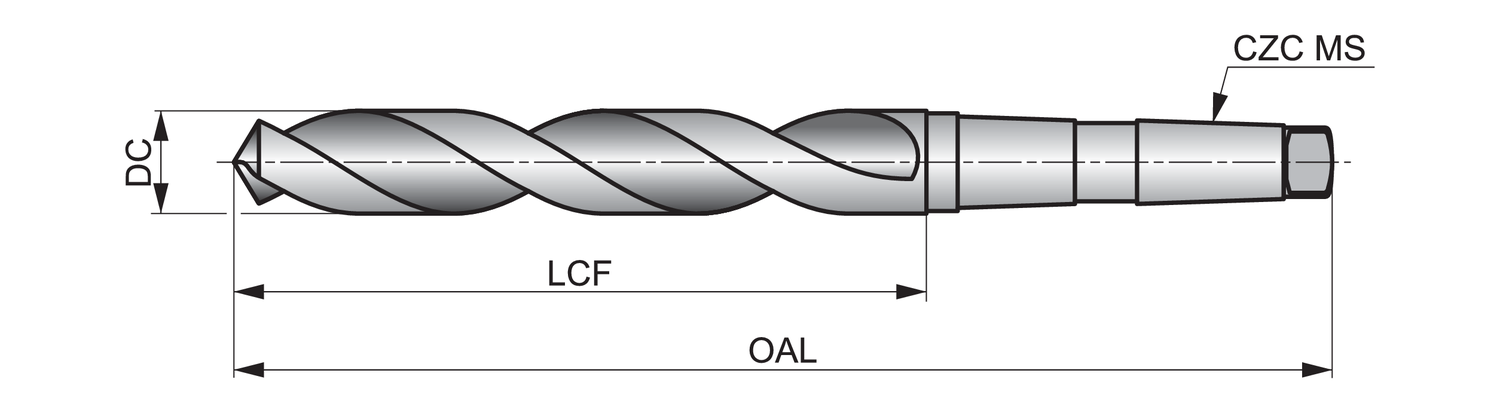

Cutting diameter – millimeter (DC): 15.25 mm
Cutting diameter – inch (DC): 0.6004 inch
Length chip flute – millimeter (LCF): 120 mm
Overall length – millimeter (OAL): 218 mm
Connection size code machine side (CZC MS): MK 2
Length chip flute – inch (LCF): 4.7244 inch
ISO: A13015.25

Brand

DORMER
