DORMER A13023/32 Taper Shank Drill

Product Code: A13023/32

$173.35$157.59 Ex. GST

Product Code: A13023/32 SKU A13023/32 Categories , ,

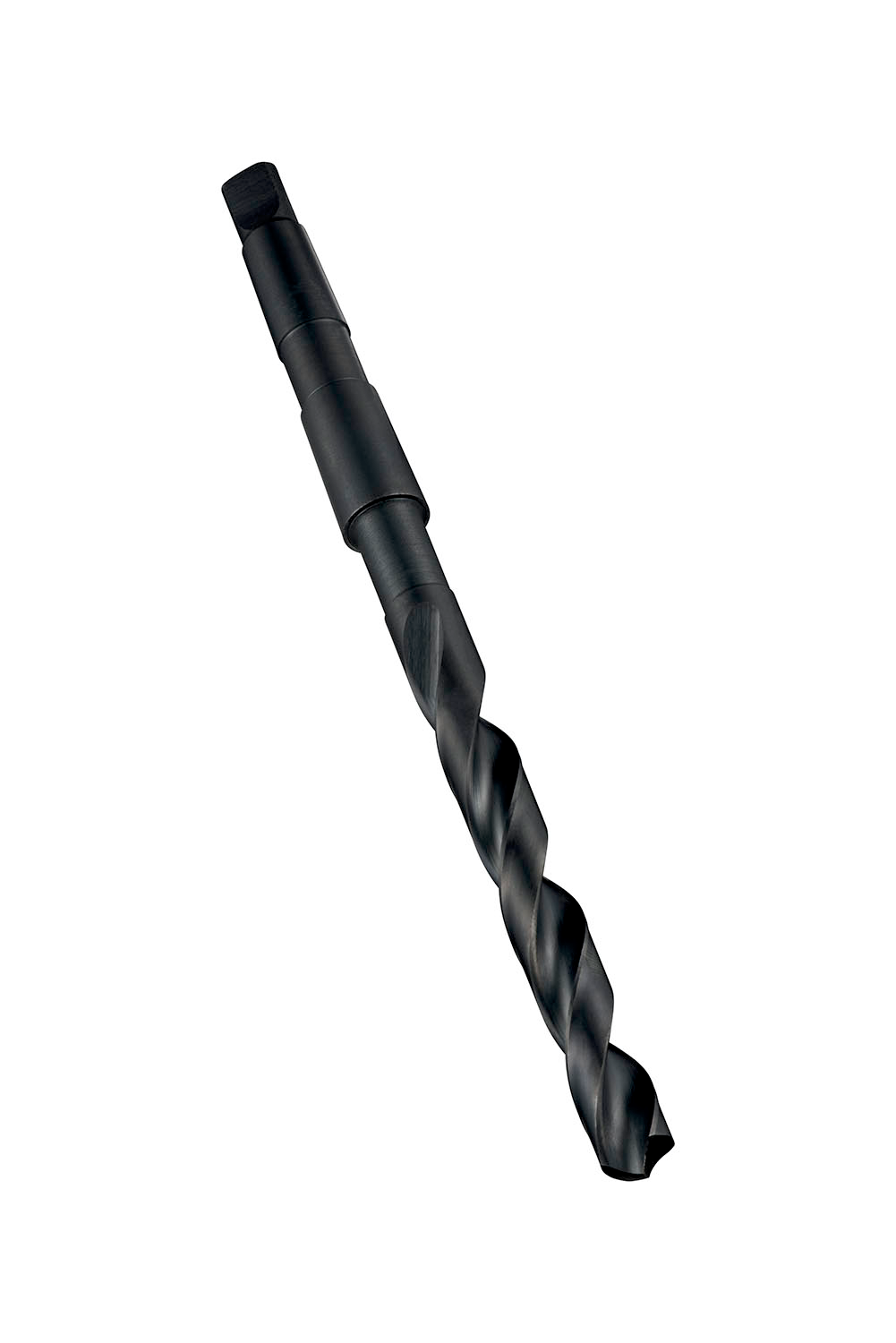

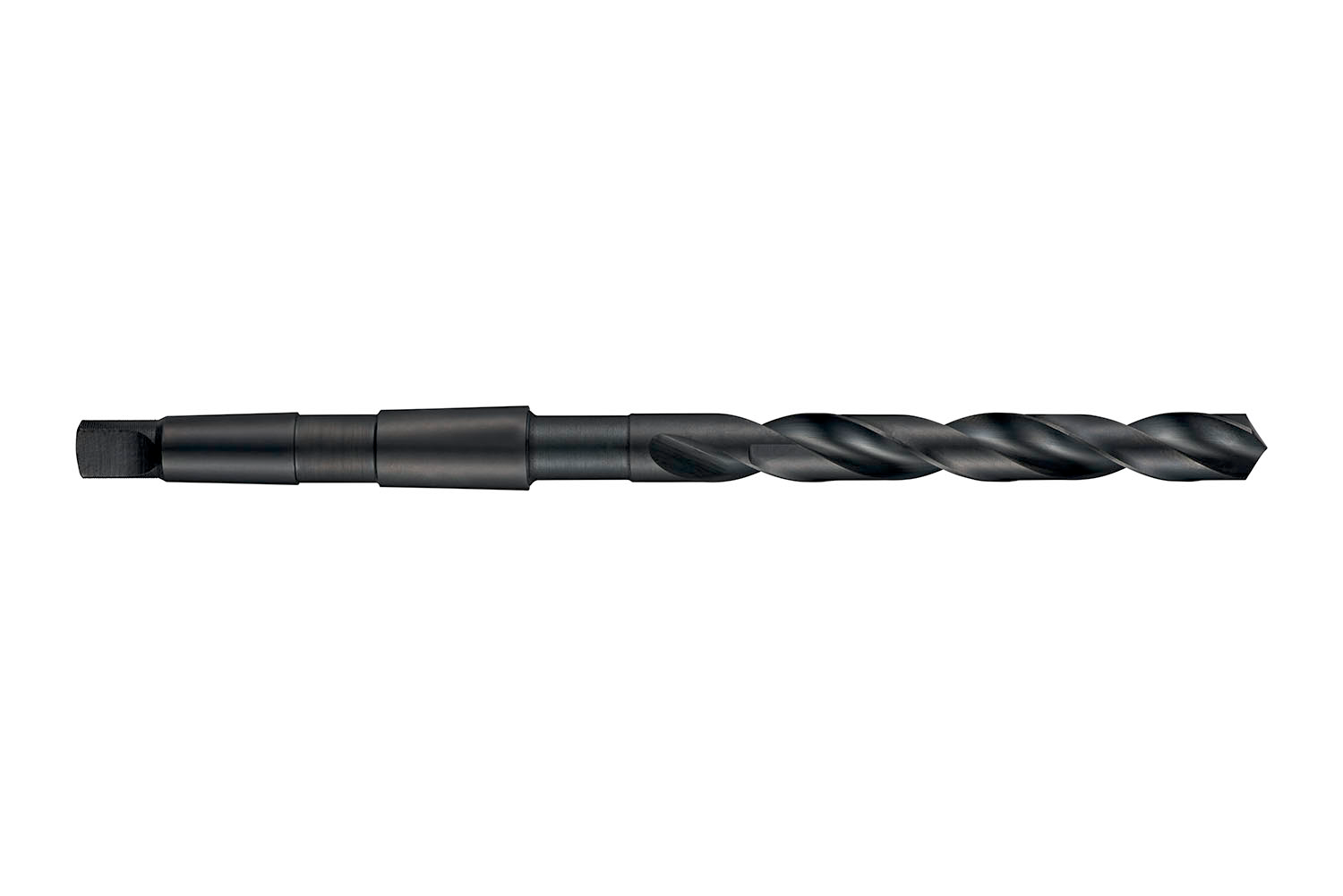

DORMER A13023/32 Taper Shank Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with taper shank, diameter 0.7188″ (23/32) with an overall length of 233mm and flute length of 135mm according to DIN 345 standard with 118° thinned conical point, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.1683 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760023938
Product number (SAP): 86009703
Ordering code ANSI: A13023/32
Gross weight – grams: 302.2

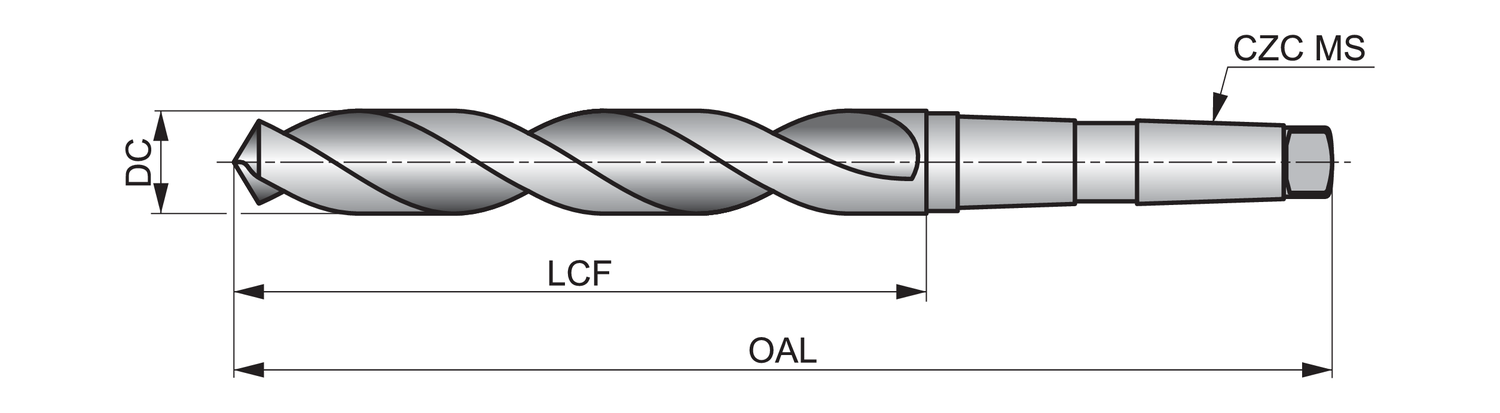

Cutting diameter – fractional inch (DC): 23/32
Cutting diameter – millimeter (DC): 18.26 mm
Cutting diameter – inch (DC): 0.7188 inch
Length chip flute – millimeter (LCF): 135 mm
Overall length – millimeter (OAL): 233 mm
Connection size code machine side (CZC MS): MK 2
Length chip flute – inch (LCF): 5.315 inch
ISO: A13023/32

Brand

DORMER
