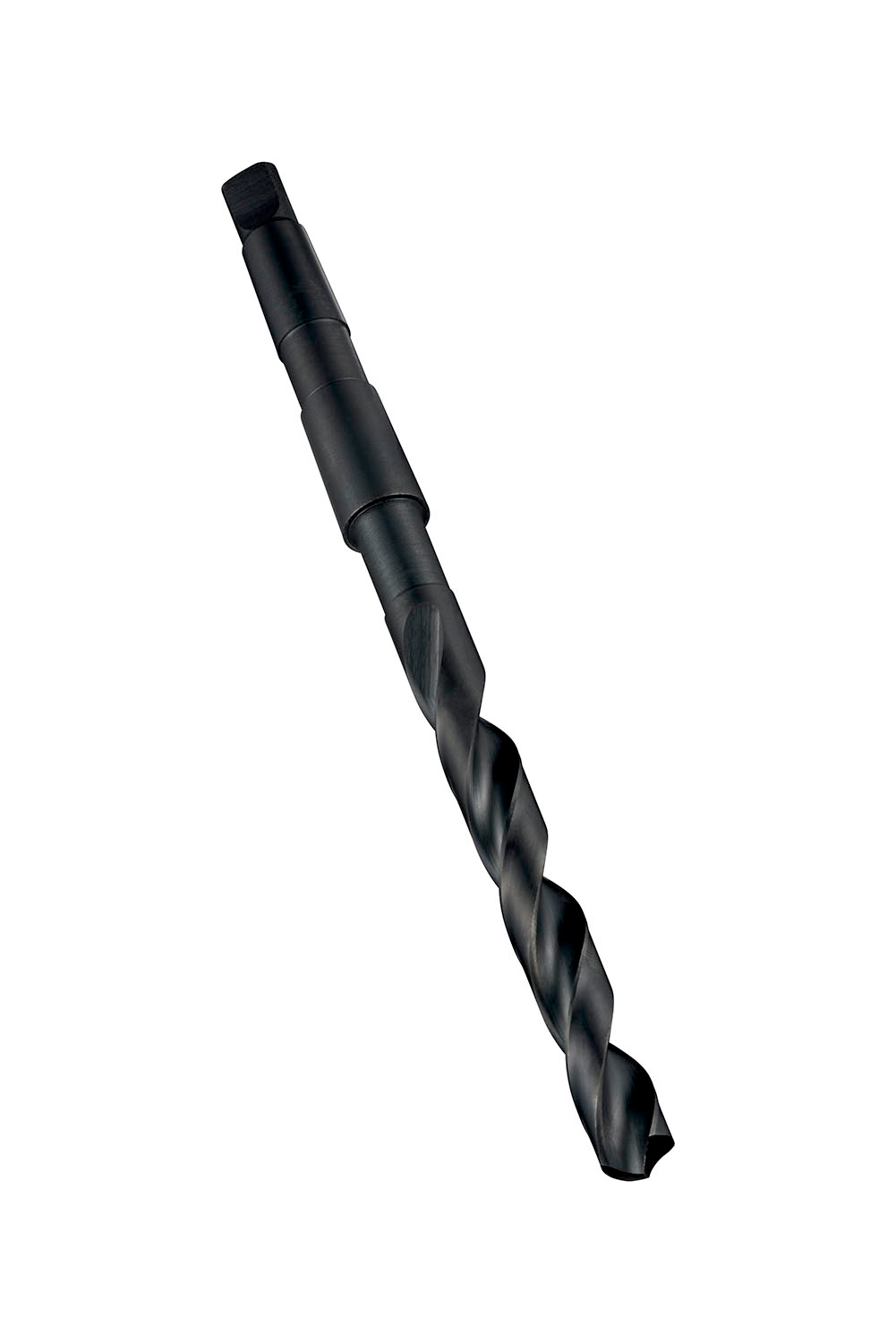

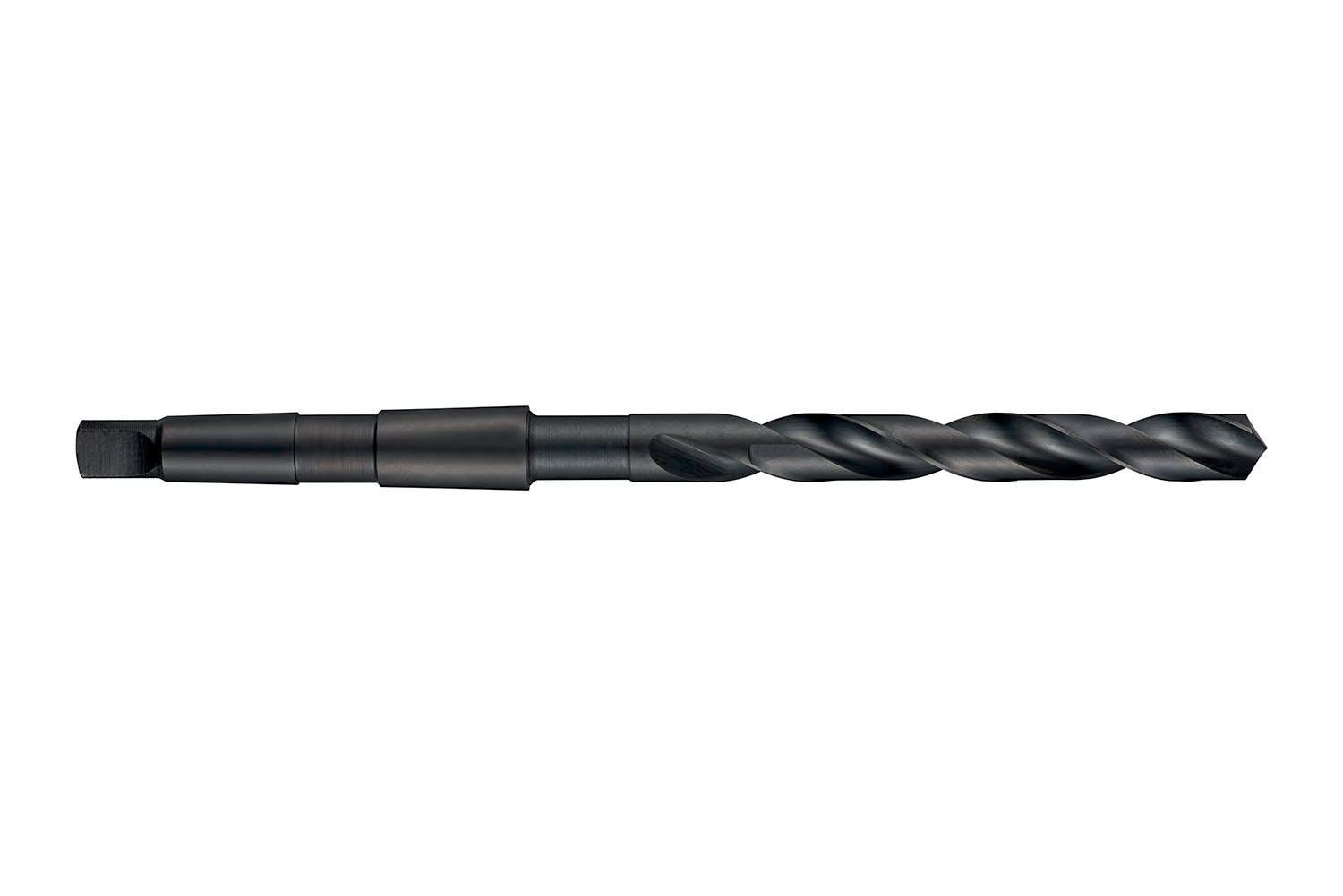

DORMER A13023.5 Taper Shank Drill

Product Code: A13023.5

$234.53$213.21 Ex. GST

Product Code: A13023.5 SKU A13023.5 Categories , ,
DORMER A13023.5 Taper Shank Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with taper shank, diameter 23.5mm with an overall length of 276mm and flute length of 155mm according to DIN 345 standard with 118° thinned conical point, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.2277 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760023914
Product number (SAP): 86009701
Ordering code ANSI: A13023.5
Gross weight – grams: 610.1

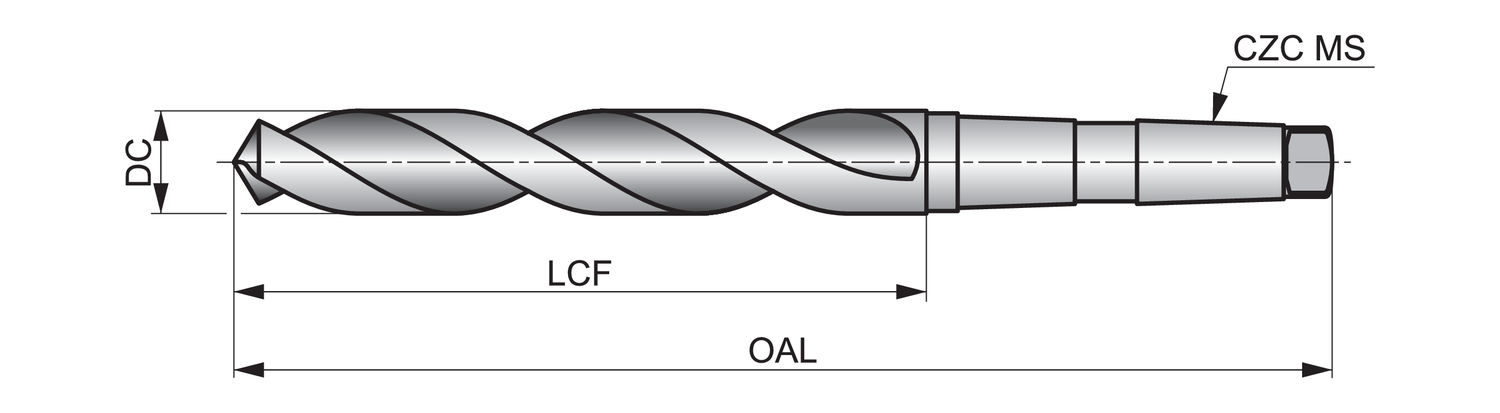

Cutting diameter – millimeter (DC): 23.5 mm
Cutting diameter – inch (DC): 0.9252 inch
Length chip flute – millimeter (LCF): 155 mm
Overall length – millimeter (OAL): 276 mm
Connection size code machine side (CZC MS): MK 3
Length chip flute – inch (LCF): 6.1024 inch
ISO: A13023.5

Brand

DORMER
