DORMER A13025/32 Taper Shank Drill

Product Code: A13025/32

$201.67$183.34 Ex. GST

Product Code: A13025/32 SKU A13025/32 Categories , ,

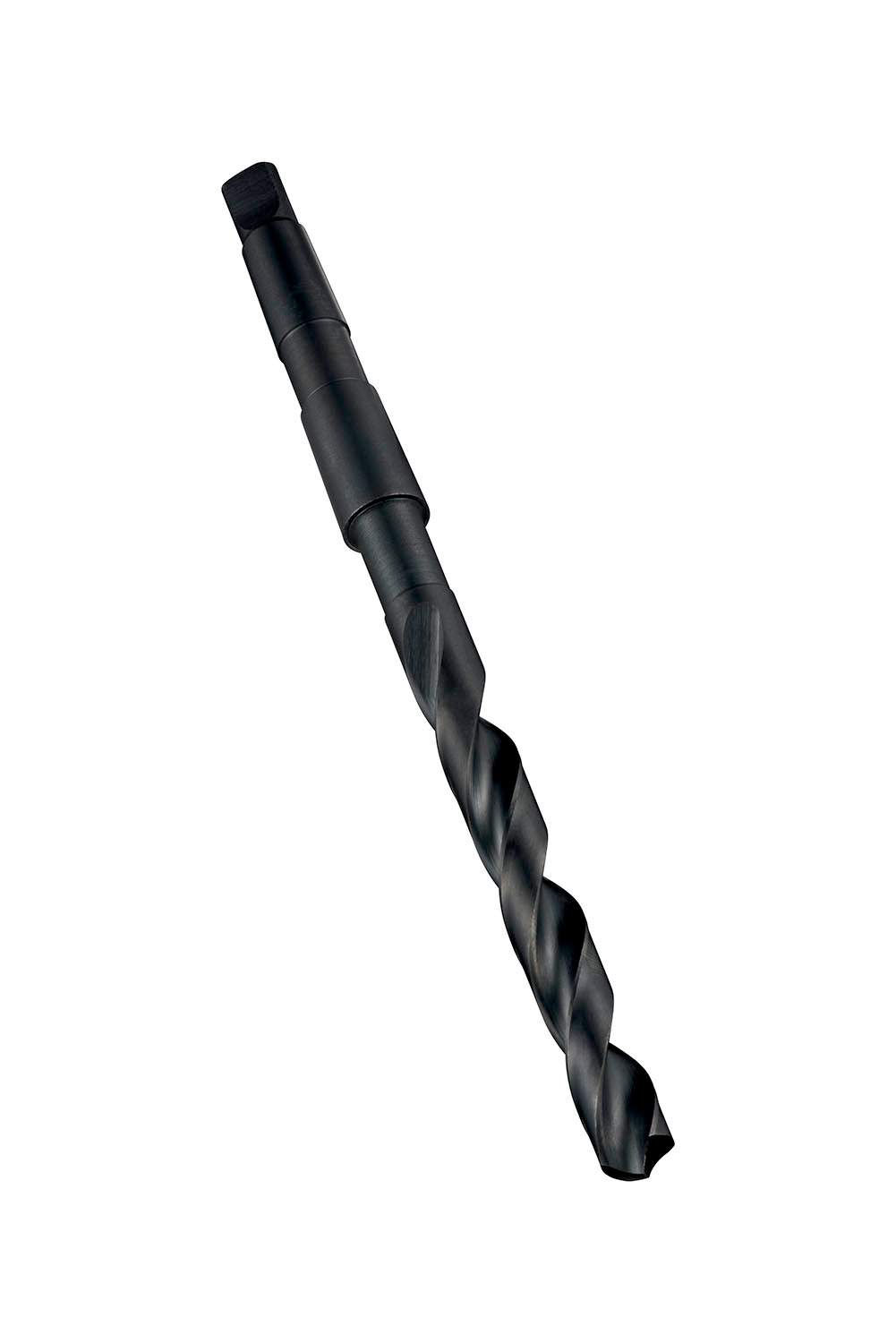

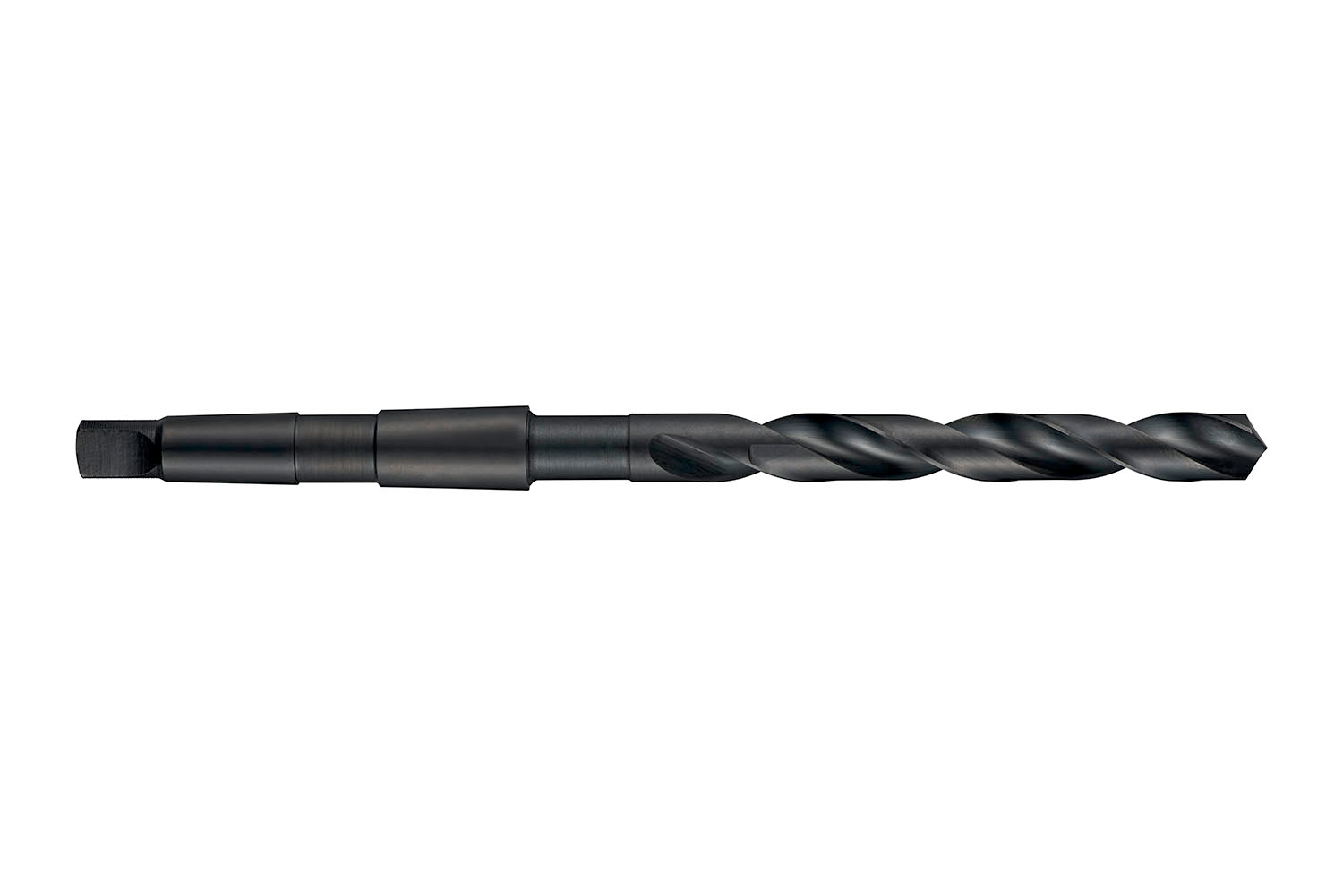

DORMER A13025/32 Taper Shank Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with taper shank, diameter 0.7813″ (25/32) with an overall length of 238mm and flute length of 140mm according to DIN 345 standard with 118° thinned conical point, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.1958 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760024034
Product number (SAP): 86009713
Ordering code ANSI: A13025/32
Gross weight – grams: 358.8

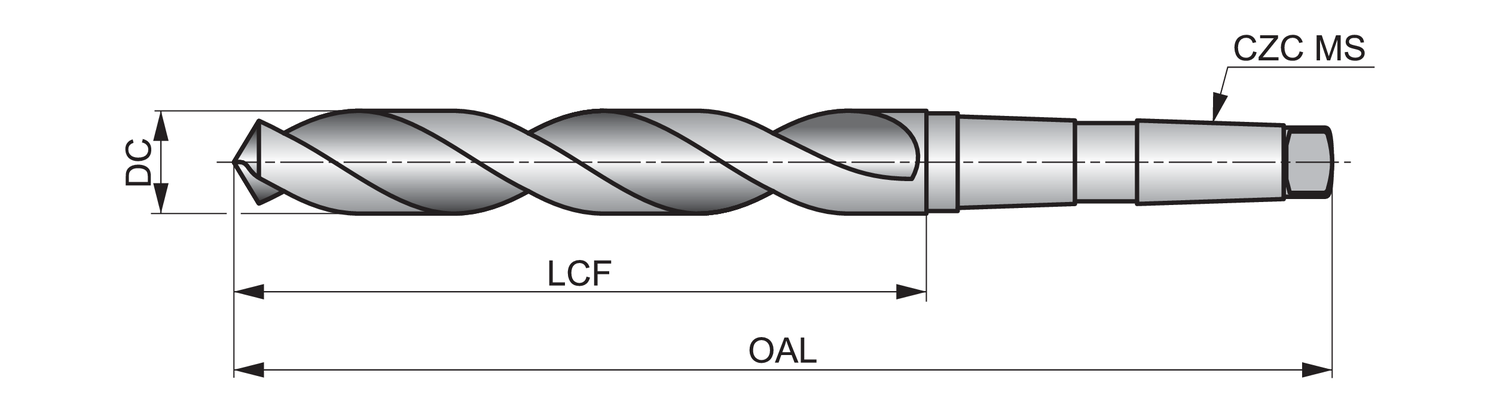

Cutting diameter – fractional inch (DC): 25/32
Cutting diameter – millimeter (DC): 19.84 mm
Cutting diameter – inch (DC): 0.7813 inch
Length chip flute – millimeter (LCF): 140 mm
Overall length – millimeter (OAL): 238 mm
Connection size code machine side (CZC MS): MK 2
Length chip flute – inch (LCF): 5.5118 inch
ISO: A13025/32

Brand

DORMER
