DORMER A1303/4 Taper Shank Drill

Product Code: A1303/4

$147.29$133.90 Ex. GST

Product Code: A1303/4 SKU A1303/4 Categories , ,

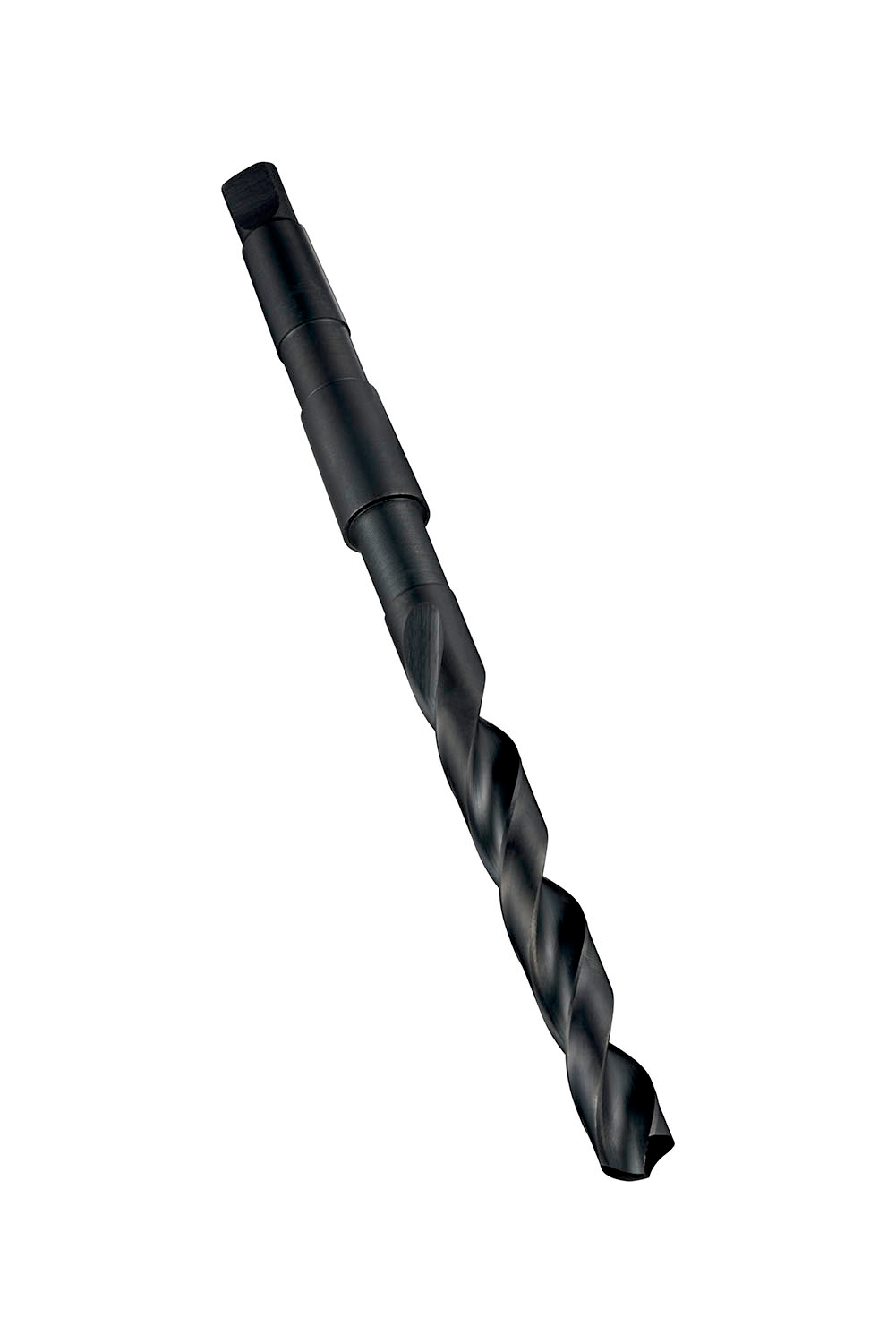

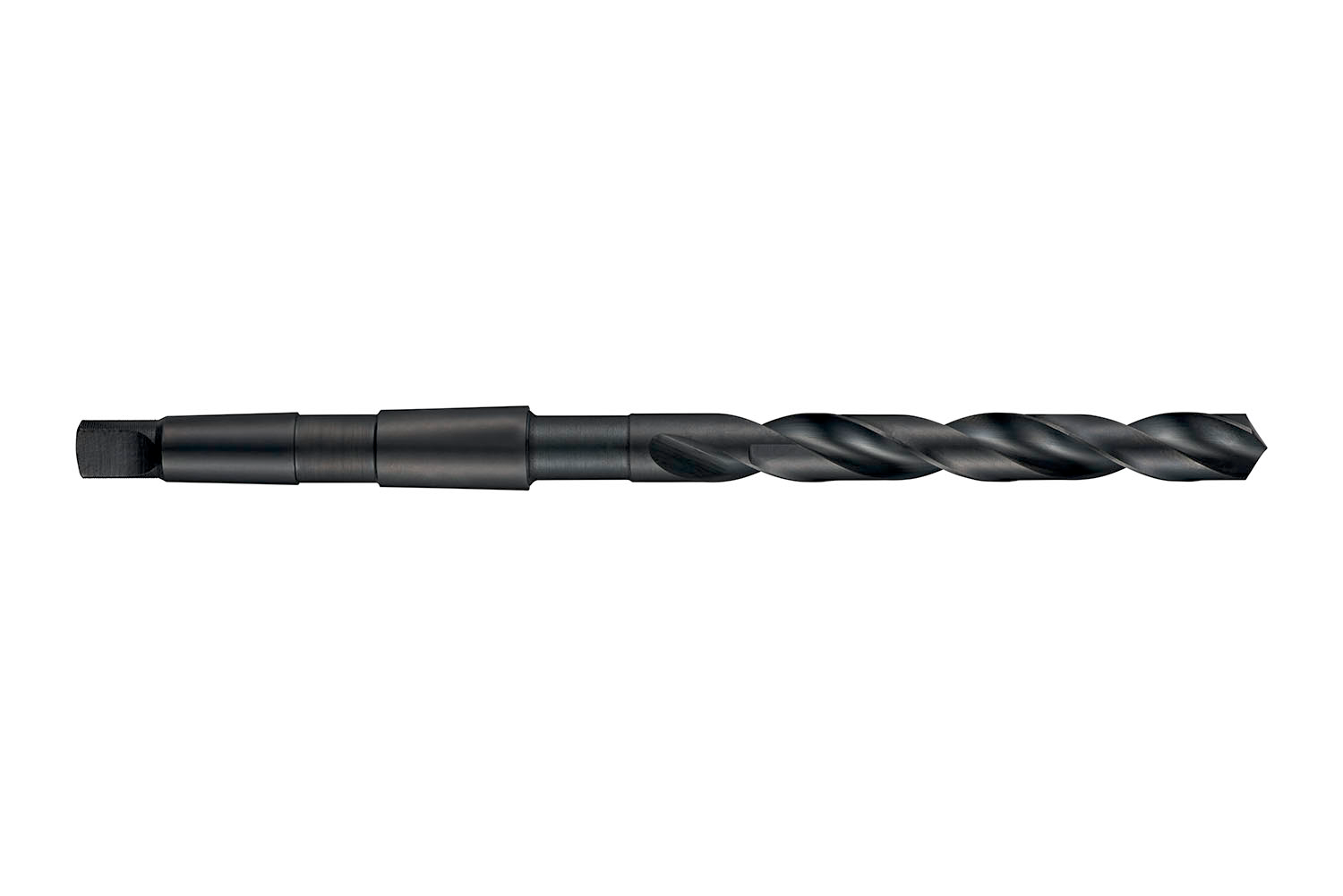

DORMER A1303/4 Taper Shank Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with taper shank, diameter 0.7500″ (3/4) with an overall length of 238mm and flute length of 140mm according to DIN 345 standard with 118° thinned conical point, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.1430 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760024515
Product number (SAP): 86009743
Ordering code ANSI: A1303/4
Gross weight – grams: 322

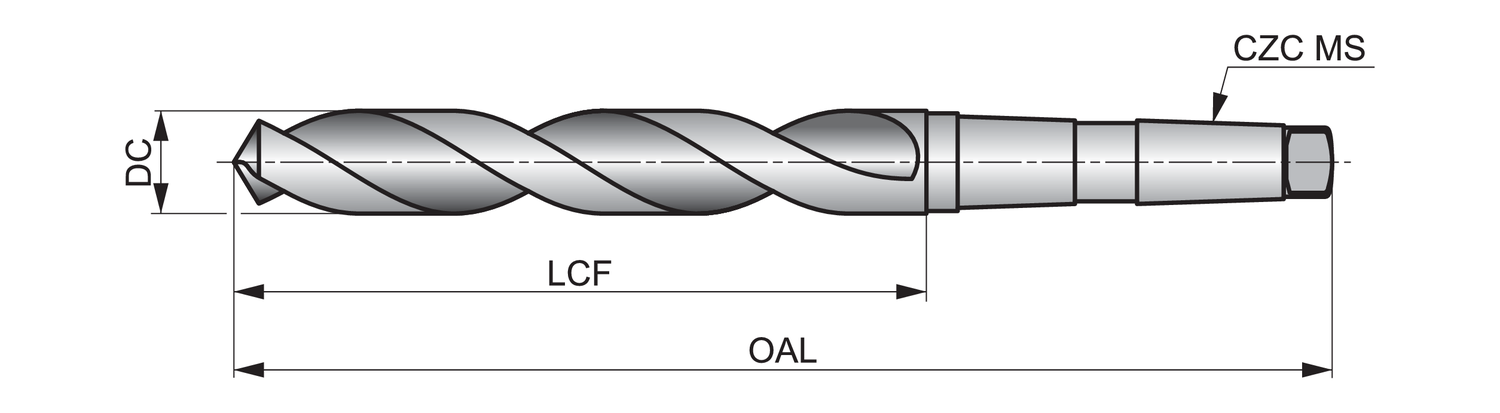

Cutting diameter – fractional inch (DC): 3/4
Cutting diameter – millimeter (DC): 19.05 mm
Cutting diameter – inch (DC): 0.75 inch
Length chip flute – millimeter (LCF): 140 mm
Overall length – millimeter (OAL): 238 mm
Connection size code machine side (CZC MS): MK 2
Length chip flute – inch (LCF): 5.5118 inch
ISO: A1303/4

Brand

DORMER
