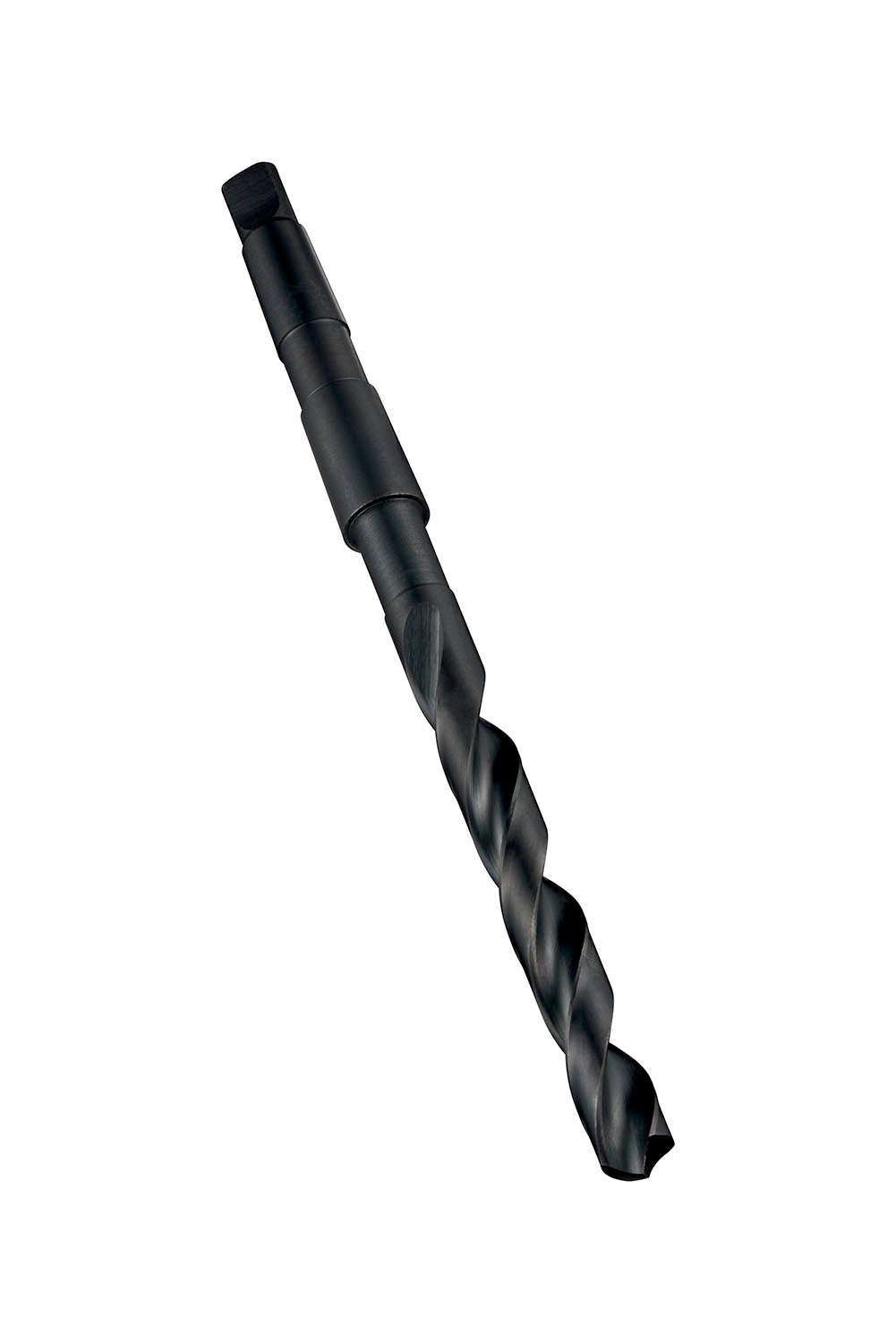

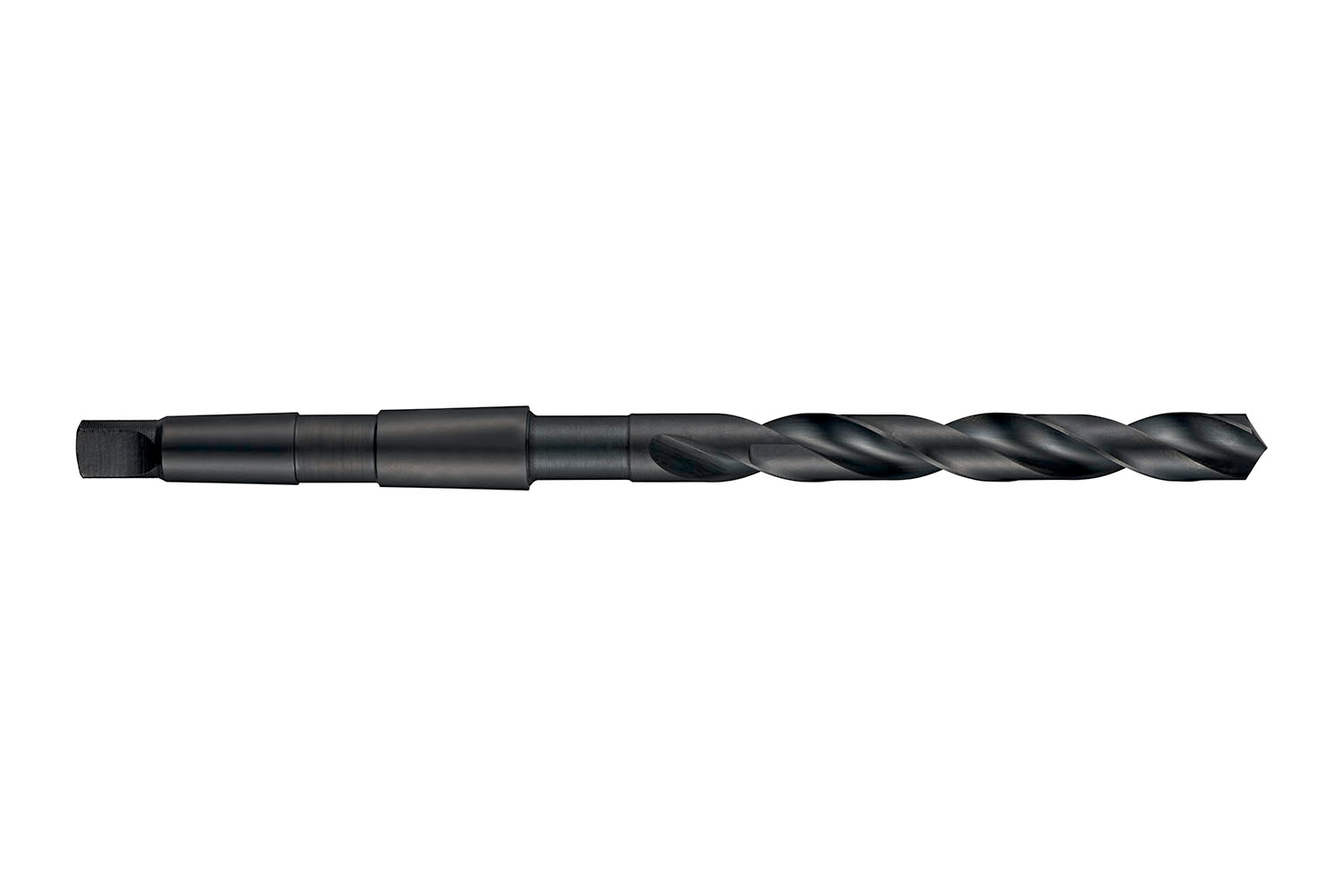

DORMER A1309/16 Taper Shank Drill

Product Code: A1309/16

$93.48$84.98 Ex. GST

Product Code: A1309/16 SKU A1309/16 Categories , ,
DORMER A1309/16 Taper Shank Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with taper shank, diameter 0.5625″ (9/16) with an overall length of 212mm and flute length of 114mm according to DIN 345 standard with 118° thinned conical point, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0908 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760026168
Product number (SAP): 86009910
Ordering code ANSI: A1309/16
Gross weight – grams: 224.9

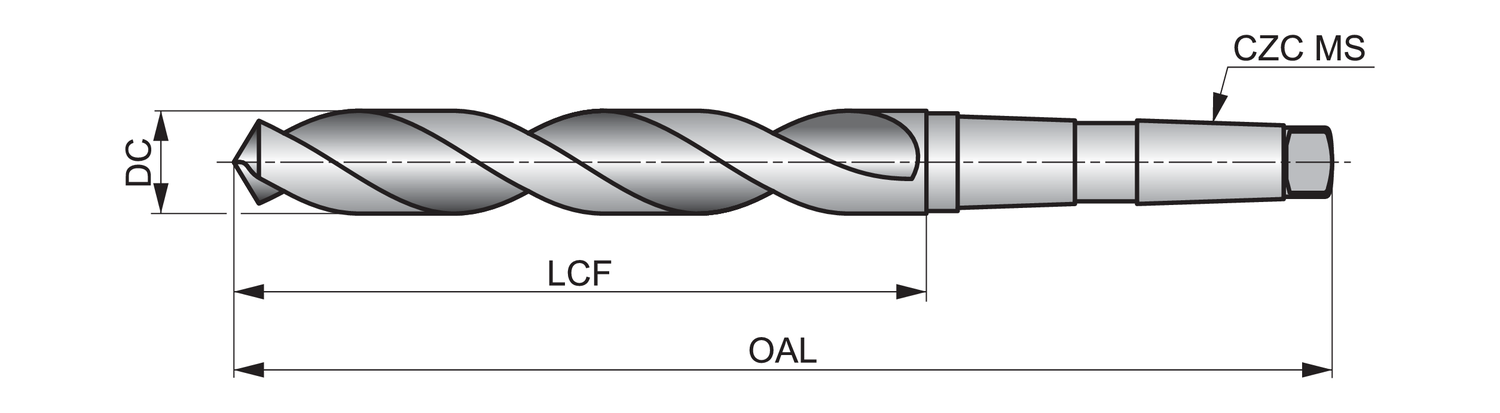

Cutting diameter – fractional inch (DC): 9/16
Cutting diameter – millimeter (DC): 14.29 mm
Cutting diameter – inch (DC): 0.5625 inch
Length chip flute – millimeter (LCF): 114 mm
Overall length – millimeter (OAL): 212 mm
Connection size code machine side (CZC MS): MK 2
Length chip flute – inch (LCF): 4.4882 inch
ISO: A1309/16

Brand

DORMER
