DORMER A1309/32 Taper Shank Drill

Product Code: A1309/32

$62.32$56.65 Ex. GST

Product Code: A1309/32 SKU A1309/32 Categories , ,
DORMER A1309/32 Taper Shank Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

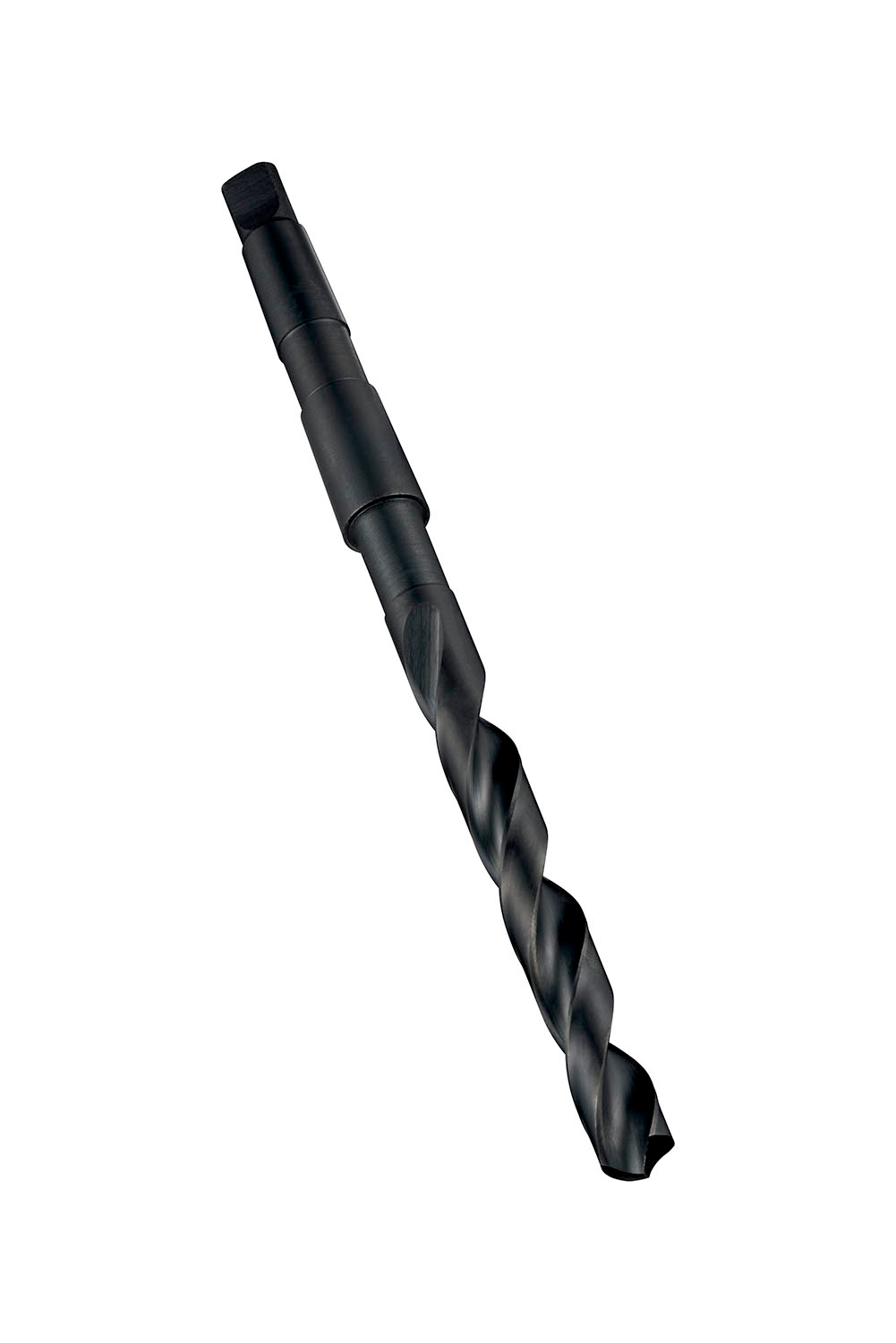

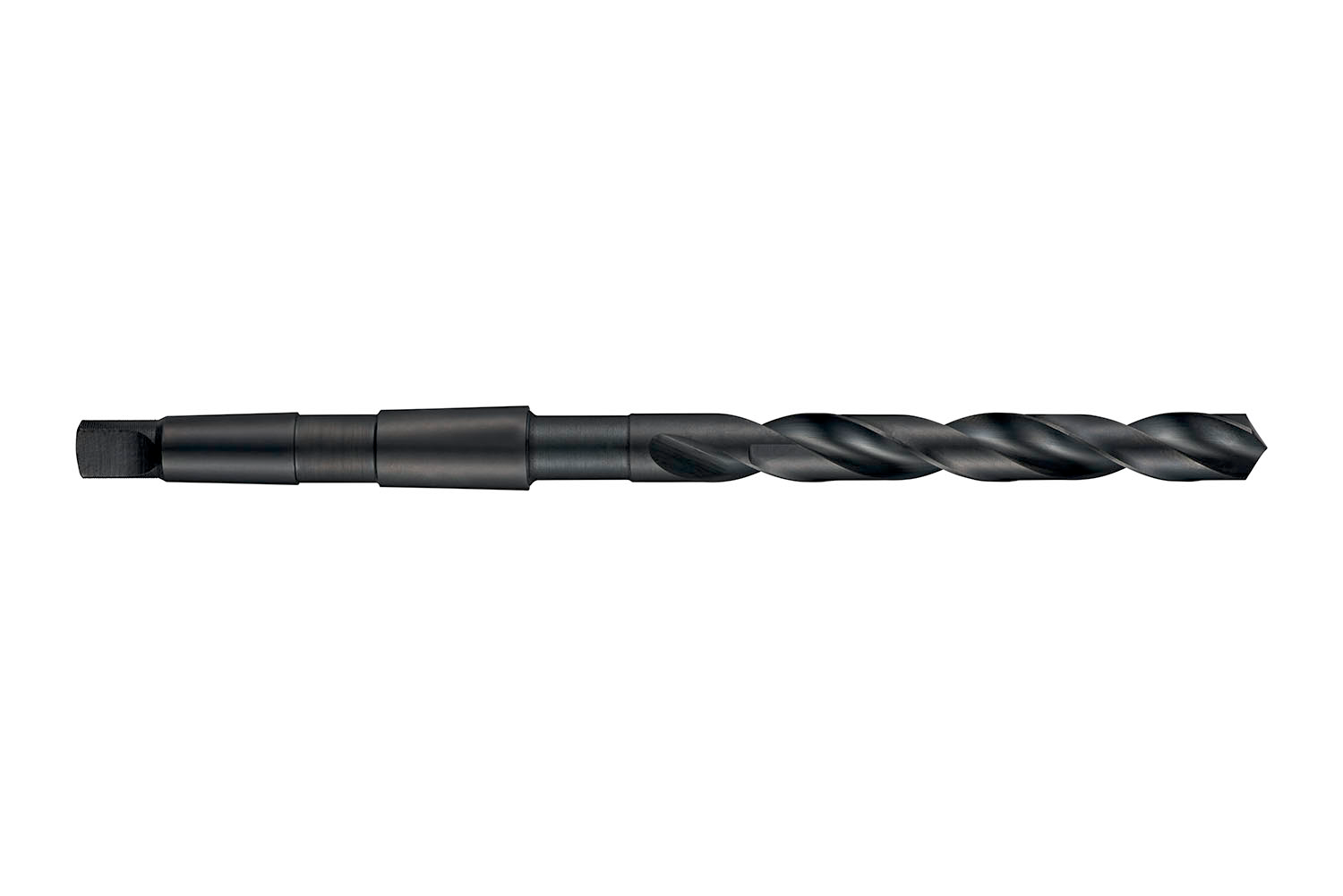

Jobber length drill with taper shank, diameter 0.2813″ (9/32) with an overall length of 150mm and flute length of 69mm according to DIN 345 standard with 118° thinned conical point, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0605 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760026175
Product number (SAP): 86009911
Ordering code ANSI: A1309/32
Gross weight – grams: 72.973

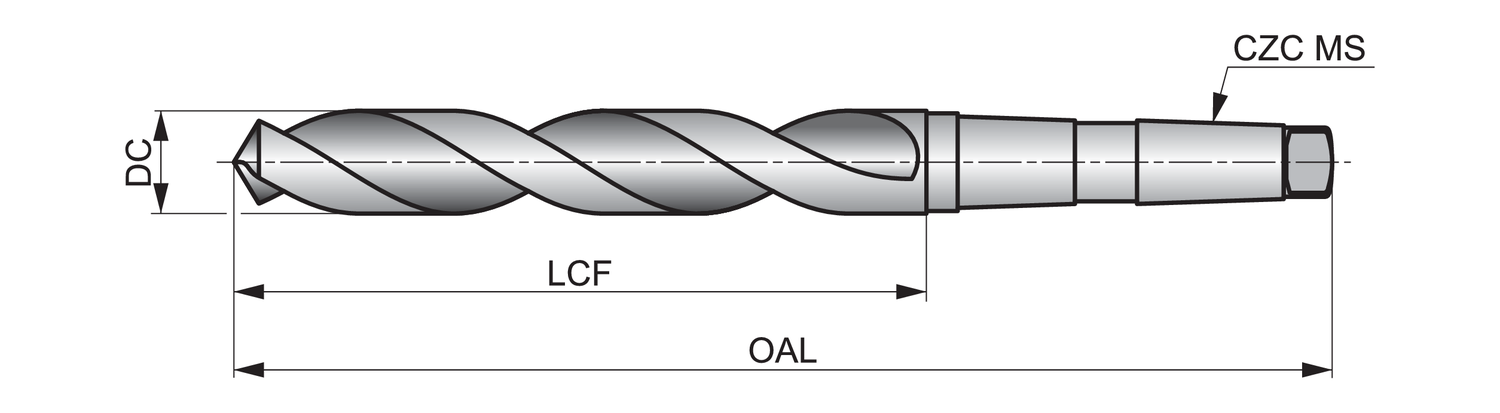

Cutting diameter – fractional inch (DC): 9/32
Cutting diameter – millimeter (DC): 7.14 mm
Cutting diameter – inch (DC): 0.2813 inch
Length chip flute – millimeter (LCF): 69 mm
Overall length – millimeter (OAL): 150 mm
Connection size code machine side (CZC MS): MK 1
Length chip flute – inch (LCF): 2.7165 inch
ISO: A1309/32

Brand

DORMER
