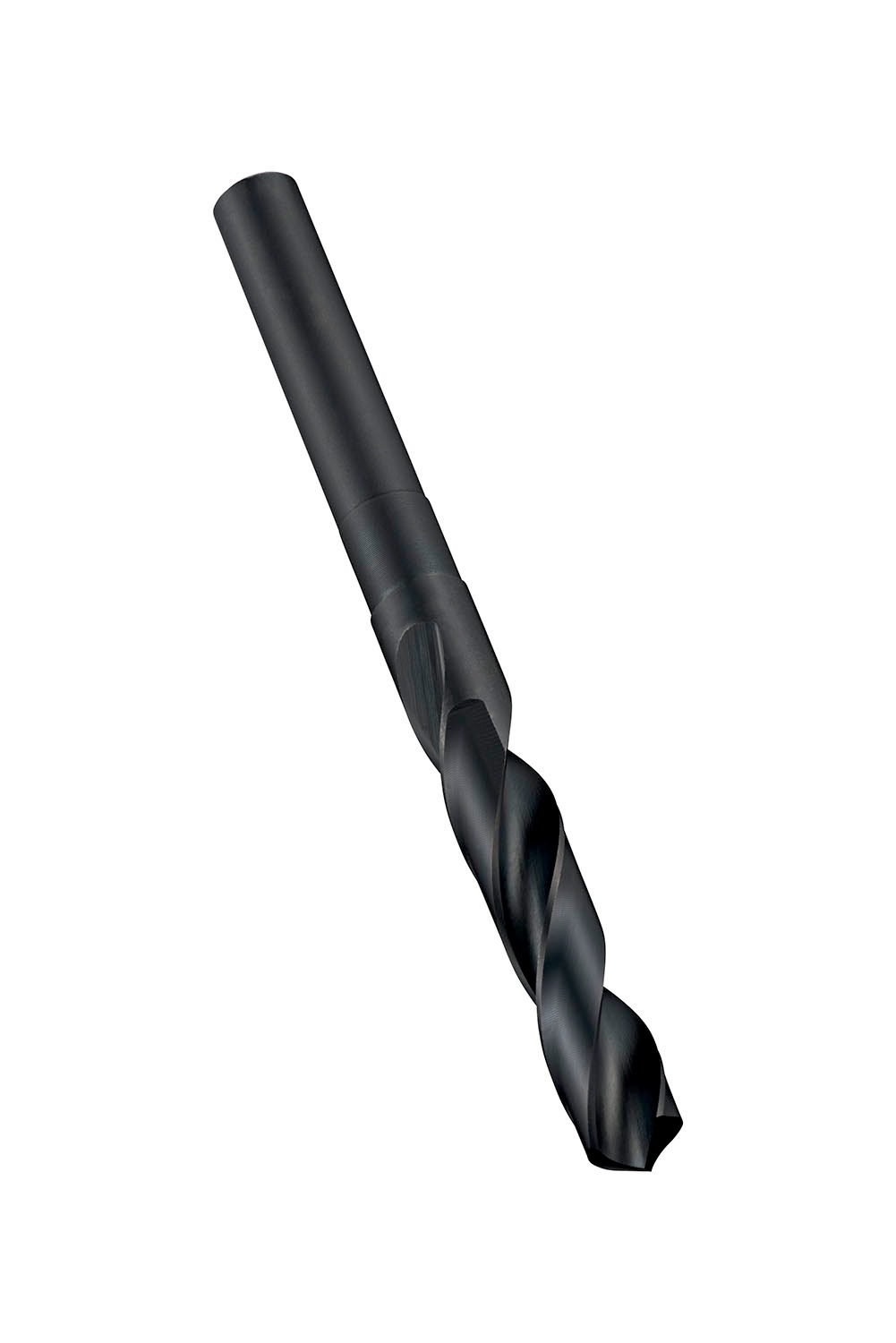

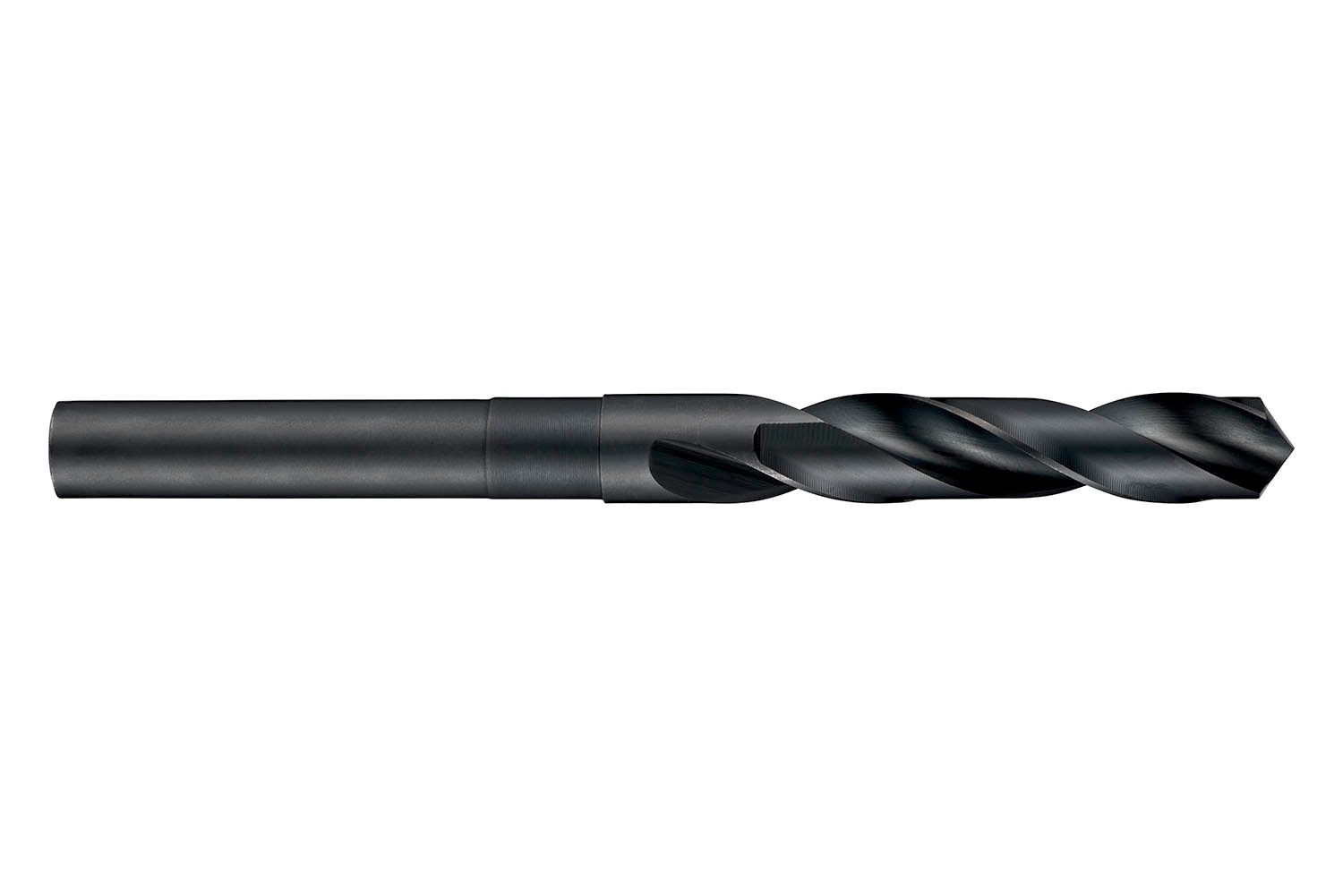

DORMER A17013/16 HSS-E Jobber Drill

Product Code: A17013/16

$208.47$189.52 Ex. GST

Product Code: A17013/16 SKU A17013/16 Categories , ,
DORMER A17013/16 HSS-E Jobber Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Standard length drill with 1/2″ reduced straight shank, diameter 0.8125″ (13/16) with an overall length of 6″ and flute length of 3″ according to DORMER standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.2024 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760030189
Product number (SAP): 86009994
Ordering code ANSI: A17013/16
Gross weight – grams: 224.7

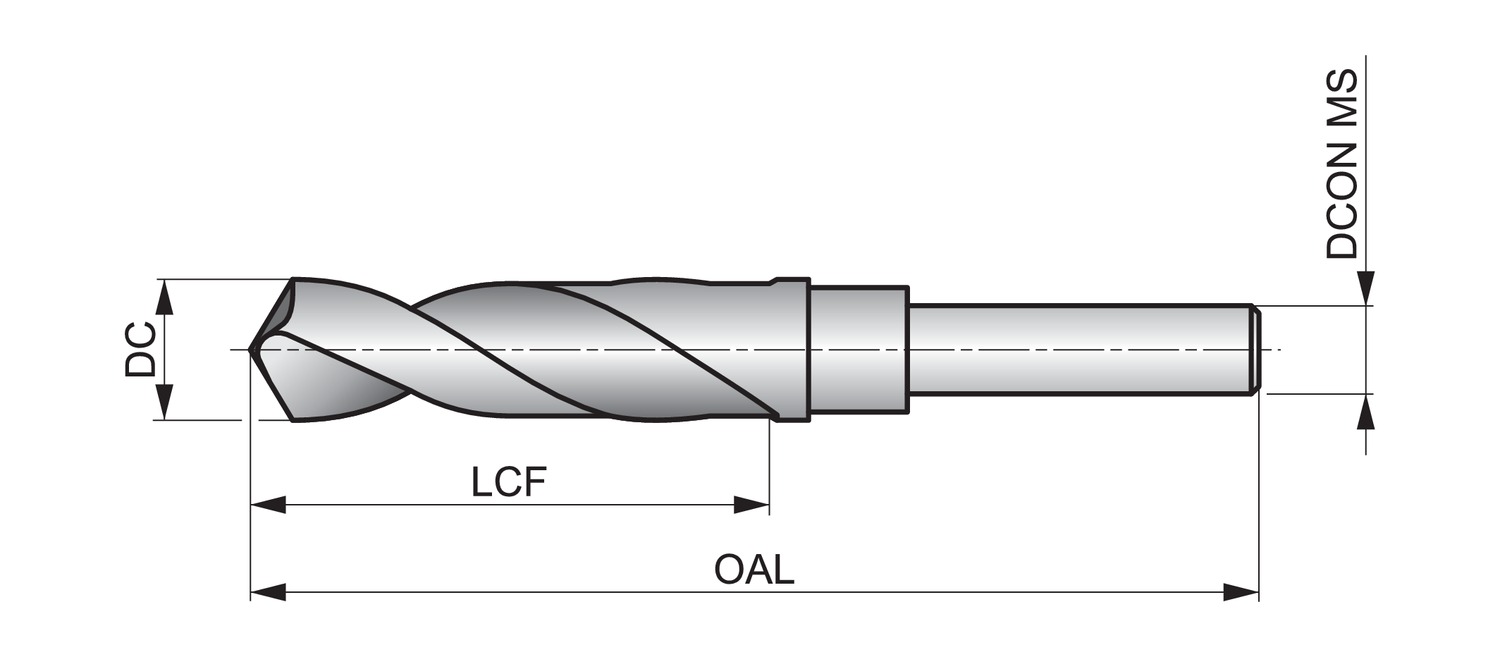

Cutting diameter – fractional inch (DC): 13/16
Cutting diameter – millimeter (DC): 20.64 mm
Cutting diameter – inch (DC): 0.8125 inch
Length chip flute – fractional inch (LCF): 3"
Overall length – fractional inch (OAL): 6"
Length chip flute – millimeter (LCF): 76.2 mm
Overall length – millimeter (OAL): 152.4 mm
Connection diameter – millimeter (DCON MS): 12.7 mm
Length chip flute – inch (LCF): 3 inch
ISO: A17013/16

Brand

DORMER
