DORMER A17039/64 HSS-E Jobber Drill

Product Code: A17039/64

$148.42$134.93 Ex. GST

Product Code: A17039/64 SKU A17039/64 Categories , ,

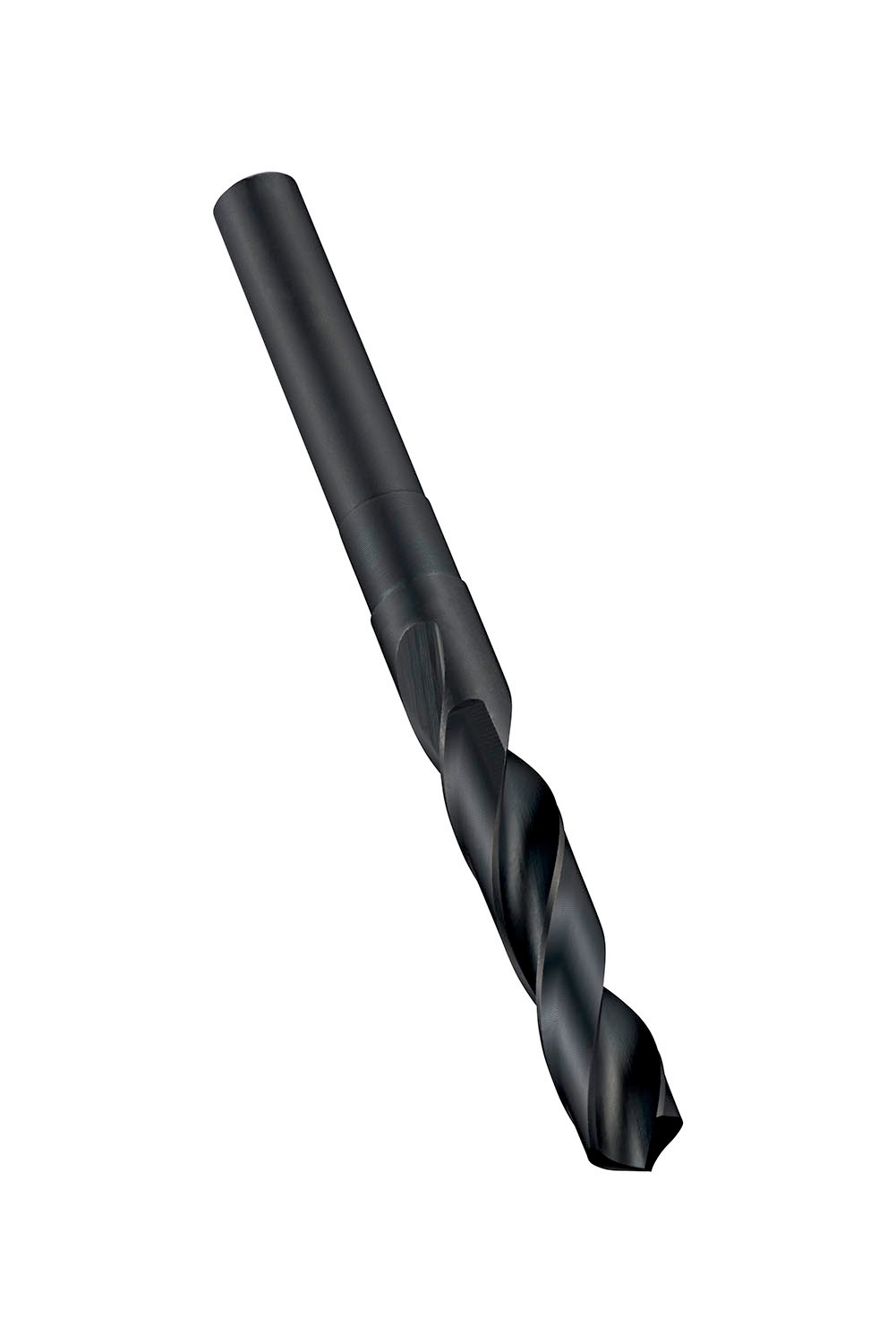

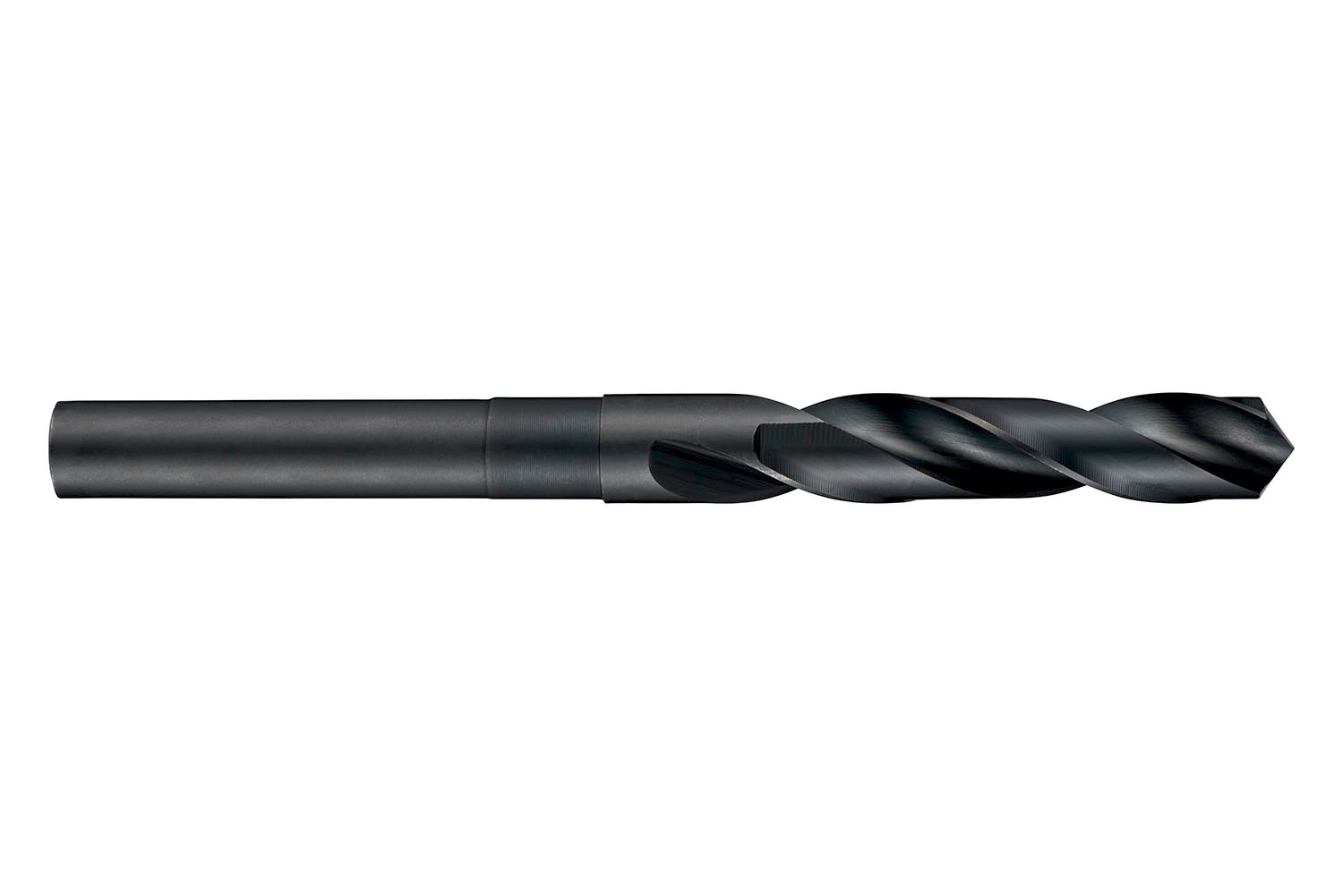

DORMER A17039/64 HSS-E Jobber Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Standard length drill with 1/2″ reduced straight shank, diameter 0.6094″ (39/64) with an overall length of 6″ and flute length of 3.1/8″ according to DORMER standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.1441 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760121900
Product number (SAP): 86010026
Ordering code ANSI: A17039/64
Gross weight – grams: 150

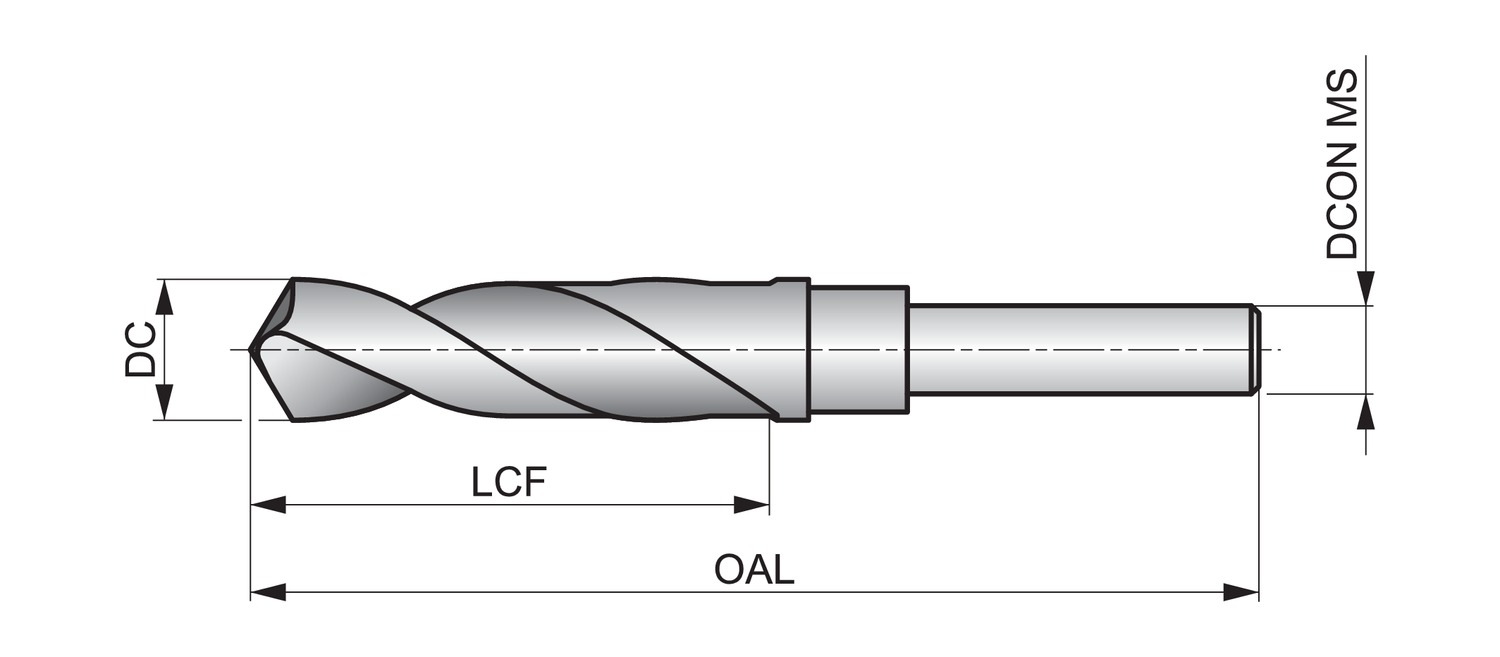

Cutting diameter – fractional inch (DC): 39/64
Cutting diameter – millimeter (DC): 15.48 mm
Cutting diameter – inch (DC): 0.6094 inch
Length chip flute – fractional inch (LCF): 3.1/8
Overall length – fractional inch (OAL): 6"
Length chip flute – millimeter (LCF): 79.4 mm
Overall length – millimeter (OAL): 152.4 mm
Connection diameter – millimeter (DCON MS): 12.7 mm
Length chip flute – inch (LCF): 3.125 inch
ISO: A17039/64
