DORMER A17049/64 HSS-E Jobber Drill

Product Code: A17049/64

$185.81$168.92 Ex. GST

Product Code: A17049/64 SKU A17049/64 Categories , ,

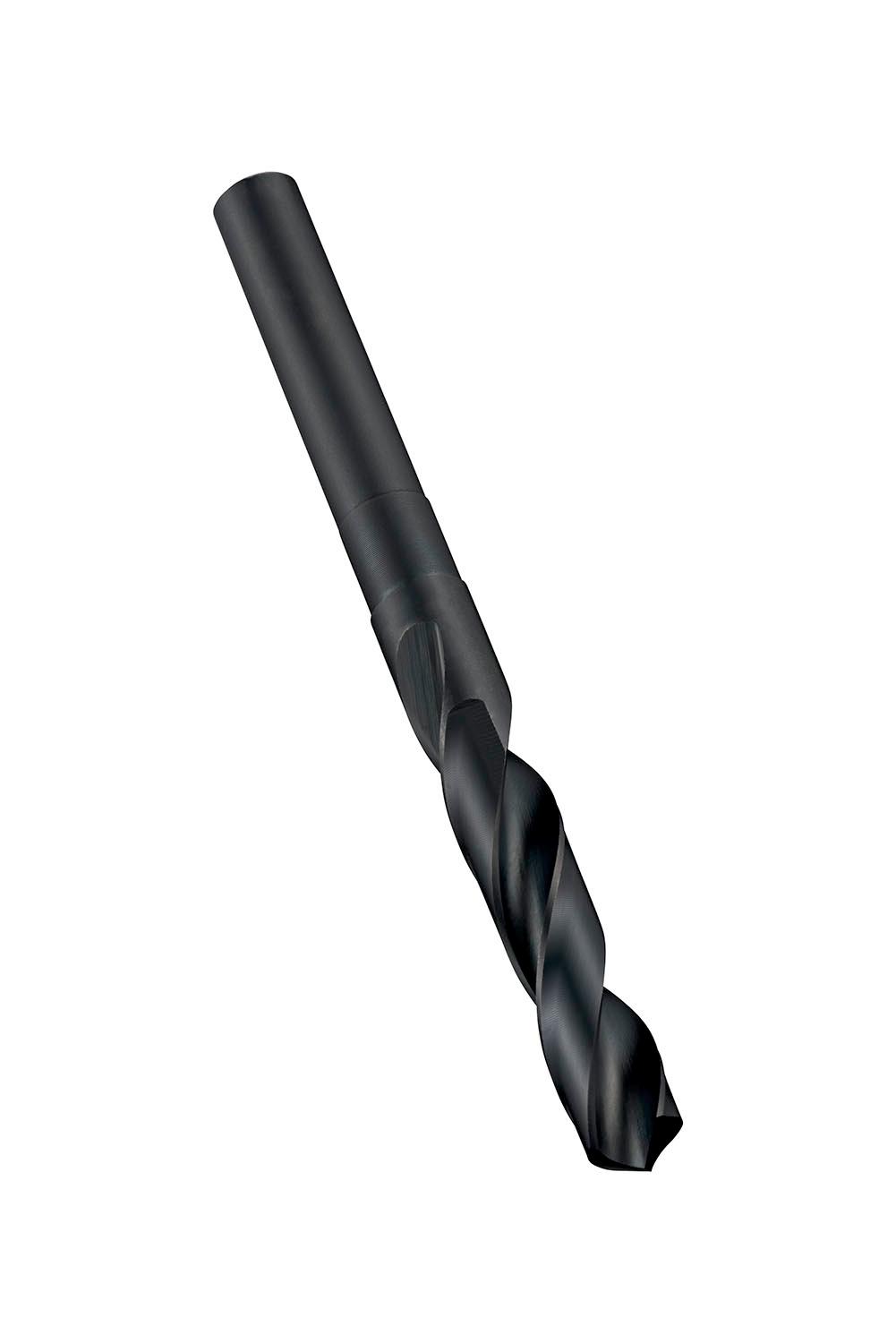

DORMER A17049/64 HSS-E Jobber Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Standard length drill with 1/2″ reduced straight shank, diameter 0.7656″ (49/64) with an overall length of 6″ and flute length of 3″ according to DORMER standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.1804 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760121931
Product number (SAP): 86010031
Ordering code ANSI: A17049/64
Gross weight – grams: 203

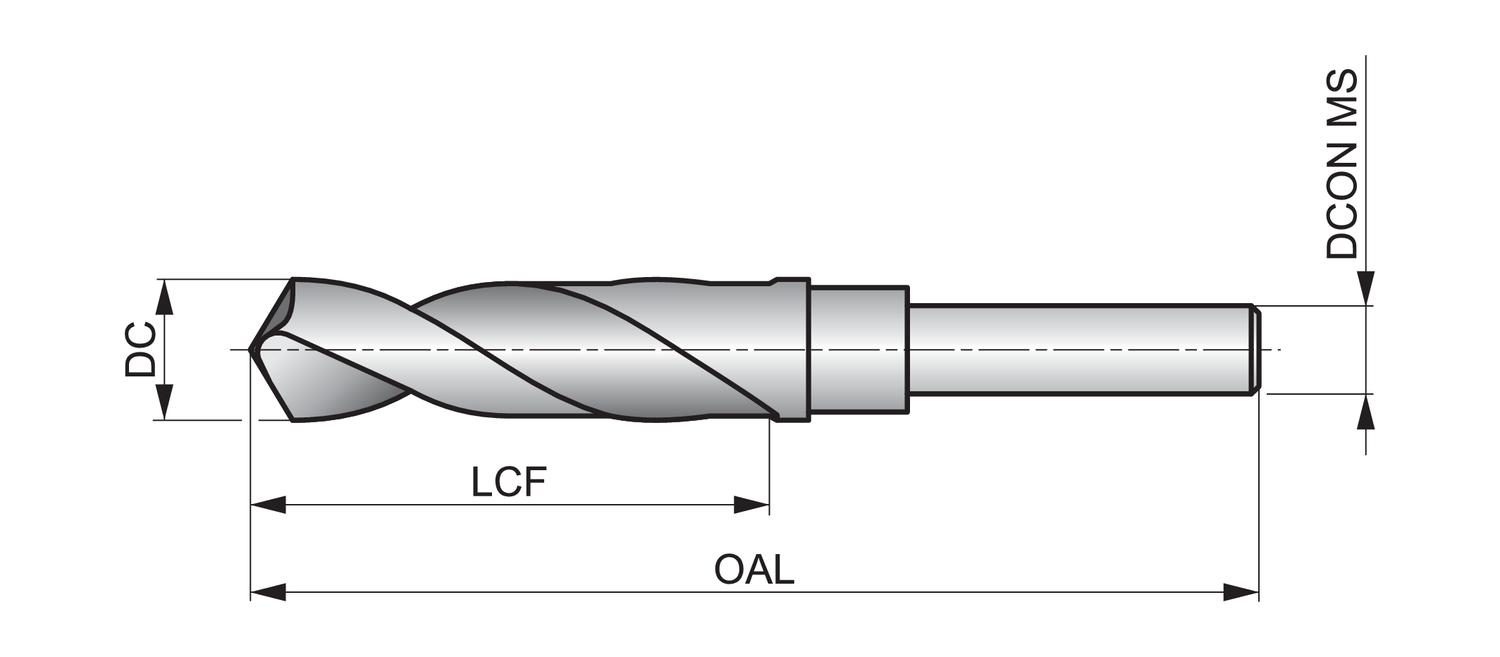

Cutting diameter – fractional inch (DC): 49/64
Cutting diameter – millimeter (DC): 19.45 mm
Cutting diameter – inch (DC): 0.7656 inch
Length chip flute – fractional inch (LCF): 3"
Overall length – fractional inch (OAL): 6"
Length chip flute – millimeter (LCF): 76.2 mm
Overall length – millimeter (OAL): 152.4 mm
Connection diameter – millimeter (DCON MS): 12.7 mm
Length chip flute – inch (LCF): 3 inch
ISO: A17049/64

Brand

DORMER
