DORMER A1705/8 HSS-E Jobber Drill

Product Code: A1705/8

$108.77$98.88 Ex. GST

Product Code: A1705/8 SKU A1705/8 Categories , ,

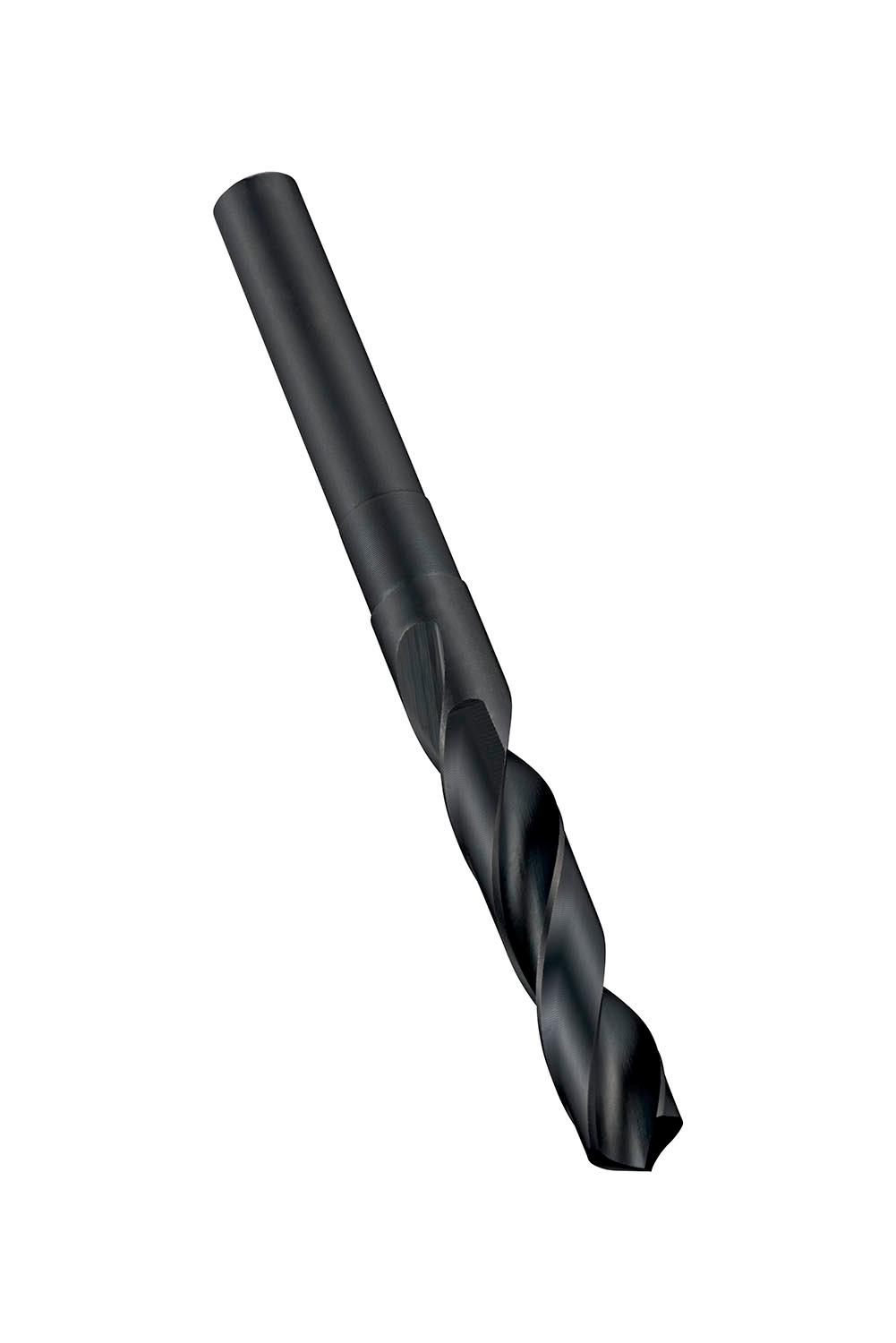

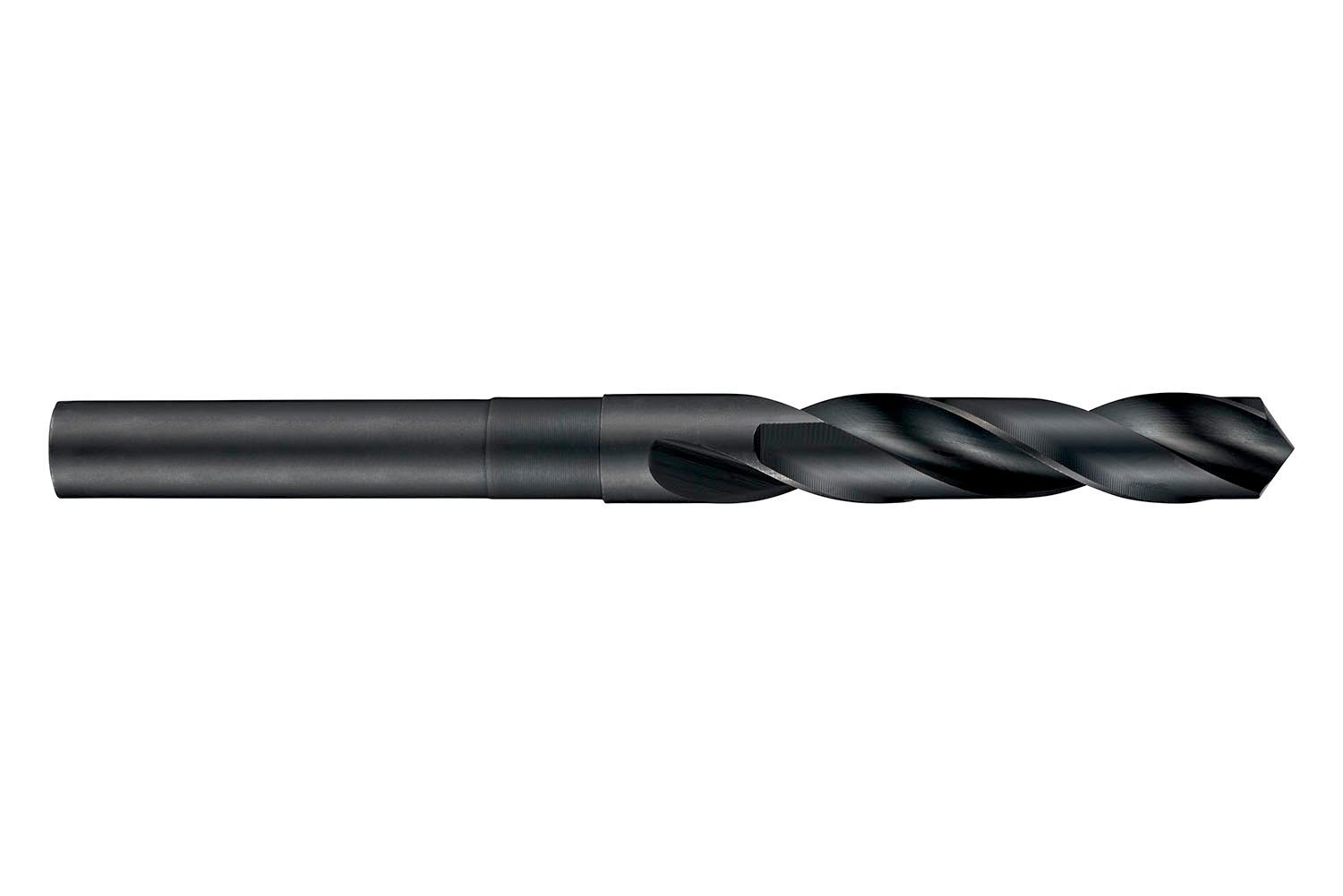

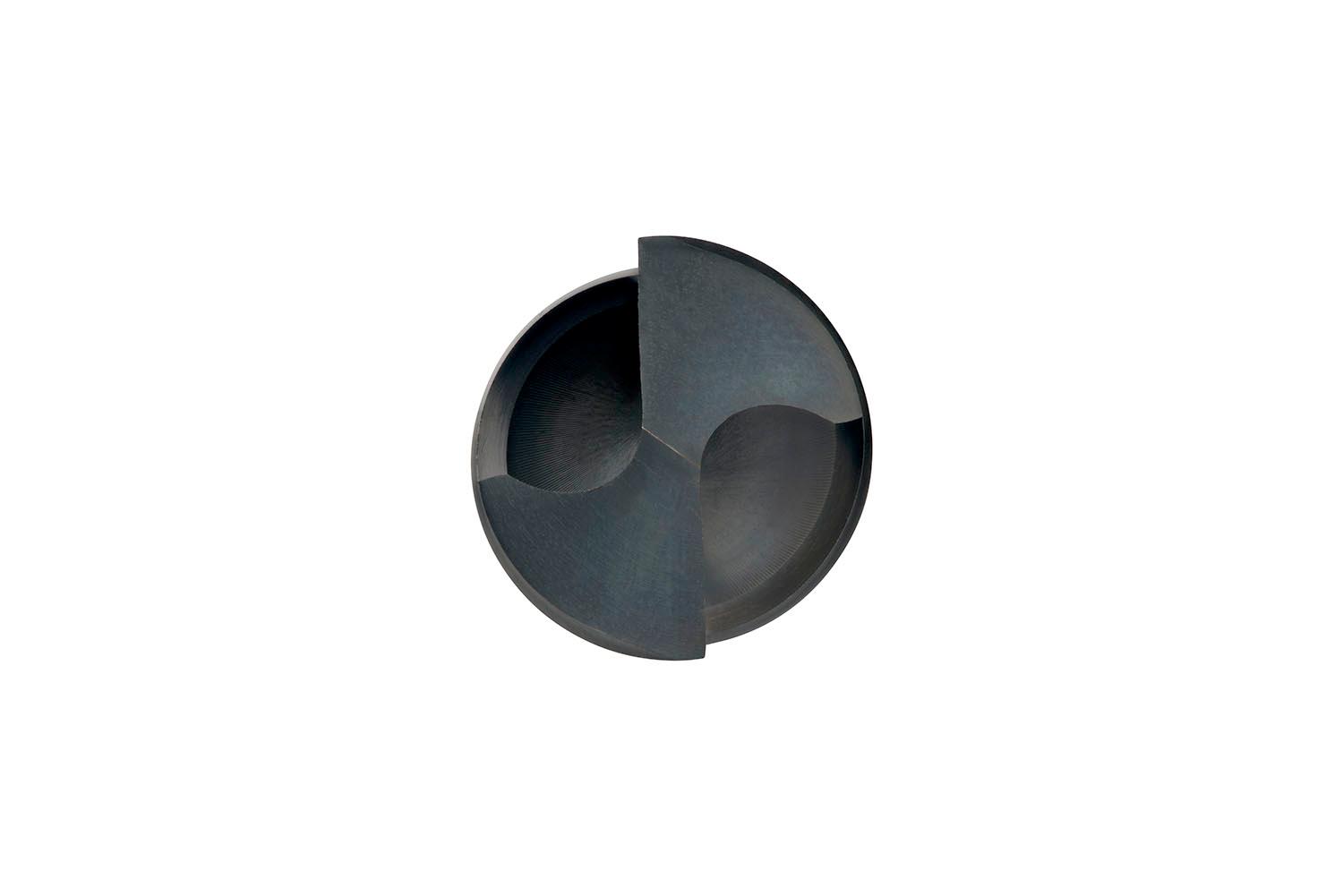

DORMER A1705/8 HSS-E Jobber Drill

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Standard length drill with 1/2″ reduced straight shank, diameter 0.6250″ (5/8) with an overall length of 6″ and flute length of 3.1/8″ according to DORMER standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.1056 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760030509
Product number (SAP): 86010032
Ordering code ANSI: A1705/8
Gross weight – grams: 156.9

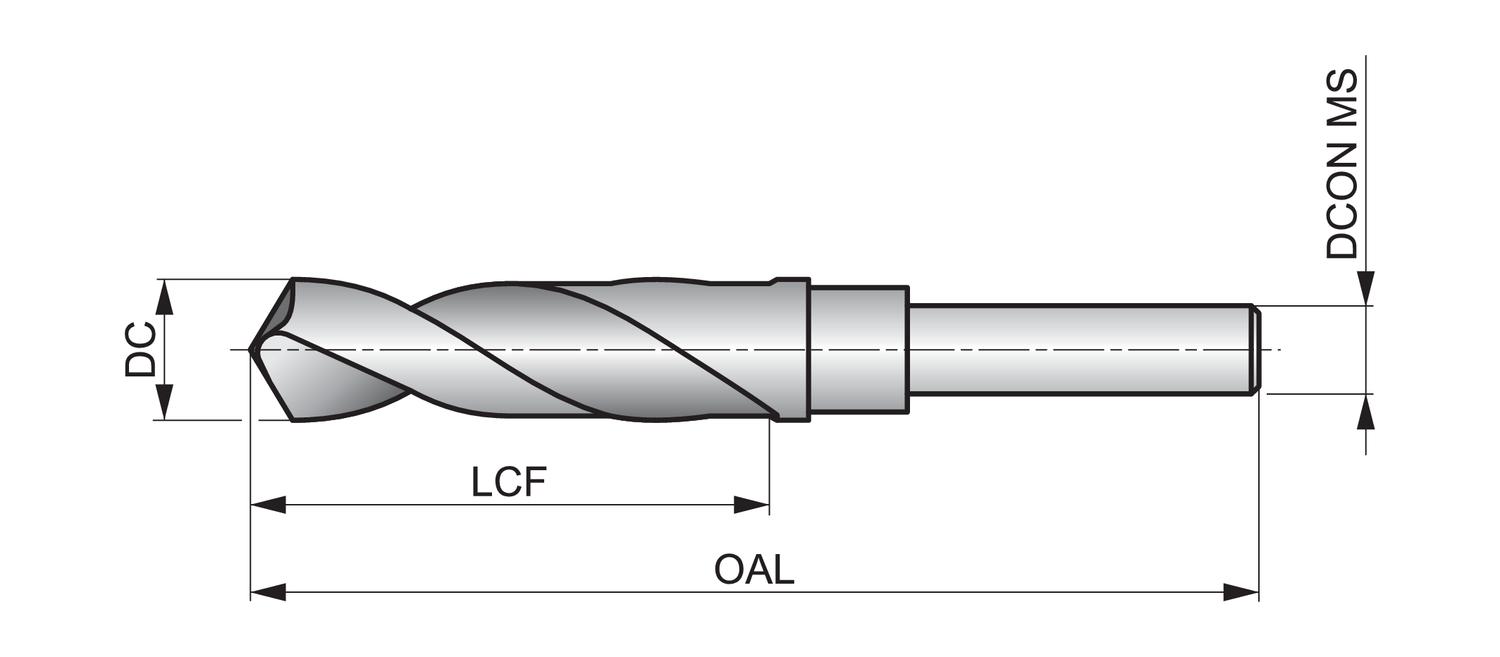

Cutting diameter – fractional inch (DC): 5/8
Cutting diameter – millimeter (DC): 15.88 mm
Cutting diameter – inch (DC): 0.625 inch
Length chip flute – fractional inch (LCF): 3.1/8
Overall length – fractional inch (OAL): 6"
Length chip flute – millimeter (LCF): 79.4 mm
Overall length – millimeter (OAL): 152.4 mm
Connection diameter – millimeter (DCON MS): 12.7 mm
Length chip flute – inch (LCF): 3.125 inch
ISO: A1705/8

Brand

DORMER
