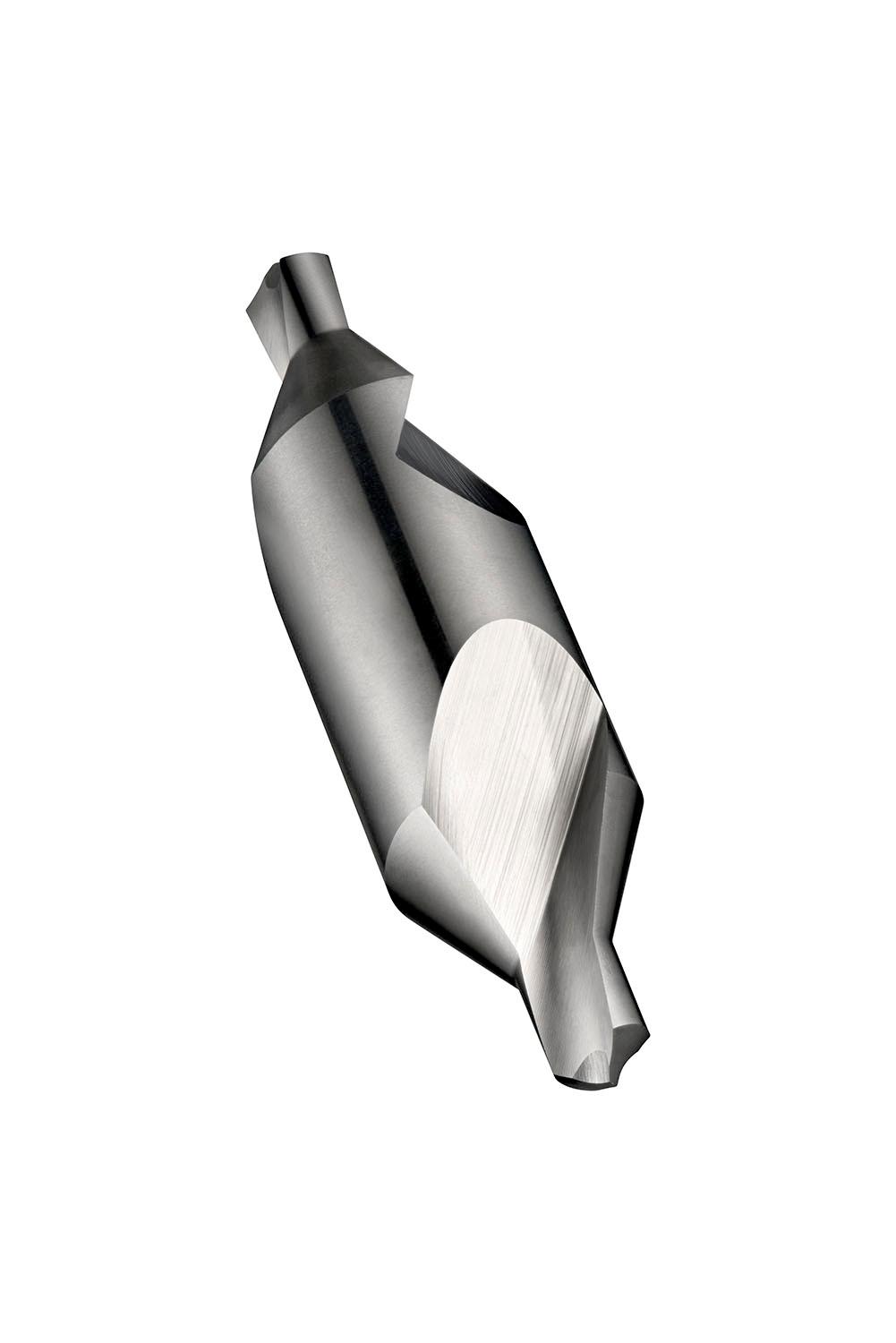

DORMER A20012.5X31.5 HSS/HSCo Drills

Product Code: A20012.5X31.5

$460.00$418.18 Ex. GST

Product Code: A20012.5X31.5 SKU A20012.5X31.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

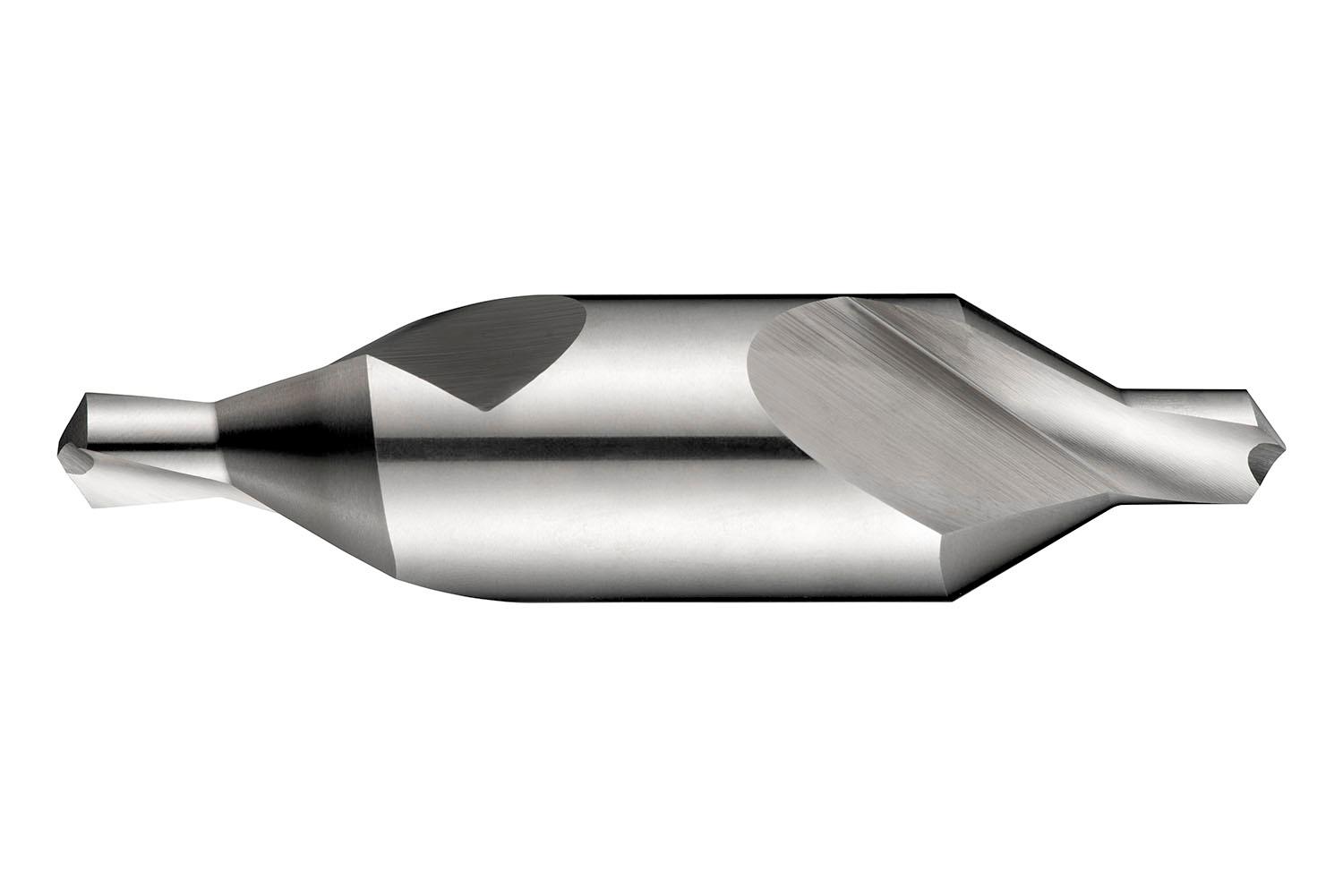

Centre drill (combined drill and countersink) with 60° straight conical form, single ended and cylindrical body, 12.50mm drill diameter, a body diameter of 31.50mm and an overall length of 125mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.4466 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760214367
Product number (SAP): 86010066
Ordering code ANSI: A20012.5X31.5
Gross weight – grams: 406.6

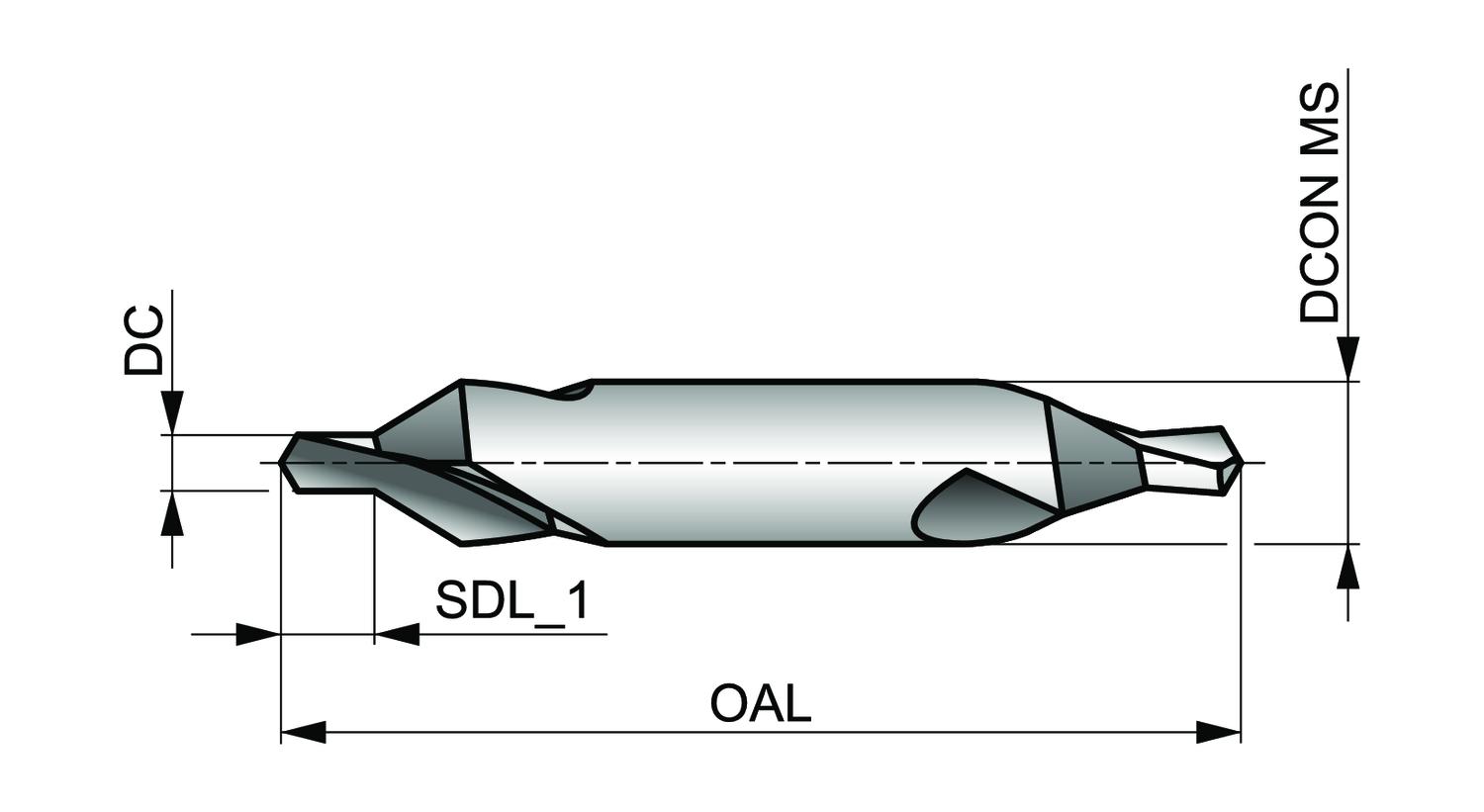

Cutting diameter – millimeter (DC): 12.5 mm
Cutting diameter – inch (DC): 0.4921 inch
Step diameter length range – millimeters (SDL_1): 17.5 – 16.5
Overall length – millimeter (OAL): 125 mm
Connection diameter – millimeter (DCON MS): 31.5 mm
Step included angle (STA): 60
ISO: A20012.5X31.5

Brand

DORMER
