DORMER A2005.0X12.5 HSS/HSCo Drills

Product Code: A2005.0X12.5

$62.32$56.65 Ex. GST

Product Code: A2005.0X12.5 SKU A2005.0X12.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

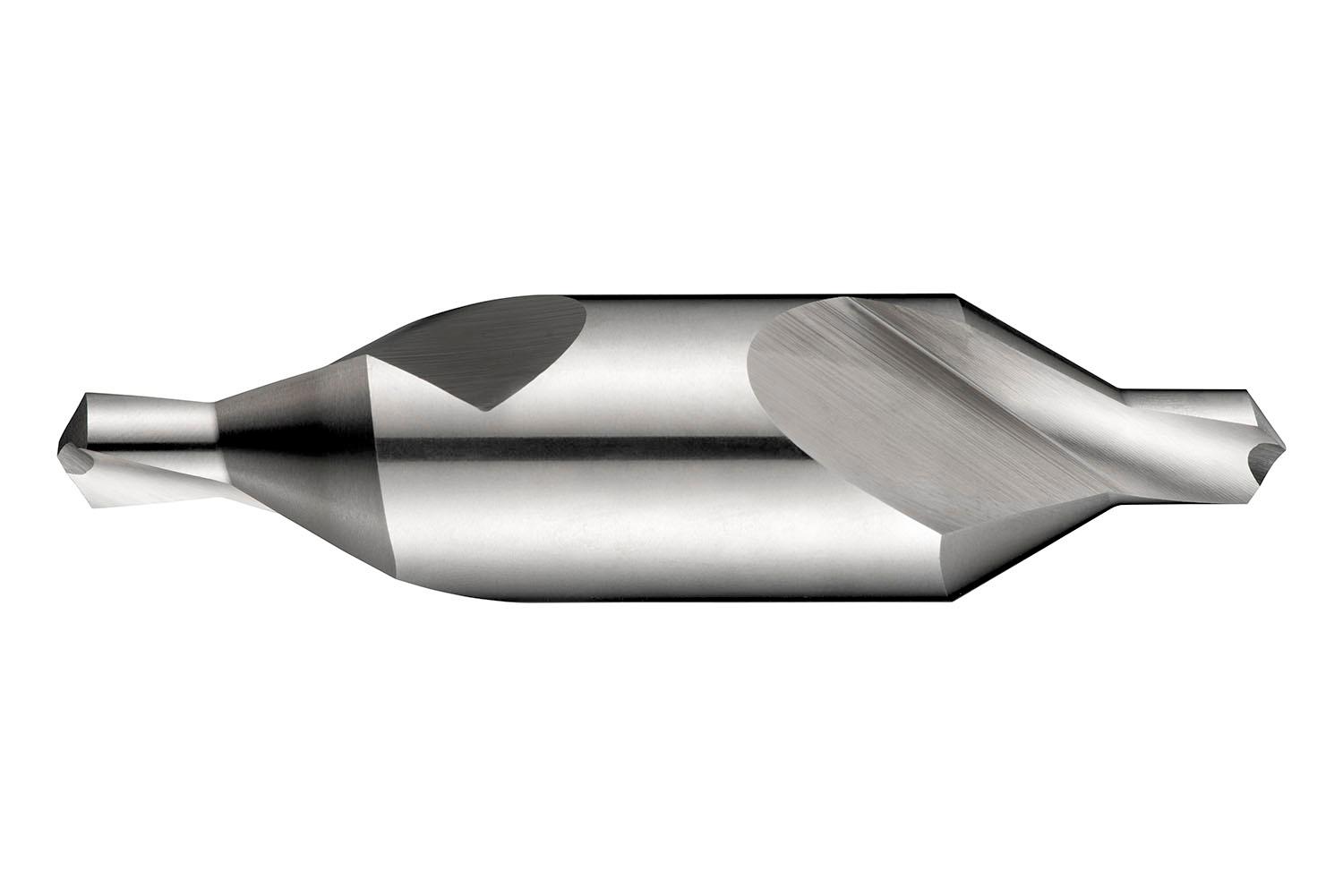

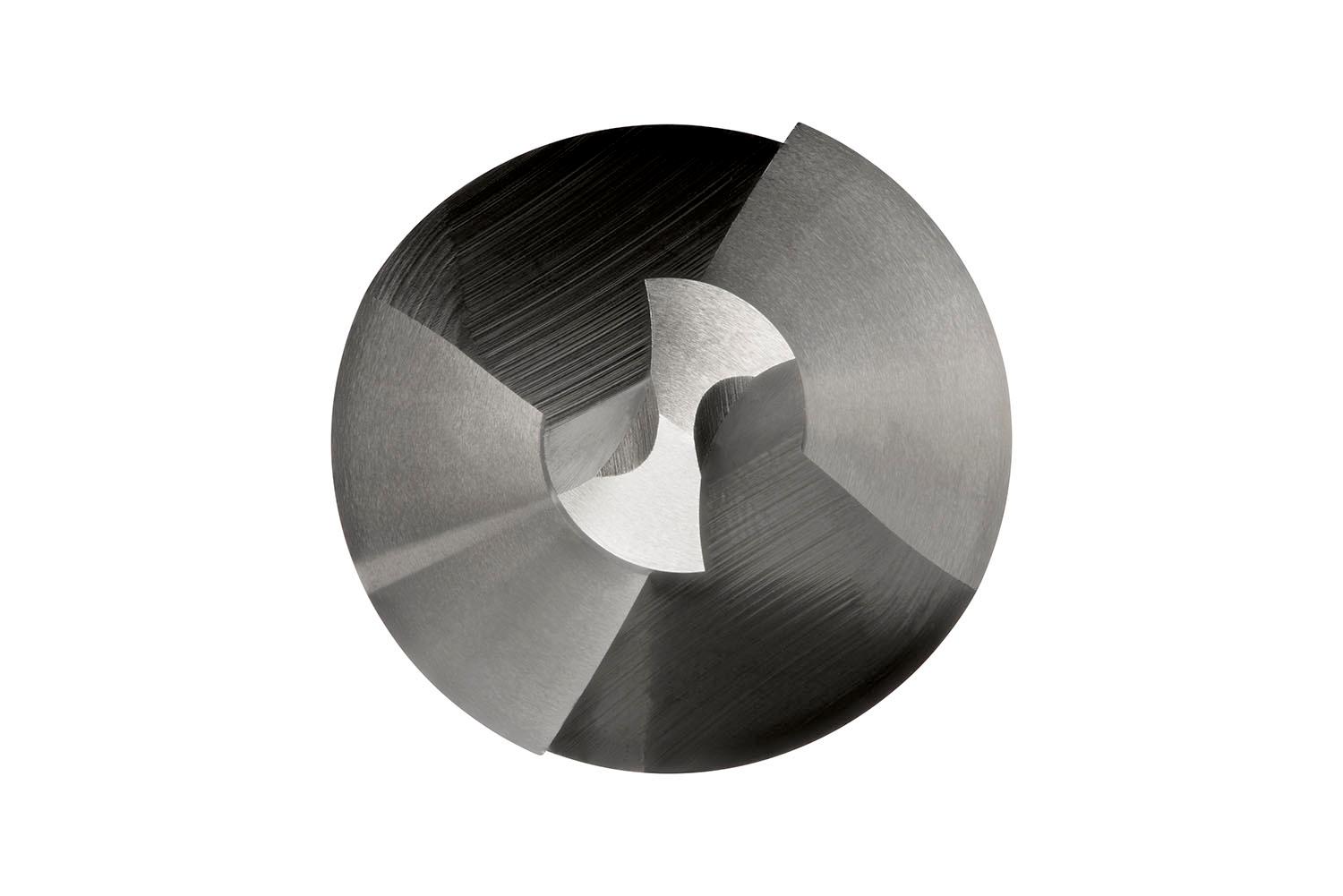

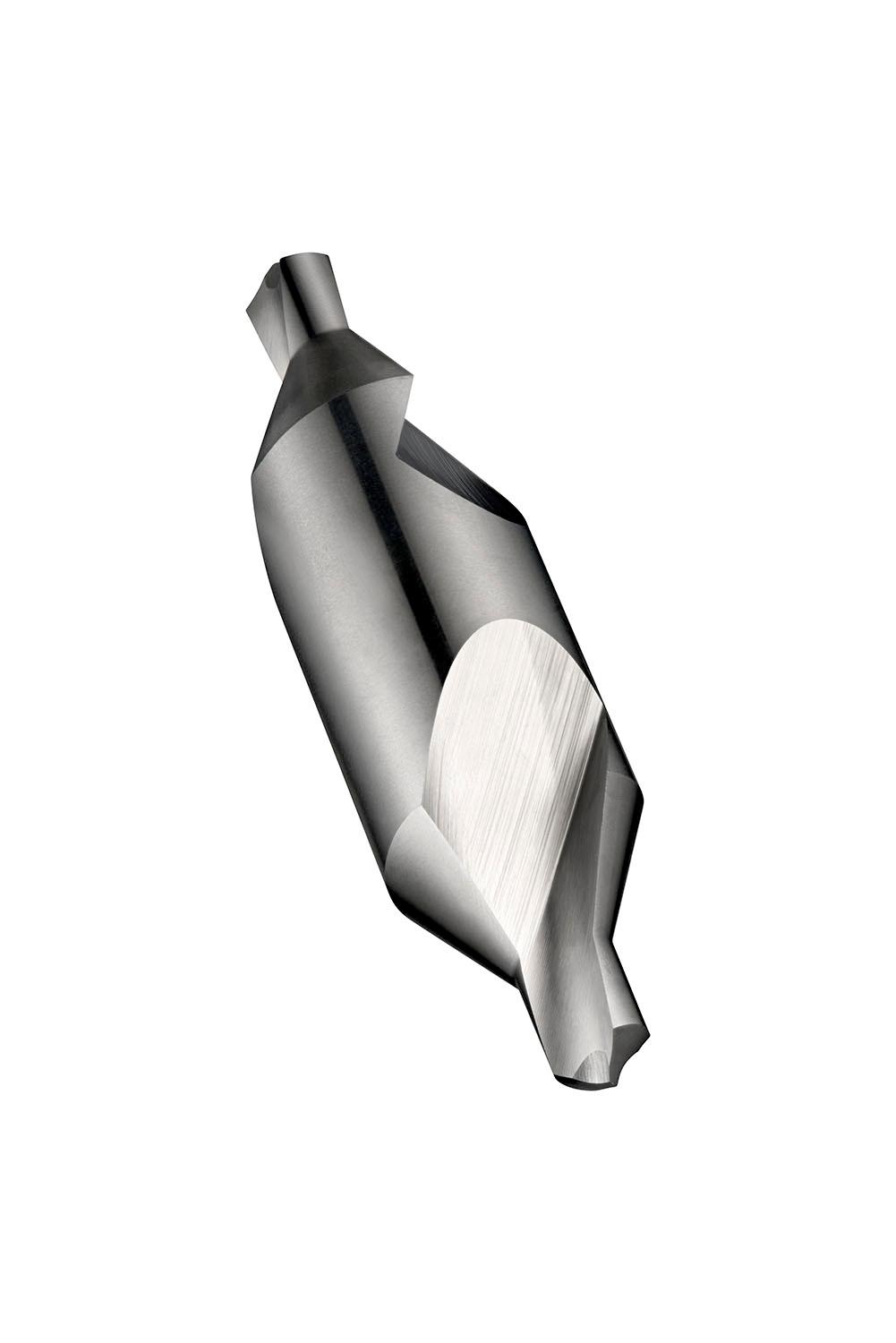

Centre drill (combined drill and countersink) with 60° straight conical form, single ended and cylindrical body, 5.00mm drill diameter, a body diameter of 12.50mm and an overall length of 63mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.0605 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760030783
Product number (SAP): 86010071
Ordering code ANSI: A2005.0X12.5
Gross weight – grams: 44.6

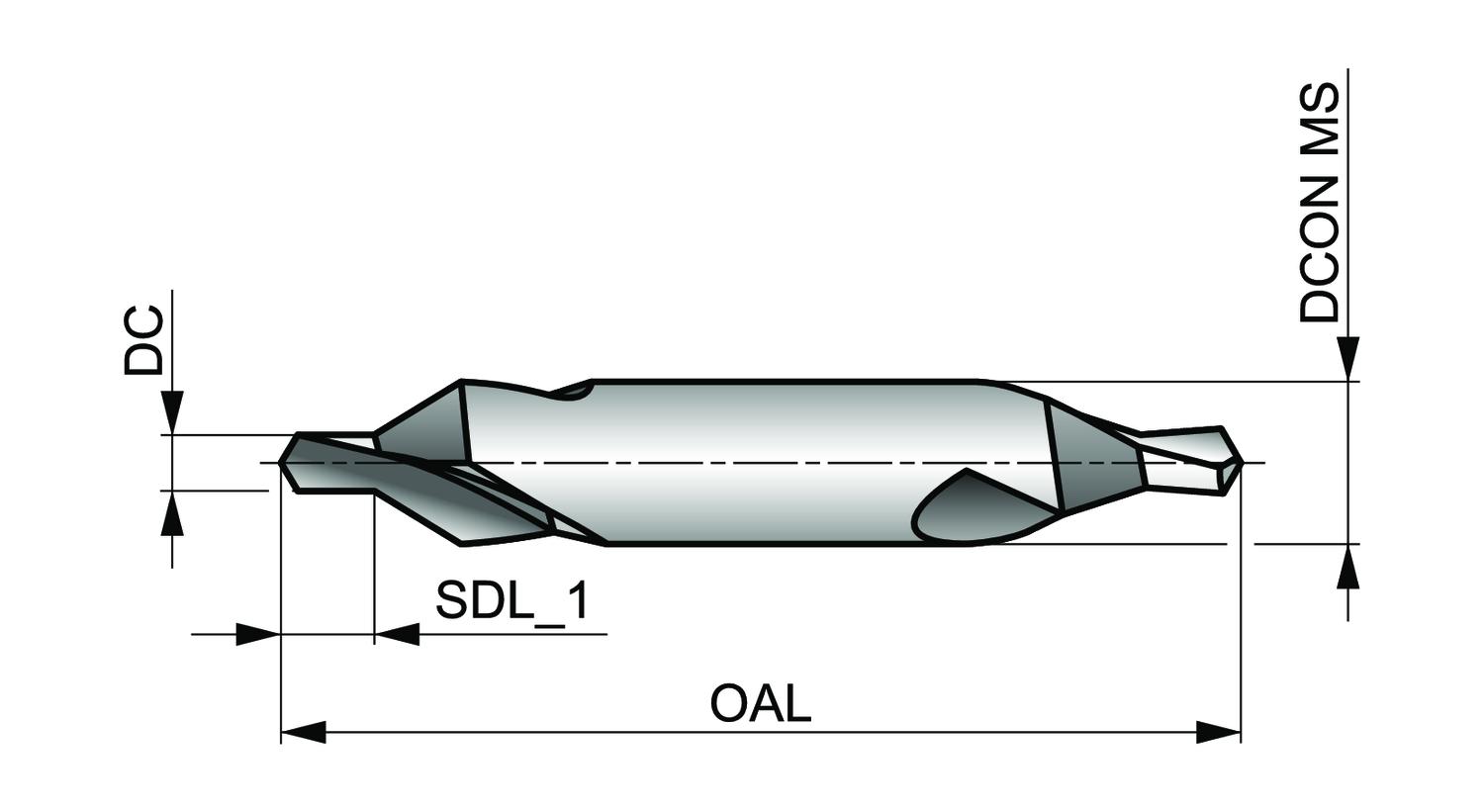

Cutting diameter – millimeter (DC): 5 mm
Cutting diameter – inch (DC): 0.1969 inch
Step diameter length range – millimeters (SDL_1): 7.2 – 6.3
Overall length – millimeter (OAL): 63 mm
Connection diameter – millimeter (DCON MS): 12.5 mm
Step included angle (STA): 60
ISO: A2005.0X12.5

Brand

DORMER
