DORMER A201.63X3.15 HSS/HSCo Drills

Product Code: A201.63X3.15

$28.22$25.65 Ex. GST

Product Code: A201.63X3.15 SKU A201.63X3.15 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

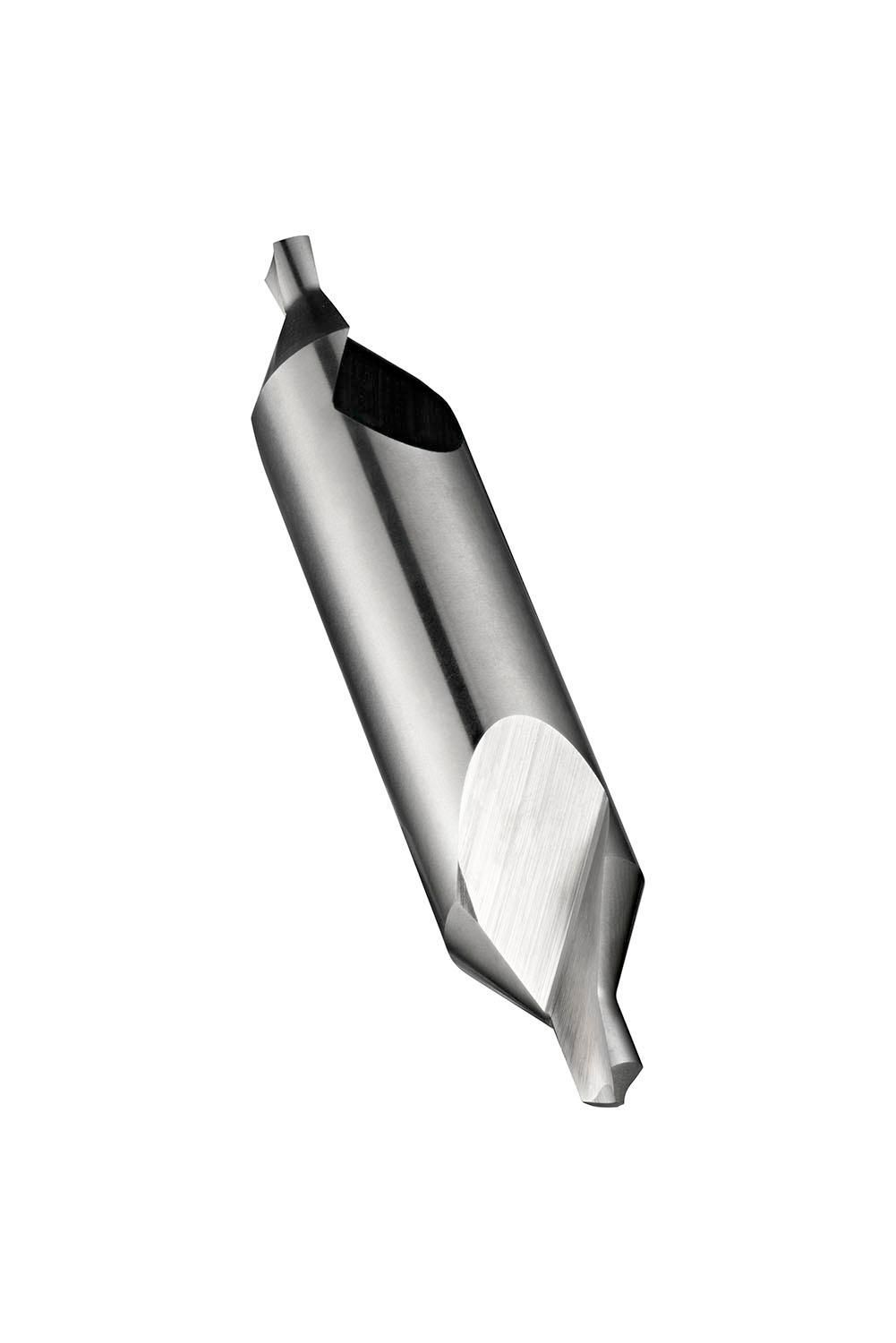

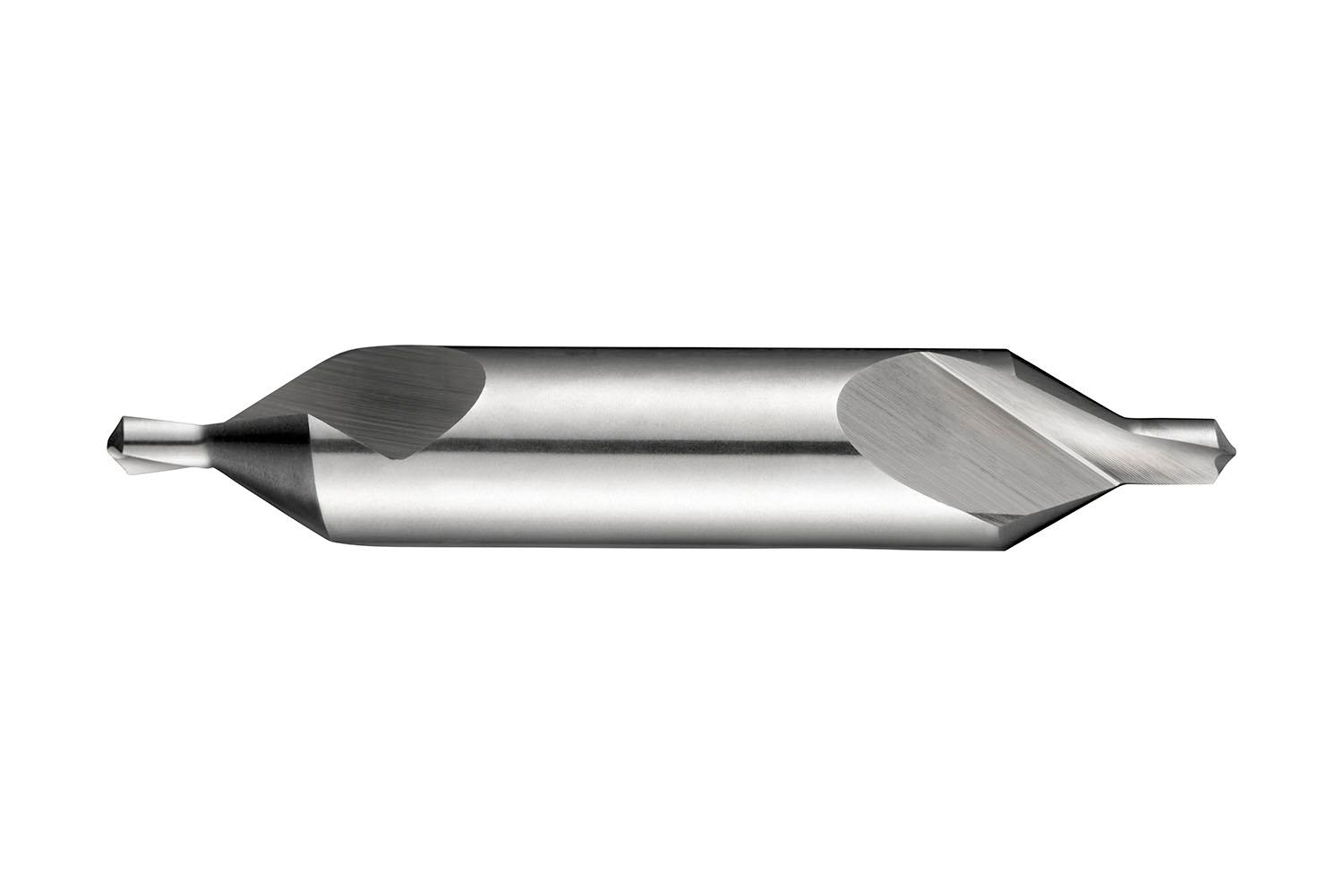

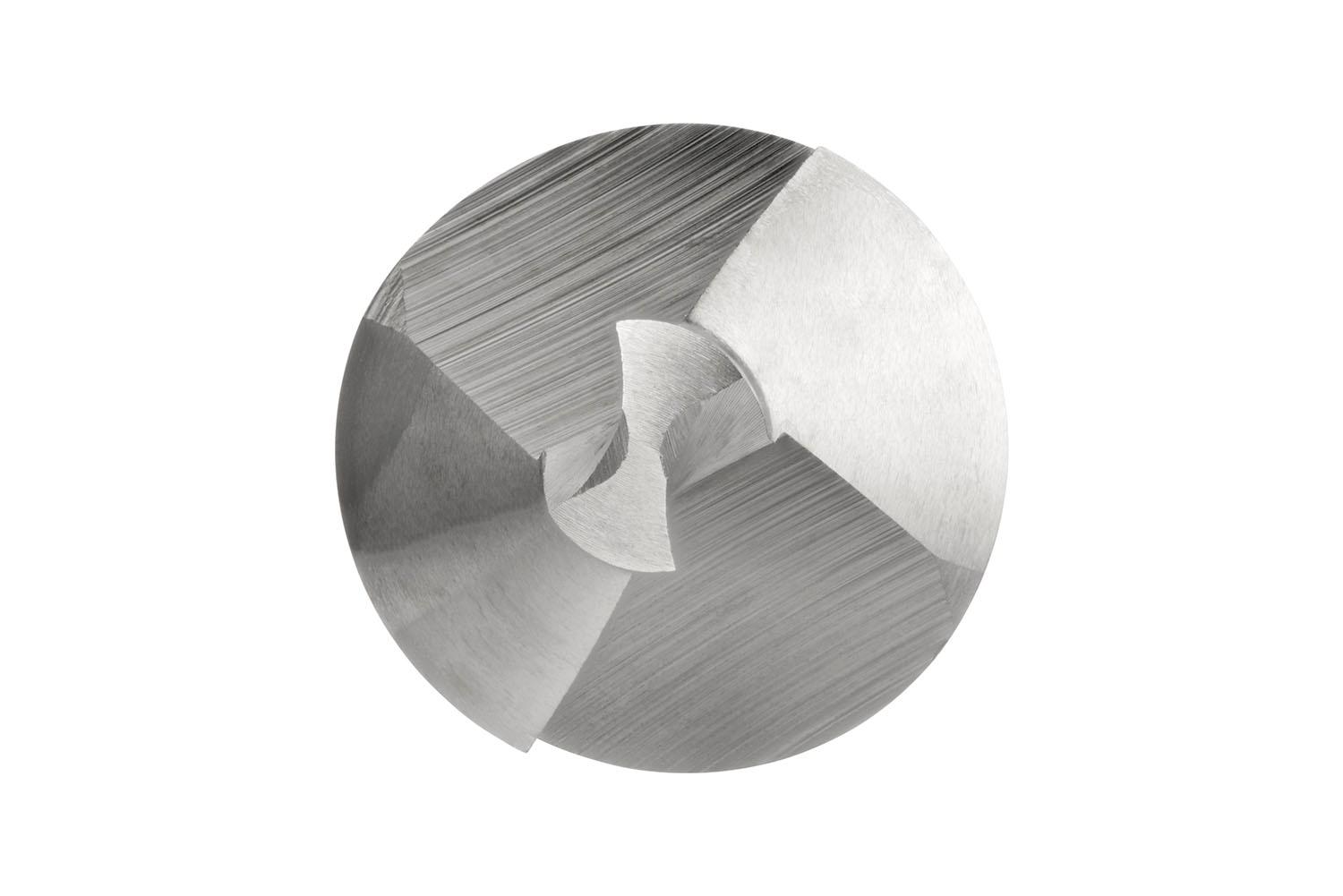

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 0.63mm drill diameter, a body diameter of 3.15mm and an overall length of 20mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.0274 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760215081
Product number (SAP): 86010074
Ordering code ANSI: A201.63X3.15
Gross weight – grams: 4.08

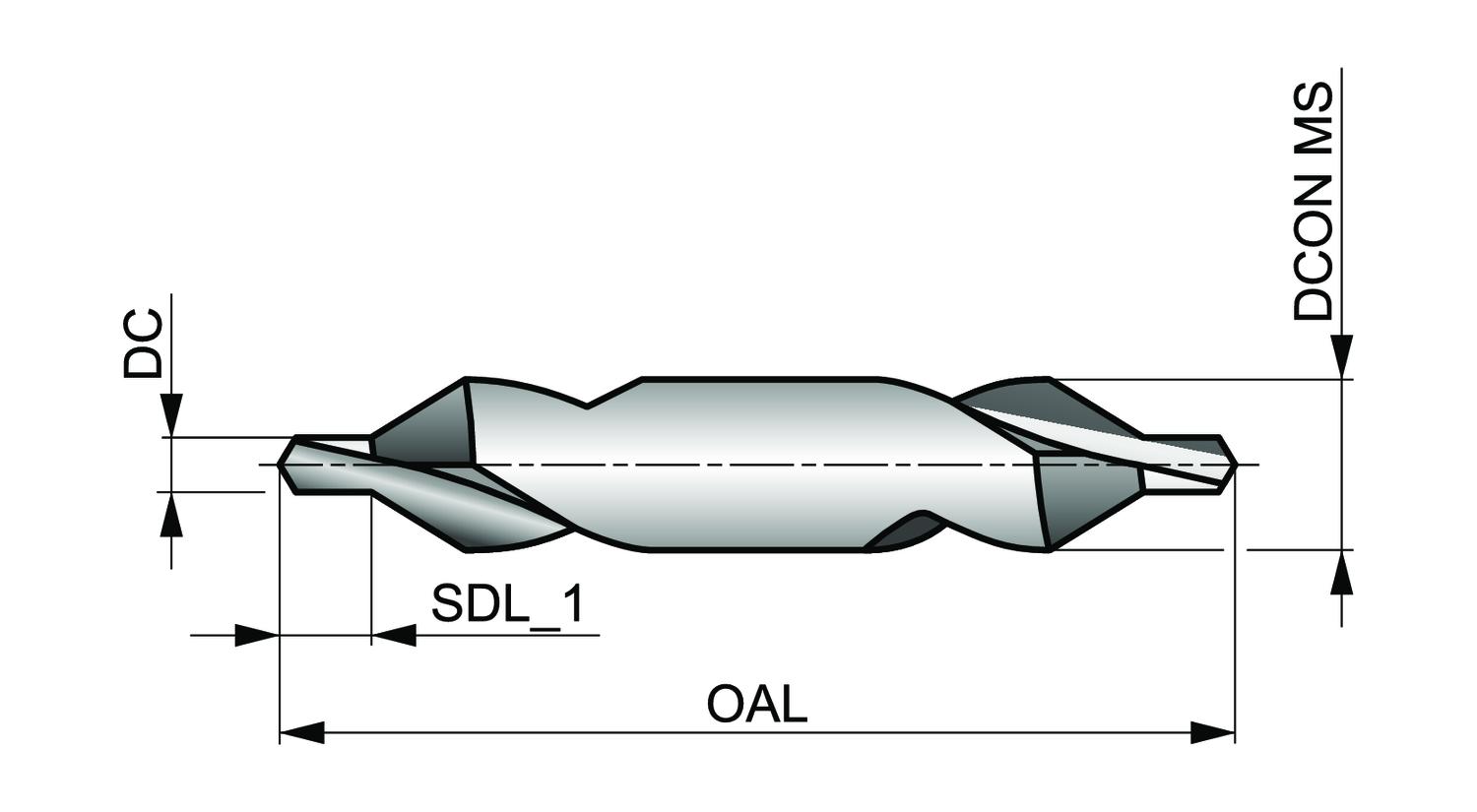

Cutting diameter – millimeter (DC): 0.63 mm
Cutting diameter – inch (DC): 0.0248 inch
Step diameter length range – millimeters (SDL_1): 1.2 – 0.9
Overall length – millimeter (OAL): 20 mm
Connection diameter – millimeter (DCON MS): 3.15 mm
Step included angle (STA): 60
ISO: A201.63X3.15

Brand

DORMER
