DORMER A2014.0X12.0 HSS/HSCo Drills

Product Code: A2014.0X12.0

$46.45$42.23 Ex. GST

Product Code: A2014.0X12.0 SKU A2014.0X12.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

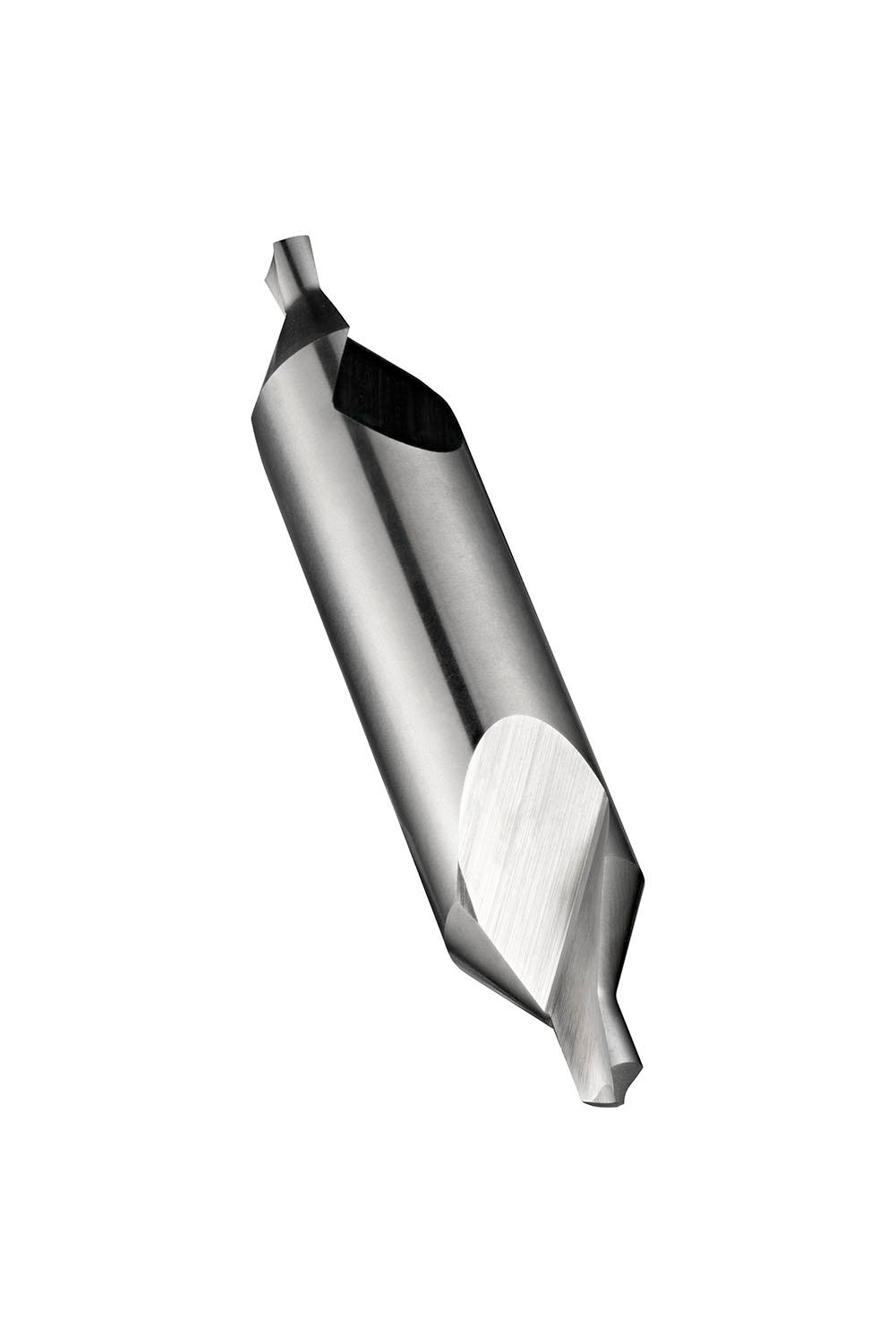

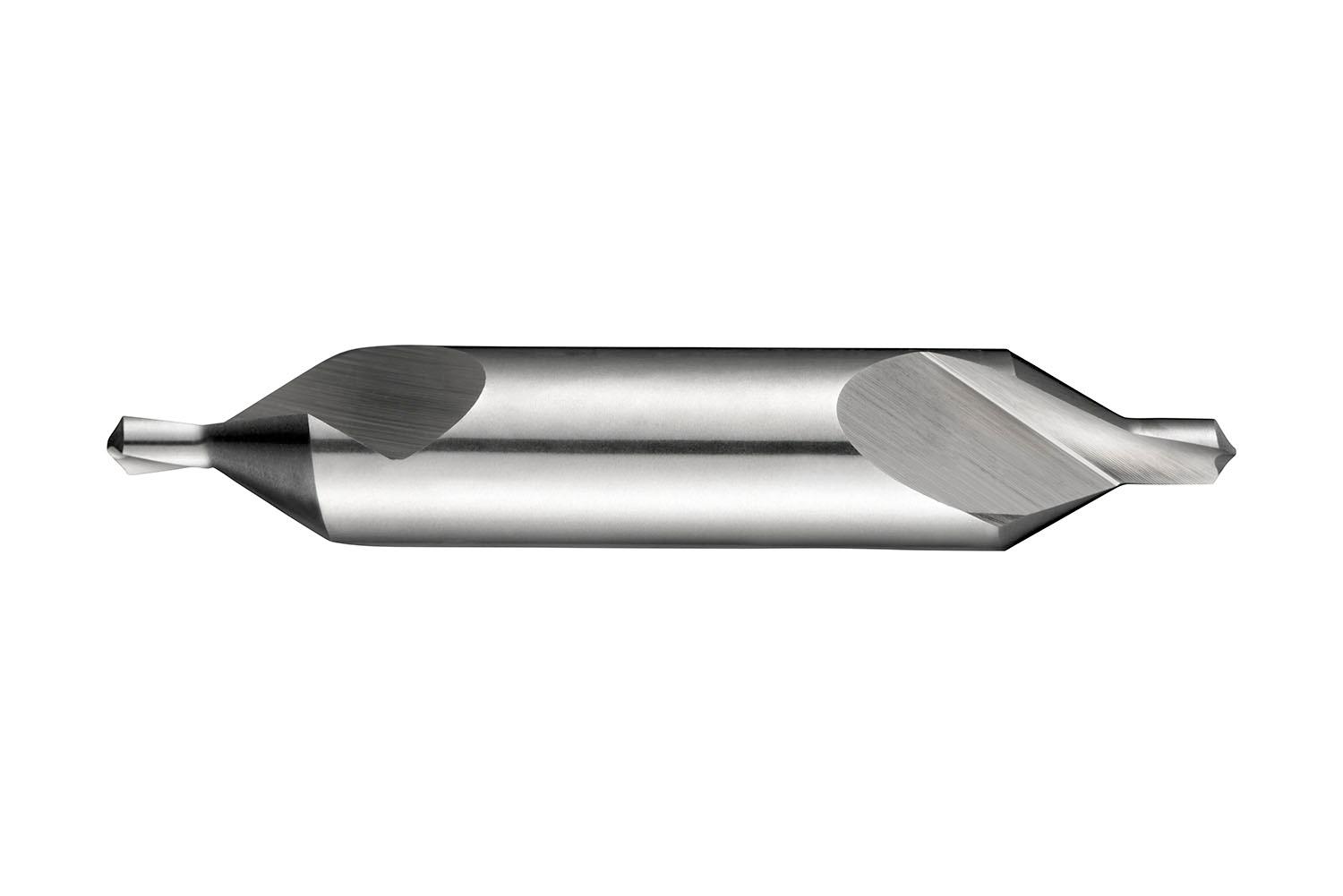

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 4.00mm drill diameter, a body diameter of 12.00mm and an overall length of 66mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.0451 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760138939
Product number (SAP): 86010085
Ordering code ANSI: A2014.0X12.0
Gross weight – grams: 44

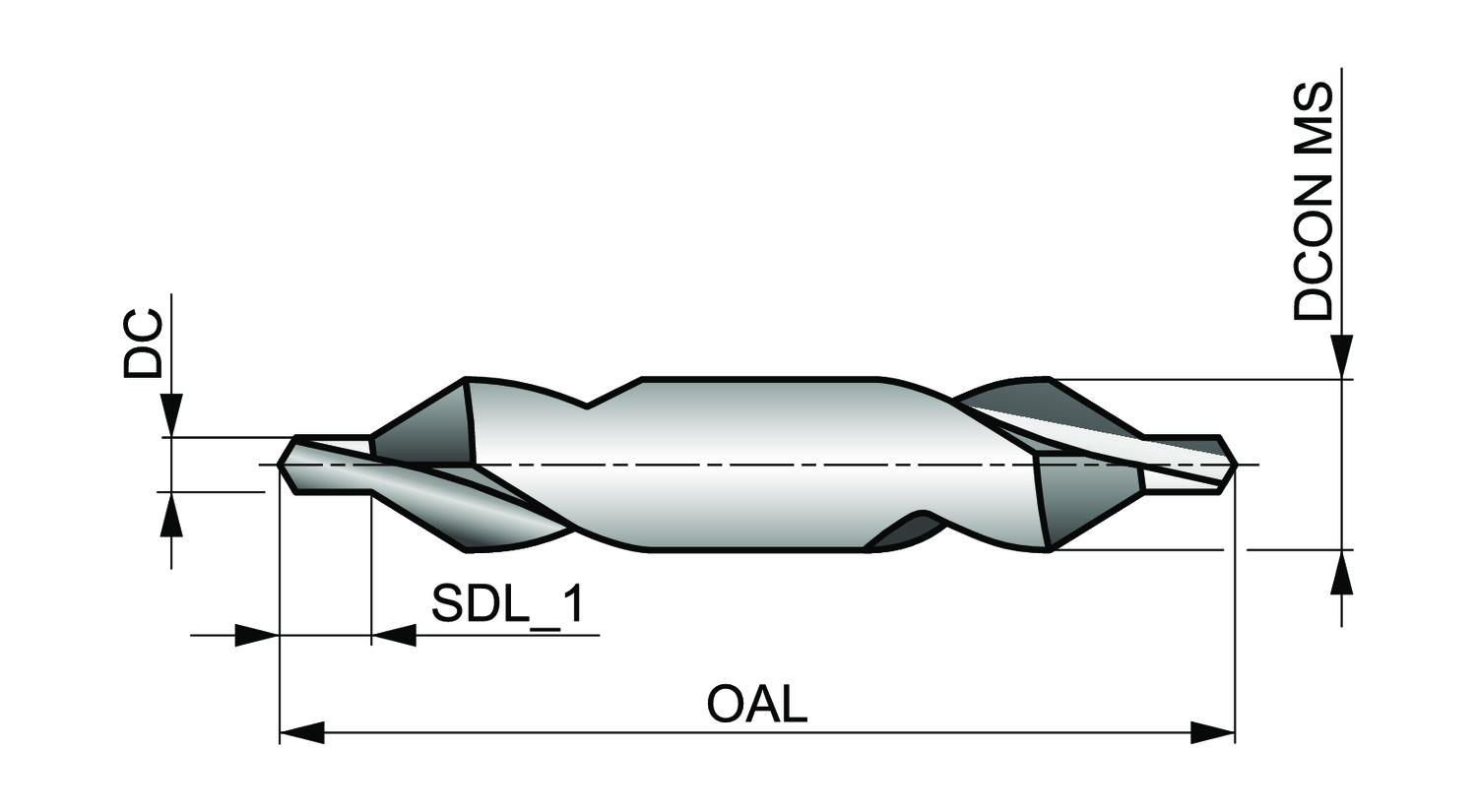

Cutting diameter – millimeter (DC): 4 mm
Cutting diameter – inch (DC): 0.1575 inch
Step diameter length range – millimeters (SDL_1): 6.2 – 5.0
Overall length – millimeter (OAL): 66 mm
Connection diameter – millimeter (DCON MS): 12 mm
Step included angle (STA): 60
ISO: A2014.0X12.0

Brand

DORMER
