DORMER A2015.0X14.0 HSS/HSCo Drills

Product Code: A2015.0X14.0

$65.71$59.74 Ex. GST

Product Code: A2015.0X14.0 SKU A2015.0X14.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

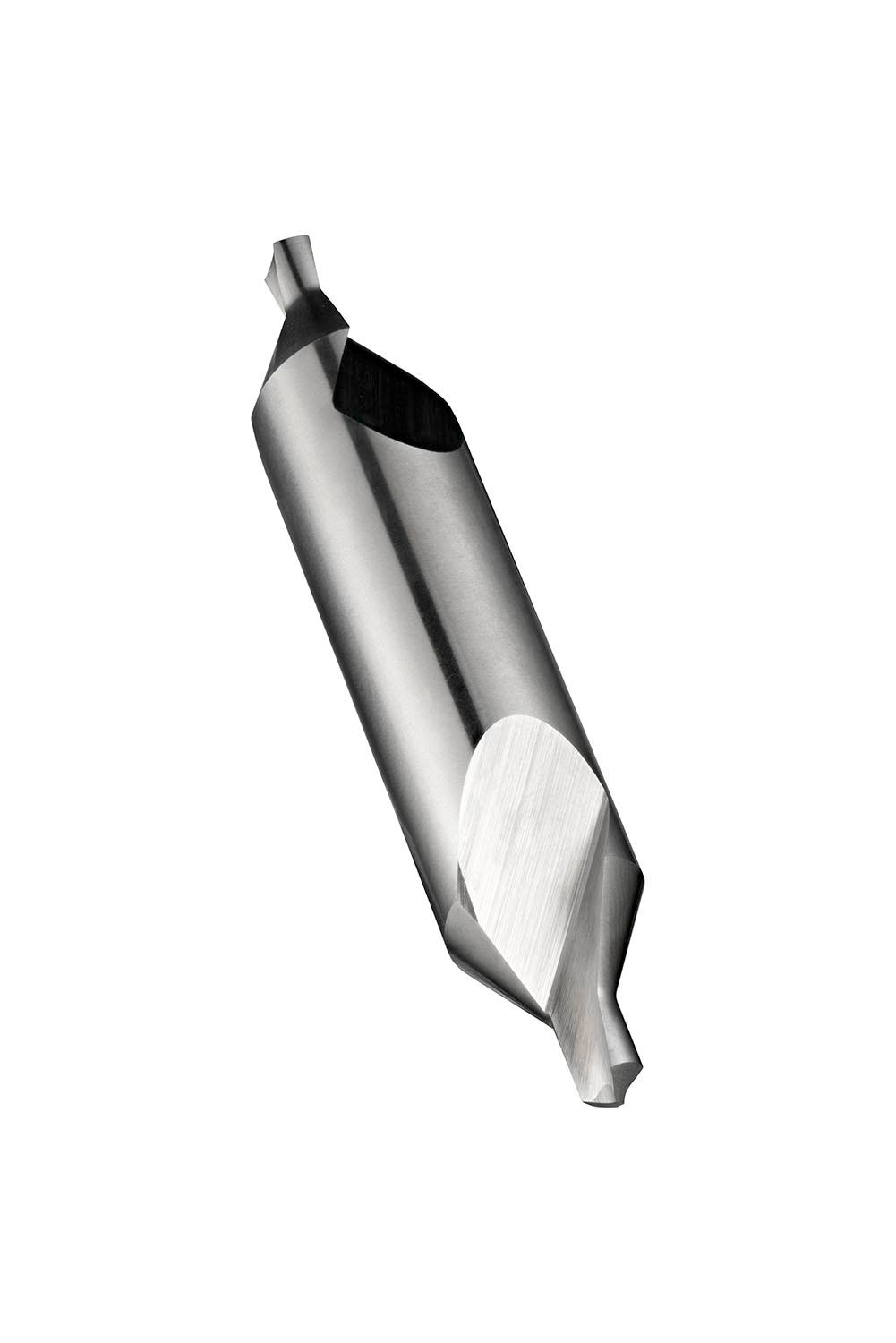

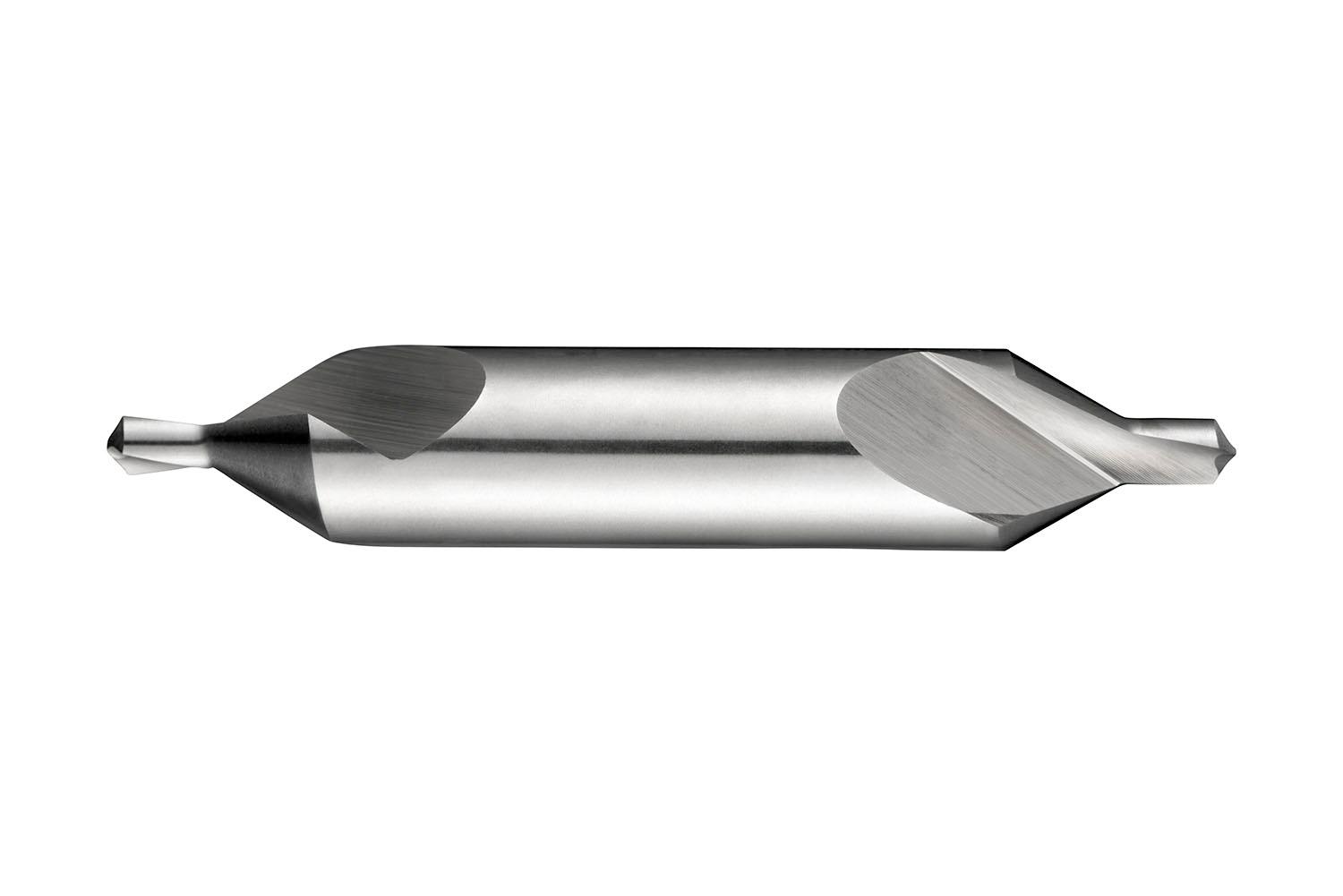

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 5.00mm drill diameter, a body diameter of 14.00mm and an overall length of 78mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.0638 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760138946
Product number (SAP): 86010086
Ordering code ANSI: A2015.0X14.0
Gross weight – grams: 63.6

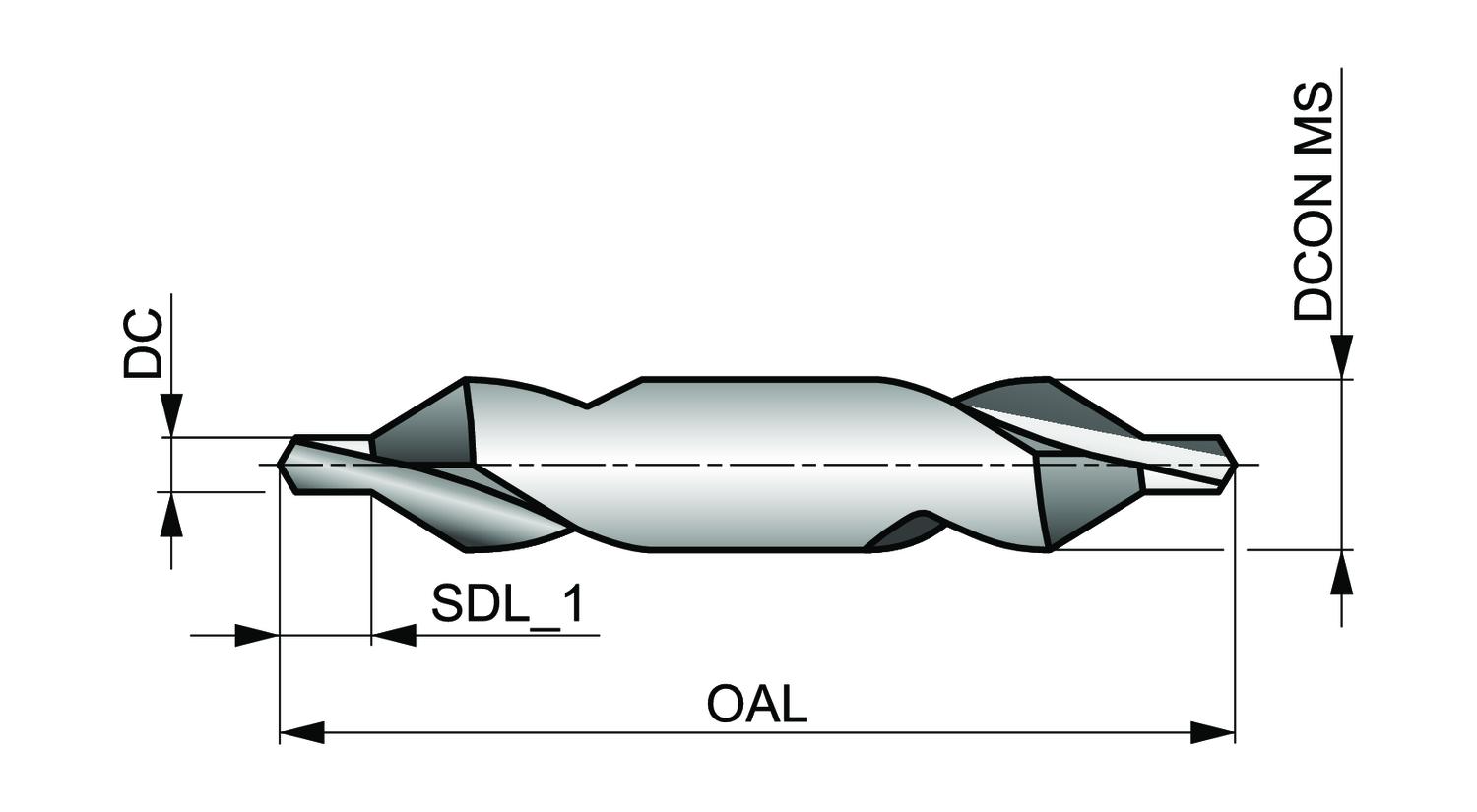

Cutting diameter – millimeter (DC): 5 mm
Cutting diameter – inch (DC): 0.1969 inch
Step diameter length range – millimeters (SDL_1): 7.7 – 6.5
Overall length – millimeter (OAL): 78 mm
Connection diameter – millimeter (DCON MS): 14 mm
Step included angle (STA): 60
ISO: A2015.0X14.0

Brand

DORMER
