DORMER A2064.0X10.0 HSS/HSCo Drills

Product Code: A2064.0X10.0

$59.49$54.08 Ex. GST

Product Code: A2064.0X10.0 SKU A2064.0X10.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

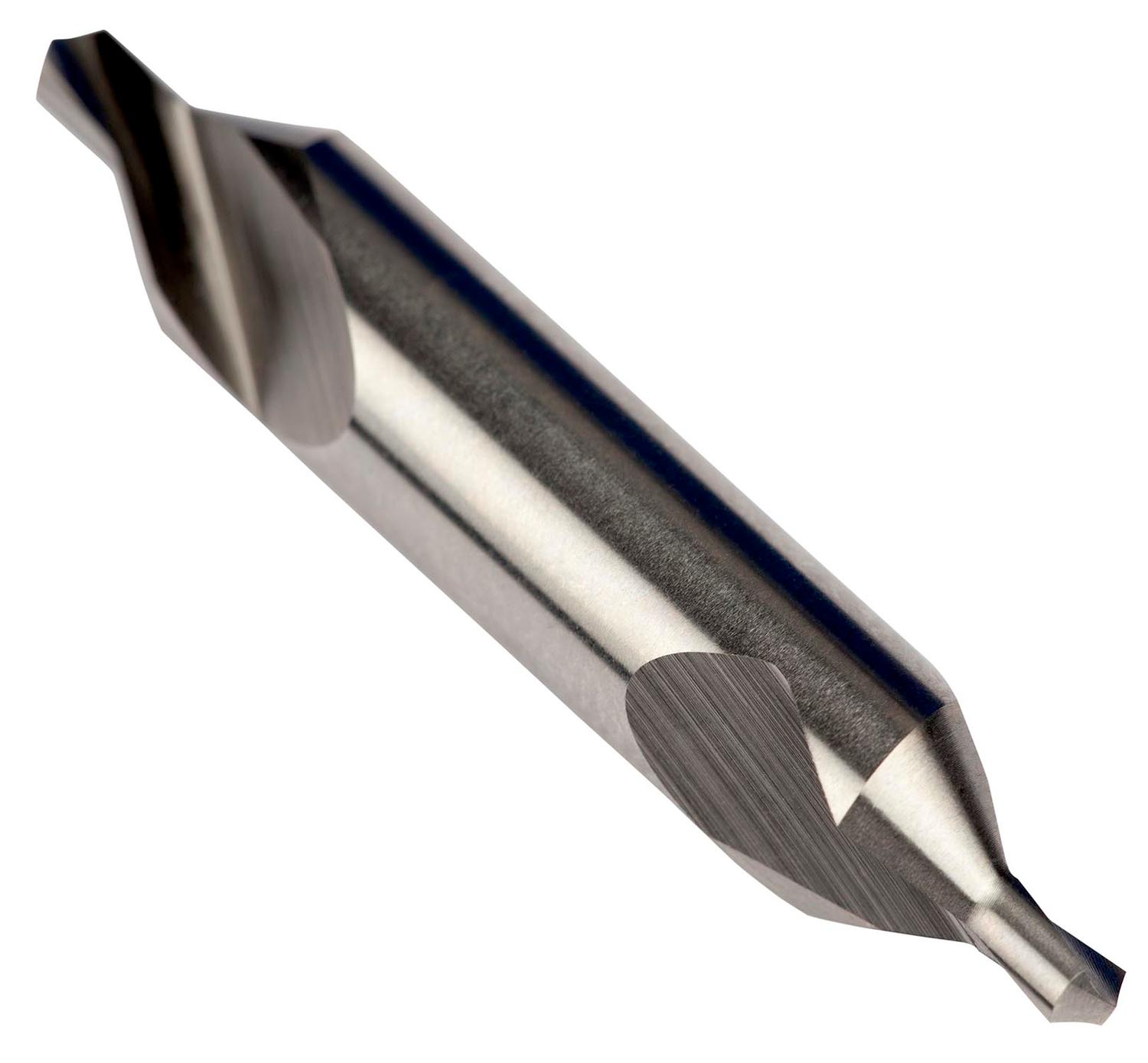

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 4.00mm drill diameter, a body diameter of 10.00mm and an overall length of 55mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.0578 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760708552
Product number (SAP): 86031057
Ordering code ANSI: A2064.0X10.0
Gross weight – grams: 26.5
Cutting diameter – millimeter (DC): 4 mm
Cutting diameter – inch (DC): 0.1575 inch
Step diameter length range – millimeters (SDL_1): 5.9 – 5.0
Overall length – millimeter (OAL): 55 mm
Connection diameter – millimeter (DCON MS): 10 mm
Step included angle (STA): 60
ISO: A2064.0X10.0

Brand

DORMER
