DORMER A2104.0X10.0 HSS/HSCo Drills

Product Code: A2104.0X10.0

$45.89$41.72 Ex. GST

Product Code: A2104.0X10.0 SKU A2104.0X10.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

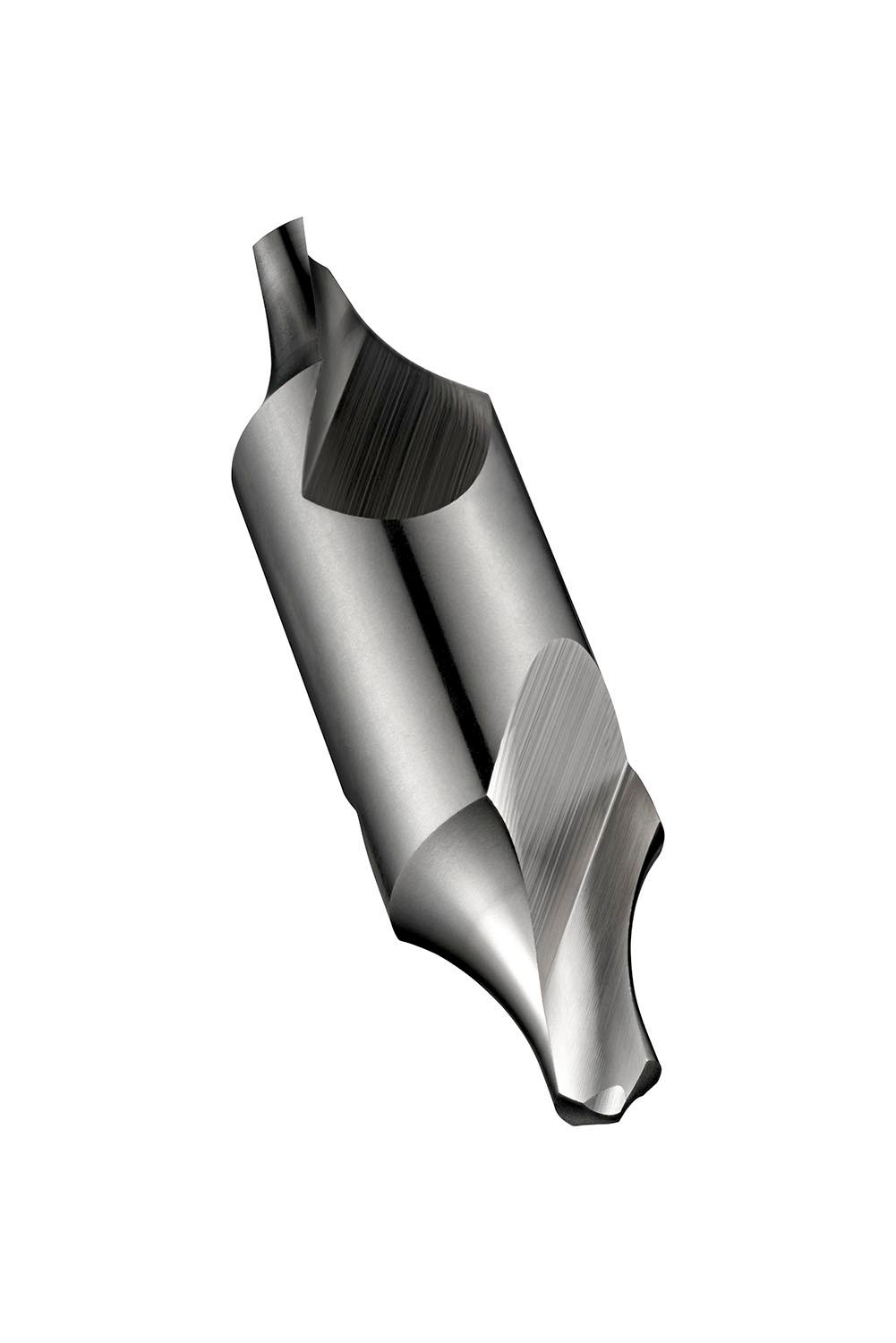

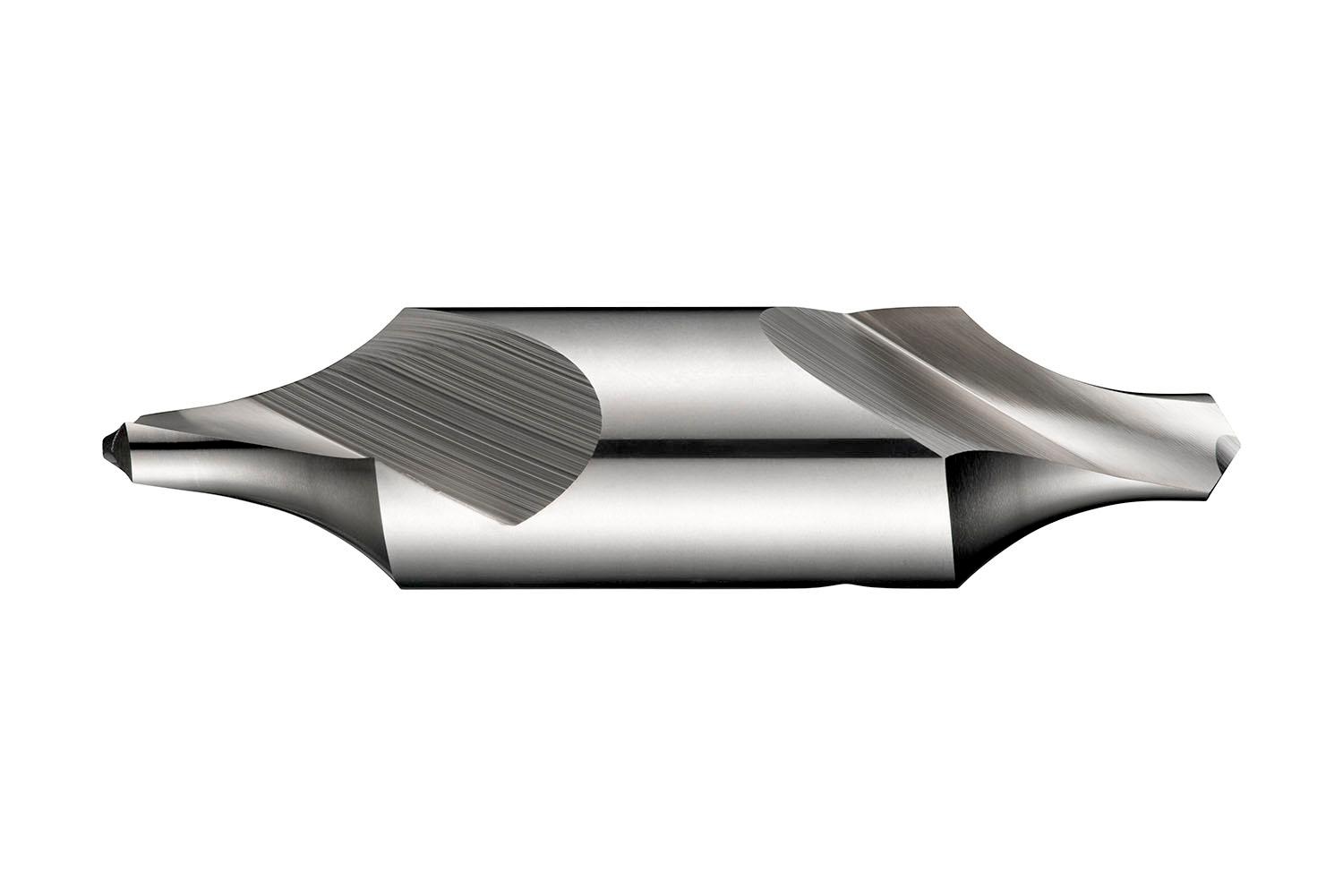

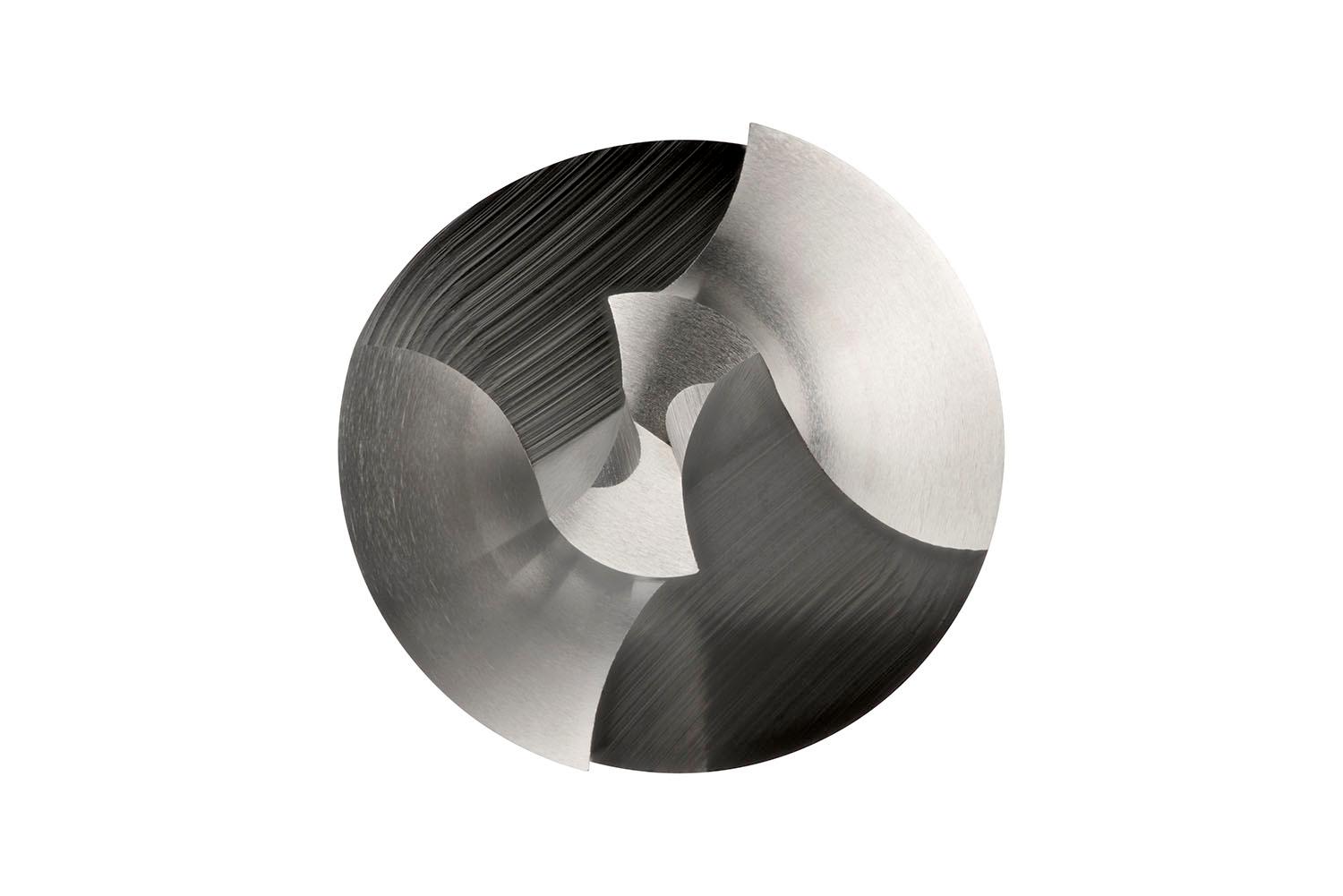

Centre drill (combined drill and countersink) with 60° curved conical form, double ended and cylindrical body, 4.00mm drill diameter, a body diameter of 10.00mm and an overall length of 55mm, according to DIN 333R standard to produce standardized centre holes according DIN 332 part 1 form R, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.0446 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760031124
Product number (SAP): 86010106
Ordering code ANSI: A2104.0X10.0
Gross weight – grams: 26.1

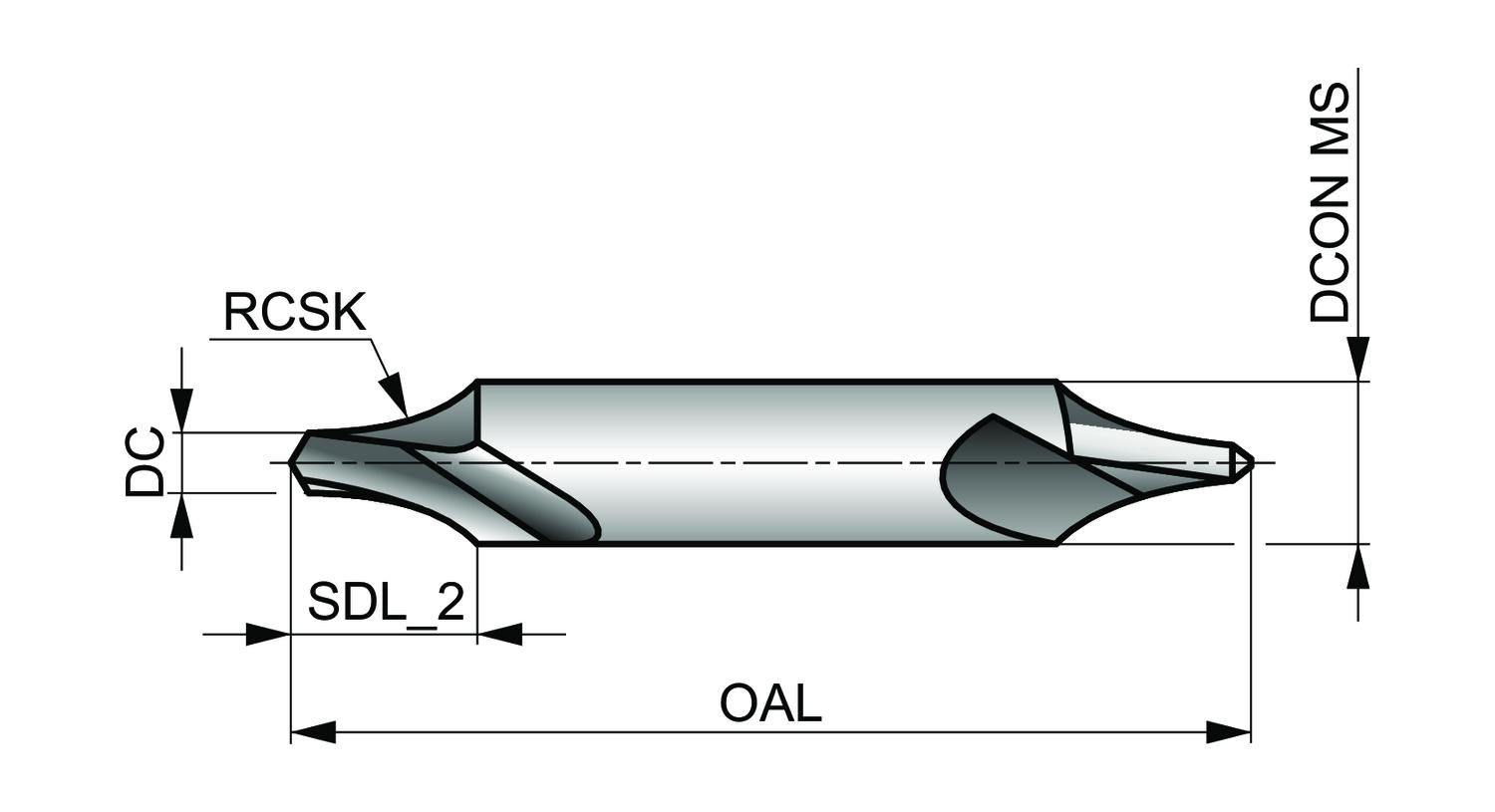

Cutting diameter – millimeter (DC): 4 mm
Cutting diameter – inch (DC): 0.1575 inch
Step diameter length 2 range – millimeters (SDL_2): 10.6 – 10.0
Overall length – millimeter (OAL): 55 mm
Radius countersunk range – millimeters (RCSK): 12.50 – 10.00
Connection diameter – millimeter (DCON MS): 10 mm
ISO: A2104.0X10.0

Brand

DORMER
