DORMER A225BS1 HSS/HSCo Drills

Description

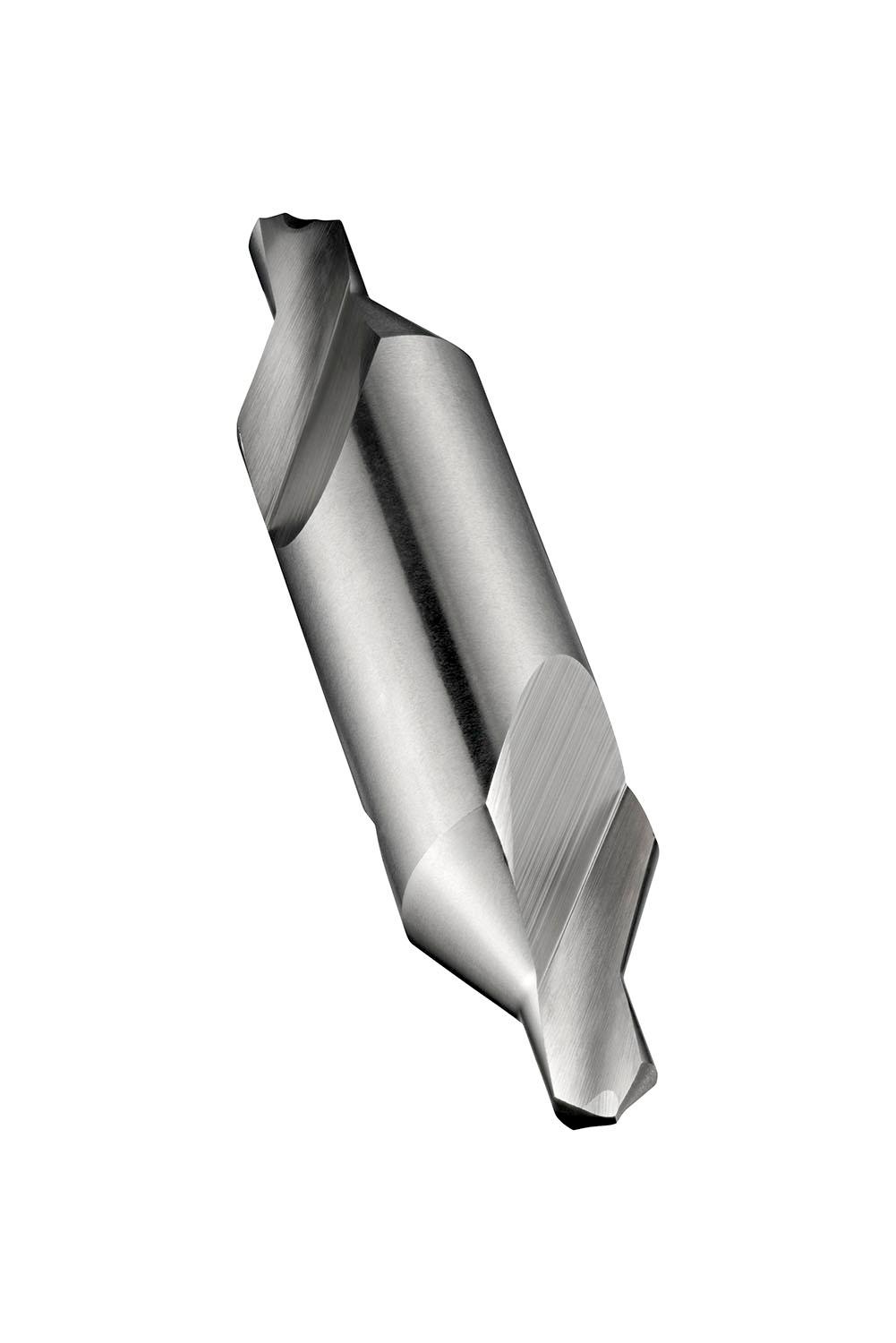

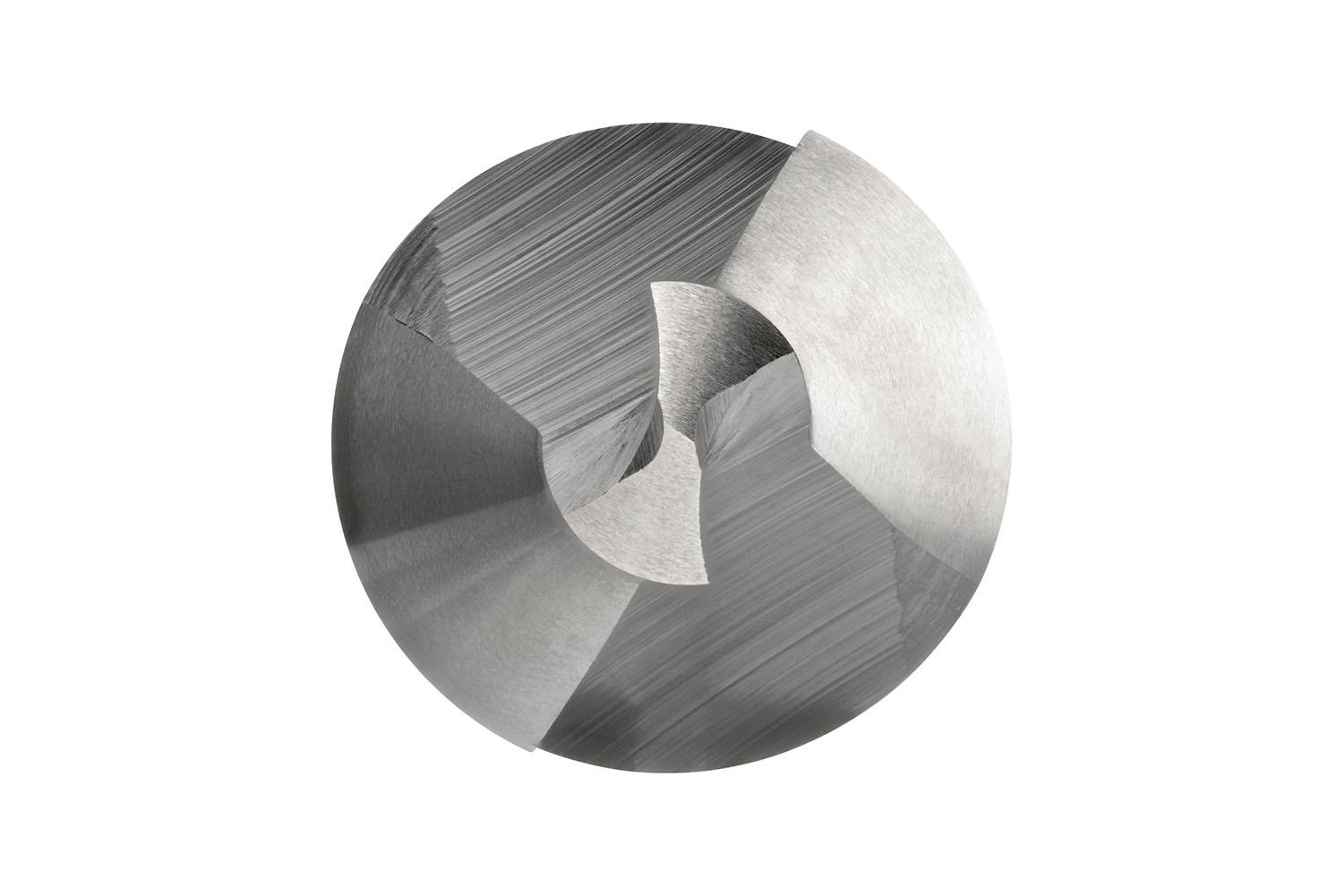

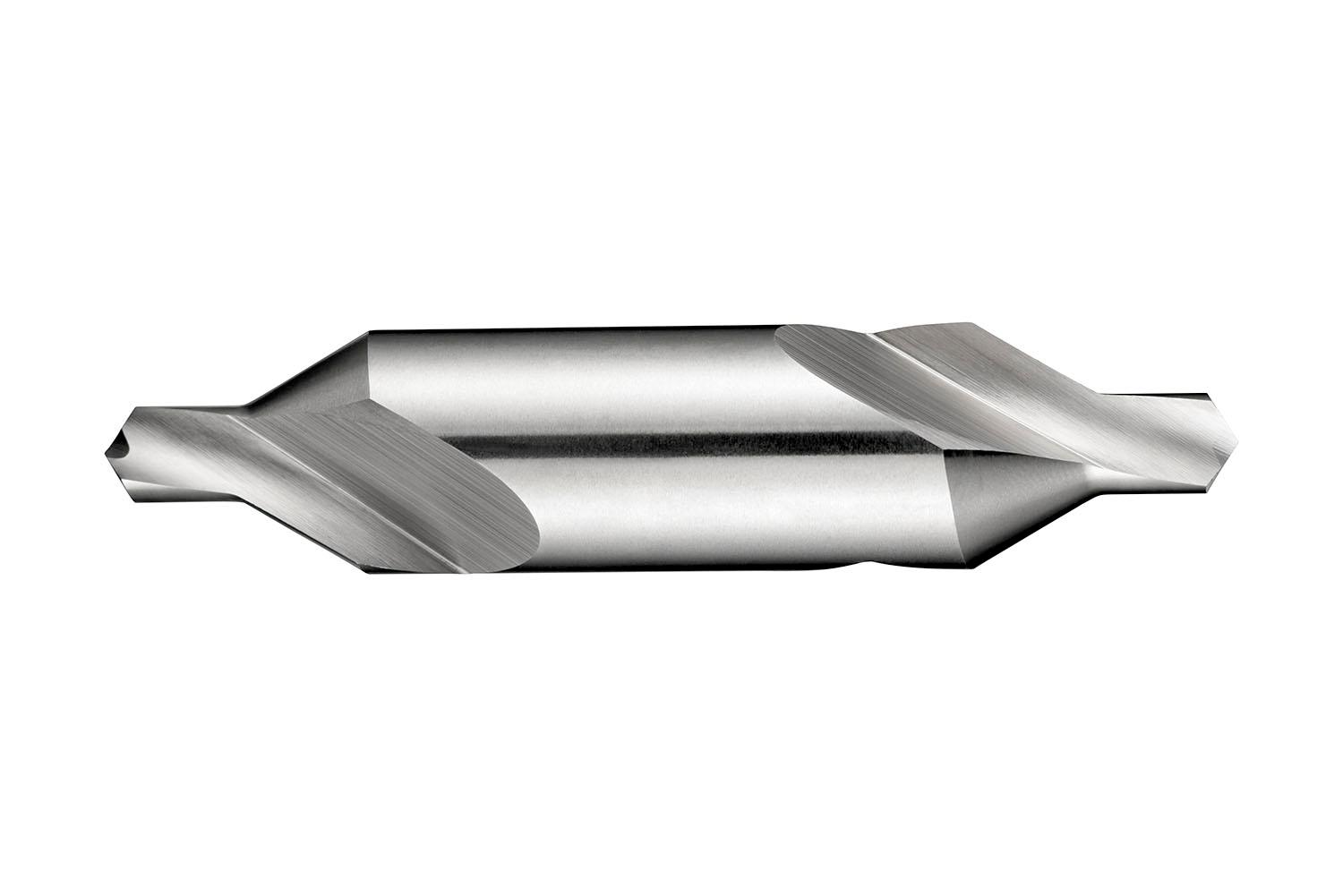

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size BS1 with 3/64″ drill diameter, a body diameter of 1/8″ and an overall length of 1.1/2″, according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight	0.0107 kg
barcode

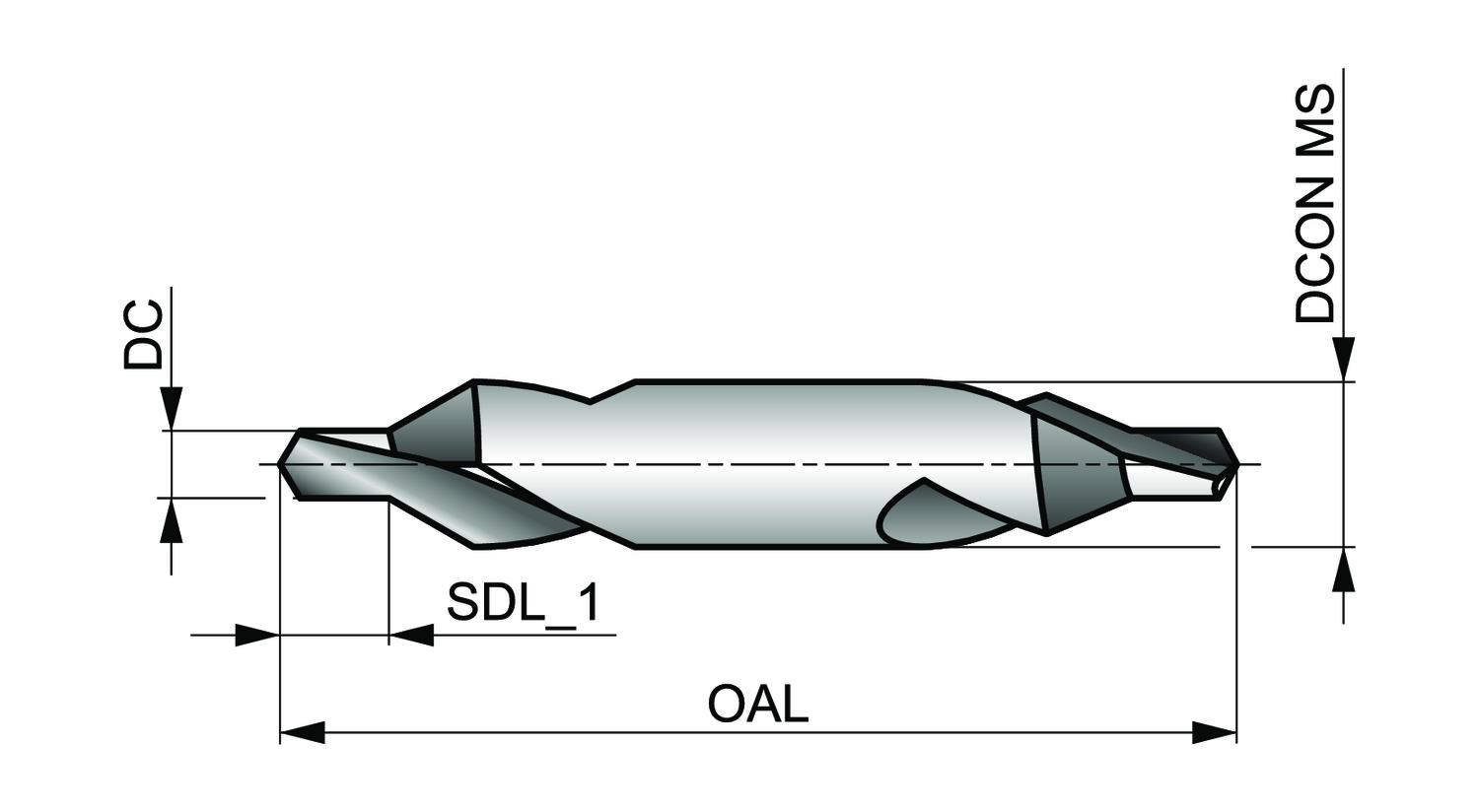

Additional Information	Description: Value EAN number: 7320760172988 Product number (SAP): 86010110 Ordering code ANSI: A225BS1 Gross weight – grams: 4.7 Internal designation number: BS1 Cutting diameter – fractional inch (DC): 3/64 Cutting diameter – inch (DC): 0.0469 inch Step diameter length range – fractional inch (SDL_1): 5/64 – 1/16 Overall length – fractional inch (OAL): 1.1/2 Connection diameter – fractional inch (DCON MS): 1/8 Step included angle (STA): 60 ISO: A225BS1
