DORMER A225BS2 HSS/HSCo Drills

Description

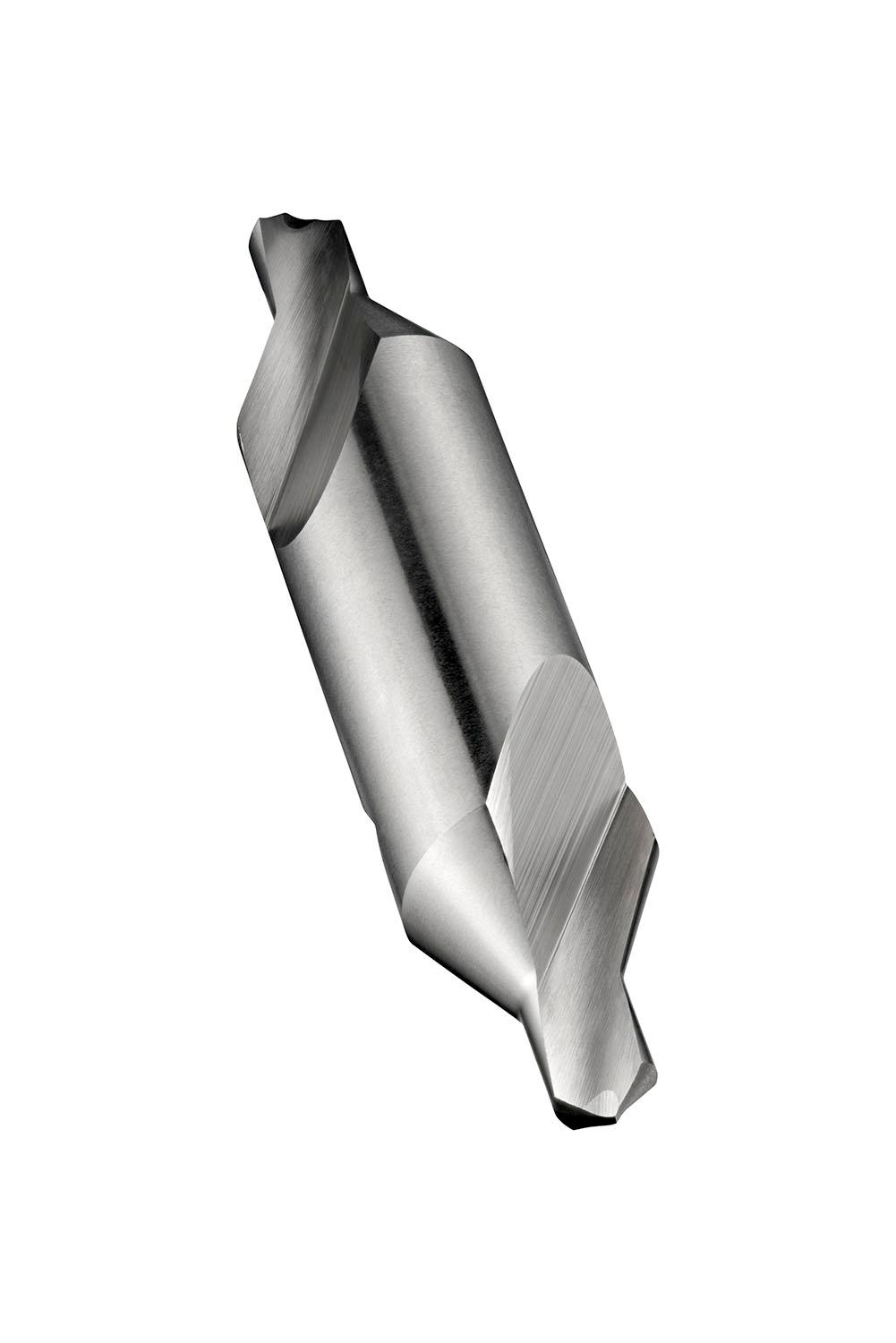

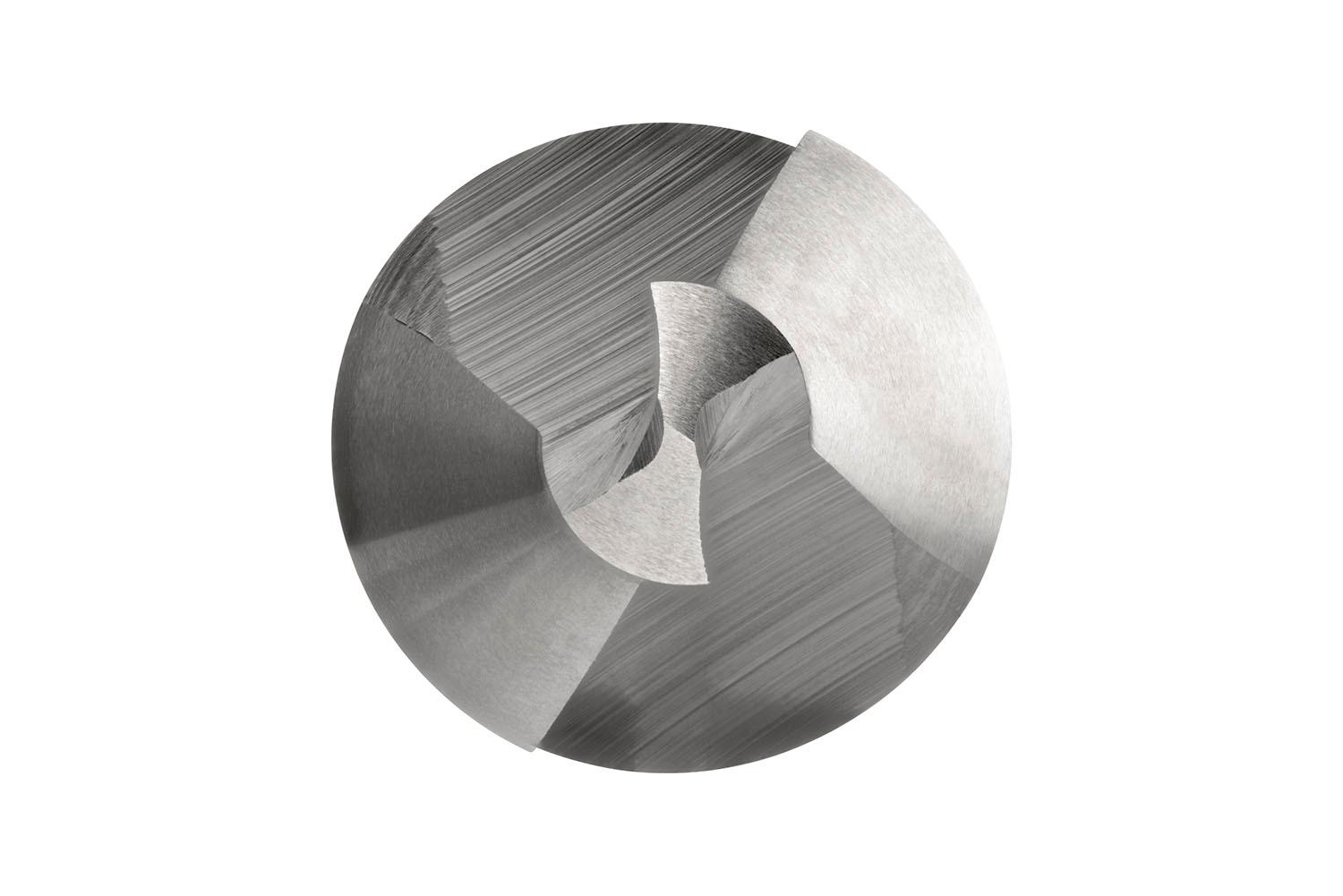

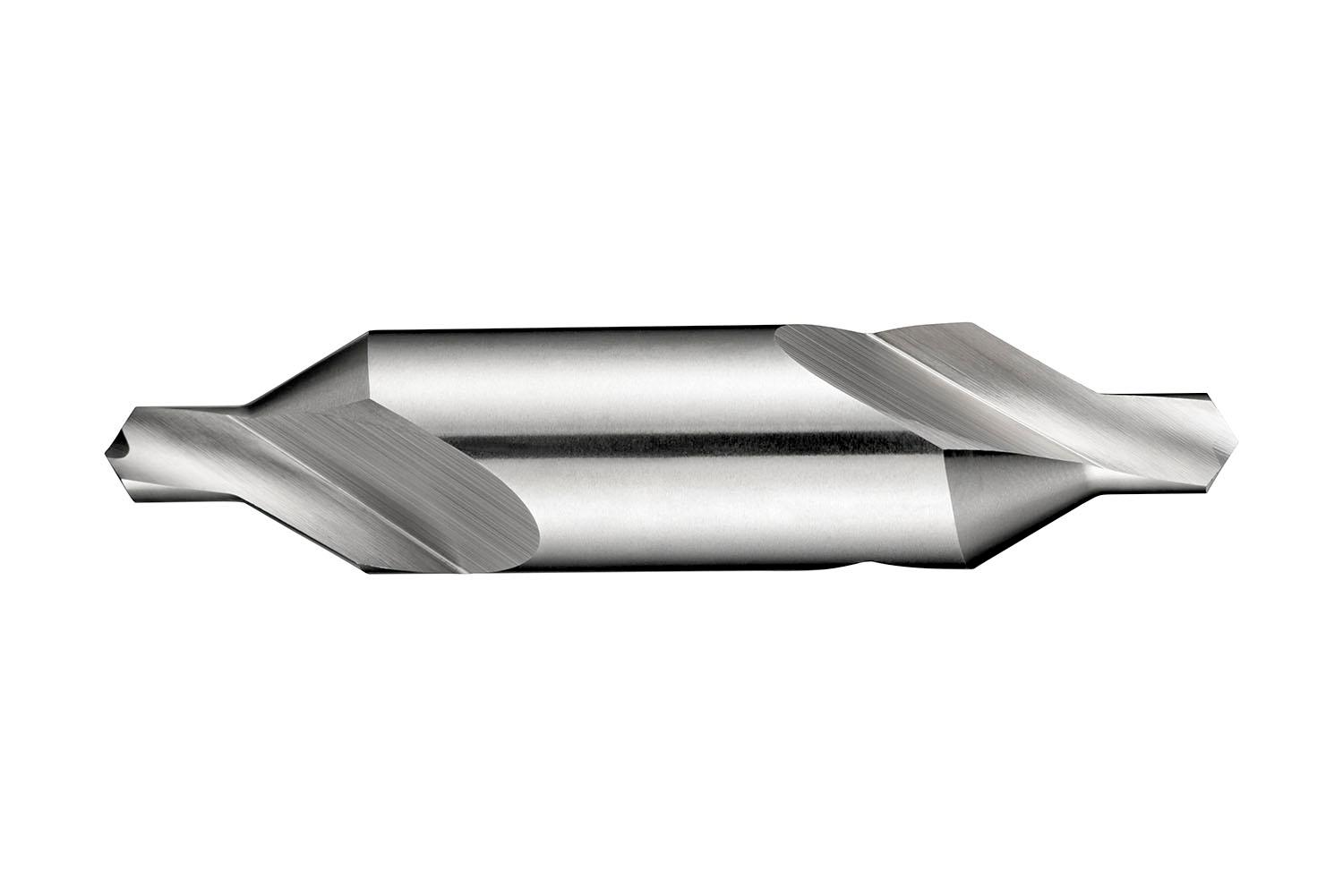

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size BS2 with 1/16″ drill diameter, a body diameter of 3/16″ and an overall length of 1.3/4″, according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight	0.0125 kg
barcode

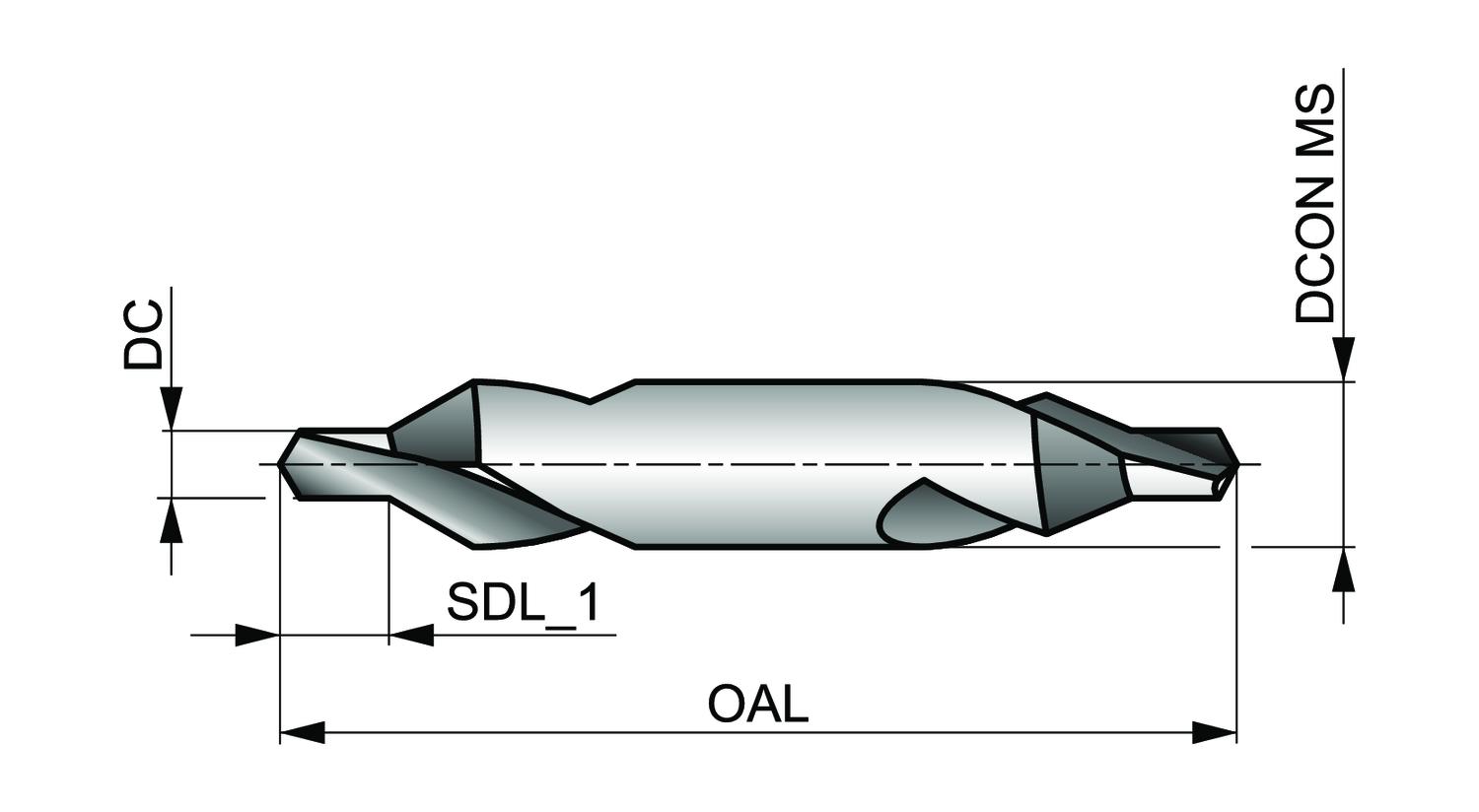

Additional Information	Description: Value EAN number: 7320760172995 Product number (SAP): 86010111 Ordering code ANSI: A225BS2 Gross weight – grams: 7.2 Internal designation number: BS2 Cutting diameter – fractional inch (DC): 1/16 Cutting diameter – inch (DC): 0.0625 inch Step diameter length range – fractional inch (SDL_1): 3/32 – 5/64 Overall length – fractional inch (OAL): 1.3/4 Connection diameter – fractional inch (DCON MS): 3/16 Step included angle (STA): 60 ISO: A225BS2

Need Technical Advice?

Description

Additional information

Brand

DORMER
