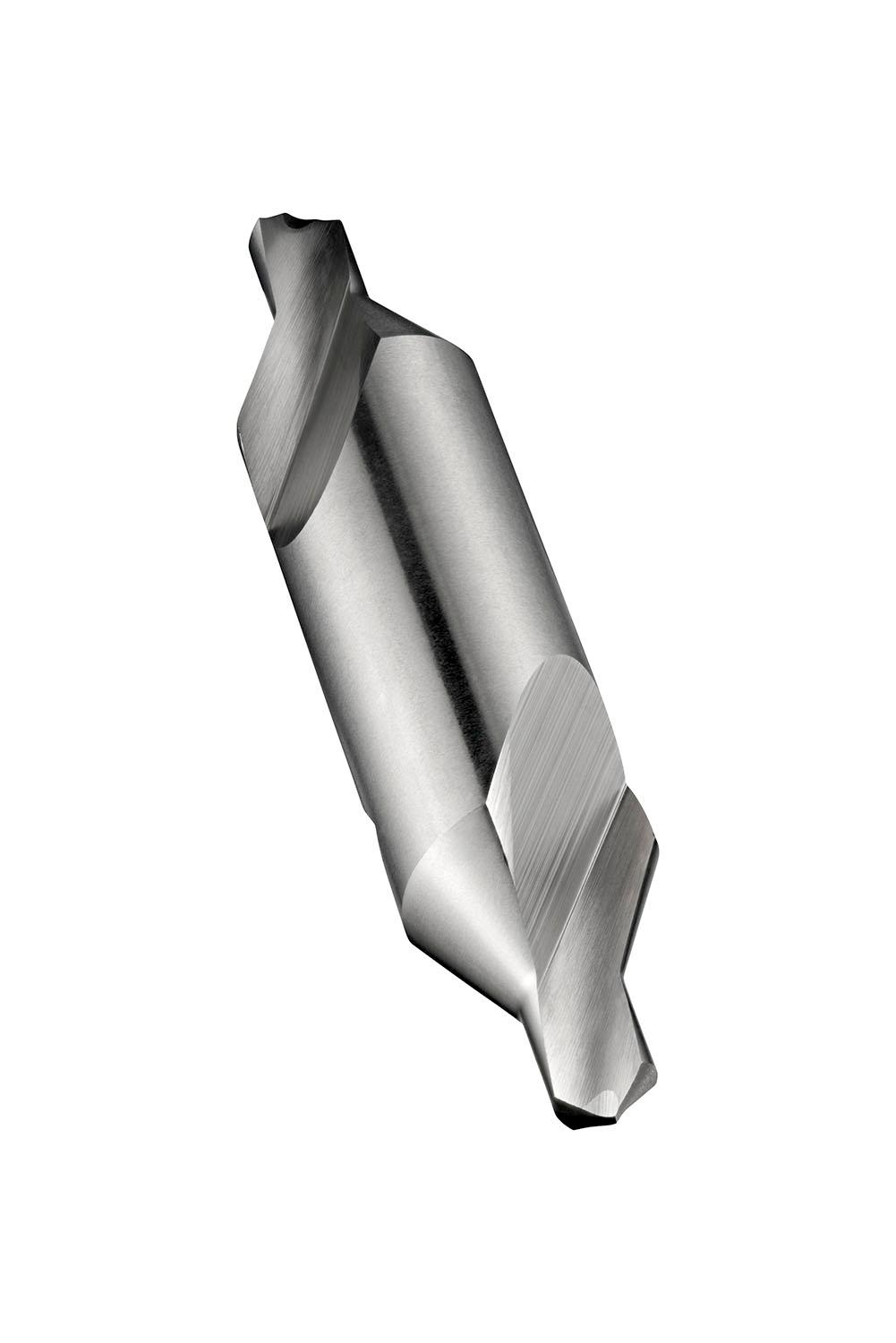

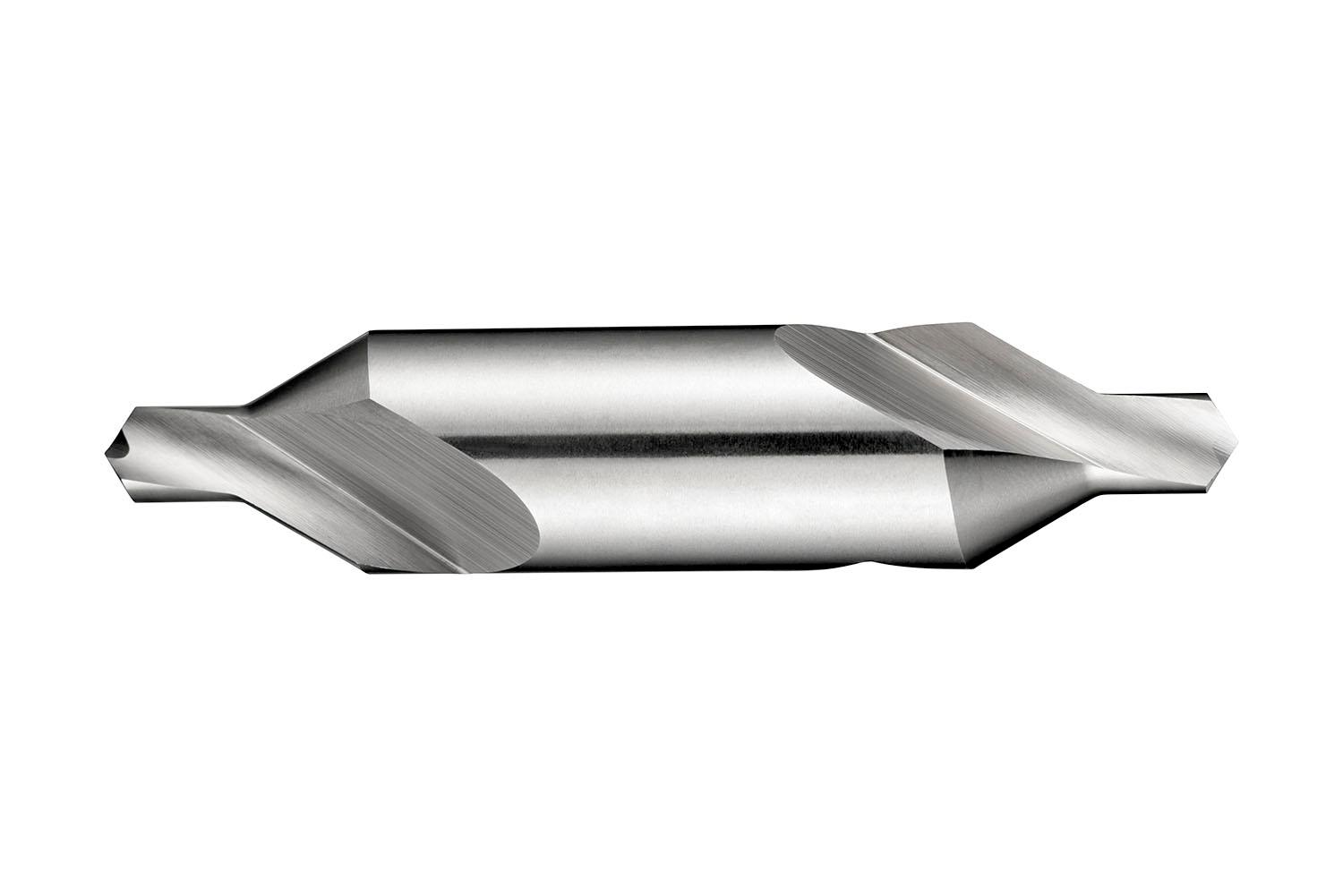

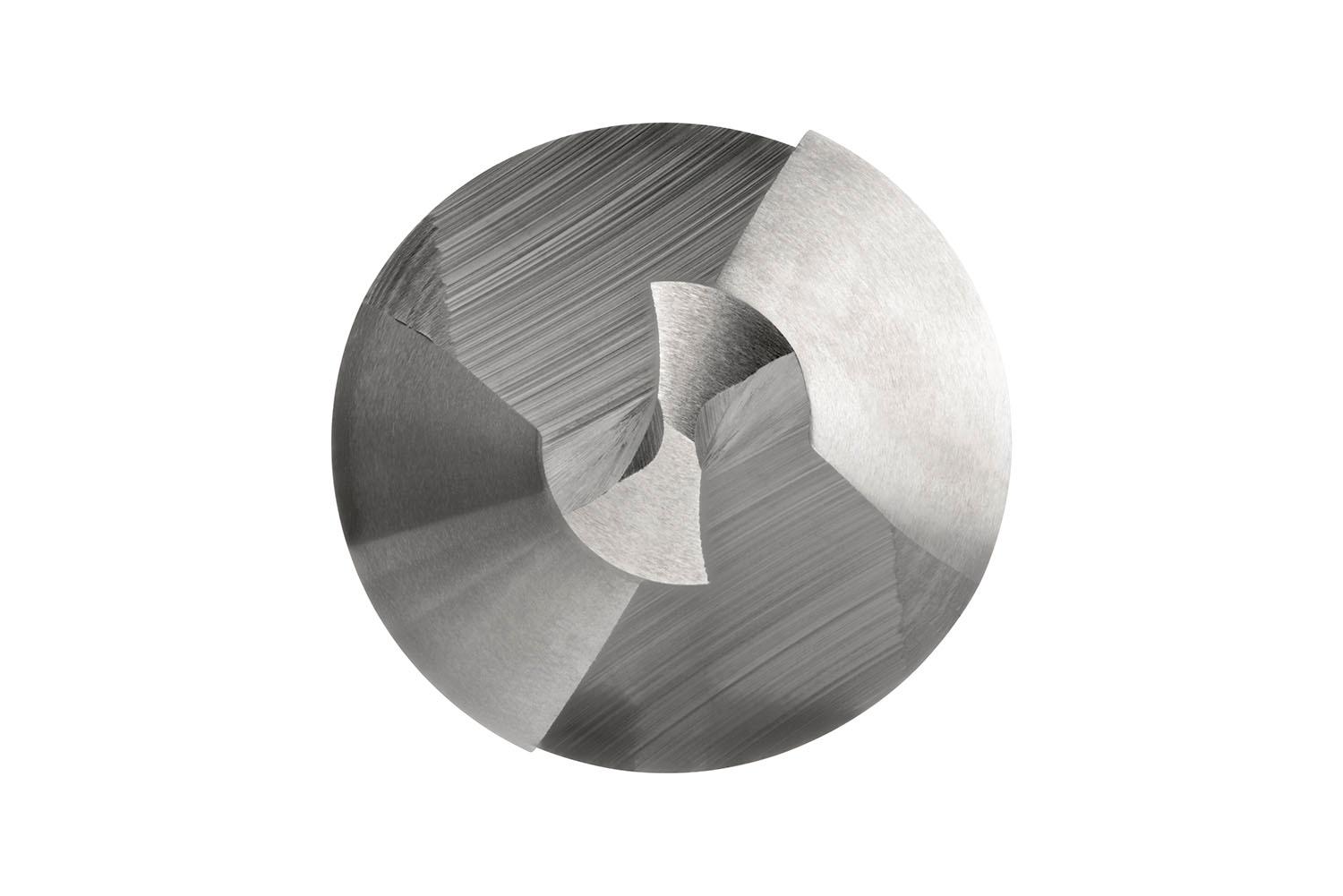

DORMER A225BS4 HSS/HSCo Drills

Product Code: A225BS4

$19.60$17.82 Ex. GST

Product Code: A225BS4 SKU A225BS4 Categories , ,
DORMER A225BS4 HSS/HSCo Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size BS4 with 1/8″ drill diameter, a body diameter of 5/16″ and an overall length of 2.1/4″, according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.0190 kg
barcode
Additional Information

Description: Value
EAN number: 7320760173015
Product number (SAP): 86010113
Ordering code ANSI: A225BS4
Gross weight – grams: 20
Internal designation number: BS4

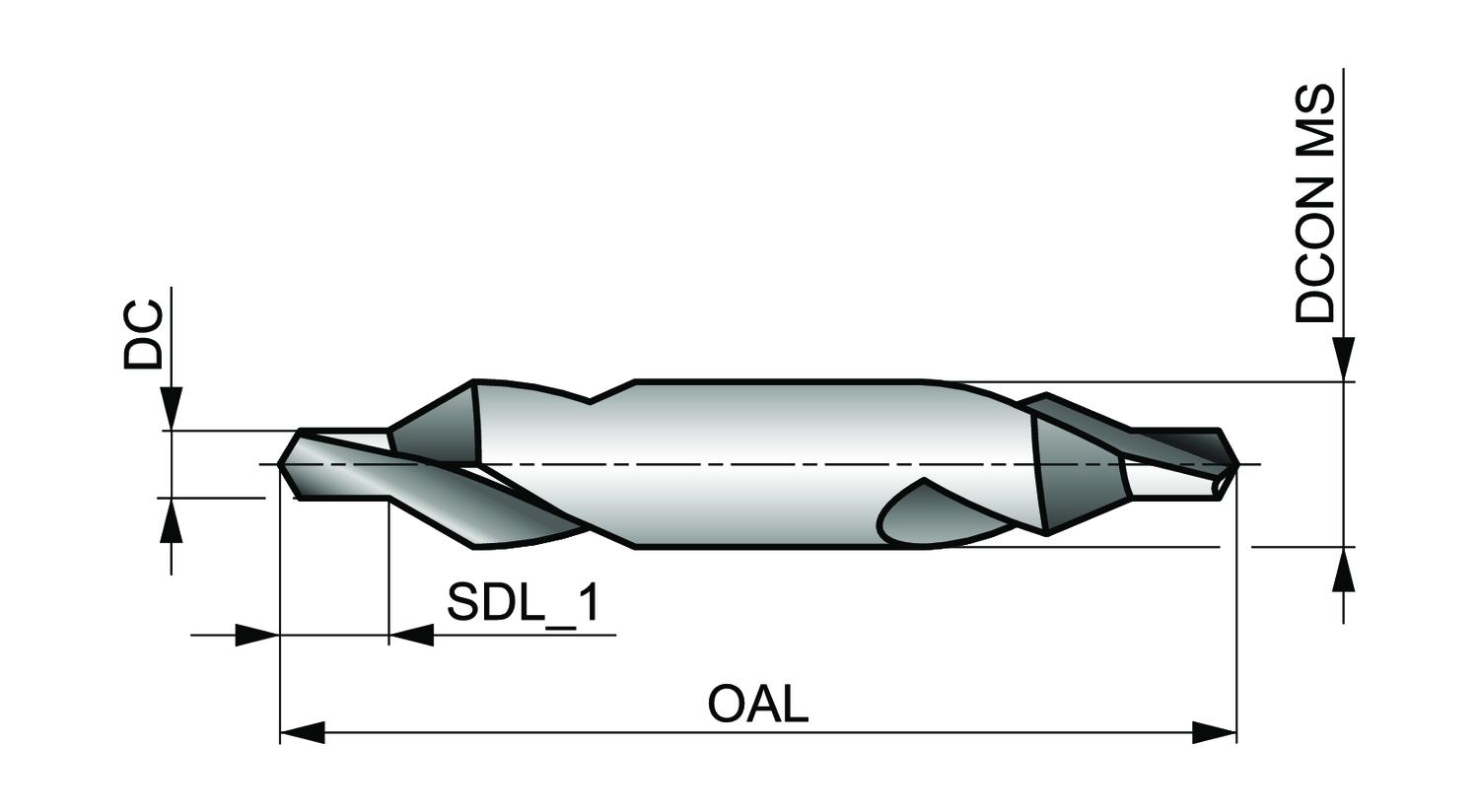

Cutting diameter – fractional inch (DC): 1/8
Cutting diameter – inch (DC): 0.125 inch
Step diameter length range – fractional inch (SDL_1): 3/16 – 5/32
Overall length – fractional inch (OAL): 2.1/4
Connection diameter – fractional inch (DCON MS): 5/16
Step included angle (STA): 60
ISO: A225BS4

Brand

DORMER
