DORMER A225BS5A HSS/HSCo Drills

Product Code: A225BS5A

$44.08$40.07 Ex. GST

Product Code: A225BS5A SKU A225BS5A Categories , ,
DORMER A225BS5A HSS/HSCo Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

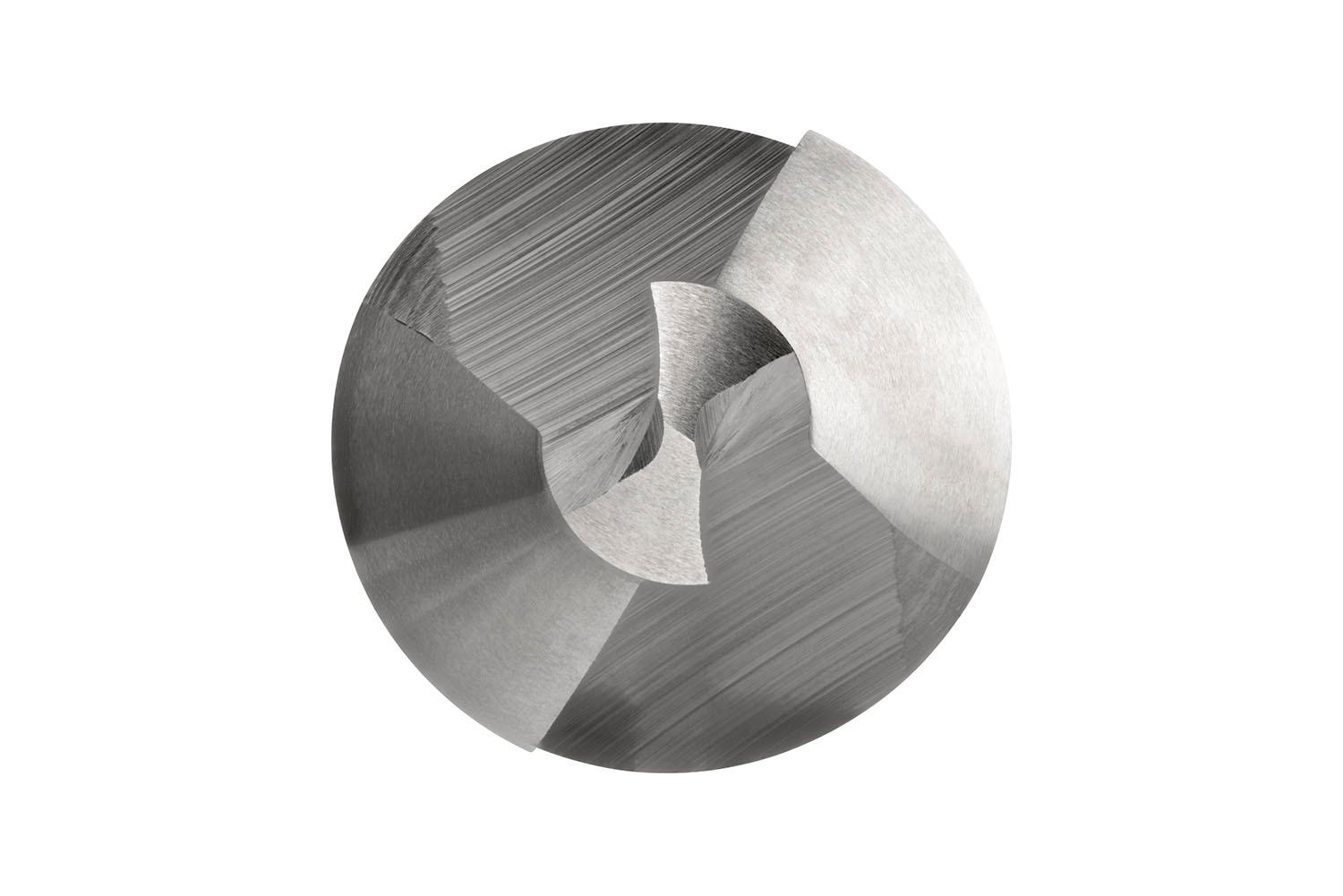

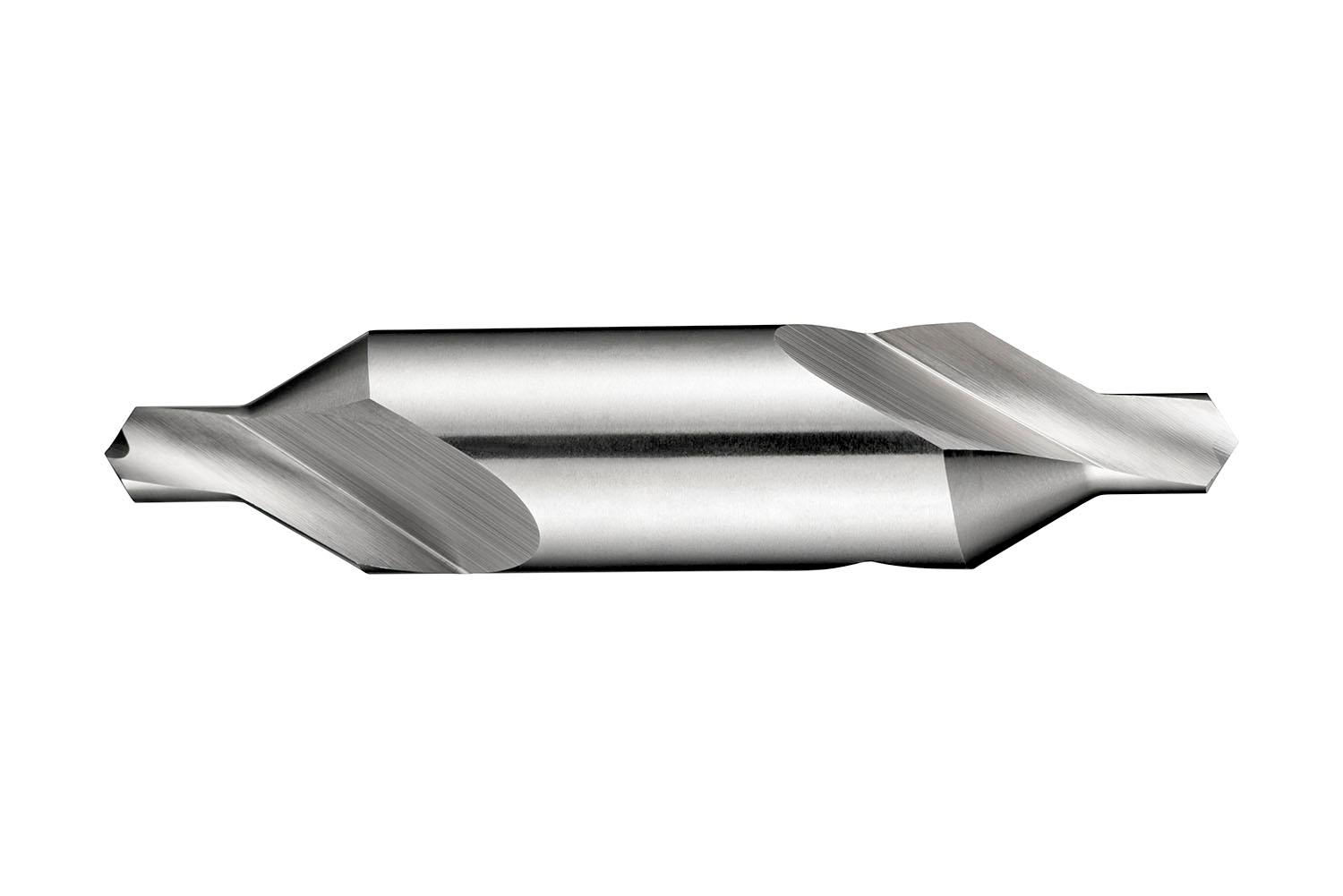

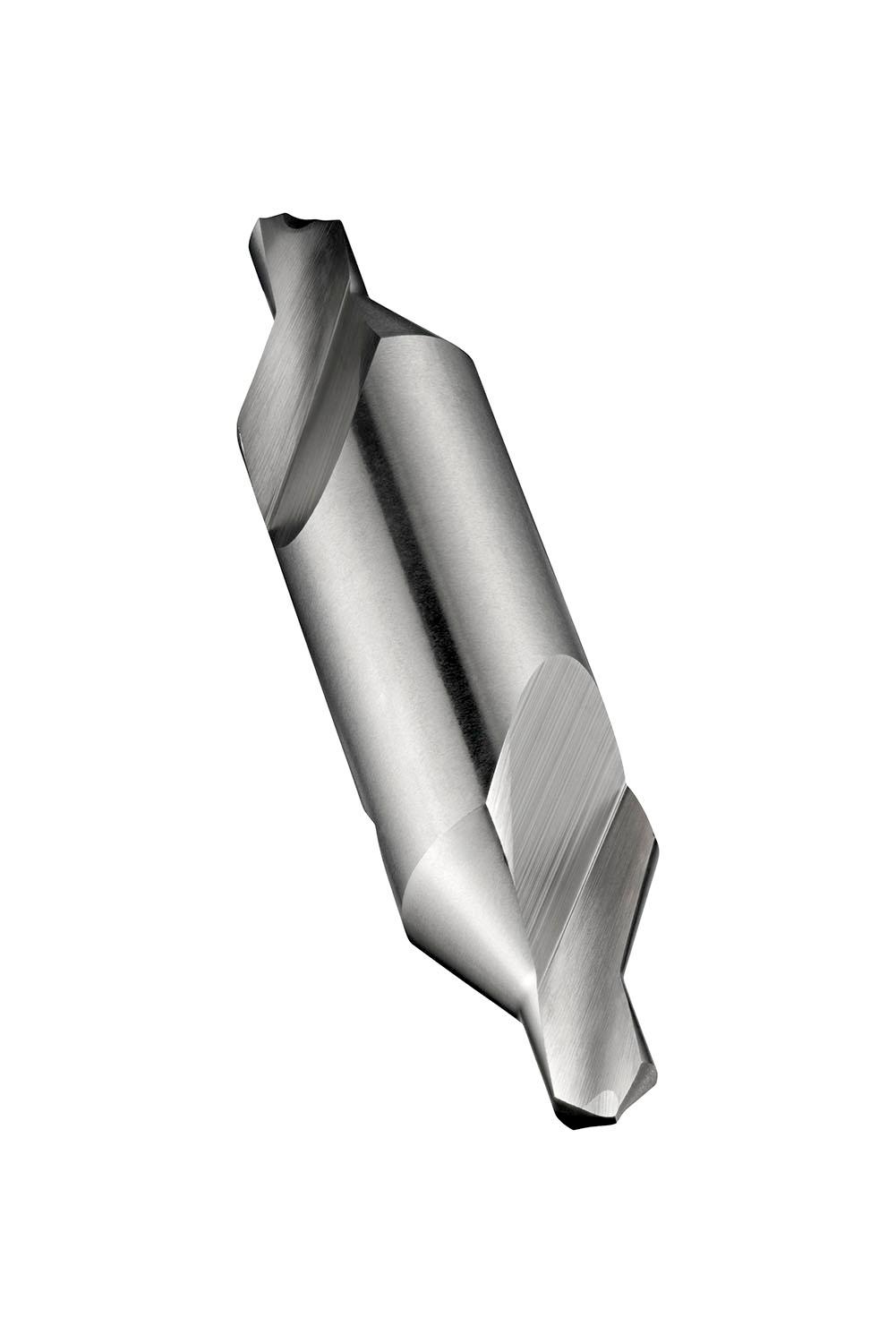

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size BS5A with 7/32″ drill diameter, a body diameter of 1/2″ and an overall length of 2.3/4″, according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.0428 kg
barcode
Additional Information

Description: Value
EAN number: 7320760173039
Product number (SAP): 86010115
Ordering code ANSI: A225BS5A
Gross weight – grams: 59
Internal designation number: BS5A

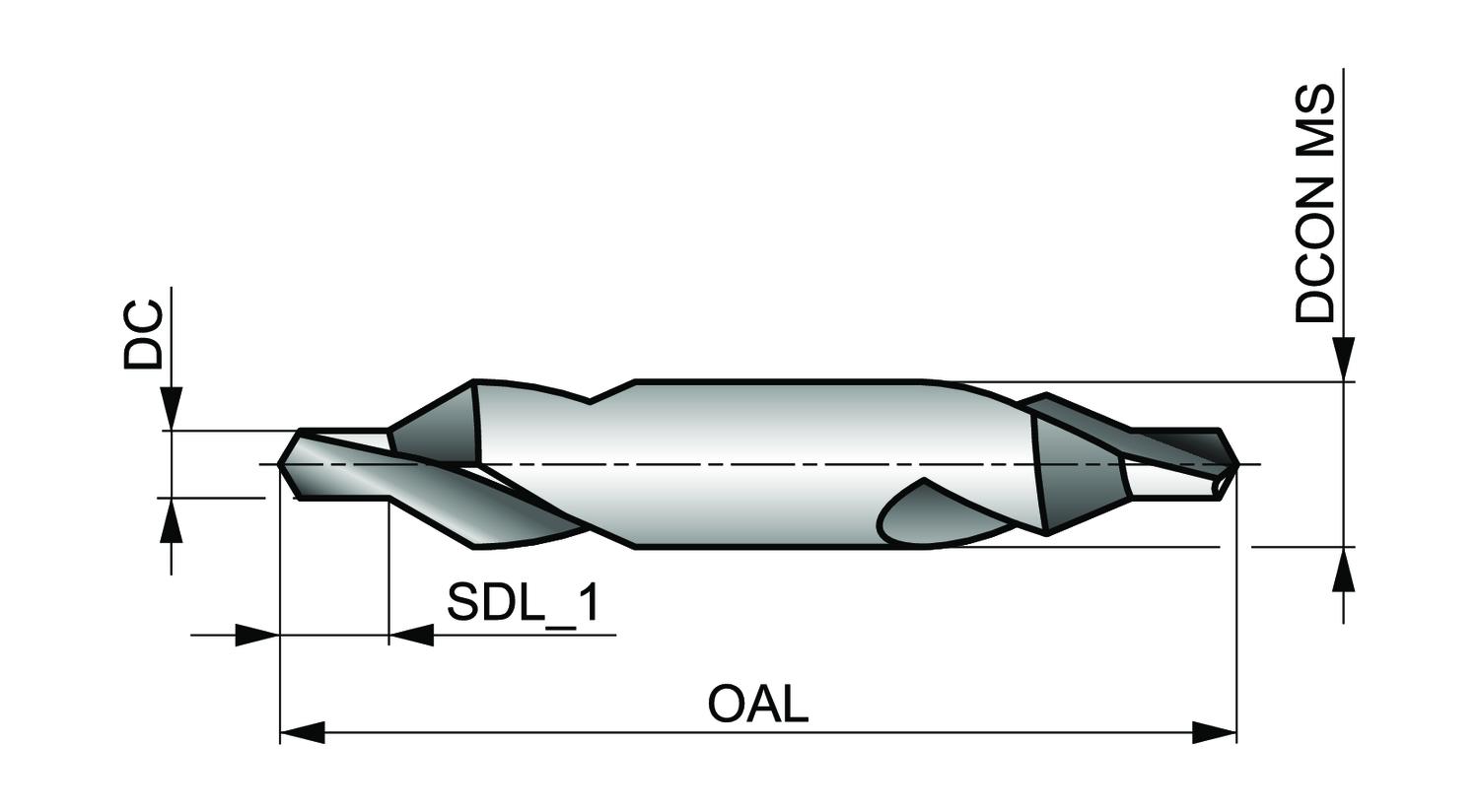

Cutting diameter – fractional inch (DC): 7/32
Cutting diameter – inch (DC): 0.2188 inch
Step diameter length range – fractional inch (SDL_1): 5/16 – 9/32
Overall length – fractional inch (OAL): 2.3/4
Connection diameter – fractional inch (DCON MS): 1/2
Step included angle (STA): 60
ISO: A225BS5A

Brand

DORMER
