DORMER A225BS7 HSS/HSCo Drills

Product Code: A225BS7

$117.83$107.12 Ex. GST

Product Code: A225BS7 SKU A225BS7 Categories , ,
DORMER A225BS7 HSS/HSCo Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

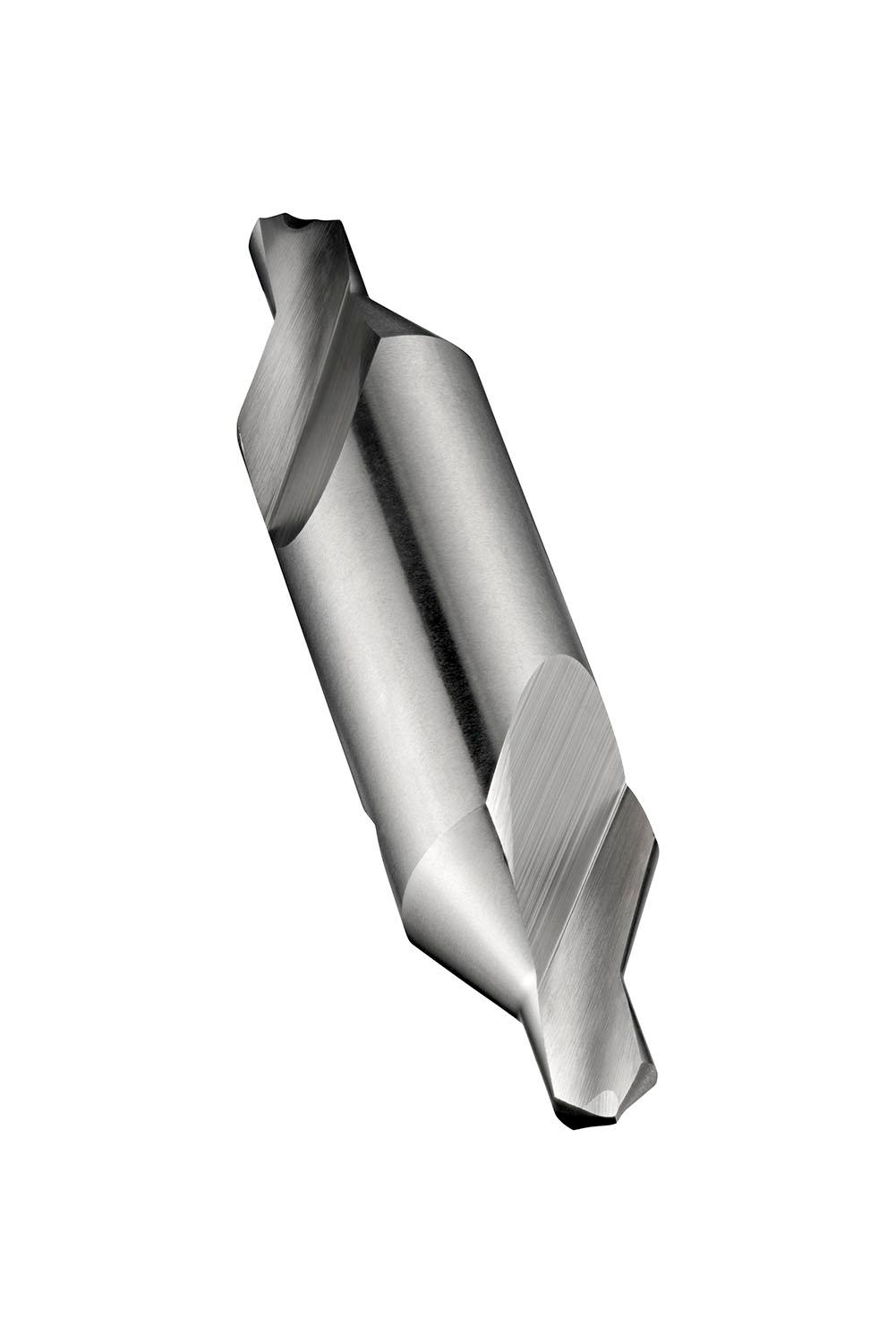

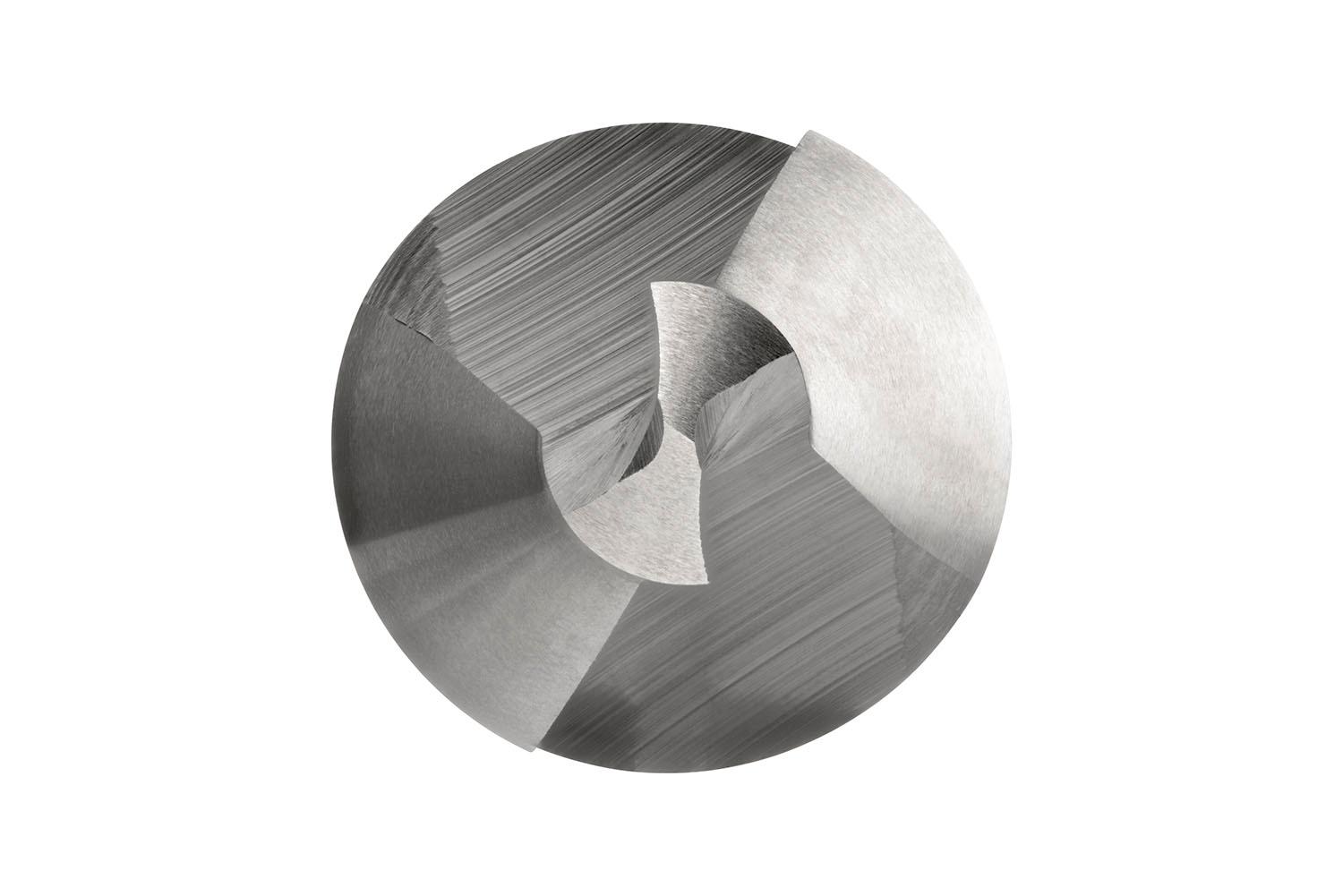

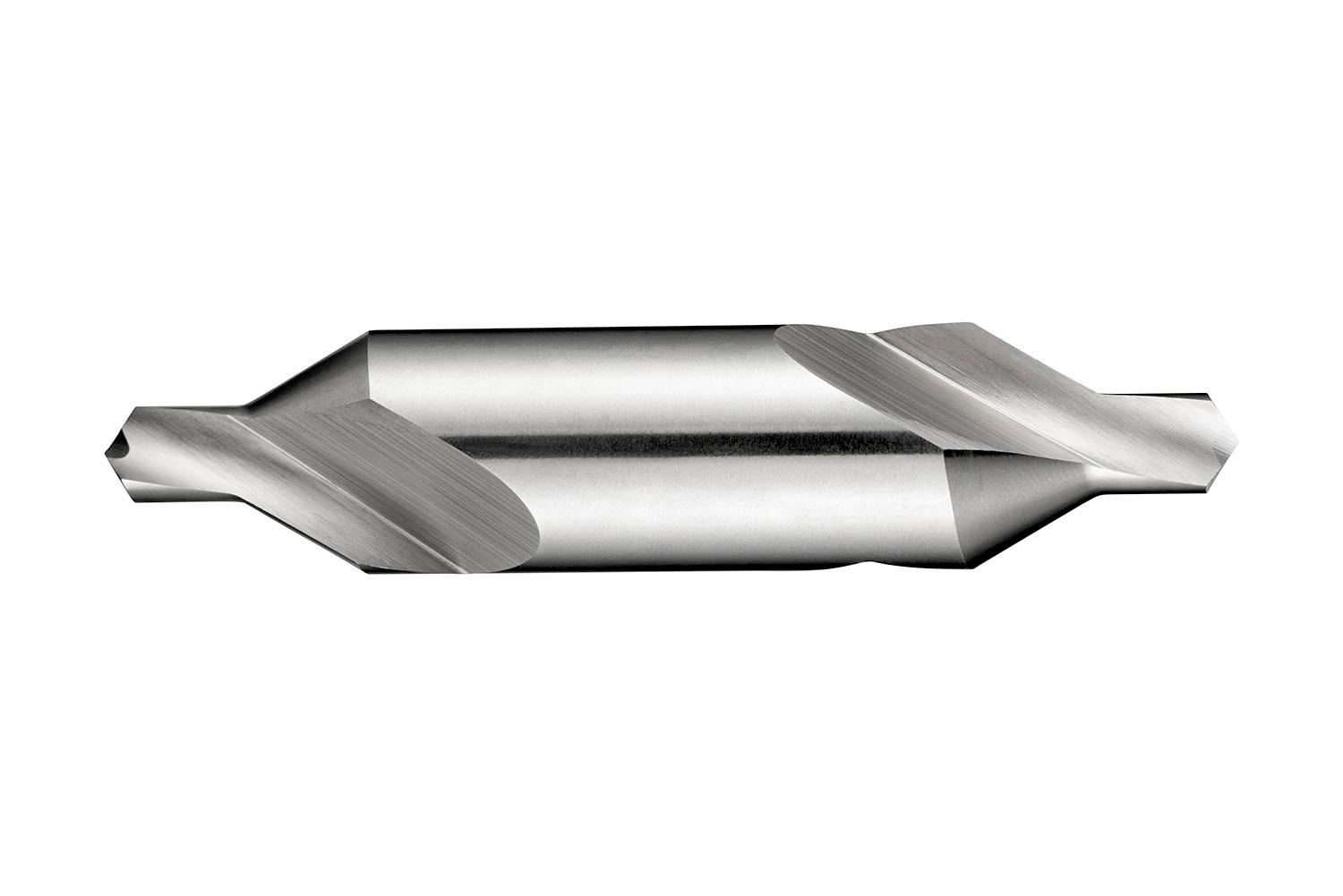

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, size BS7 with 5/16″ drill diameter, a body diameter of 3/4″ and an overall length of 3.1/2″, according to BS 328 standard to produce form A centre holes, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.1144 kg
barcode
Additional Information

Description: Value
EAN number: 7320760173053
Product number (SAP): 86010117
Ordering code ANSI: A225BS7
Gross weight – grams: 118
Internal designation number: BS7

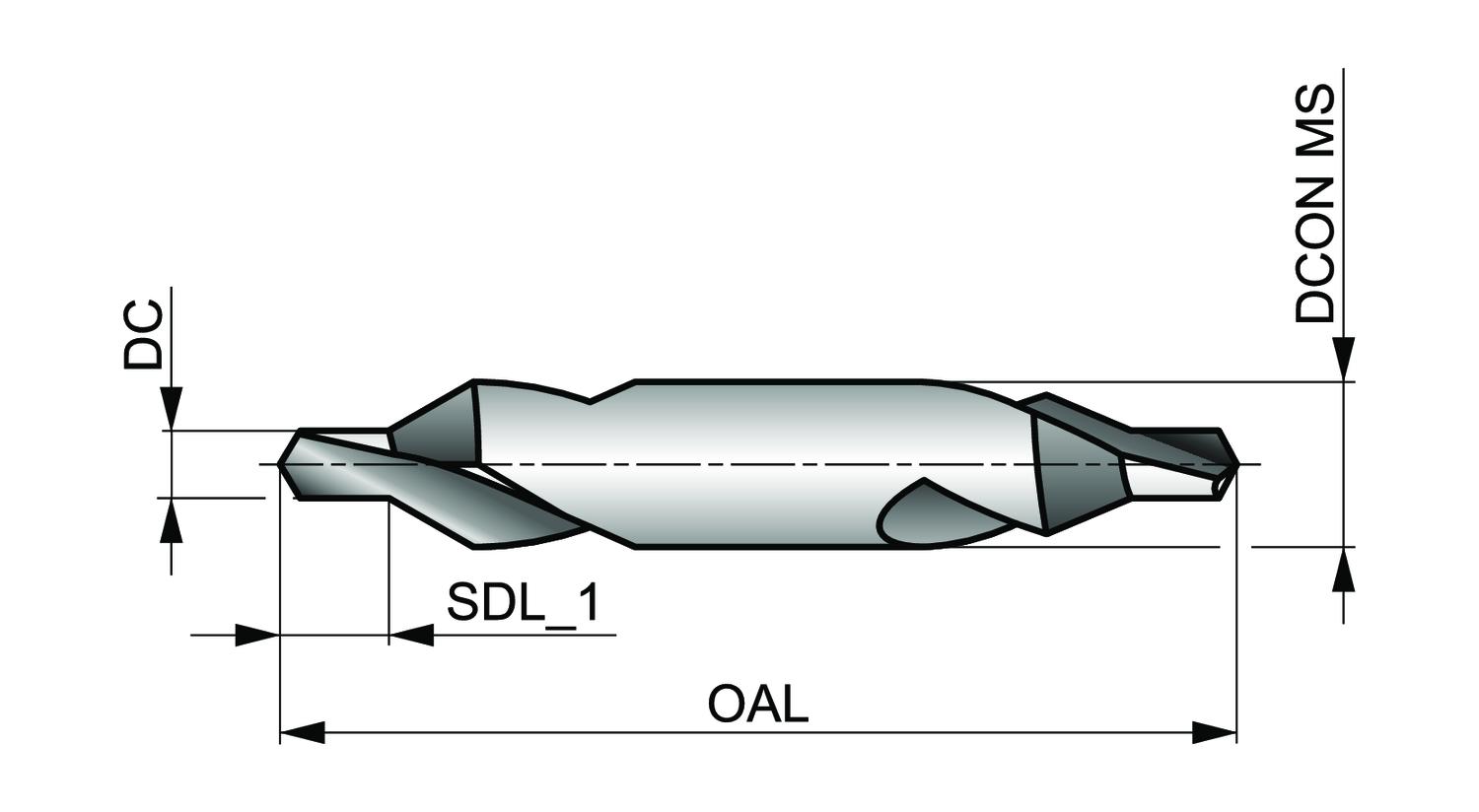

Cutting diameter – fractional inch (DC): 5/16
Cutting diameter – inch (DC): 0.3125 inch
Step diameter length range – fractional inch (SDL_1): 15/32 – 13/32
Overall length – fractional inch (OAL): 3.1/2
Connection diameter – fractional inch (DCON MS): 3/4
Step included angle (STA): 60
ISO: A225BS7

Brand

DORMER
