DORMER A2421.5X5.0 HSS/HSCo Drills

Product Code: A2421.5X5.0

$39.09$35.54 Ex. GST

Product Code: A2421.5X5.0 SKU A2421.5X5.0 Categories , ,
DORMER A2421.5X5.0 HSS/HSCo Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

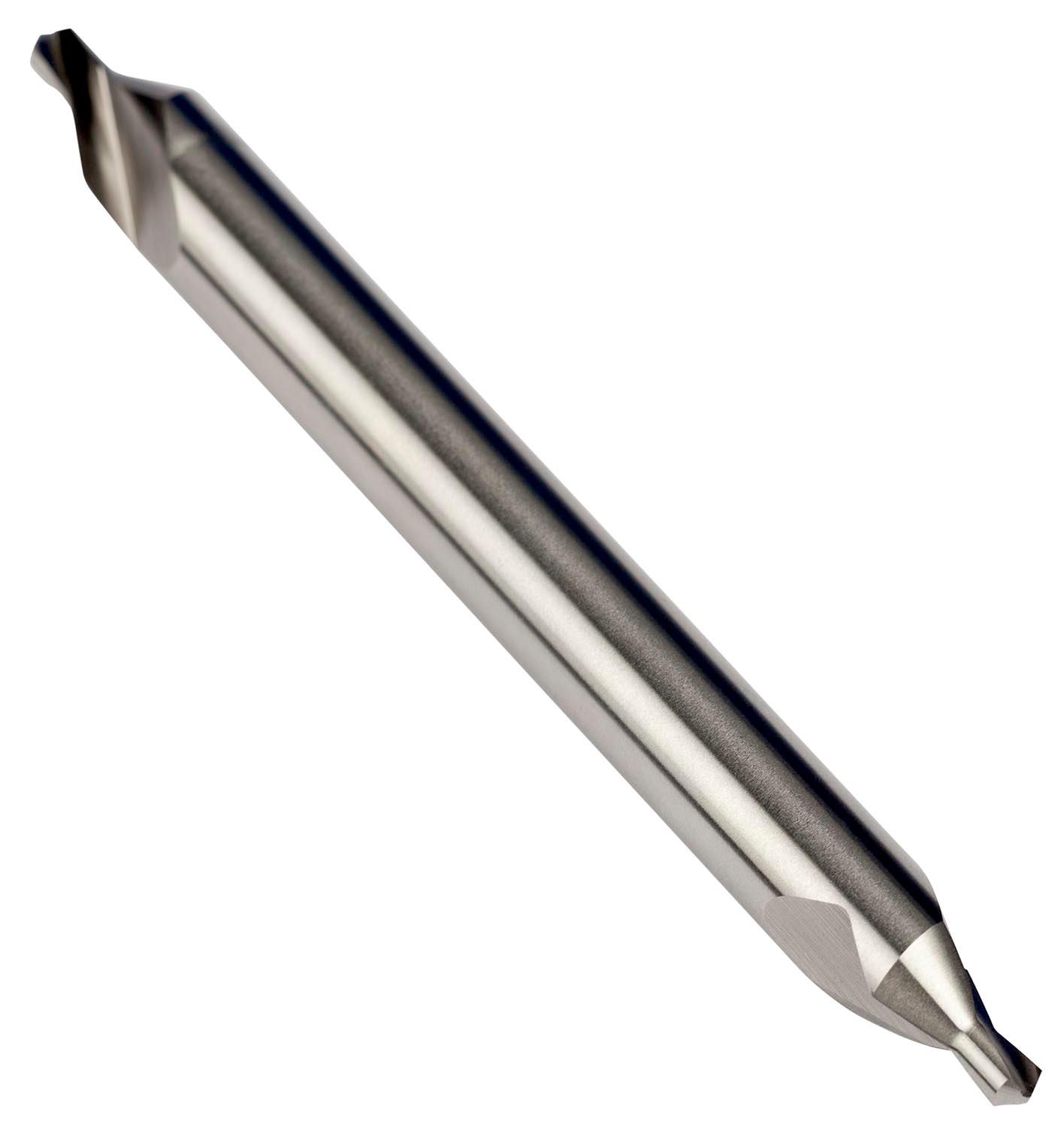

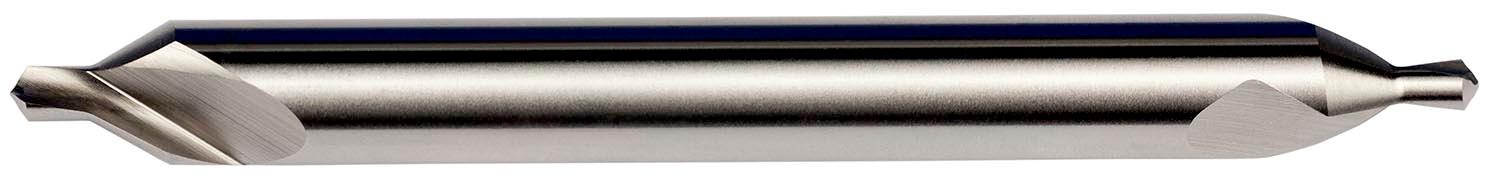

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 1.50mm drill diameter, a body diameter of 5.00mm and an overall length of 100mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.0380 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760708583
Product number (SAP): 86031060
Ordering code ANSI: A2421.5X5.0
Gross weight – grams: 22.4

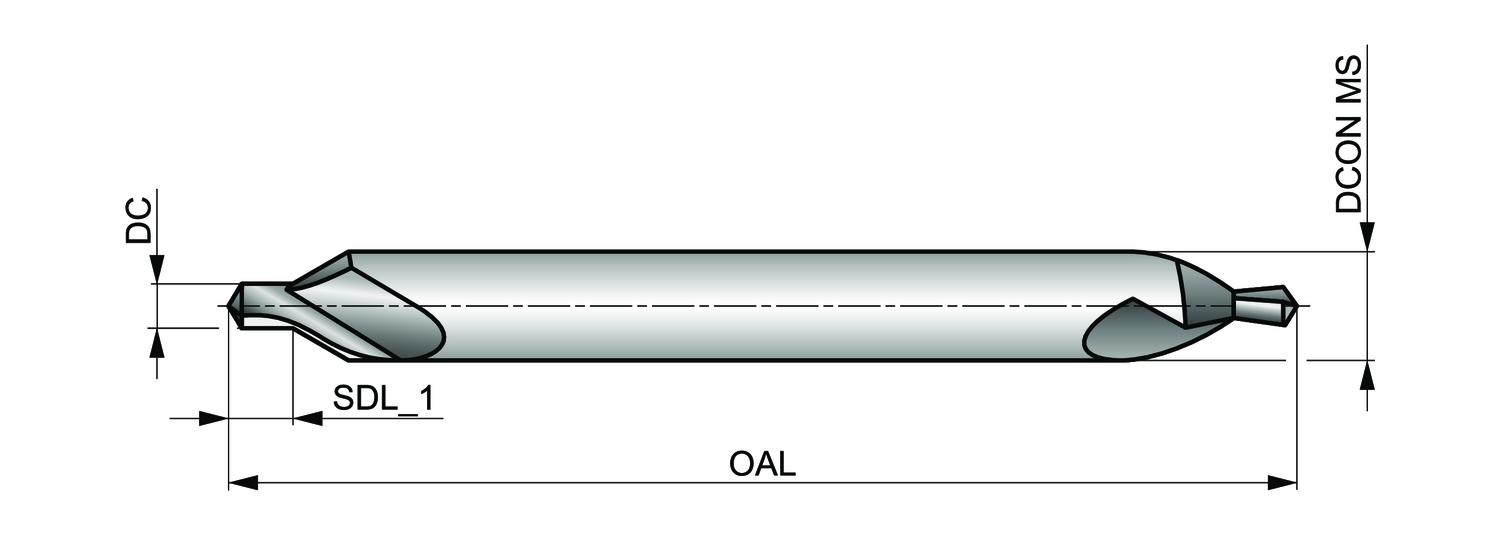

Cutting diameter – millimeter (DC): 1.5 mm
Cutting diameter – inch (DC): 0.0591 inch
Step diameter length range – millimeters (SDL_1): 2.6 – 2.0
Overall length – millimeter (OAL): 100 mm
Connection diameter – millimeter (DCON MS): 5 mm
Step included angle (STA): 60
ISO: A2421.5X5.0

Brand

DORMER
