DORMER A2423.0X8.0 HSS/HSCo Drills

Product Code: A2423.0X8.0

$50.88$46.25 Ex. GST

Product Code: A2423.0X8.0 SKU A2423.0X8.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

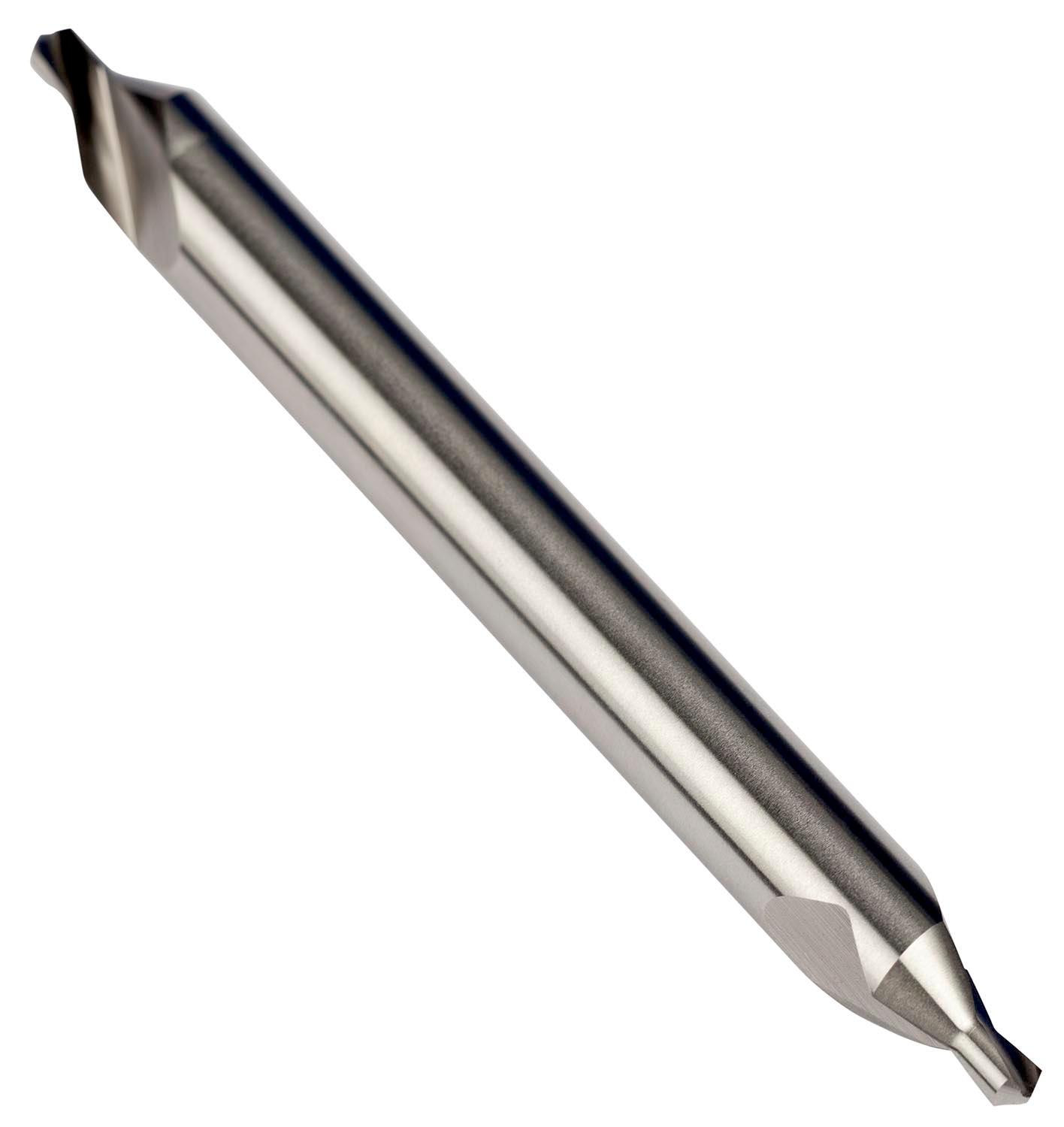

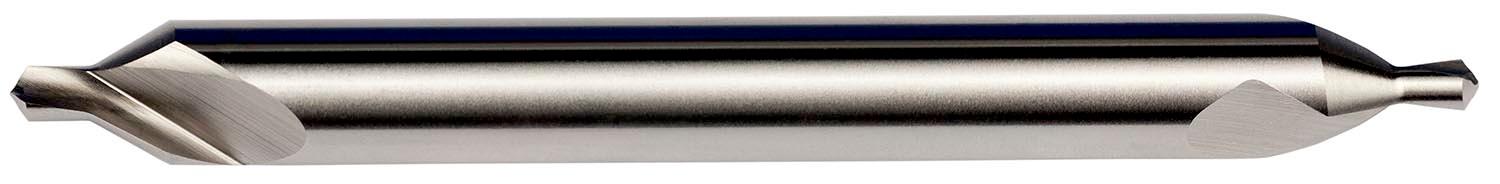

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 3.00mm drill diameter, a body diameter of 8.00mm and an overall length of 100mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.0494 kg
Dimensions
barcode
Additional Information

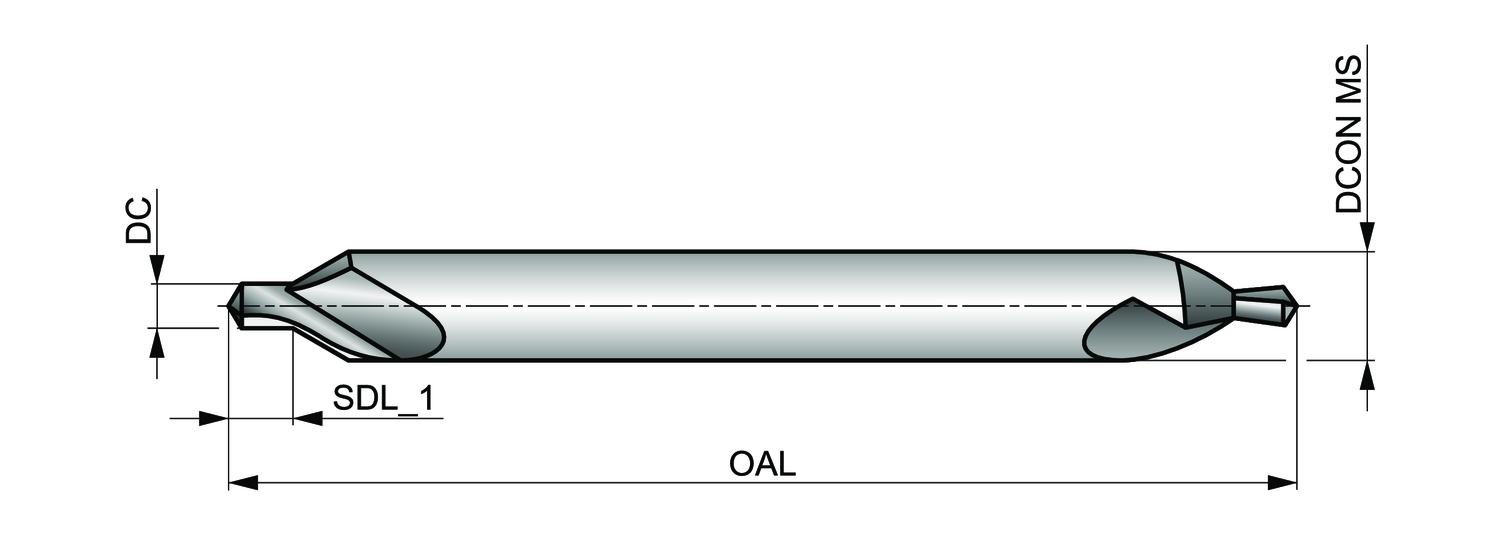

Description: Value
EAN number: 7320760708613
Product number (SAP): 86031063
Ordering code ANSI: A2423.0X8.0
Gross weight – grams: 41.6
Cutting diameter – millimeter (DC): 3 mm
Cutting diameter – inch (DC): 0.1181 inch
Step diameter length range – millimeters (SDL_1): 4.6 – 3.9
Overall length – millimeter (OAL): 100 mm
Connection diameter – millimeter (DCON MS): 8 mm
Step included angle (STA): 60
ISO: A2423.0X8.0

Brand

DORMER
