DORMER A2661.6X4.0 HSS/HSCo Drills

Product Code: A2661.6X4.0

$39.20$35.64 Ex. GST

Product Code: A2661.6X4.0 SKU A2661.6X4.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

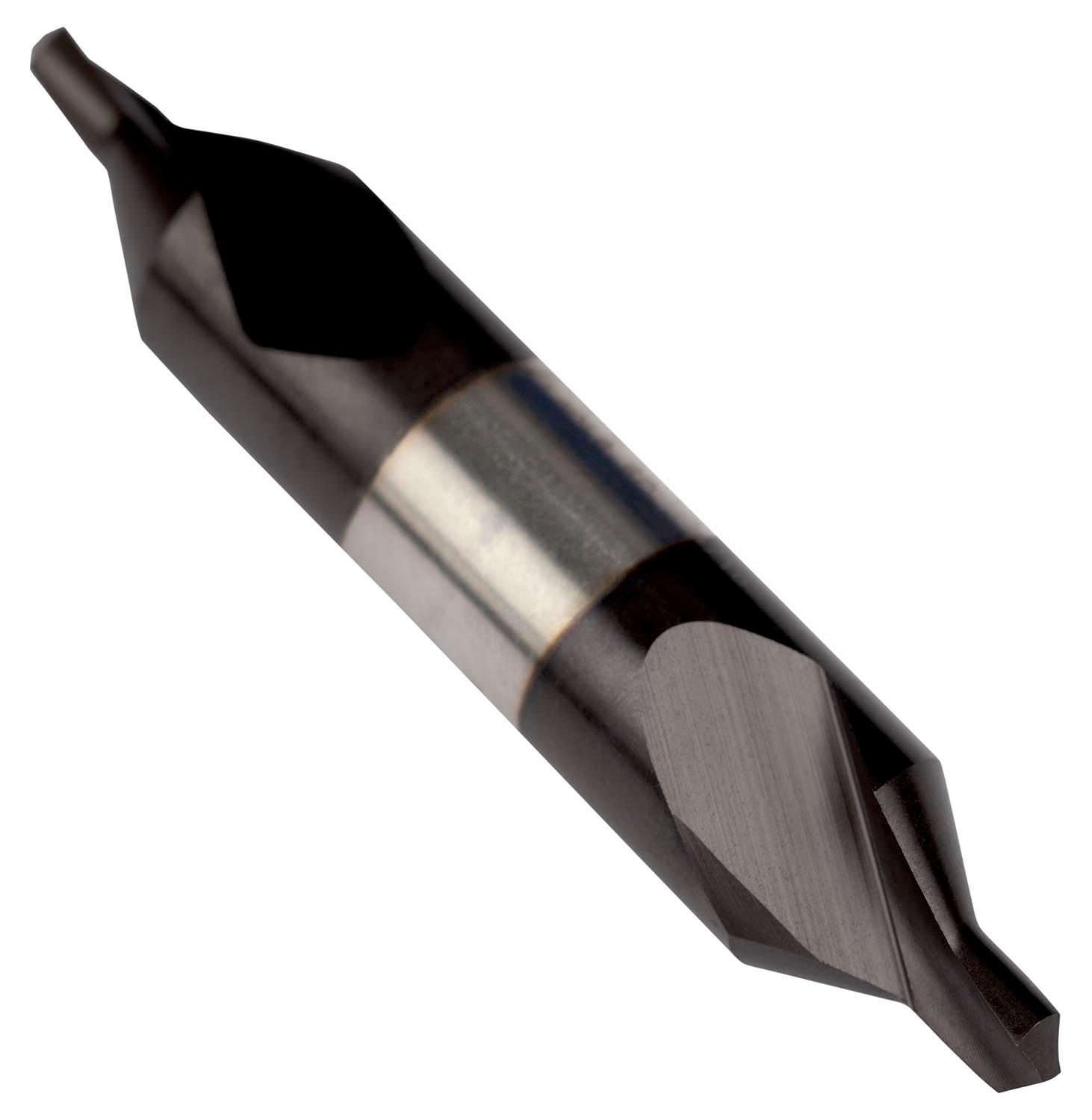

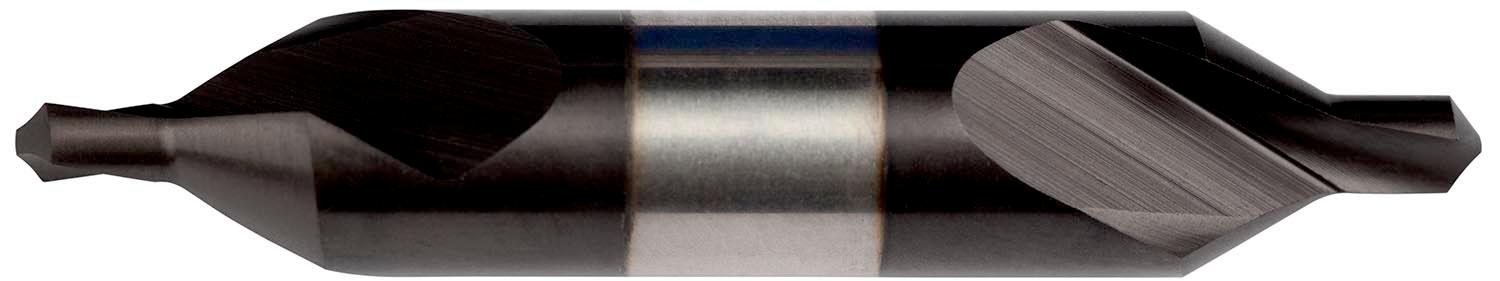

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 1.60mm drill diameter, a body diameter of 4.00mm and an overall length of 35mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and TiAlN coating for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.0381 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760708262
Product number (SAP): 86031028
Ordering code ANSI: A2661.6X4.0
Gross weight – grams: 5

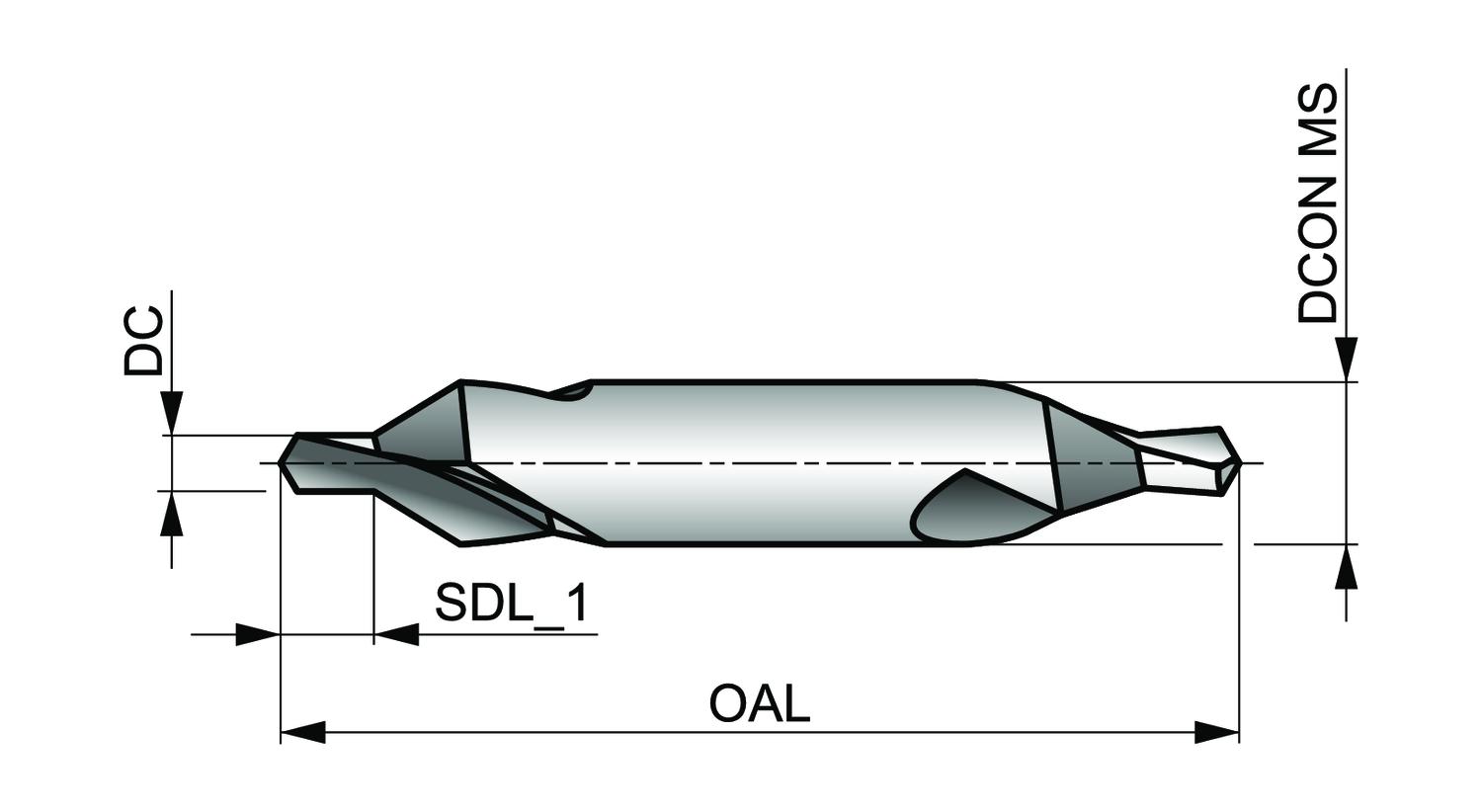

Cutting diameter – millimeter (DC): 1.6 mm
Cutting diameter – inch (DC): 0.063 inch
Step diameter length range – millimeters (SDL_1): 2.6 – 2.0
Overall length – millimeter (OAL): 35 mm
Connection diameter – millimeter (DCON MS): 4 mm
Step included angle (STA): 60
ISO: A2661.6X4.0

Brand

DORMER
