DORMER A2662.5X6.3 HSS/HSCo Drills

Product Code: A2662.5X6.3

$46.79$42.54 Ex. GST

Product Code: A2662.5X6.3 SKU A2662.5X6.3 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

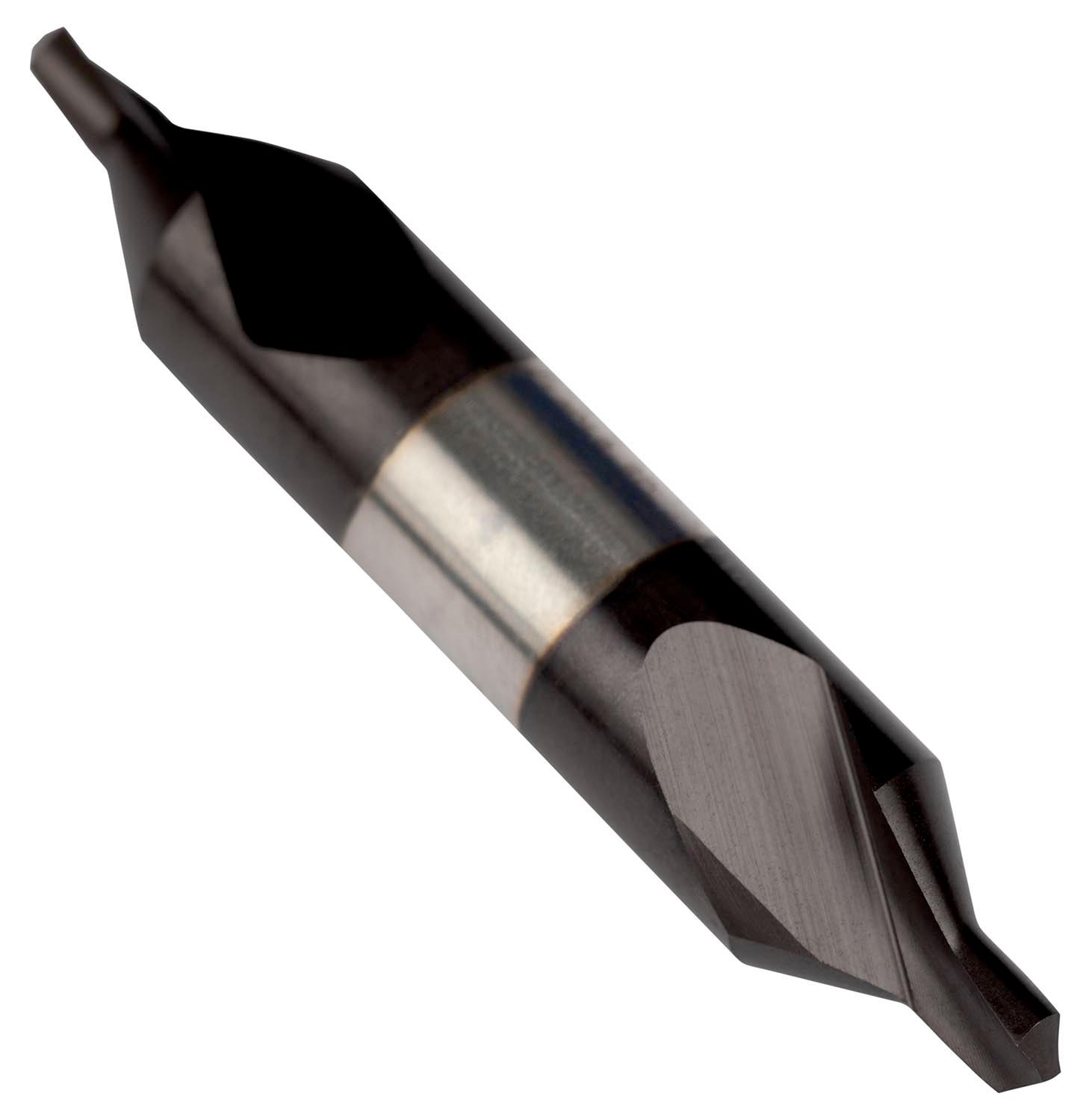

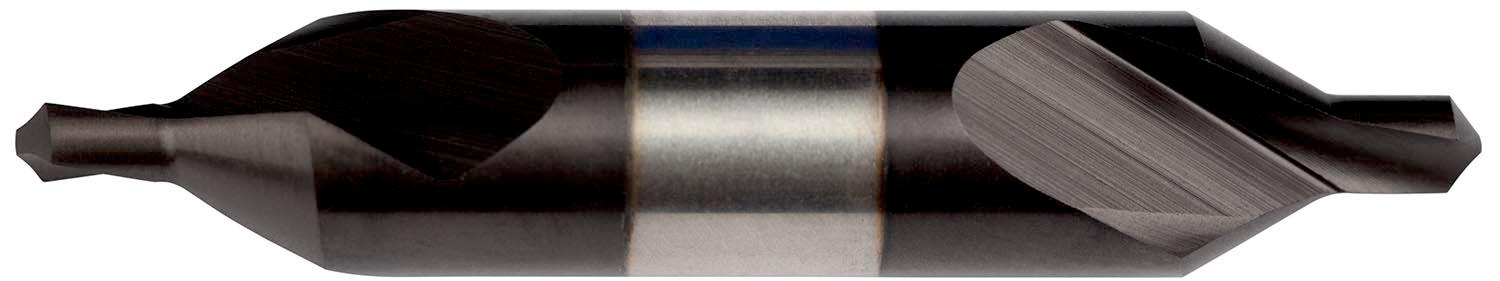

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 2.50mm drill diameter, a body diameter of 6.30mm and an overall length of 45mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and TiAlN coating for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.0454 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760708286
Product number (SAP): 86031030
Ordering code ANSI: A2662.5X6.3
Gross weight – grams: 10

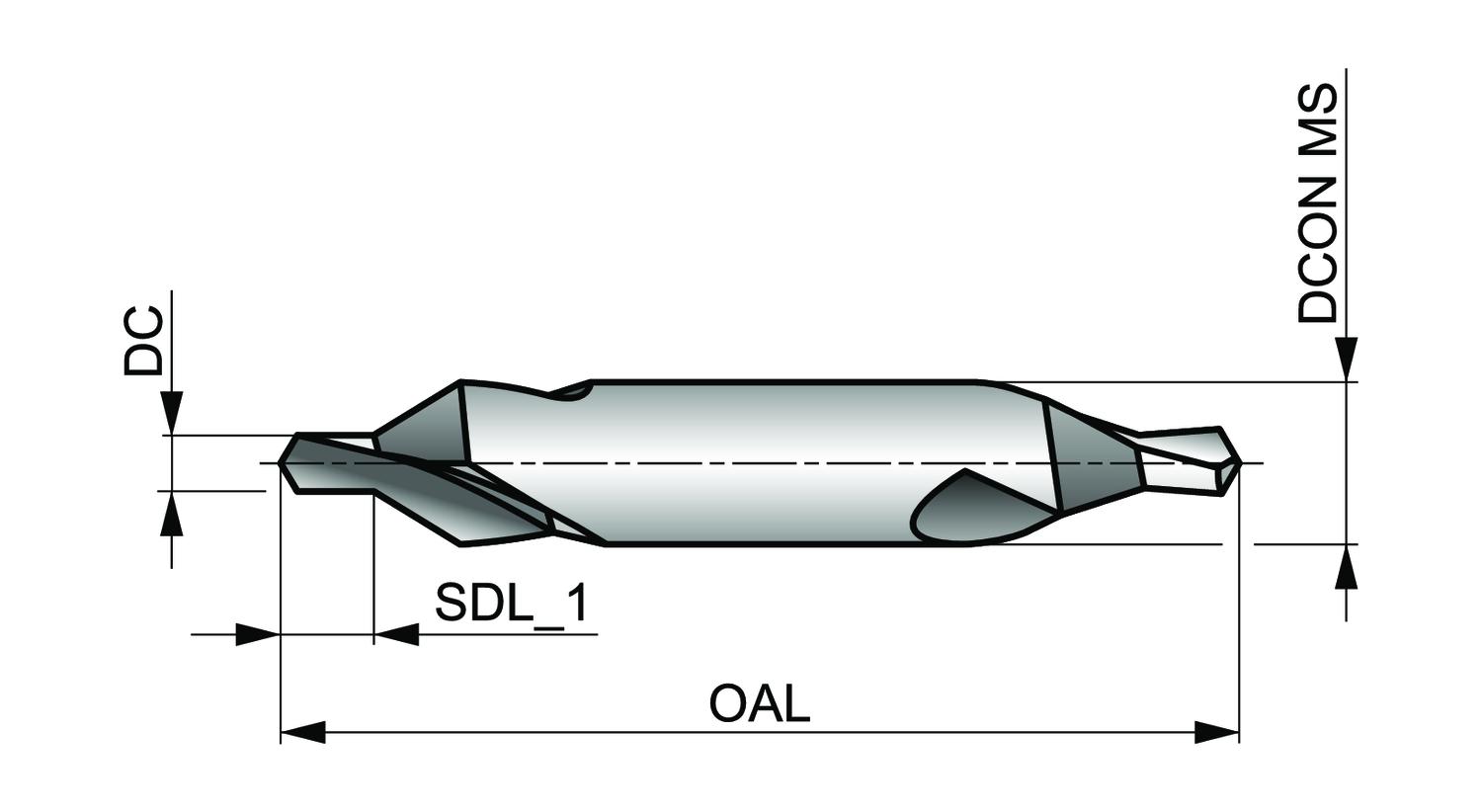

Cutting diameter – millimeter (DC): 2.5 mm
Cutting diameter – inch (DC): 0.0984 inch
Step diameter length range – millimeters (SDL_1): 3.8 – 3.1
Overall length – millimeter (OAL): 45 mm
Connection diameter – millimeter (DCON MS): 6.3 mm
Step included angle (STA): 60
ISO: A2662.5X6.3

Brand

DORMER
