DORMER A2665.0X12.5 HSS/HSCo Drills

Product Code: A2665.0X12.5

$124.63$113.30 Ex. GST

Product Code: A2665.0X12.5 SKU A2665.0X12.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

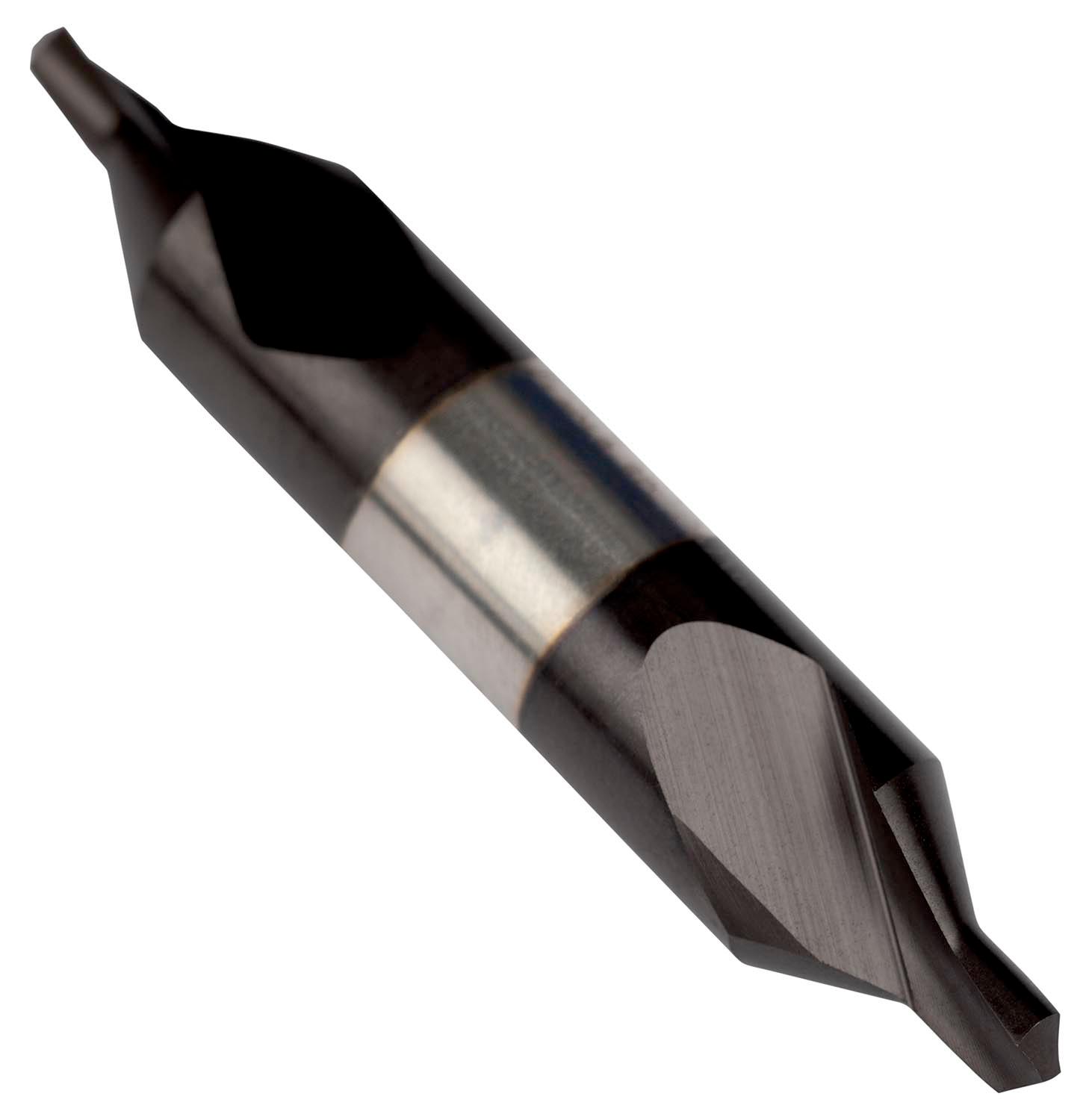

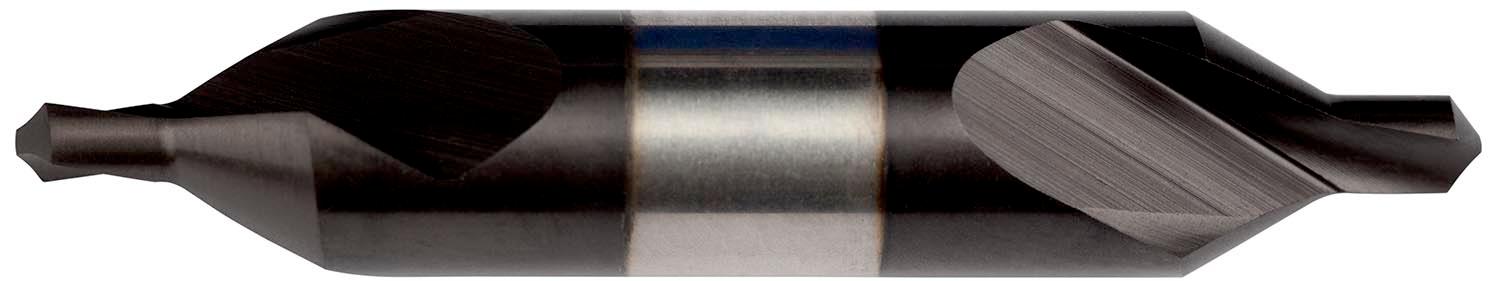

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 5.00mm drill diameter, a body diameter of 12.50mm and an overall length of 63mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and TiAlN coating for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.1210 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760708316
Product number (SAP): 86031033
Ordering code ANSI: A2665.0X12.5
Gross weight – grams: 44

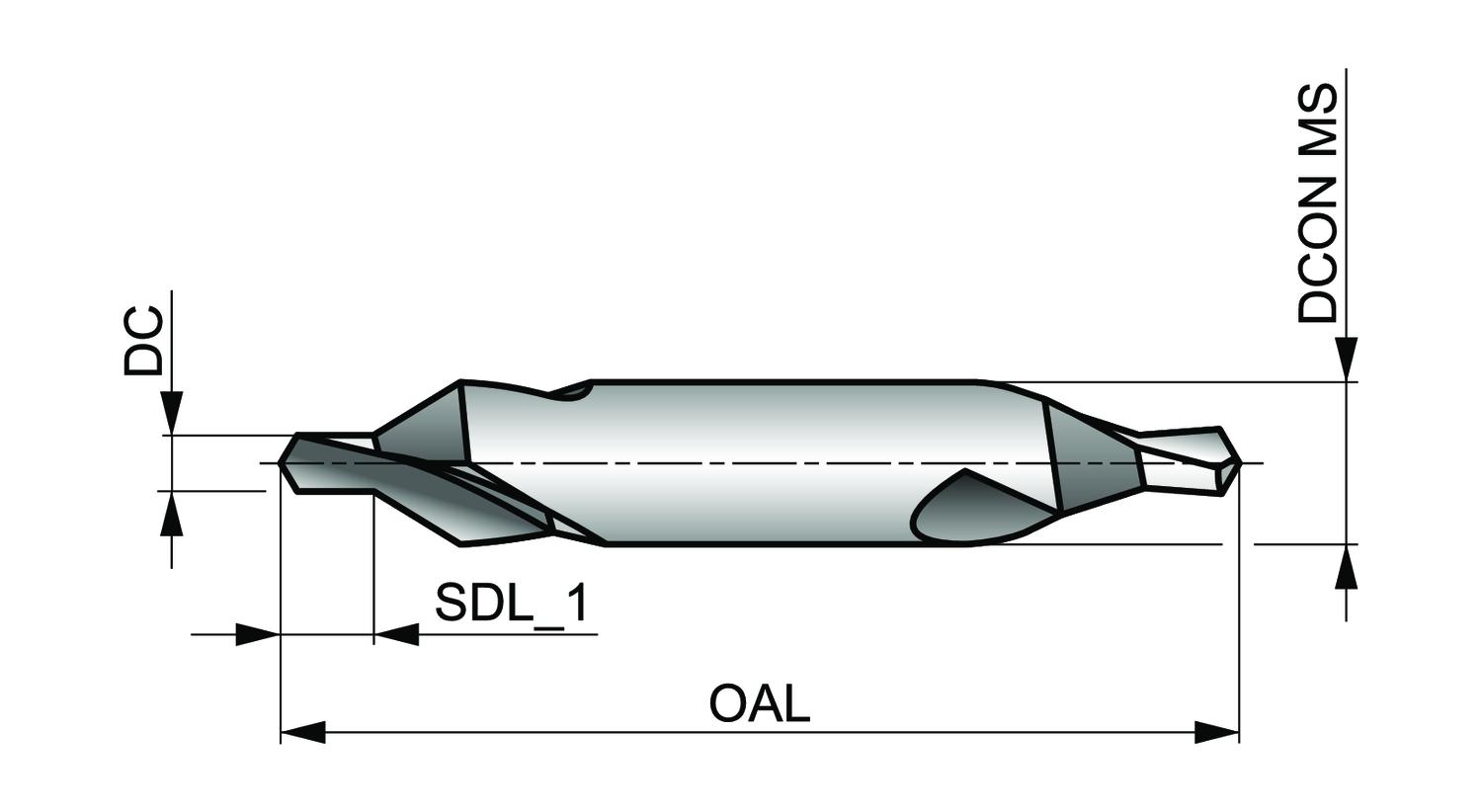

Cutting diameter – millimeter (DC): 5 mm
Cutting diameter – inch (DC): 0.1969 inch
Step diameter length range – millimeters (SDL_1): 7.2 – 6.3
Overall length – millimeter (OAL): 63 mm
Connection diameter – millimeter (DCON MS): 12.5 mm
Step included angle (STA): 60
ISO: A2665.0X12.5

Brand

DORMER
