DORMER A32110.3 Jobber Drills

Product Code: A32110.3

$33.31$30.28 Ex. GST

Product Code: A32110.3 SKU A32110.3 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

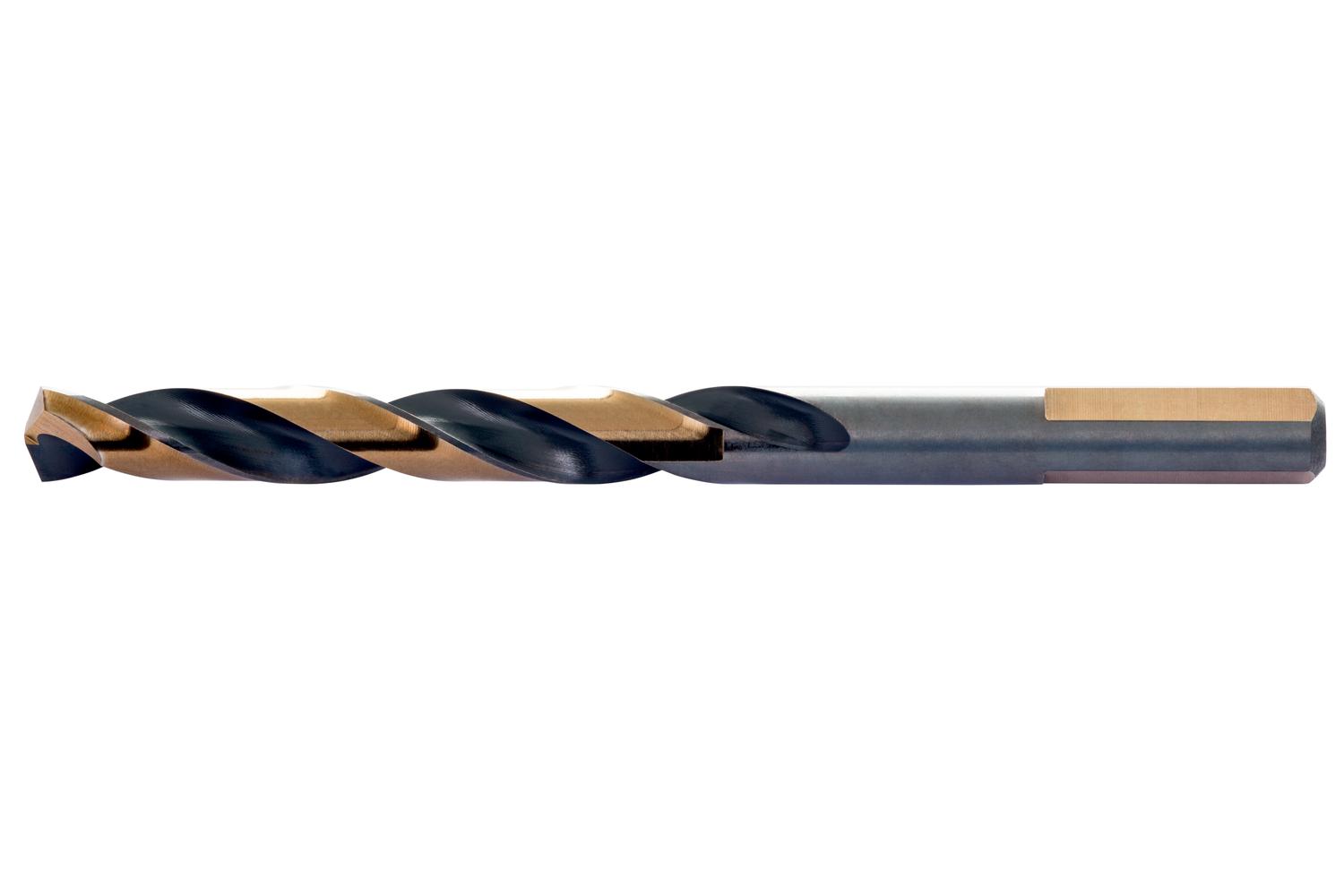

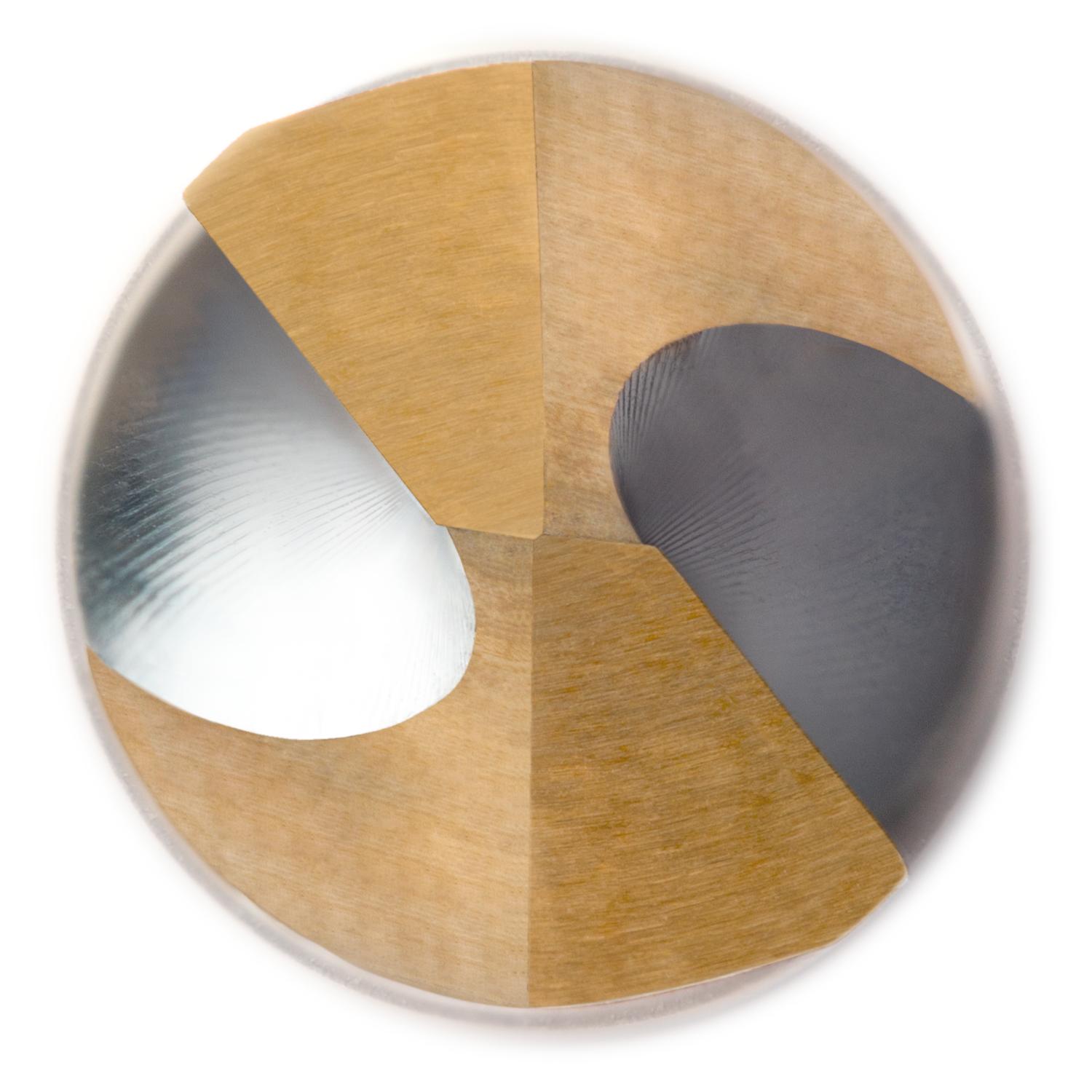

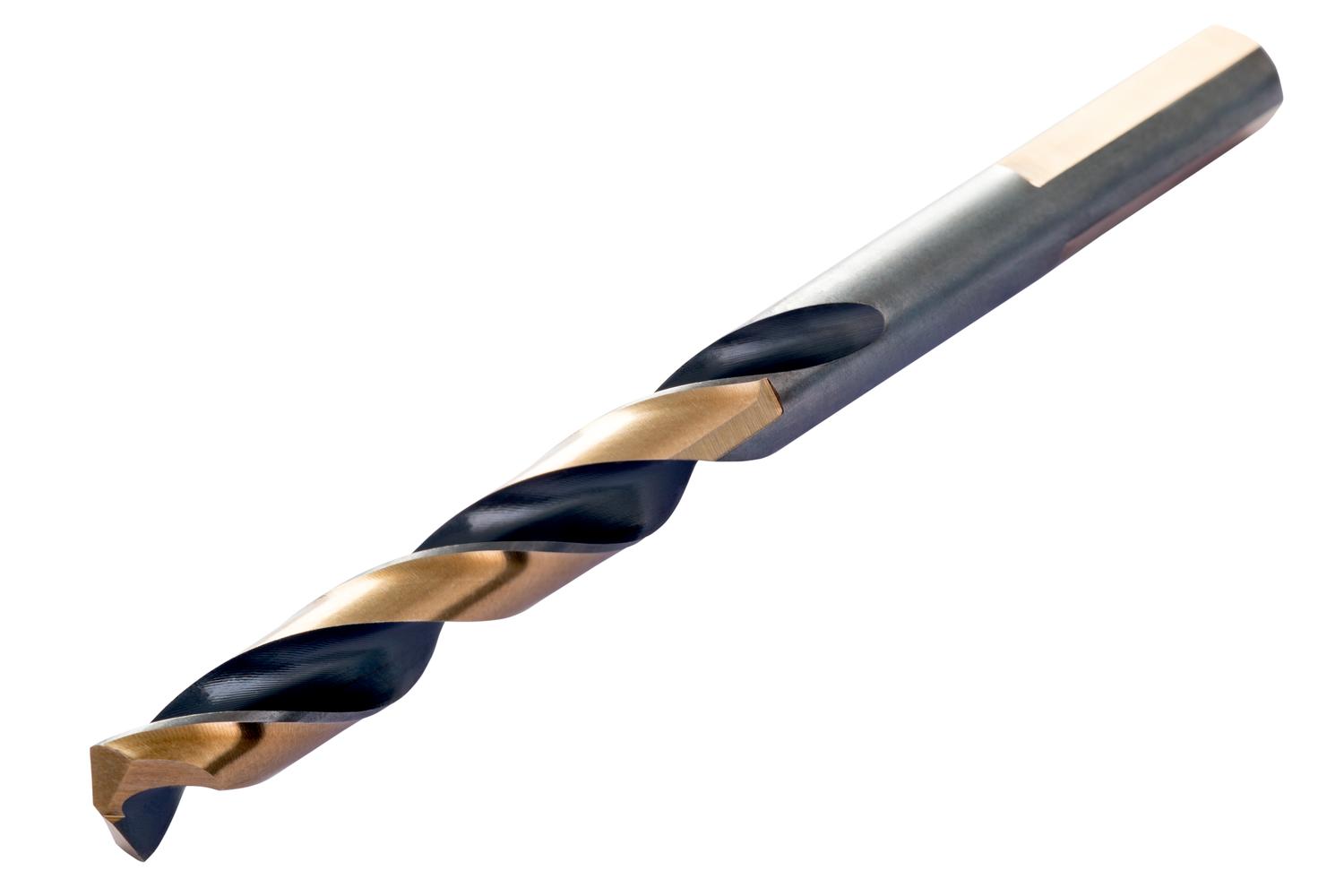

Heavy duty design drill with three-flat shanks for medium depth holes. Diameter 10,3 mm with an overall length of 113 mm. Primarily suited for hand-held operations and pillar drill machines. Three flats on the shank allow for non-slip chucking. The self centering 135° split point reduces thrust force and the steam and bronze tempered surface finish improves lubricity. Suitable for drilling primarily in wide range of thin walled materials.

Additional information

Weight 0.0519 kg
Dimensions
barcode

3603607072219

Additional Information

Description: Value
EAN number: 3603607072219
Product number (SAP): 86044353
Ordering code ANSI: A32110.3
Gross weight – grams: 51.906

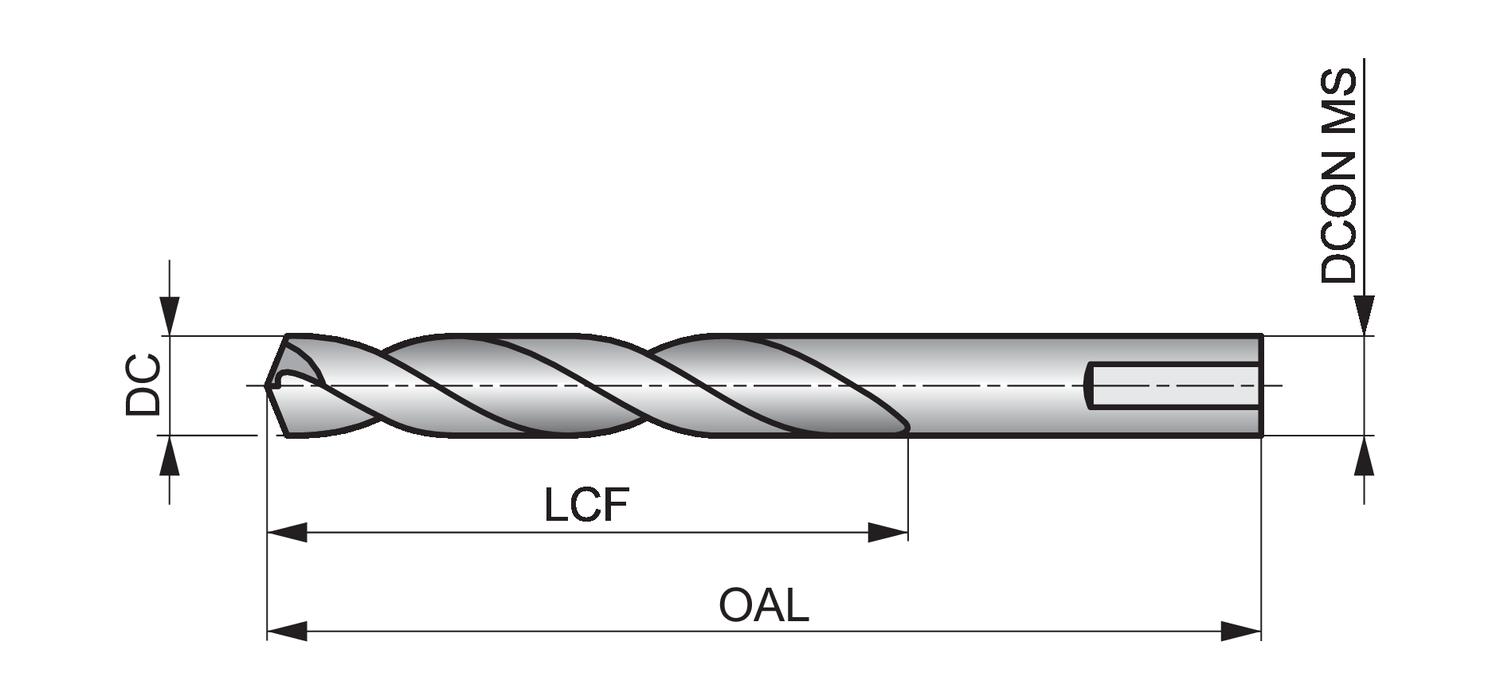

Cutting diameter – millimeter (DC): 10.3 mm
Cutting diameter – inch (DC): 0.406 inch
Length chip flute – millimeter (LCF): 74 mm
Overall length – millimeter (OAL): 113 mm
Connection diameter – millimeter (DCON MS): 10.3 mm
Length chip flute – inch (LCF): 2.9134 inch
ISO: A32110.3
