DORMER A32111.0 Jobber Drills

Product Code: A32111.0

$37.28$33.89 Ex. GST

Product Code: A32111.0 SKU A32111.0 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

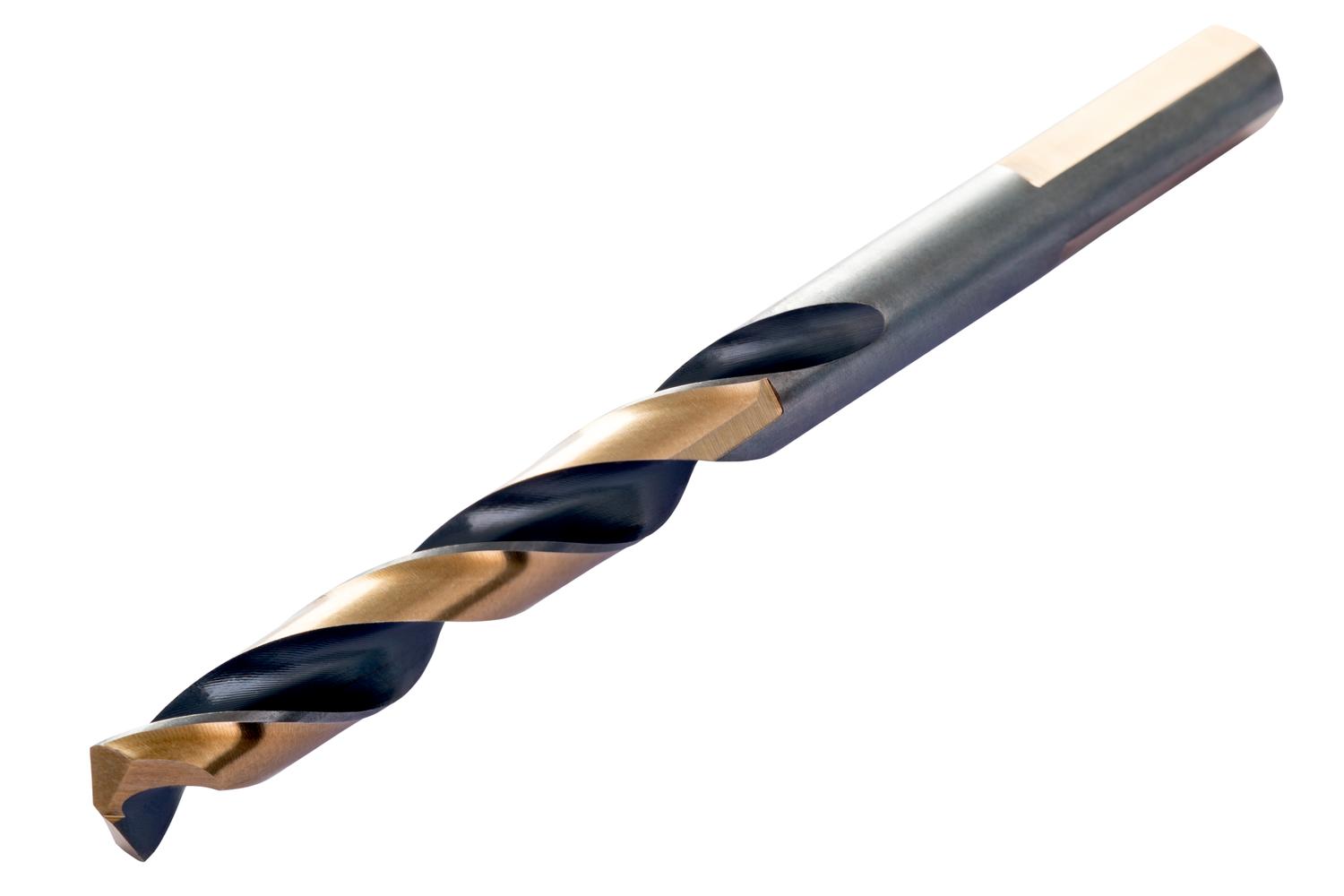

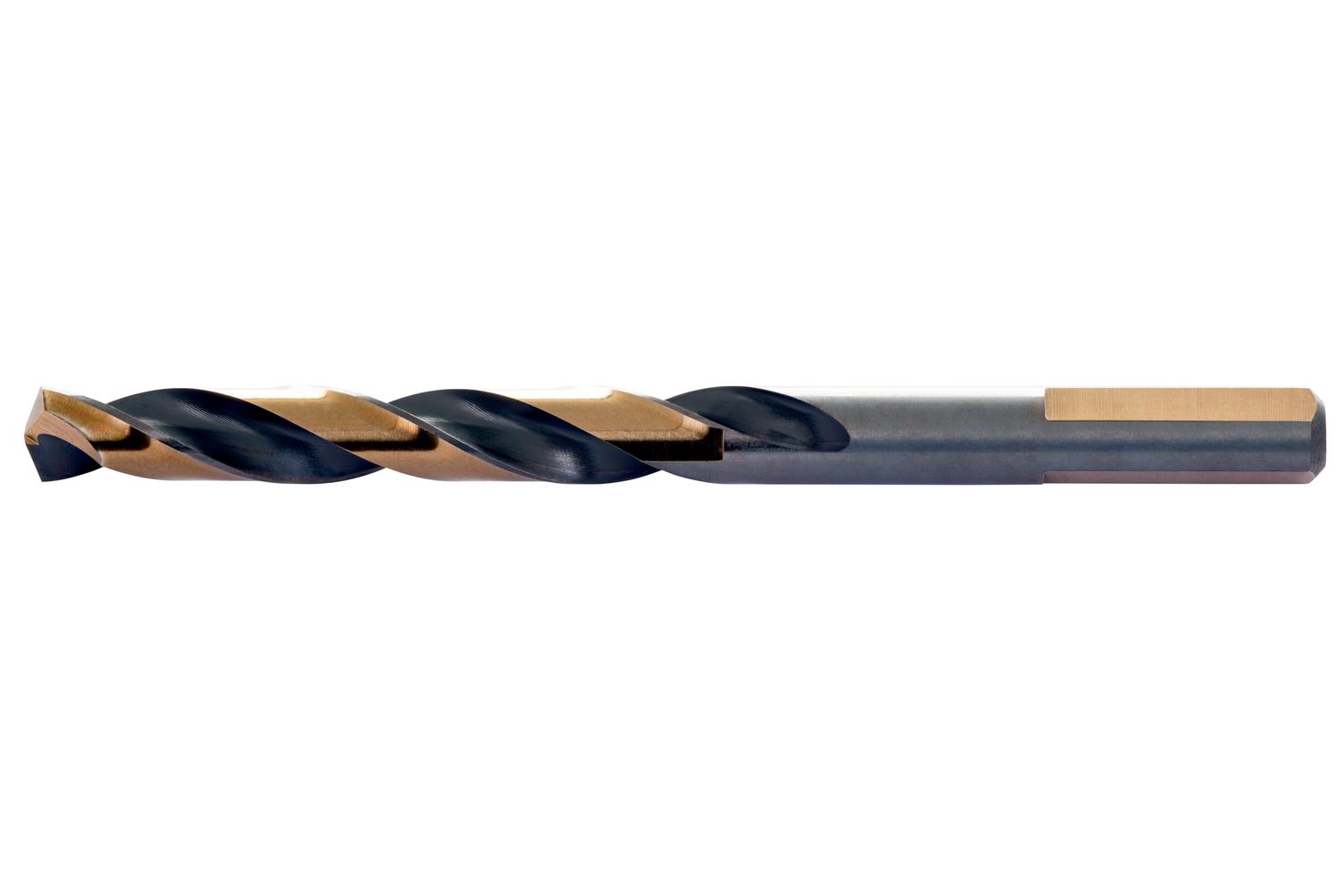

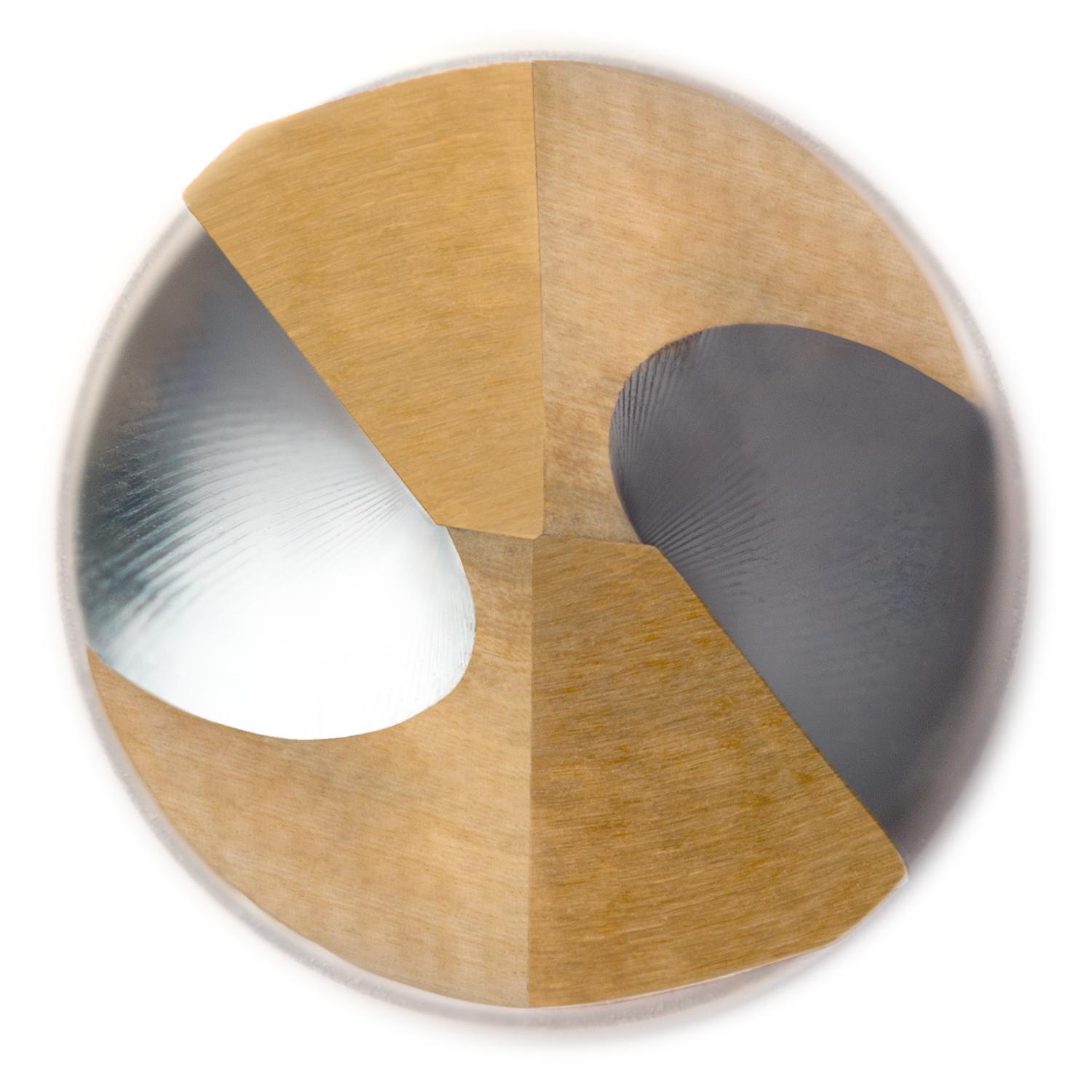

Heavy duty design drill with three-flat shanks for medium depth holes. Diameter 11 mm with an overall length of 117 mm. Primarily suited for hand-held operations and pillar drill machines. Three flats on the shank allow for non-slip chucking. The self centering 135° split point reduces thrust force and the steam and bronze tempered surface finish improves lubricity. Suitable for drilling primarily in wide range of thin walled materials.

Additional information

Weight 0.0604 kg
Dimensions
barcode

3603607072233

Additional Information

Description: Value
EAN number: 3603607072233
Product number (SAP): 86044355
Ordering code ANSI: A32111.0
Gross weight – grams: 64.08

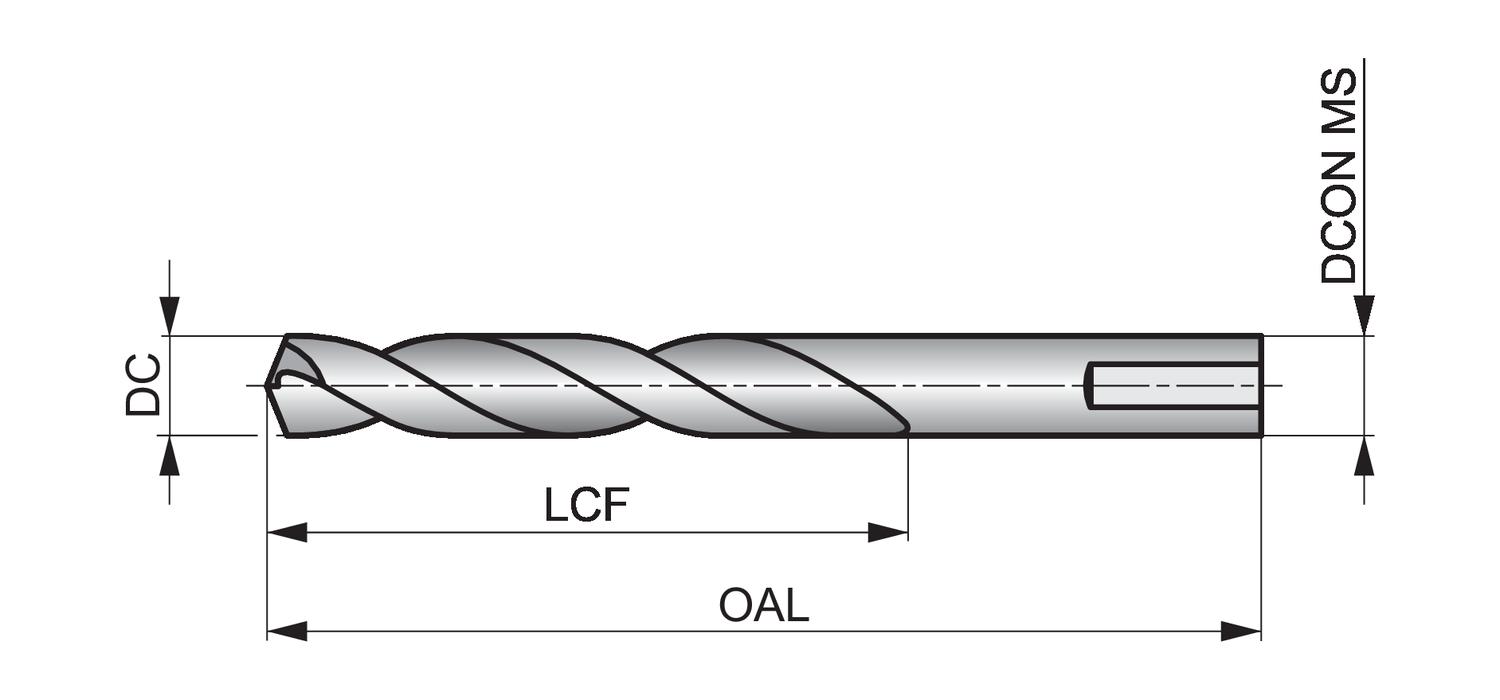

Cutting diameter – millimeter (DC): 11 mm
Cutting diameter – inch (DC): 0.433 inch
Length chip flute – millimeter (LCF): 77 mm
Overall length – millimeter (OAL): 117 mm
Connection diameter – millimeter (DCON MS): 11 mm
Length chip flute – inch (LCF): 3.0315 inch
ISO: A32111.0
