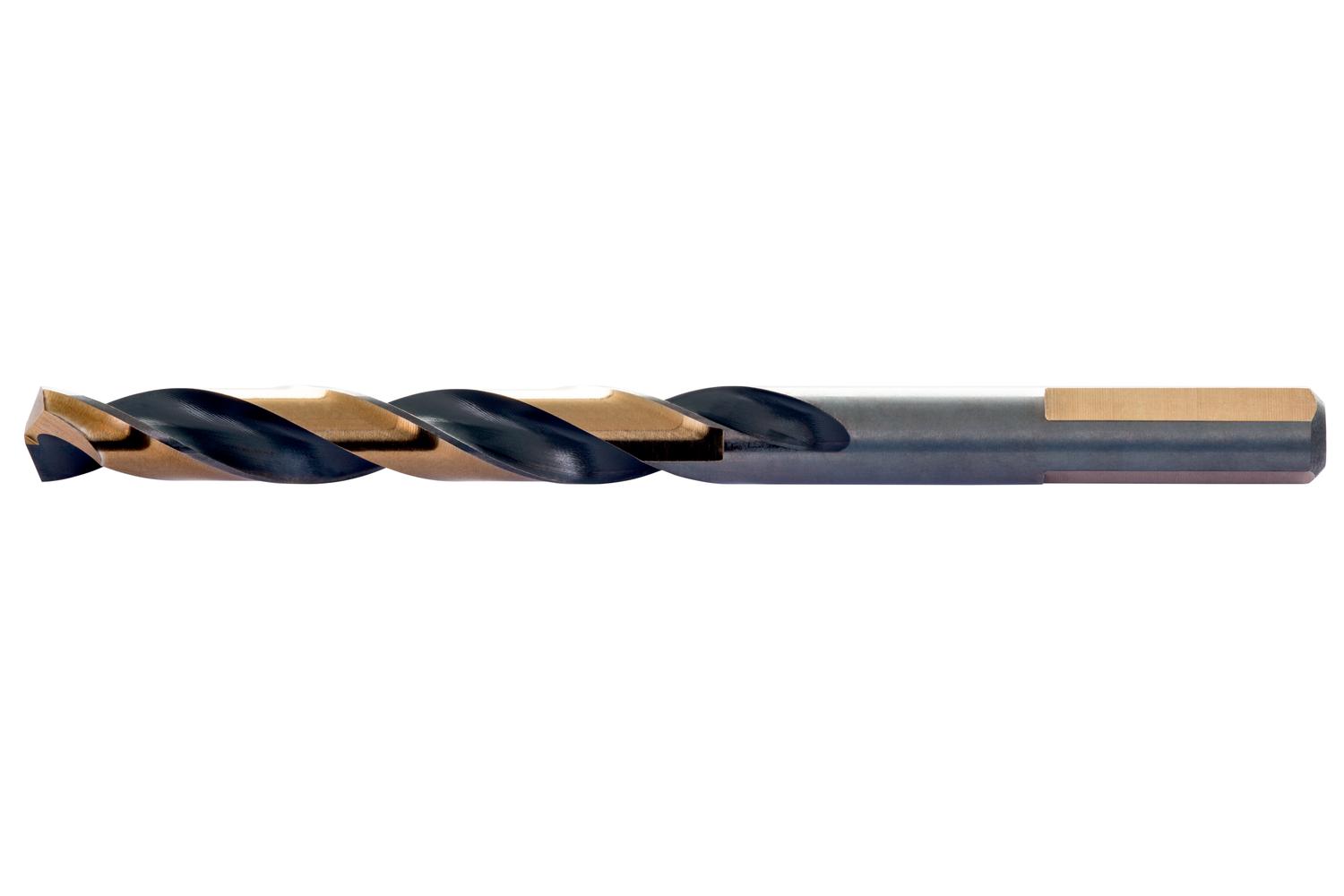

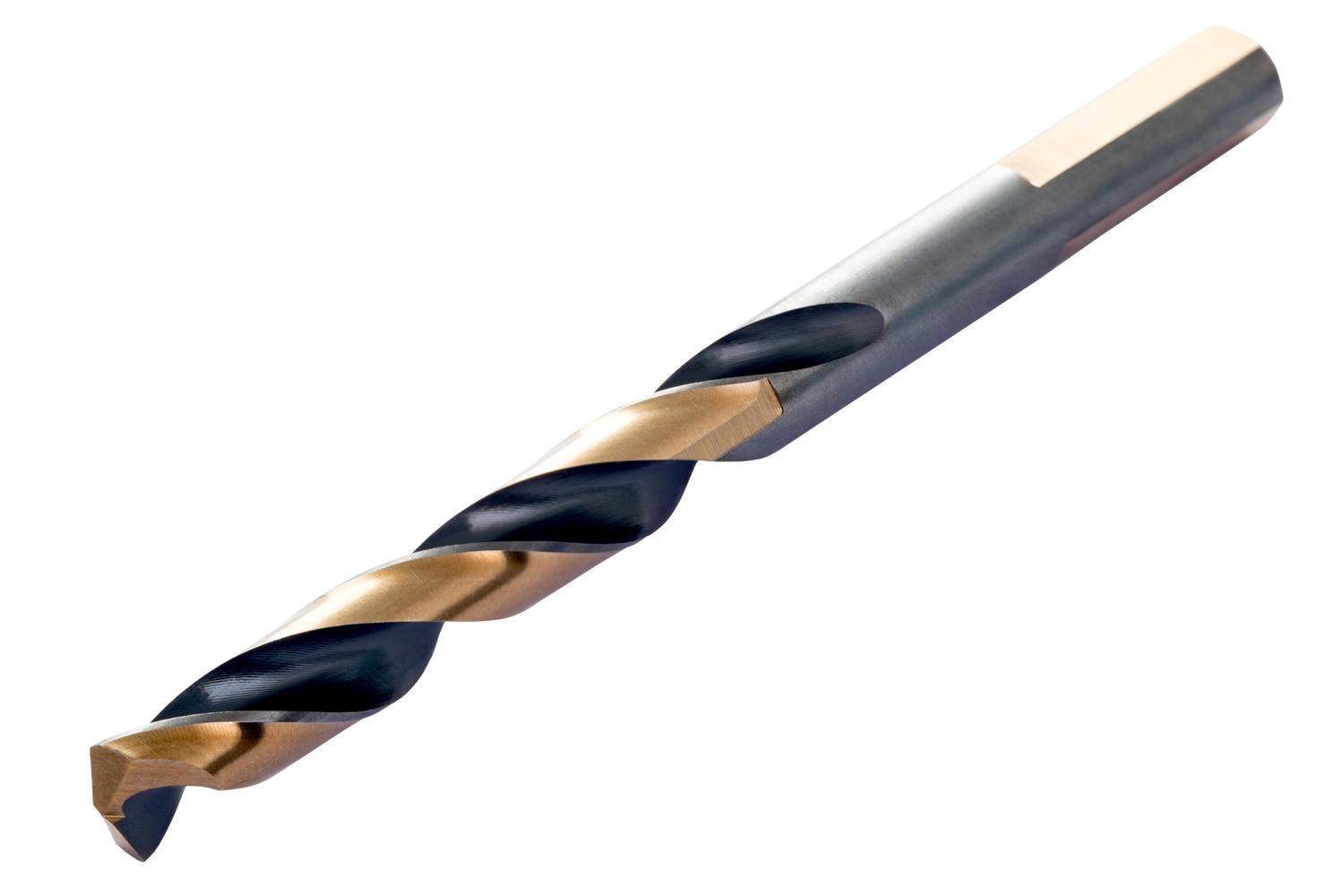

DORMER A32112.5 Jobber Drills

Product Code: A32112.5

$47.14$42.85 Ex. GST

Product Code: A32112.5 SKU A32112.5 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

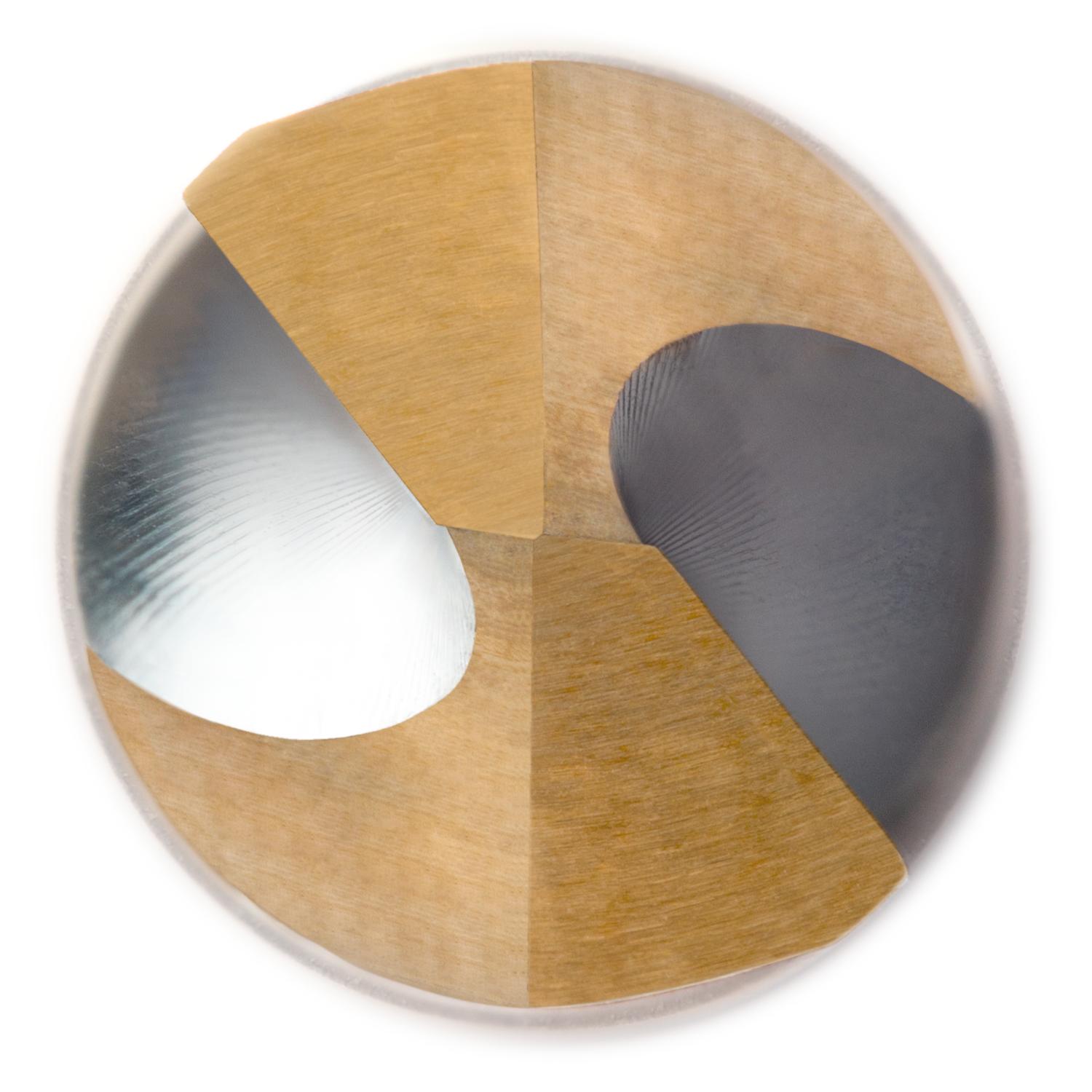

Heavy duty design drill with three-flat shanks for medium depth holes. Diameter 12,5 mm with an overall length of 130 mm. Primarily suited for hand-held operations and pillar drill machines. Three flats on the shank allow for non-slip chucking. The self centering 135° split point reduces thrust force and the steam and bronze tempered surface finish improves lubricity. Suitable for drilling primarily in wide range of thin walled materials.

Additional information

Weight 0.0811 kg
Dimensions
barcode

3603607072264

Additional Information

Description: Value
EAN number: 3603607072264
Product number (SAP): 86044358
Ordering code ANSI: A32112.5
Gross weight – grams: 81.097

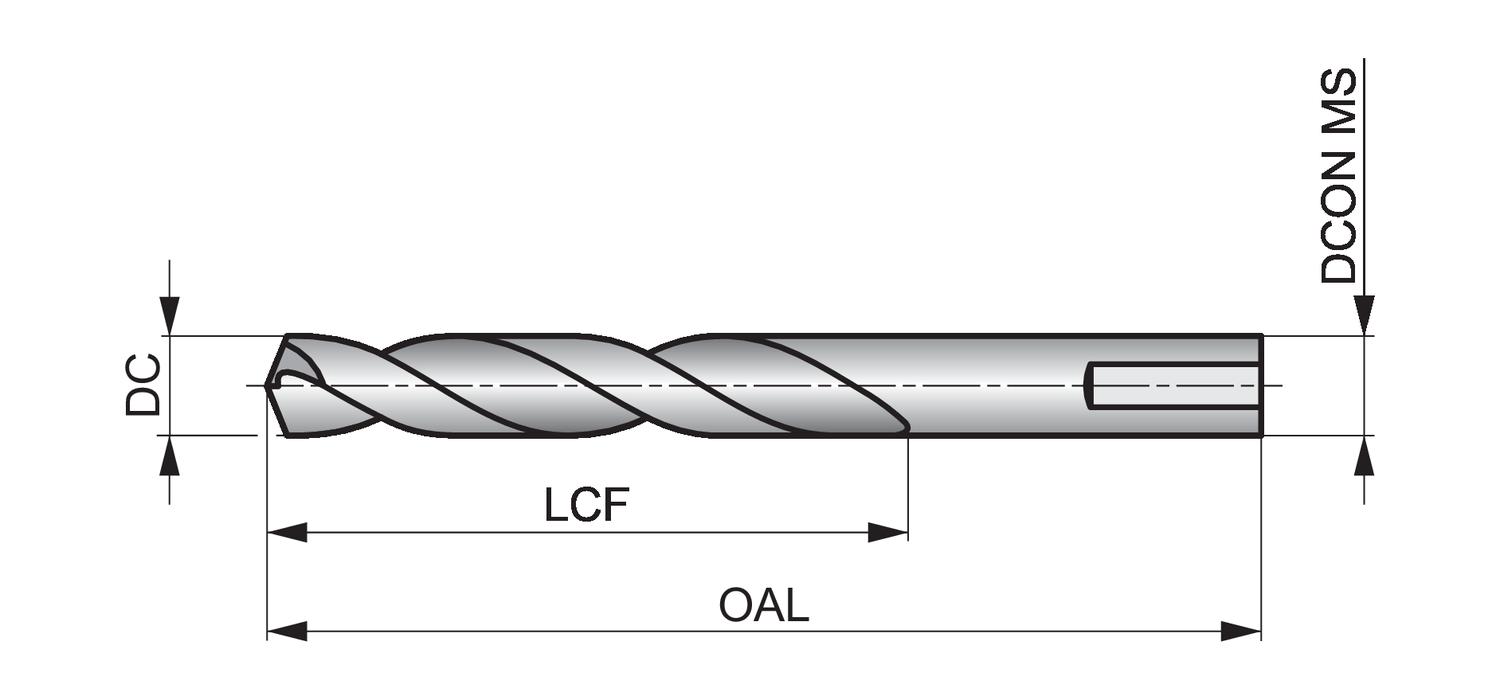

Cutting diameter – millimeter (DC): 12.5 mm
Cutting diameter – inch (DC): 0.492 inch
Length chip flute – millimeter (LCF): 88 mm
Overall length – millimeter (OAL): 130 mm
Connection diameter – millimeter (DCON MS): 12.5 mm
Length chip flute – inch (LCF): 3.4646 inch
ISO: A32112.5
