DORMER A3215.0 Jobber Drills

Product Code: A3215.0

$7.37$6.70 Ex. GST

Product Code: A3215.0 SKU A3215.0 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

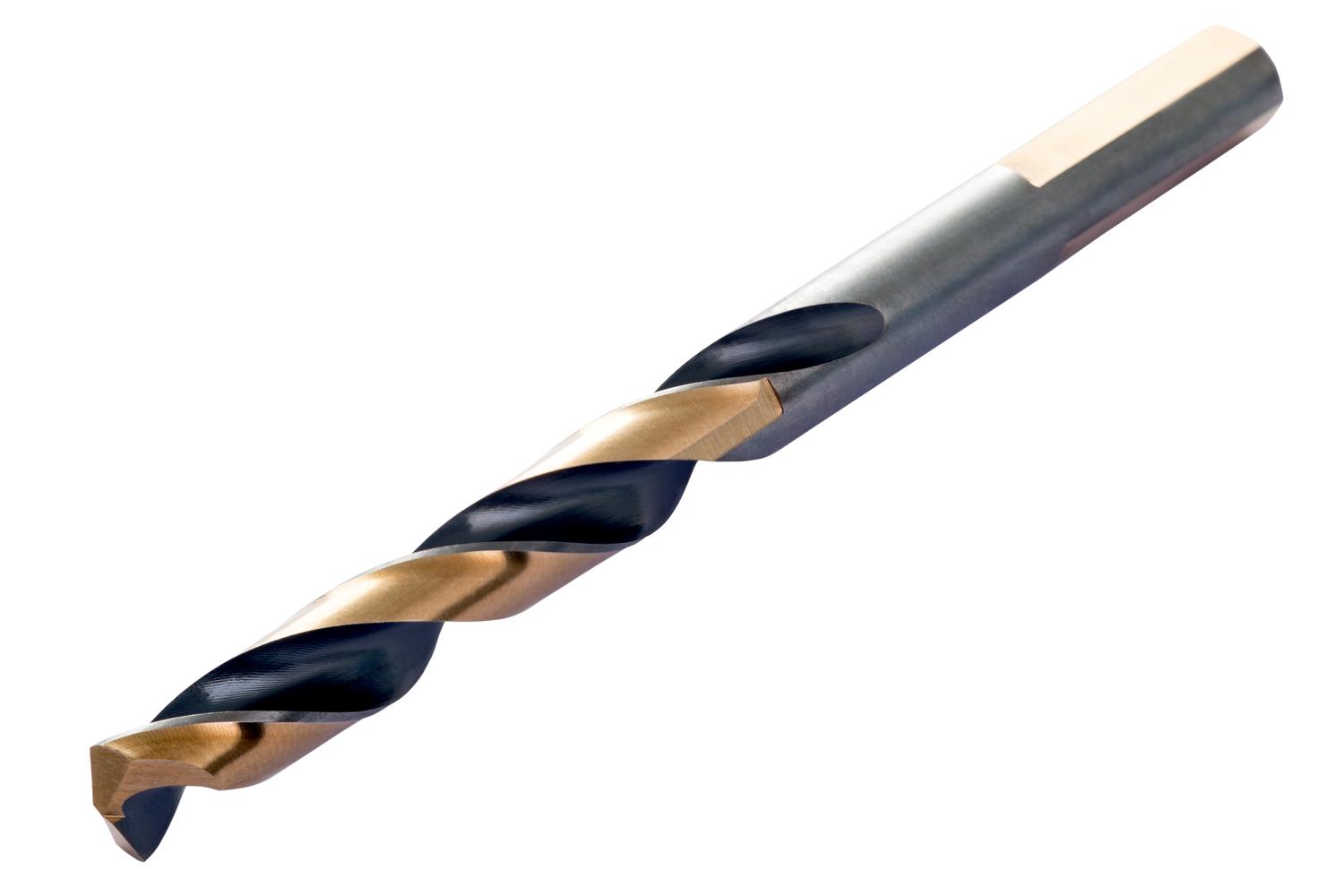

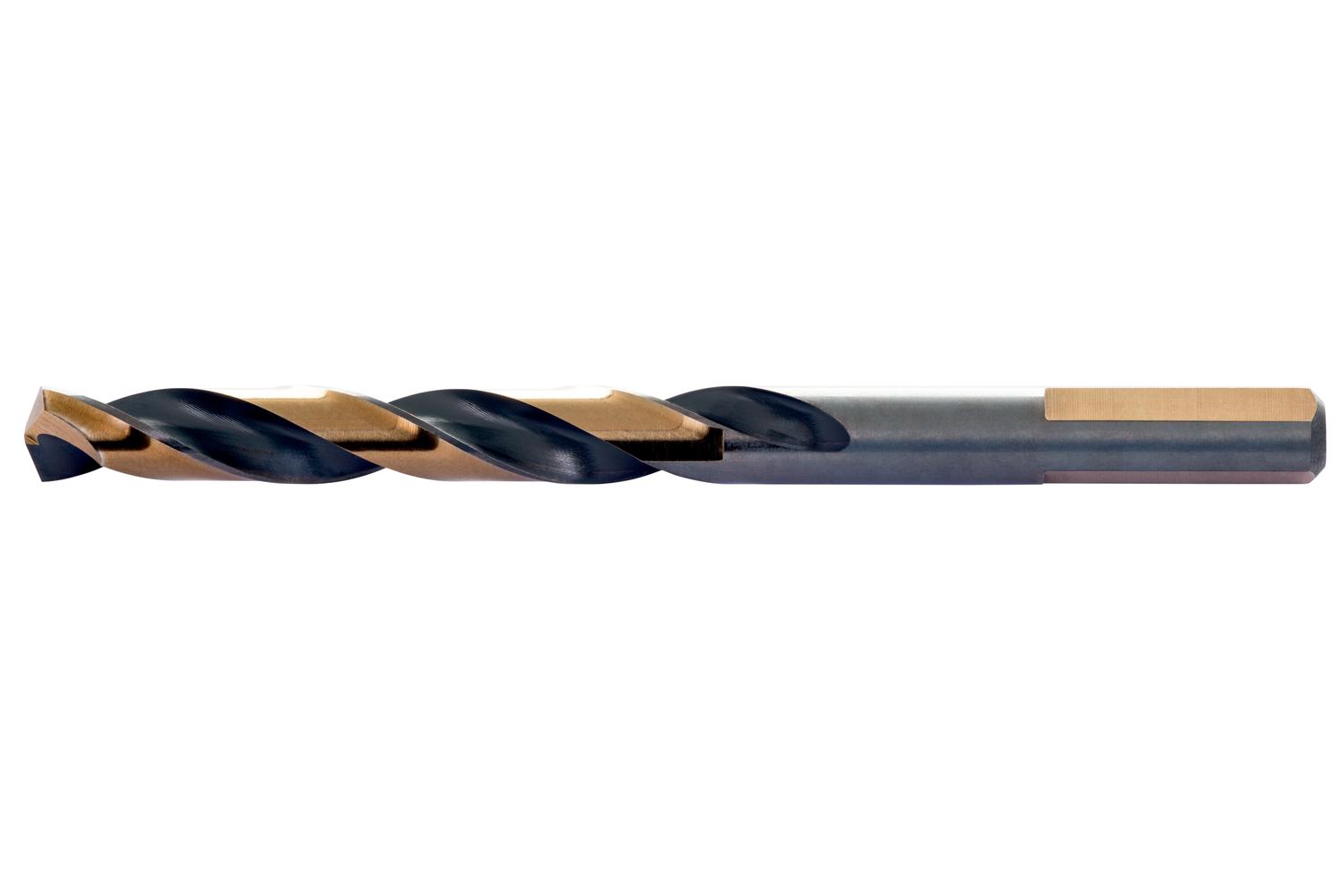

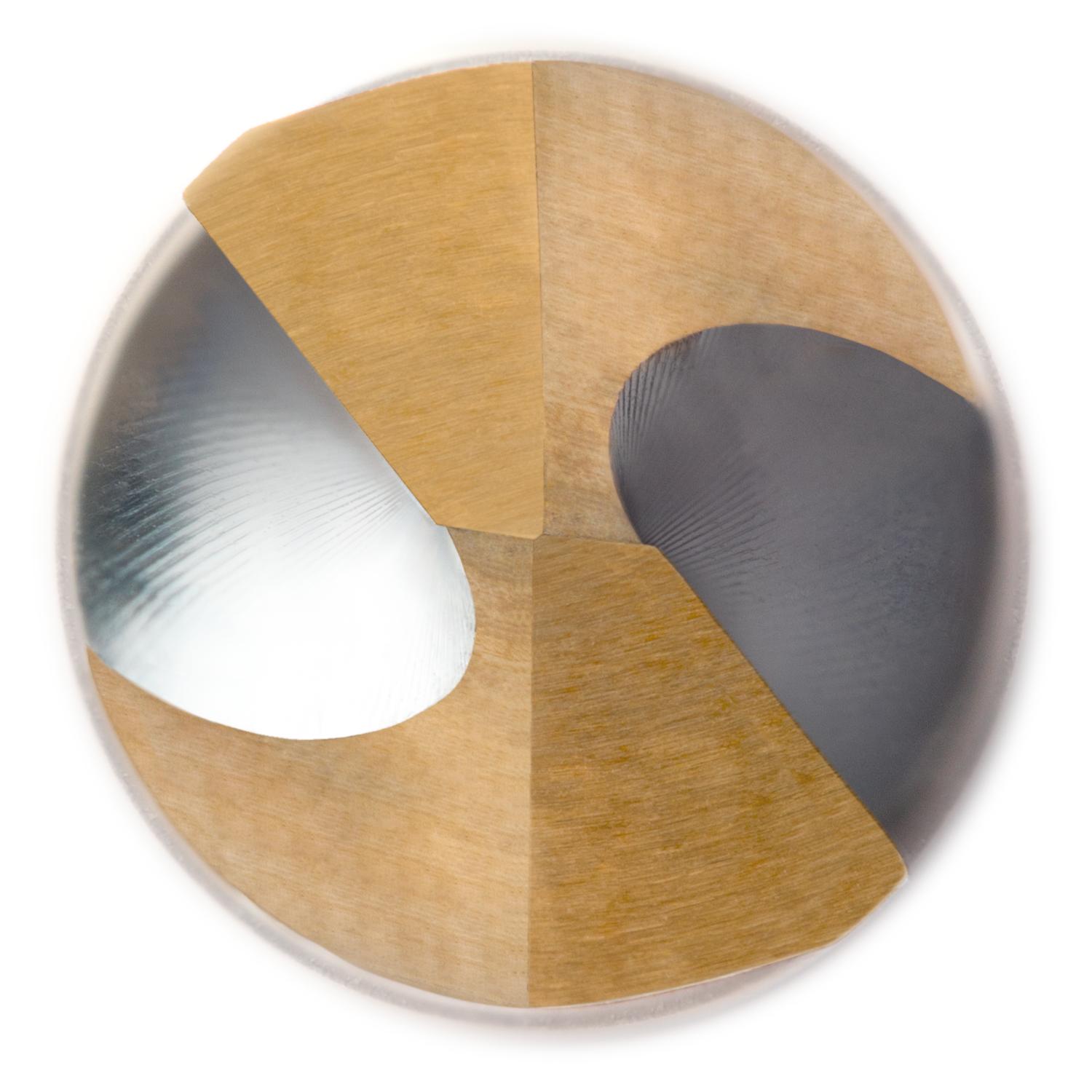

Heavy duty design drill with three-flat shanks for medium depth holes. Diameter 5 mm with an overall length of 80 mm. Primarily suited for hand-held operations and pillar drill machines. Three flats on the shank allow for non-slip chucking. The self centering 135° split point reduces thrust force and the steam and bronze tempered surface finish improves lubricity. Suitable for drilling primarily in wide range of thin walled materials.

Additional information

Weight 0.0084 kg
Dimensions
barcode

3603607072059

Additional Information

Description: Value
EAN number: 3603607072059
Product number (SAP): 86044174
Ordering code ANSI: A3215.0
Gross weight – grams: 8.399

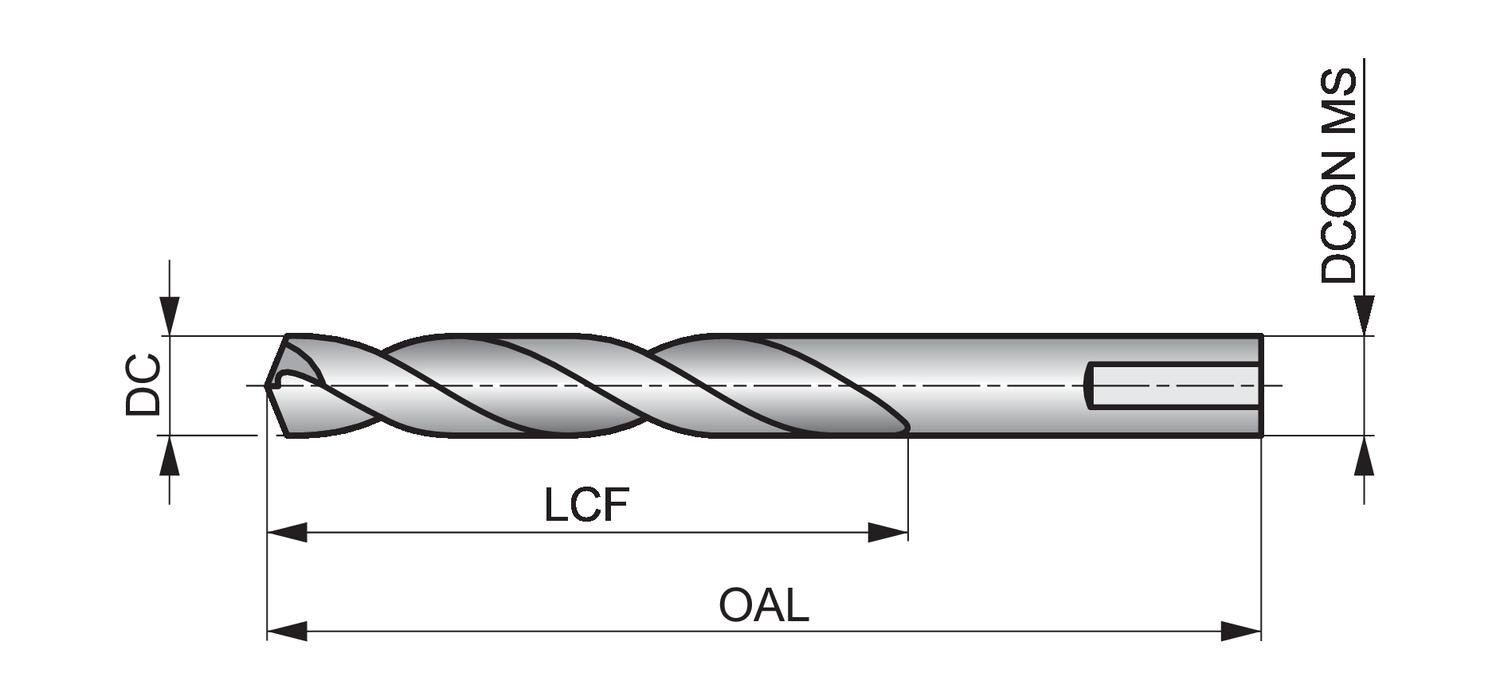

Cutting diameter – millimeter (DC): 5 mm
Cutting diameter – inch (DC): 0.197 inch
Length chip flute – millimeter (LCF): 50 mm
Overall length – millimeter (OAL): 80 mm
Connection diameter – millimeter (DCON MS): 5 mm
Length chip flute – inch (LCF): 1.9685 inch
ISO: A3215.0
