DORMER A3219.0 Jobber Drills

Product Code: A3219.0

$21.19$19.26 Ex. GST

Product Code: A3219.0 SKU A3219.0 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

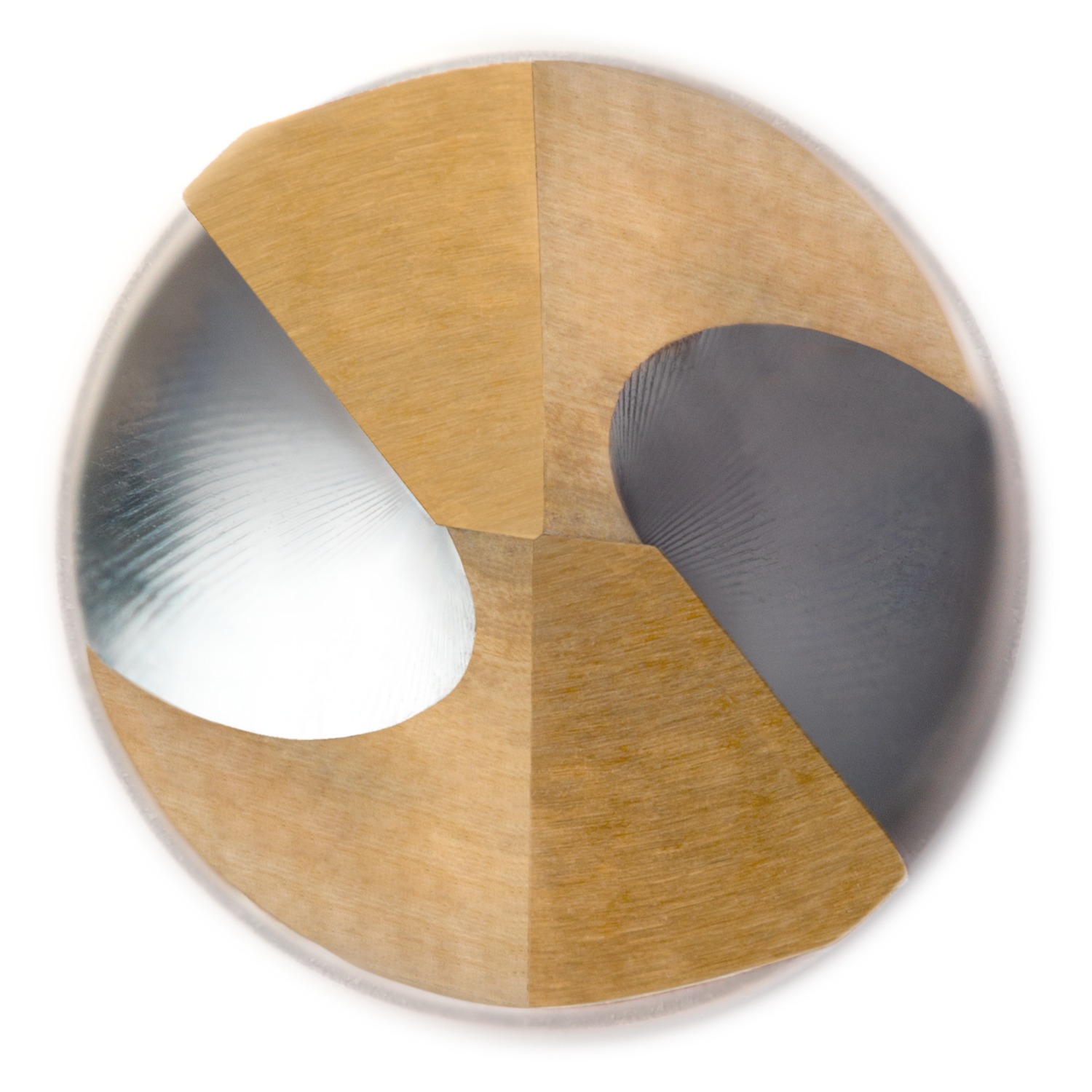

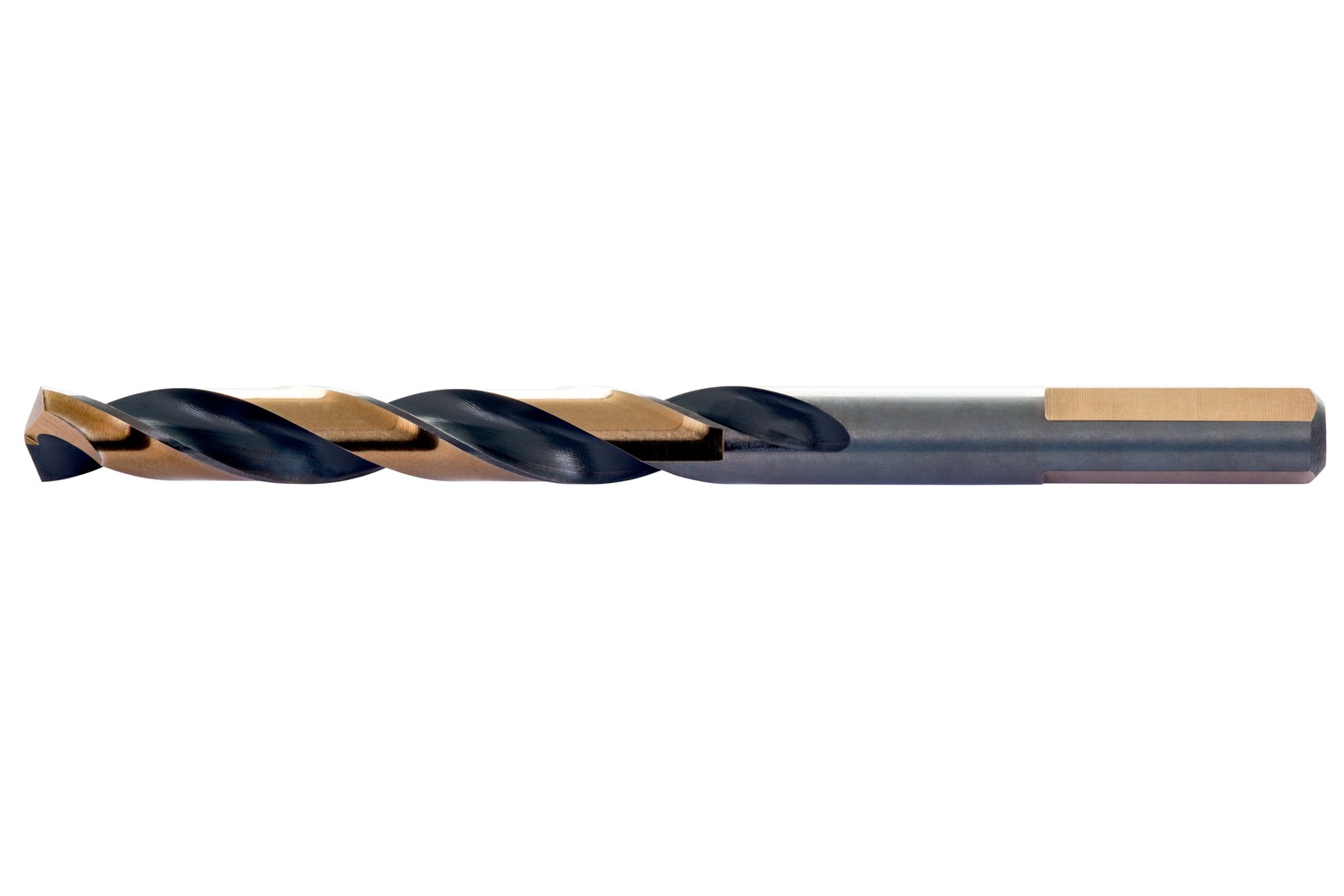

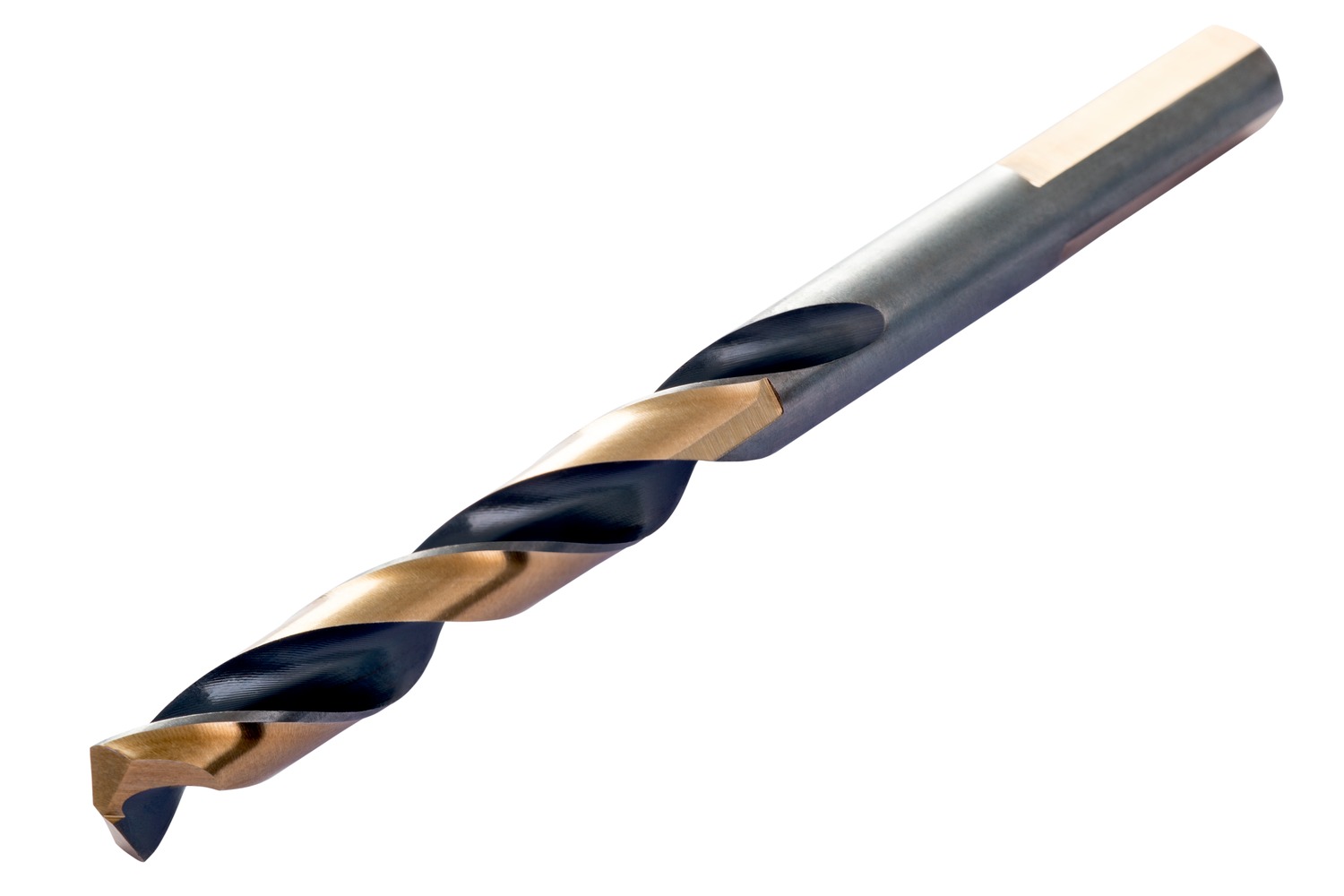

Heavy duty design drill with three-flat shanks for medium depth holes. Diameter 9 mm with an overall length of 108 mm. Primarily suited for hand-held operations and pillar drill machines. Three flats on the shank allow for non-slip chucking. The self centering 135° split point reduces thrust force and the steam and bronze tempered surface finish improves lubricity. Suitable for drilling primarily in wide range of thin walled materials.

Additional information

Weight 0.0358 kg
Dimensions
barcode

3603607072189

Additional Information

Description: Value
EAN number: 3603607072189
Product number (SAP): 86044350
Ordering code ANSI: A3219.0
Gross weight – grams: 40.1

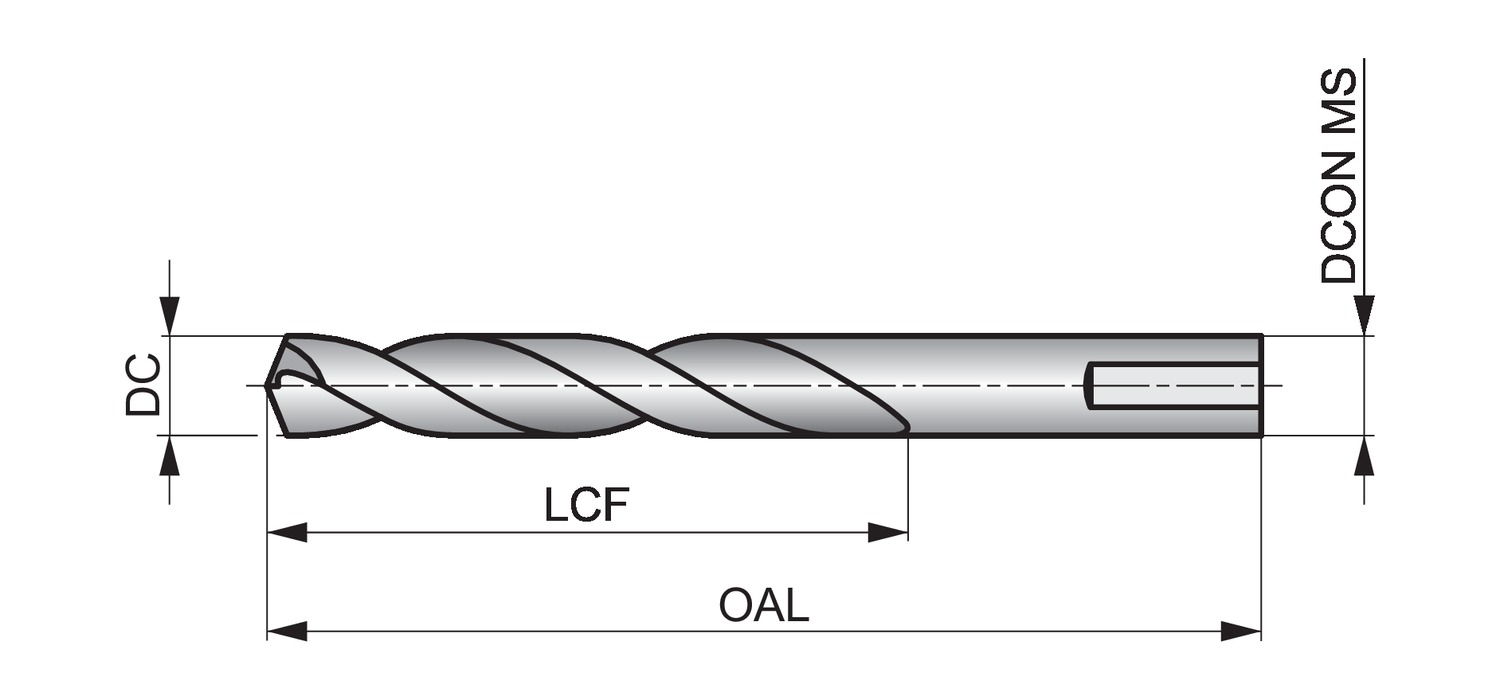

Cutting diameter – millimeter (DC): 9 mm
Cutting diameter – inch (DC): 0.354 inch
Length chip flute – millimeter (LCF): 70 mm
Overall length – millimeter (OAL): 108 mm
Connection diameter – millimeter (DCON MS): 9 mm
Length chip flute – inch (LCF): 2.7559 inch
ISO: A3219.0
