DORMER A400M4 HSS/HSCo Drills

Product Code: A400M4

$126.90$115.36 Ex. GST

Product Code: A400M4 SKU A400M4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

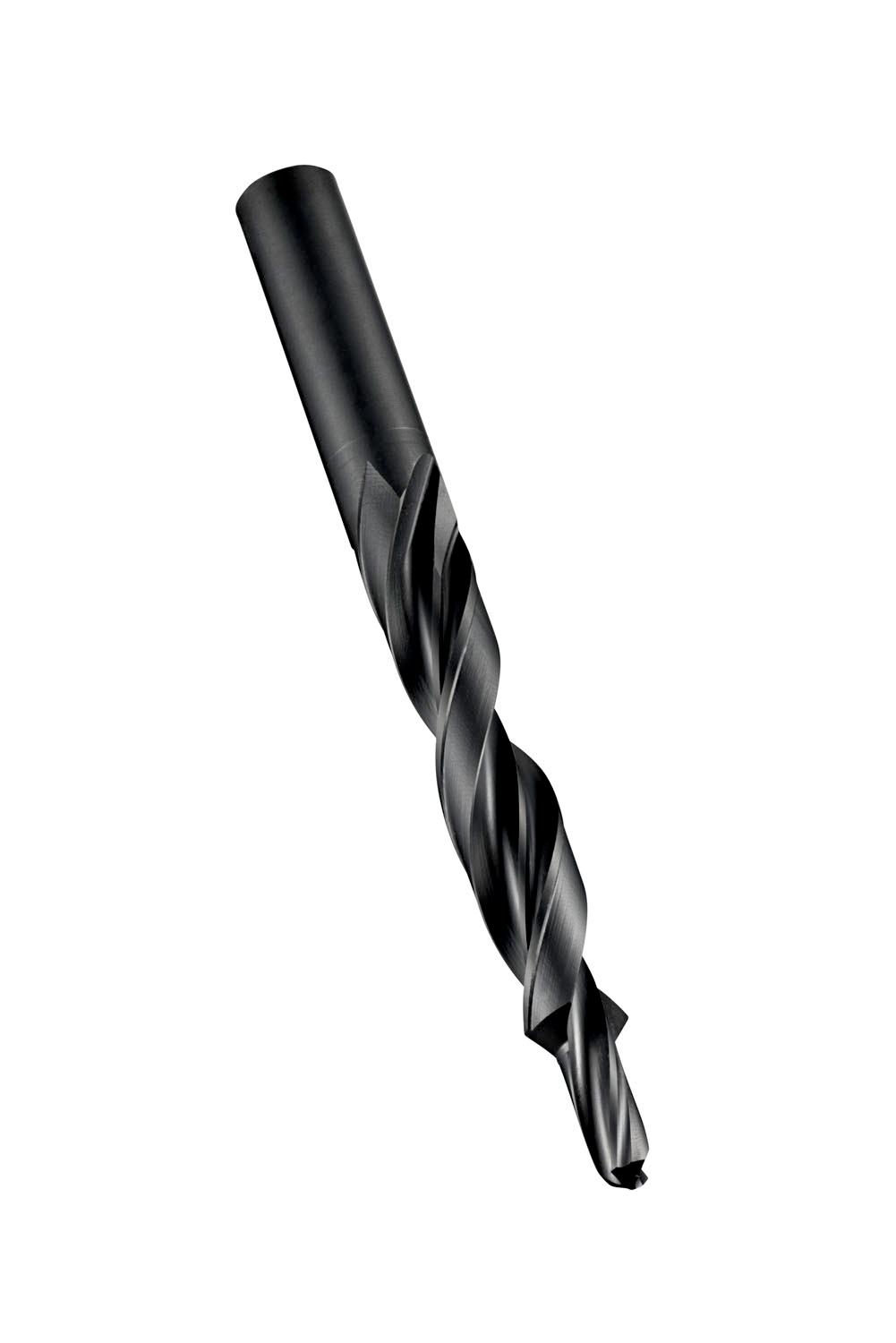

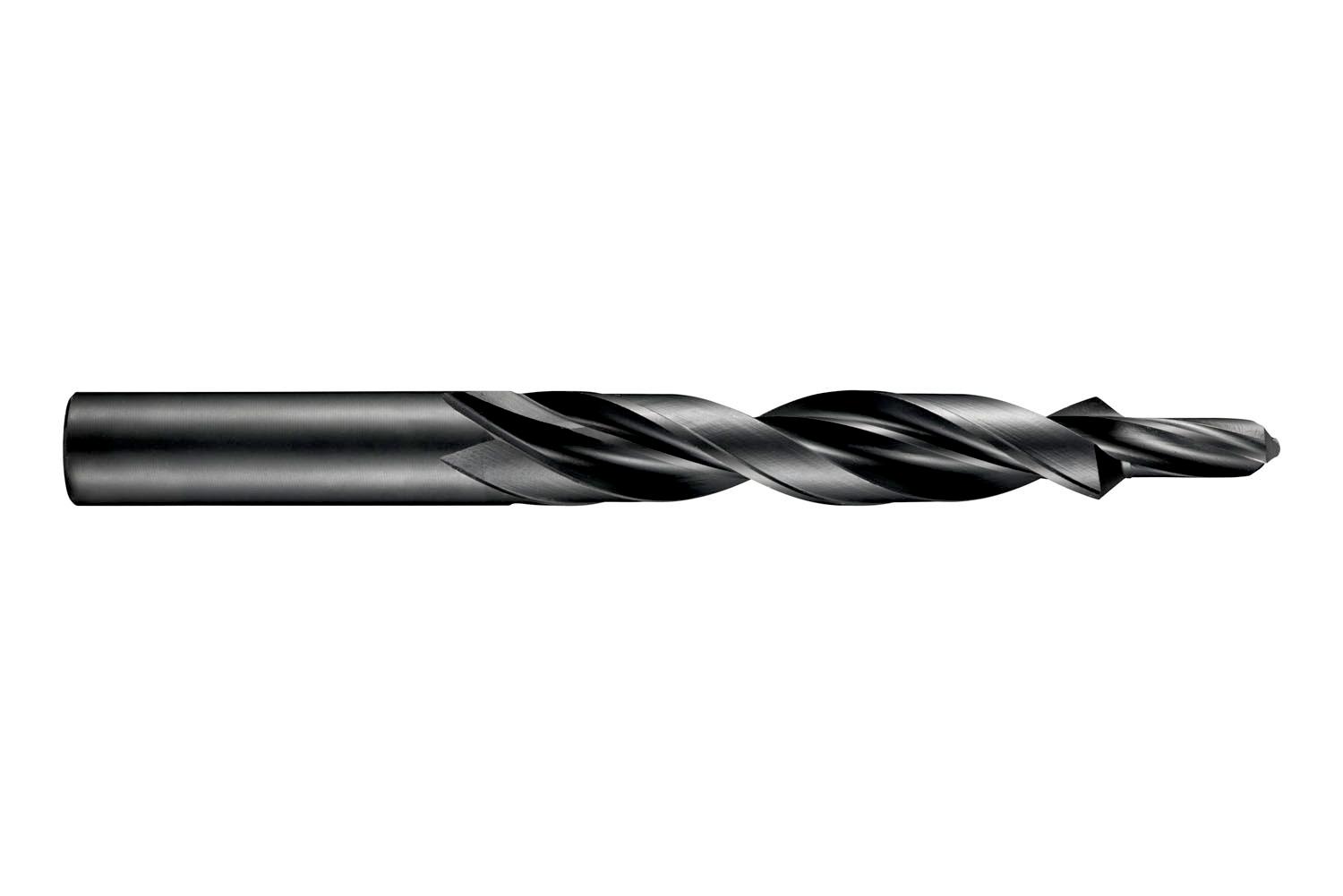

Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 4.30mm with a length of 11.00mm, a large diameter of 8.00mm and an overall length of 117mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M4 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.1232 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760034323
Product number (SAP): 86010301
Ordering code ANSI: A400M4
Gross weight – grams: 31.7
Thread diameter size (TDZ): M4

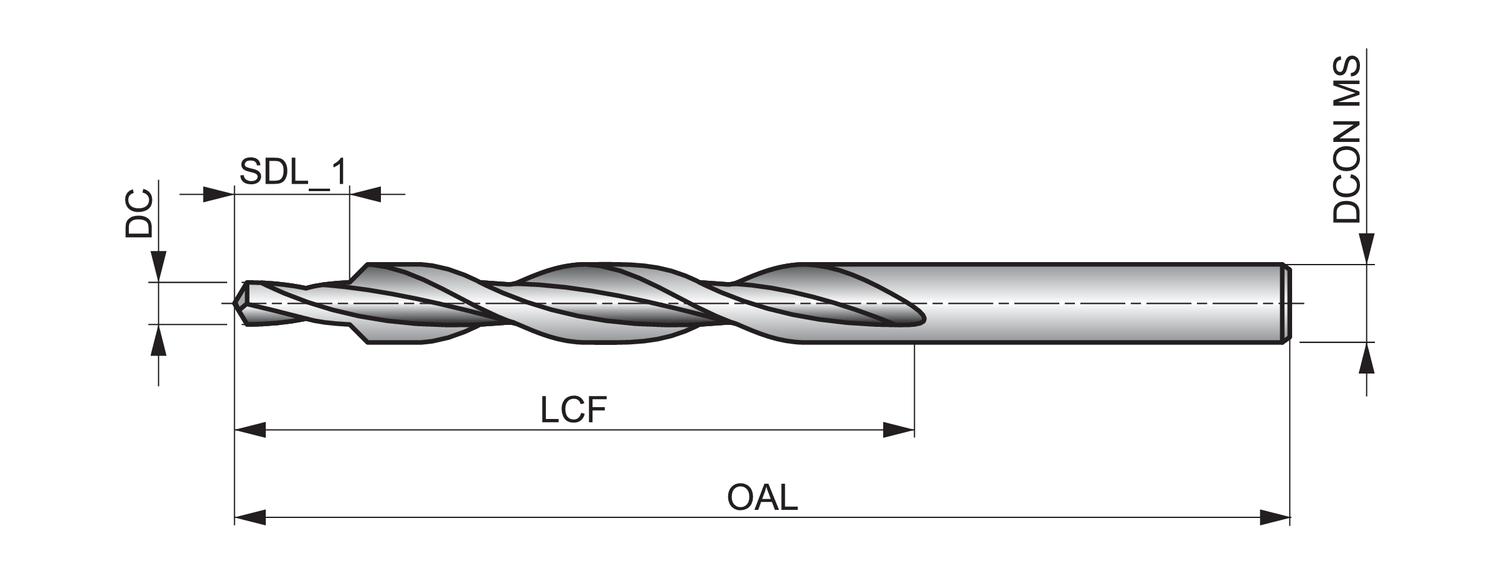

Cutting diameter – millimeter (DC): 4.3 mm
Cutting diameter – inch (DC): 0.1693 inch
Length chip flute – millimeter (LCF): 75 mm
Overall length – millimeter (OAL): 117 mm
Step diameter length first cutting step – millimeters (SDL_1): 11 mm
Connection diameter – millimeter (DCON MS): 8 mm
Step included angle (STA): 90
ISO: A400M4

Brand

DORMER
