DORMER A400M5 HSS/HSCo Drills

Product Code: A400M5

$159.75$145.23 Ex. GST

Product Code: A400M5 SKU A400M5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

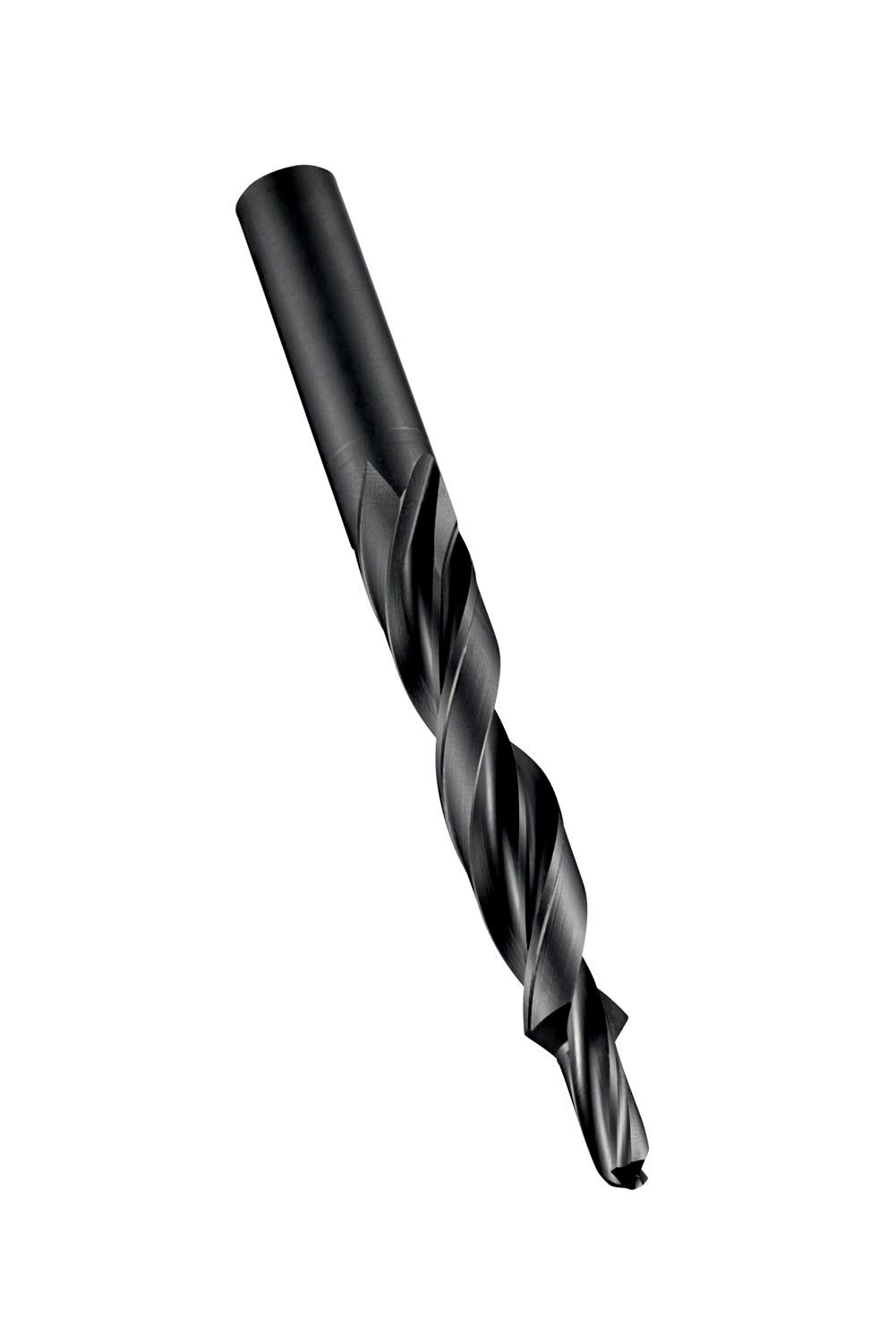

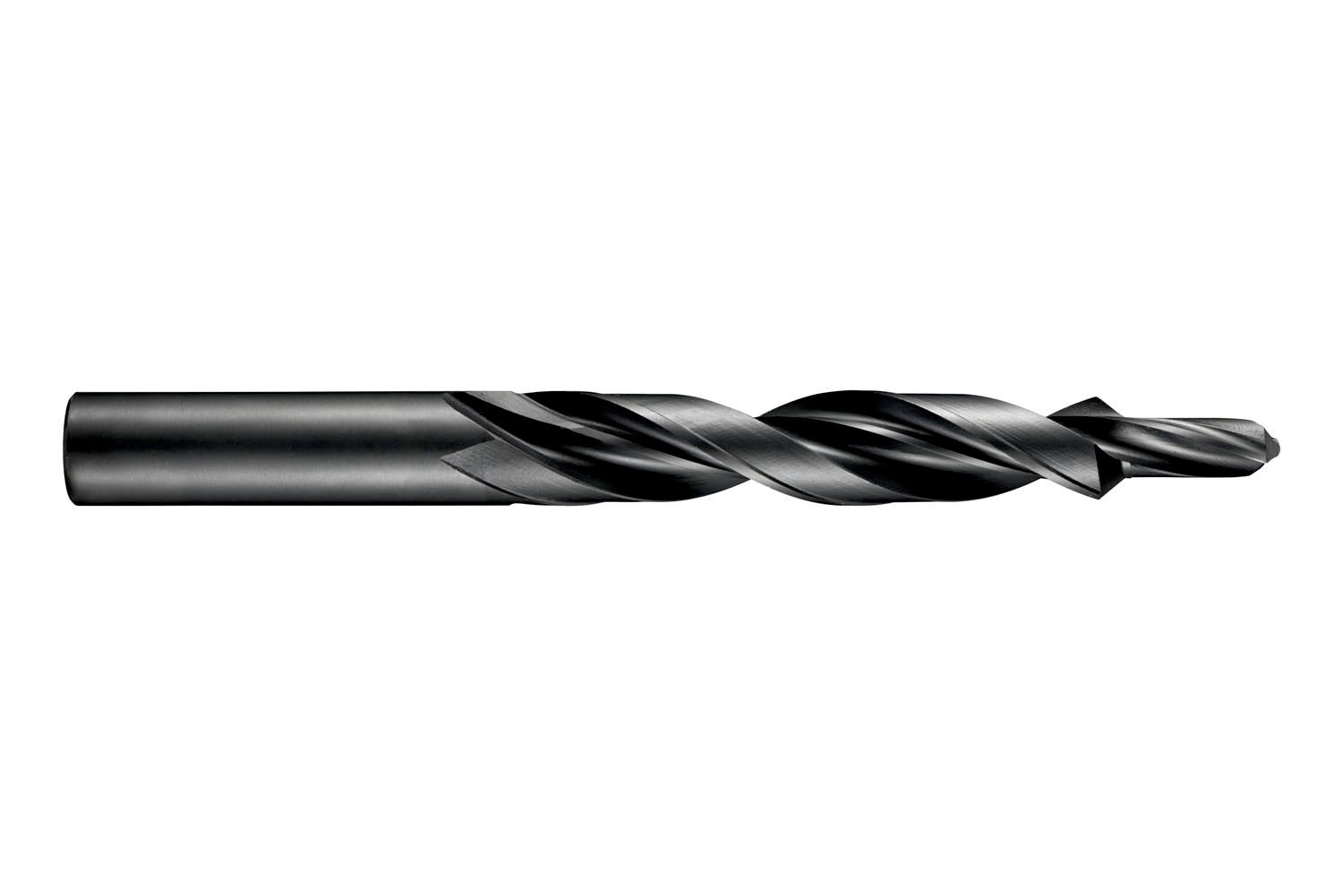

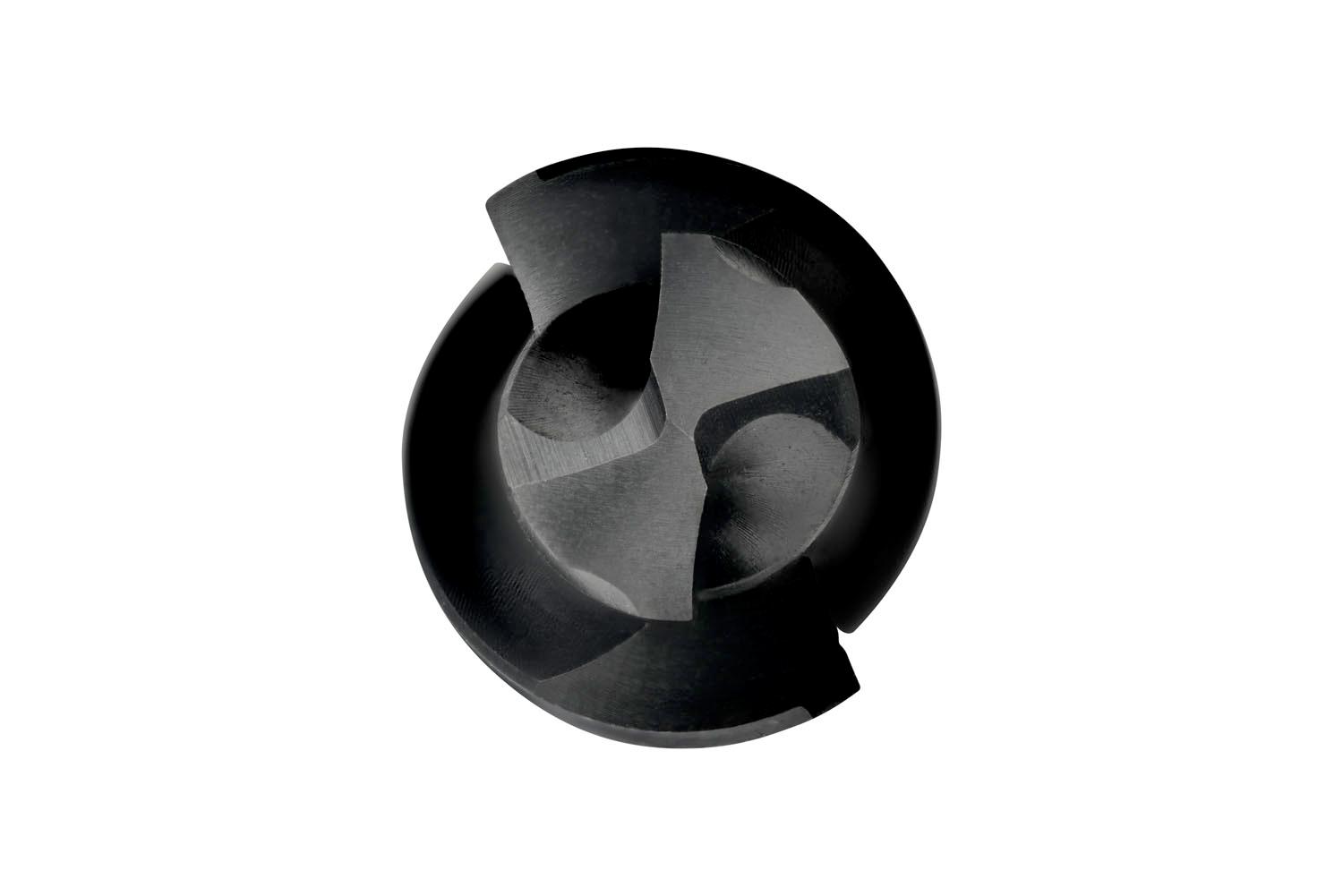

Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 5.30mm with a length of 13.00mm, a large diameter of 10.00mm and an overall length of 133mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M5 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.1551 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760034330
Product number (SAP): 86010302
Ordering code ANSI: A400M5
Gross weight – grams: 52.6
Thread diameter size (TDZ): M5

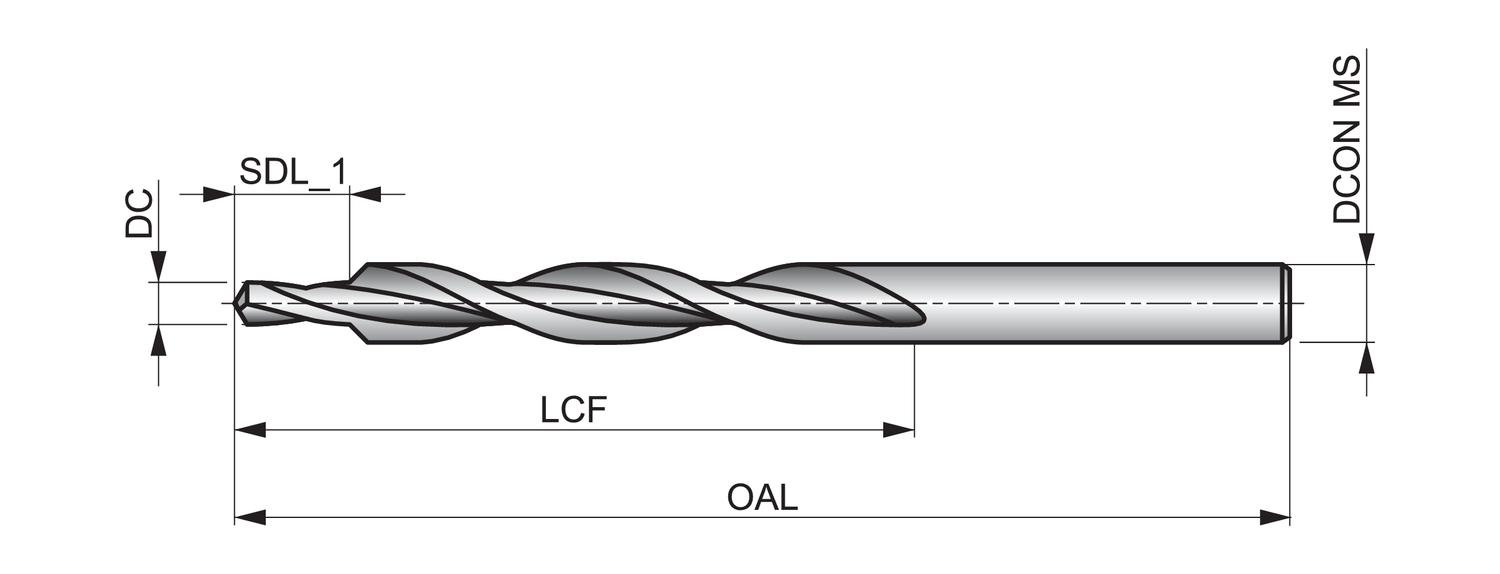

Cutting diameter – millimeter (DC): 5.3 mm
Cutting diameter – inch (DC): 0.2087 inch
Length chip flute – millimeter (LCF): 87 mm
Overall length – millimeter (OAL): 133 mm
Step diameter length first cutting step – millimeters (SDL_1): 13 mm
Connection diameter – millimeter (DCON MS): 10 mm
Step included angle (STA): 90
ISO: A400M5

Brand

DORMER
