DORMER A402M10 HSS/HSCo Drills

Product Code: A402M10

$441.87$401.70 Ex. GST

Product Code: A402M10 SKU A402M10 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

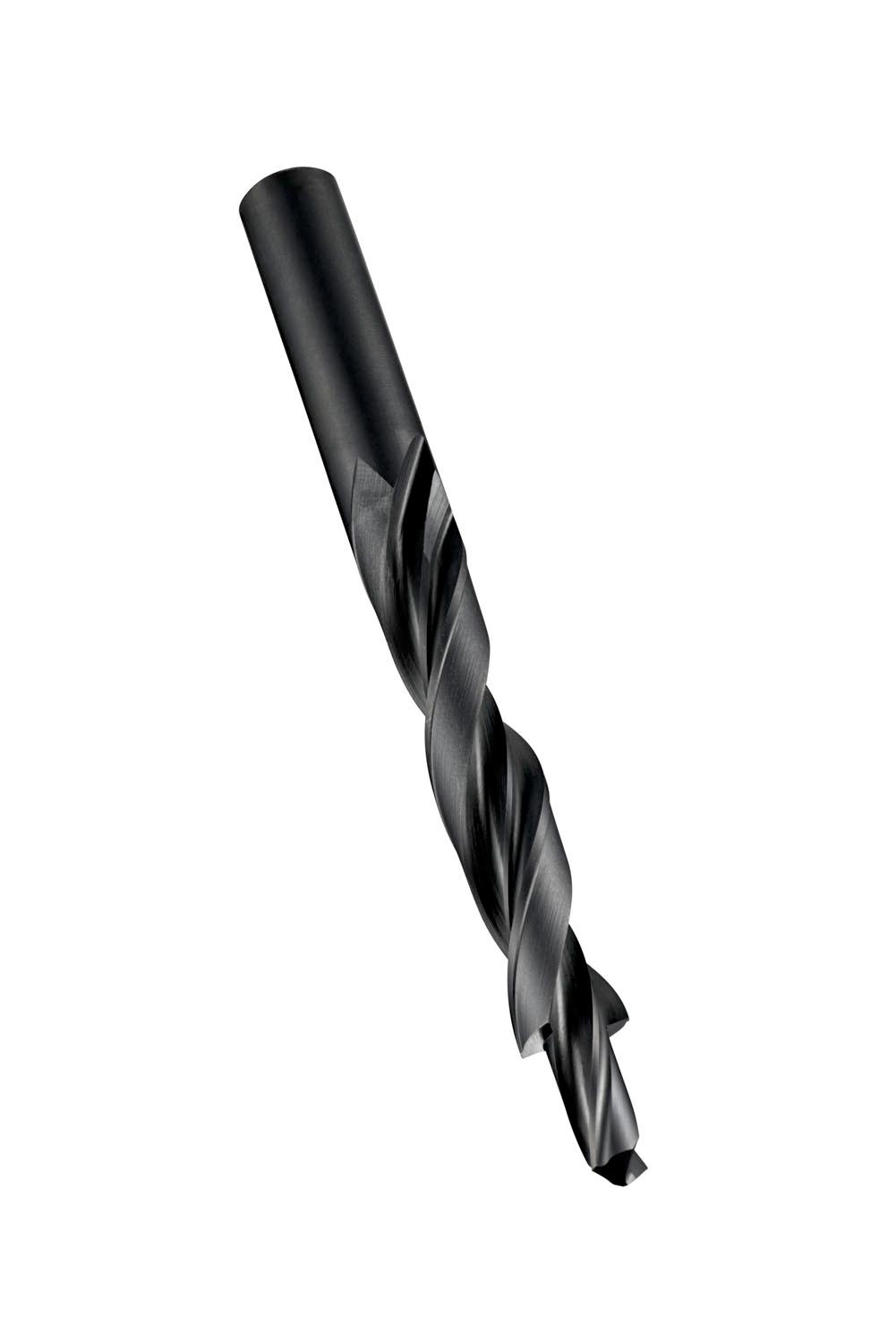

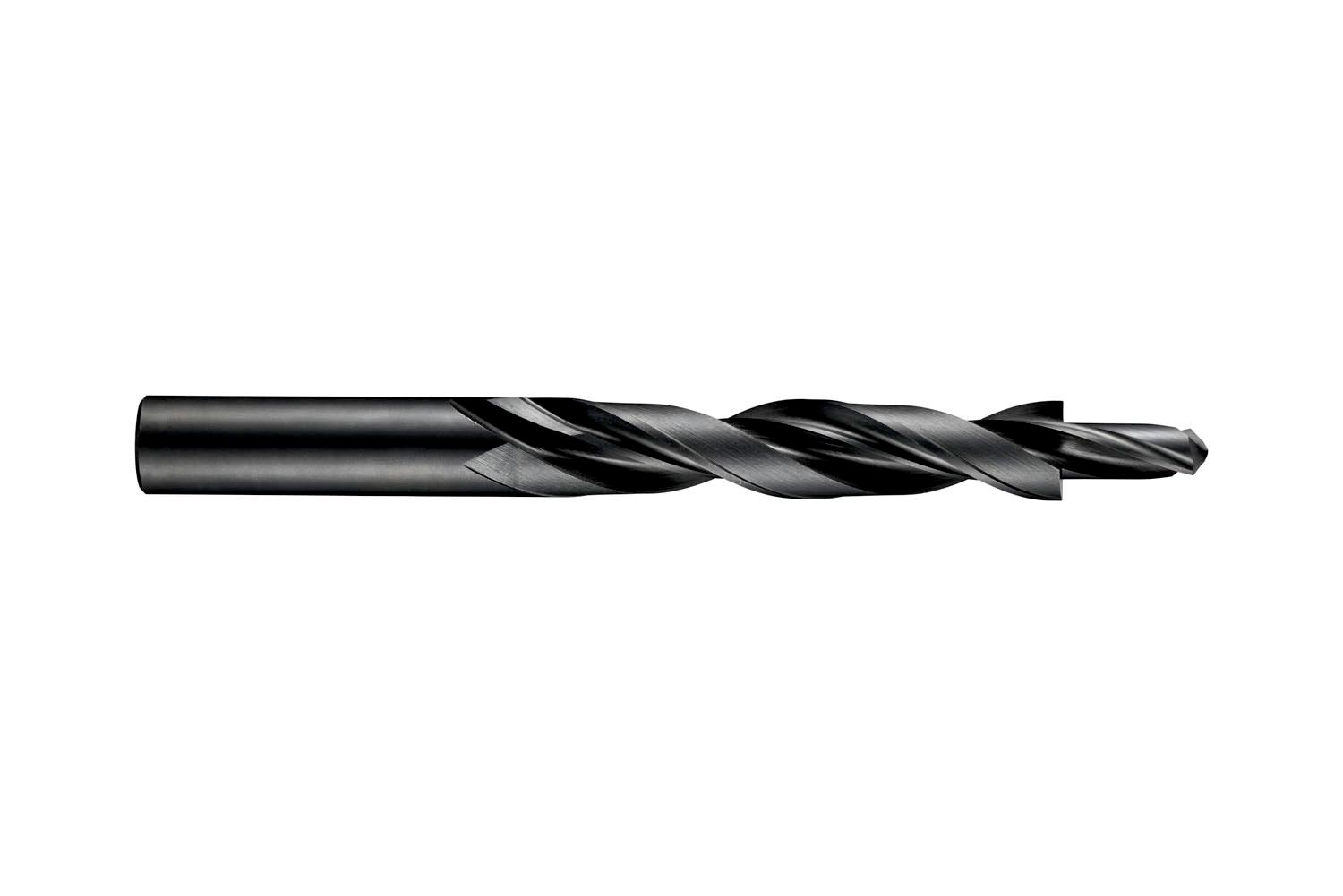

Subland drill with 180° included step angle, straight shank and a drilling-pilot diameter of 11.00mm with a length of 23.00mm, a large diameter of 18.00mm and an overall length of 191mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M10 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.4290 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760034439
Product number (SAP): 86010305
Ordering code ANSI: A402M10
Gross weight – grams: 243.9

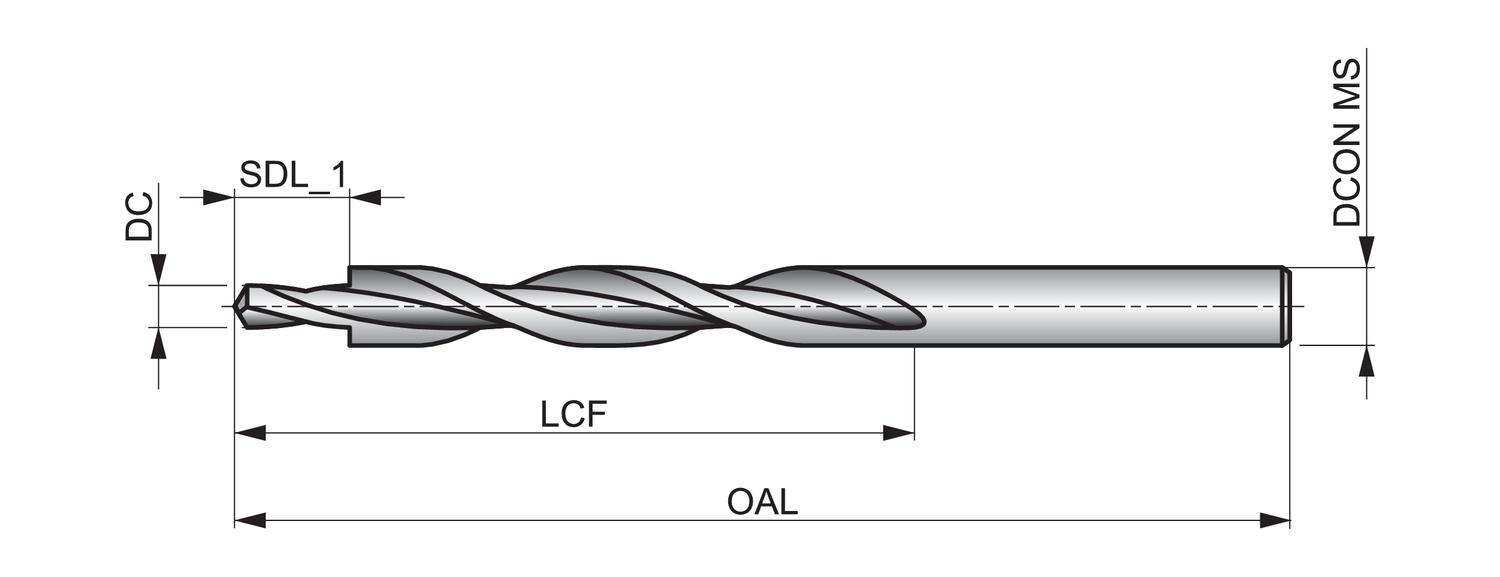

Thread diameter size (TDZ): M10
Cutting diameter – millimeter (DC): 11 mm
Cutting diameter – inch (DC): 0.4331 inch
Length chip flute – millimeter (LCF): 130 mm
Overall length – millimeter (OAL): 191 mm
Step diameter length first cutting step – millimeters (SDL_1): 23 mm
Connection diameter – millimeter (DCON MS): 18 mm
Step included angle (STA): 180
ISO: A402M10

Brand

DORMER
