DORMER A402M3 HSS/HSCo Drills

Product Code: A402M3

$105.37$95.79 Ex. GST

Product Code: A402M3 SKU A402M3 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

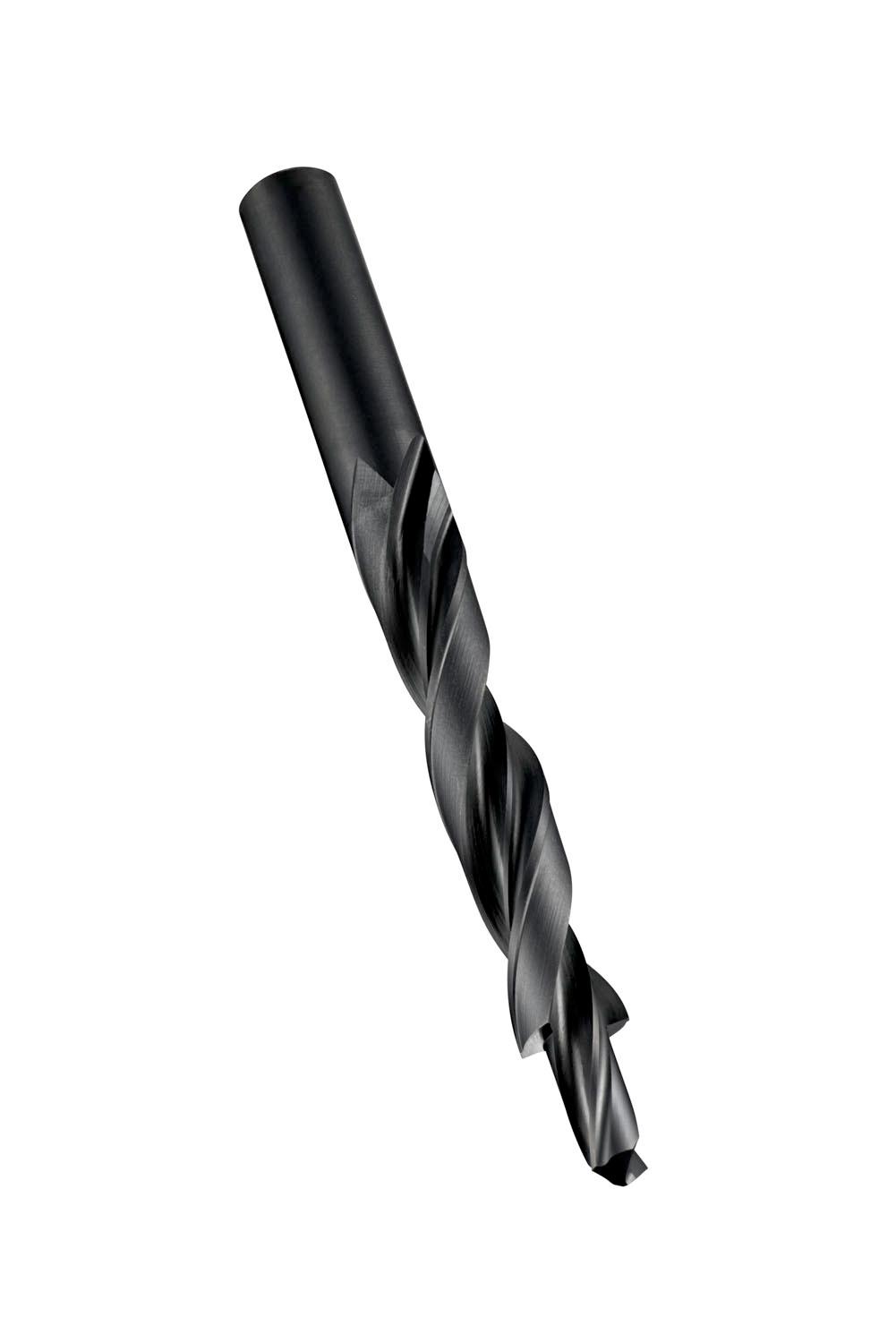

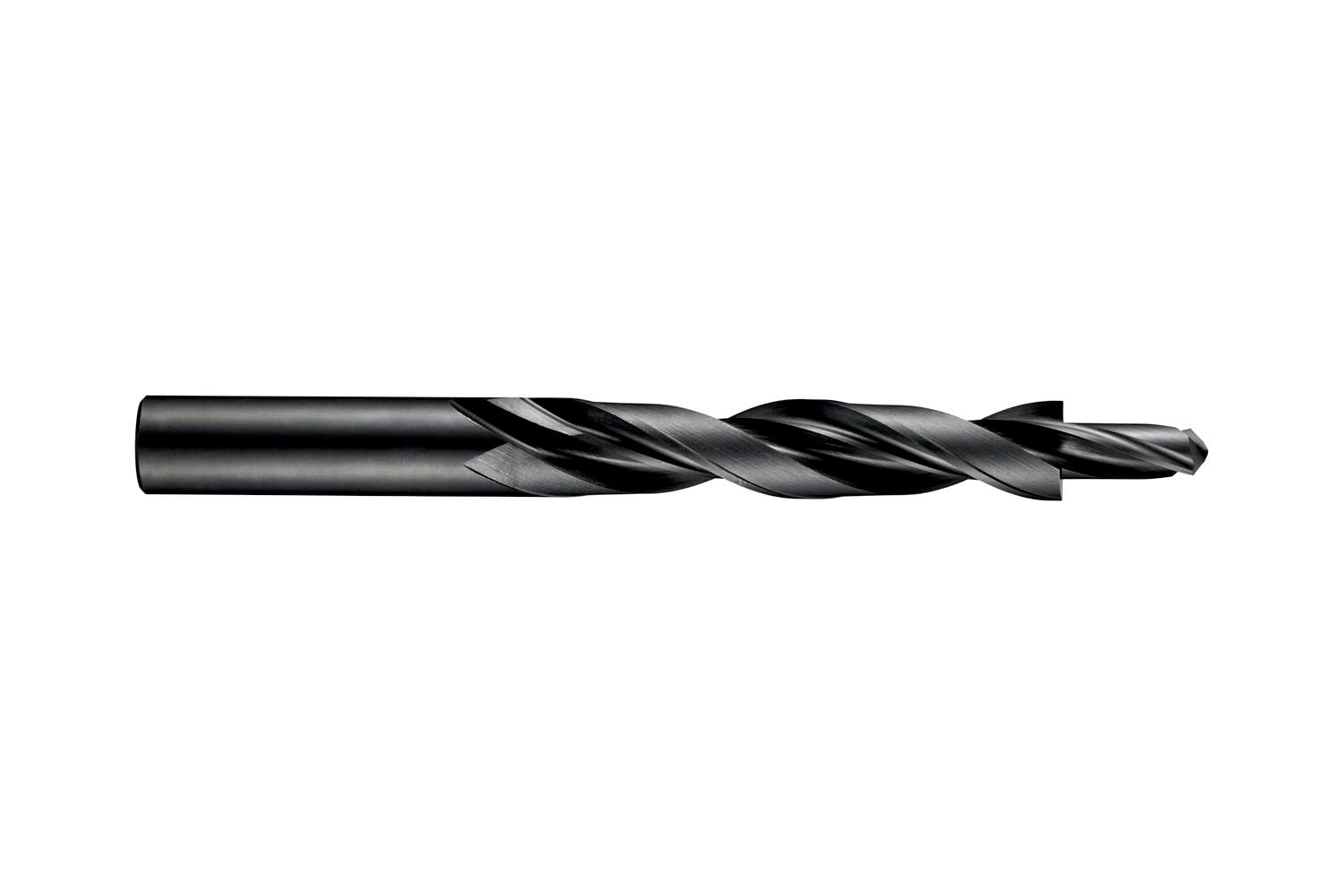

Subland drill with 180° included step angle, straight shank and a drilling-pilot diameter of 3.40mm with a length of 9.00mm, a large diameter of 6.00mm and an overall length of 93mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M3 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.1023 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760034446
Product number (SAP): 86010306
Ordering code ANSI: A402M3
Gross weight – grams: 15.4

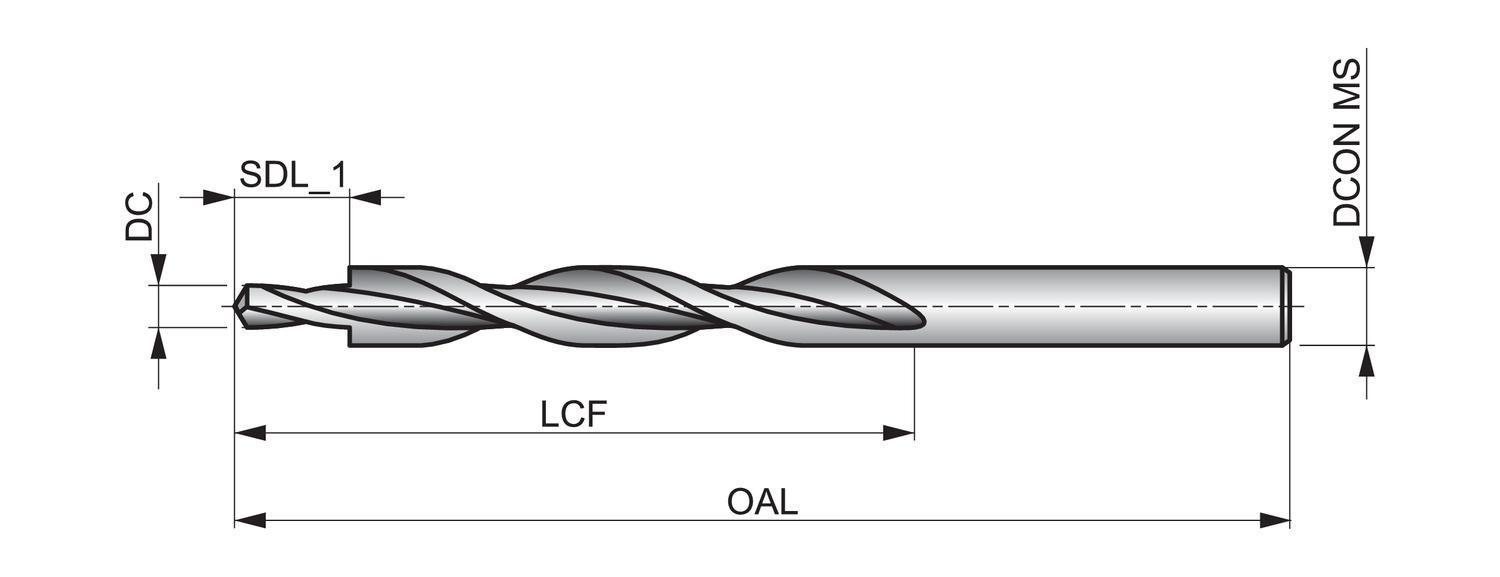

Thread diameter size (TDZ): M3
Cutting diameter – millimeter (DC): 3.4 mm
Cutting diameter – inch (DC): 0.1339 inch
Length chip flute – millimeter (LCF): 57 mm
Overall length – millimeter (OAL): 93 mm
Step diameter length first cutting step – millimeters (SDL_1): 9 mm
Connection diameter – millimeter (DCON MS): 6 mm
Step included angle (STA): 180
ISO: A402M3

Brand

DORMER
