DORMER A402M4 HSS/HSCo Drills

Product Code: A402M4

$121.23$110.21 Ex. GST

Product Code: A402M4 SKU A402M4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

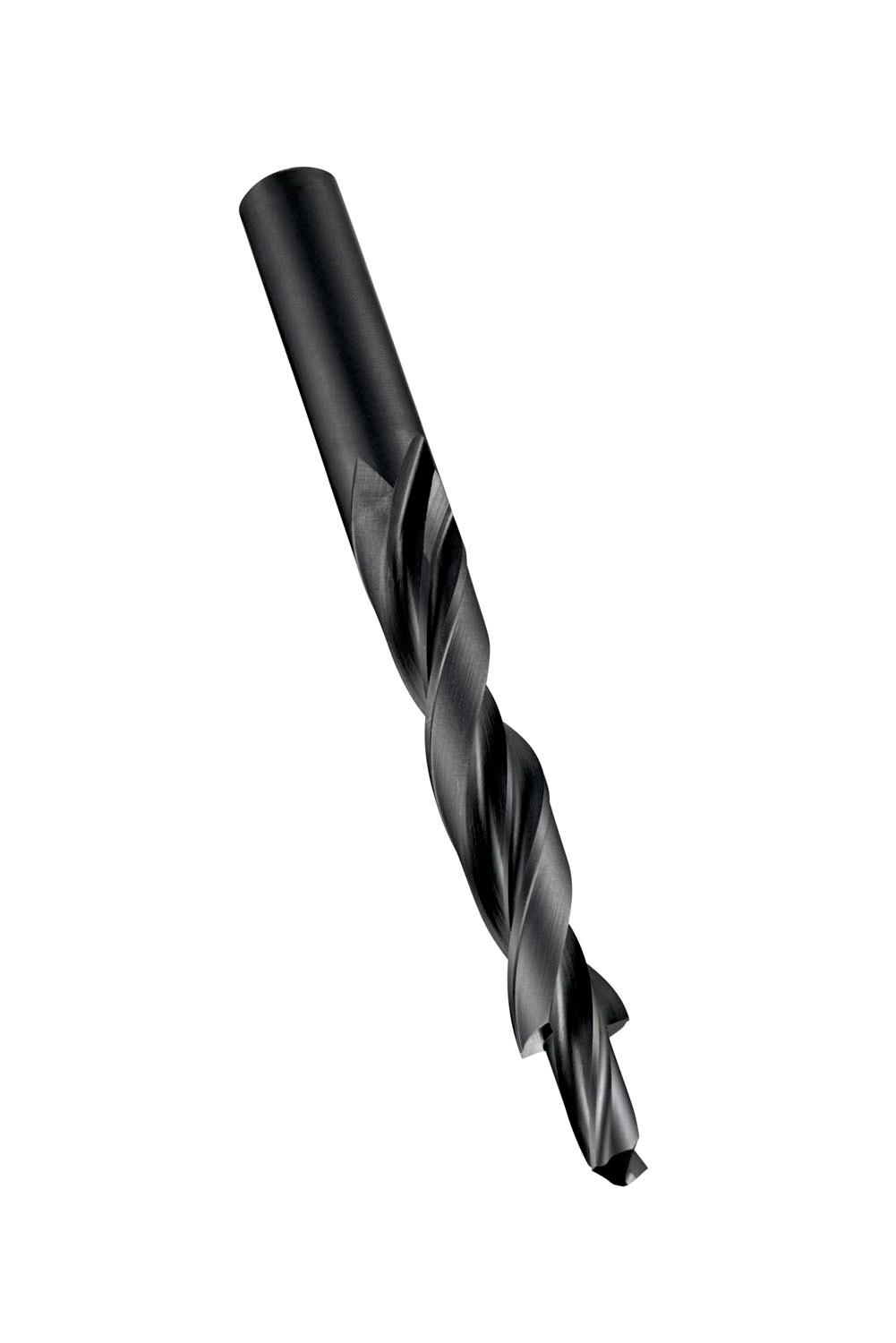

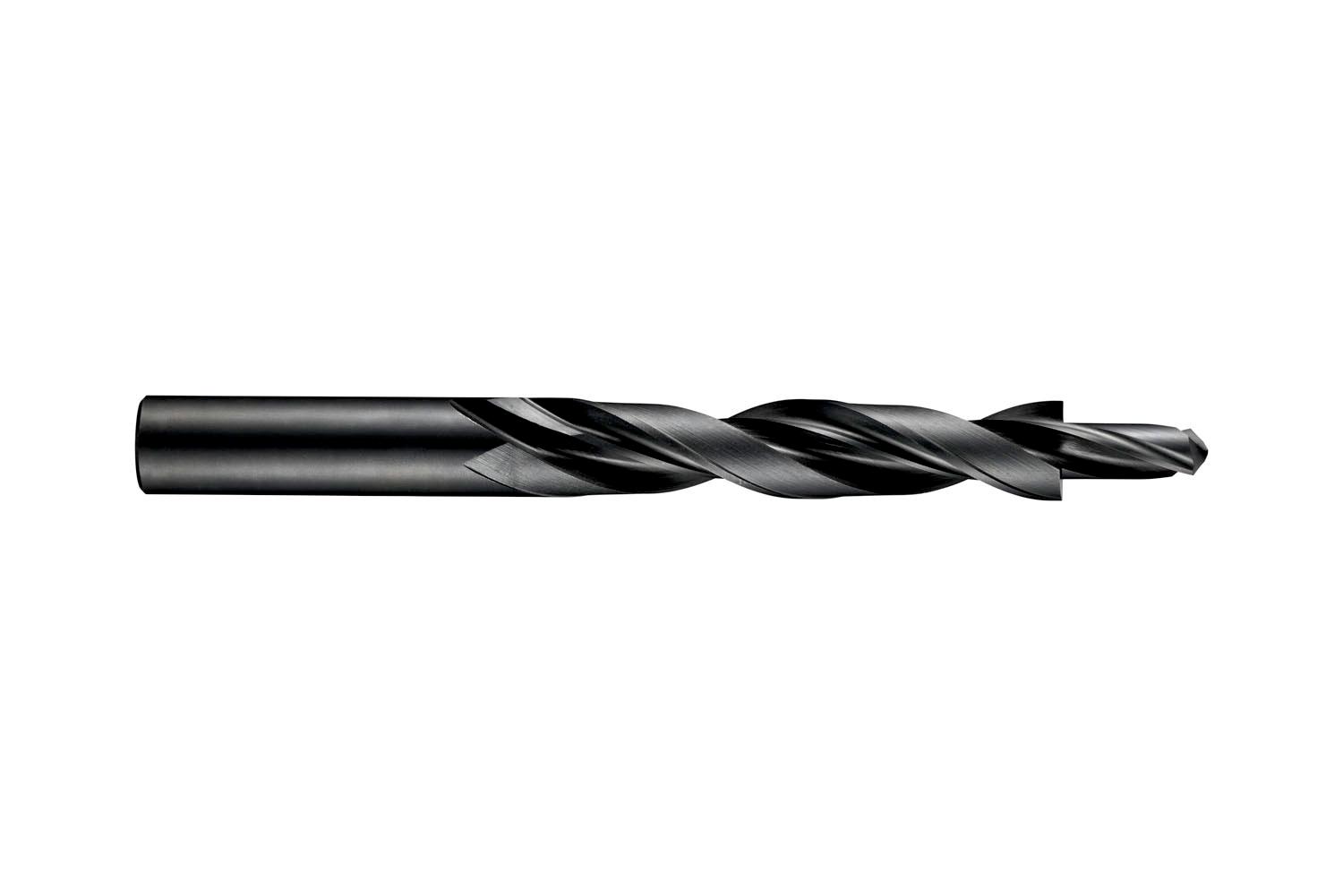

Subland drill with 180° included step angle, straight shank and a drilling-pilot diameter of 4.50mm with a length of 11.00mm, a large diameter of 8.00mm and an overall length of 117mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M4 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.1177 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760034453
Product number (SAP): 86010307
Ordering code ANSI: A402M4
Gross weight – grams: 30.9

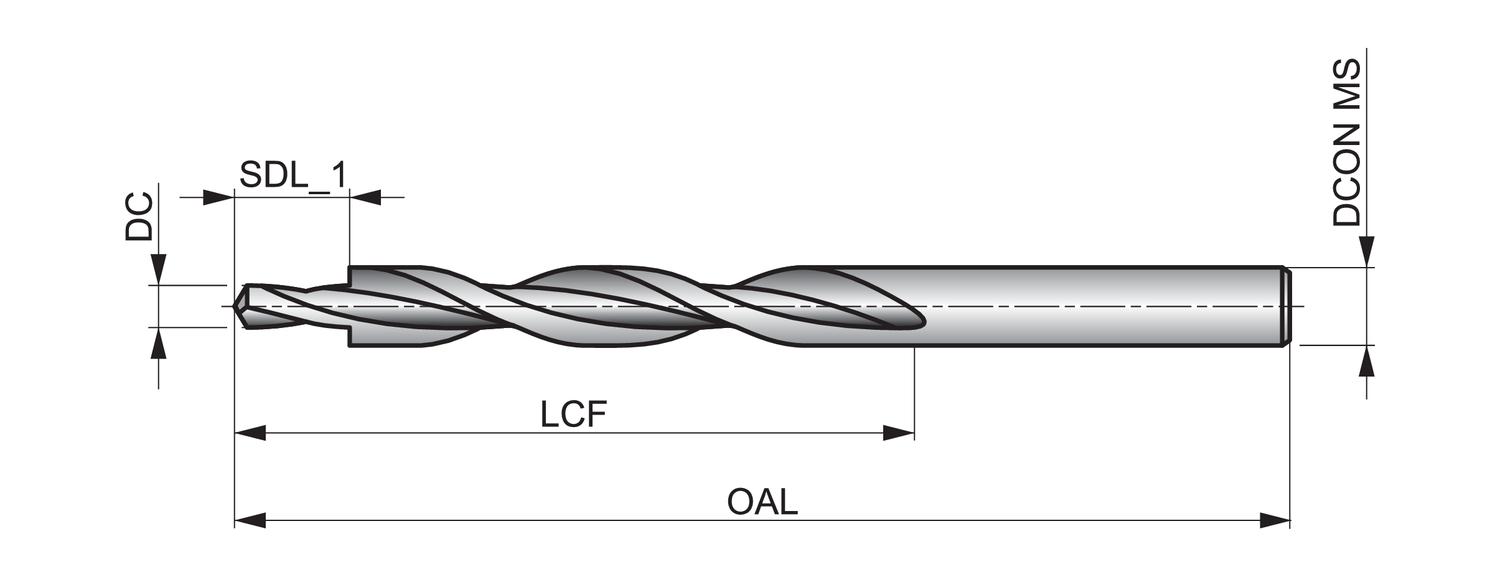

Thread diameter size (TDZ): M4
Cutting diameter – millimeter (DC): 4.5 mm
Cutting diameter – inch (DC): 0.1772 inch
Length chip flute – millimeter (LCF): 75 mm
Overall length – millimeter (OAL): 117 mm
Step diameter length first cutting step – millimeters (SDL_1): 11 mm
Connection diameter – millimeter (DCON MS): 8 mm
Step included angle (STA): 180
ISO: A402M4

Brand

DORMER
