DORMER A402M8 HSS/HSCo Drills

Product Code: A402M8

$233.40$212.18 Ex. GST

Product Code: A402M8 SKU A402M8 Categories , ,
DORMER A402M8 HSS/HSCo Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

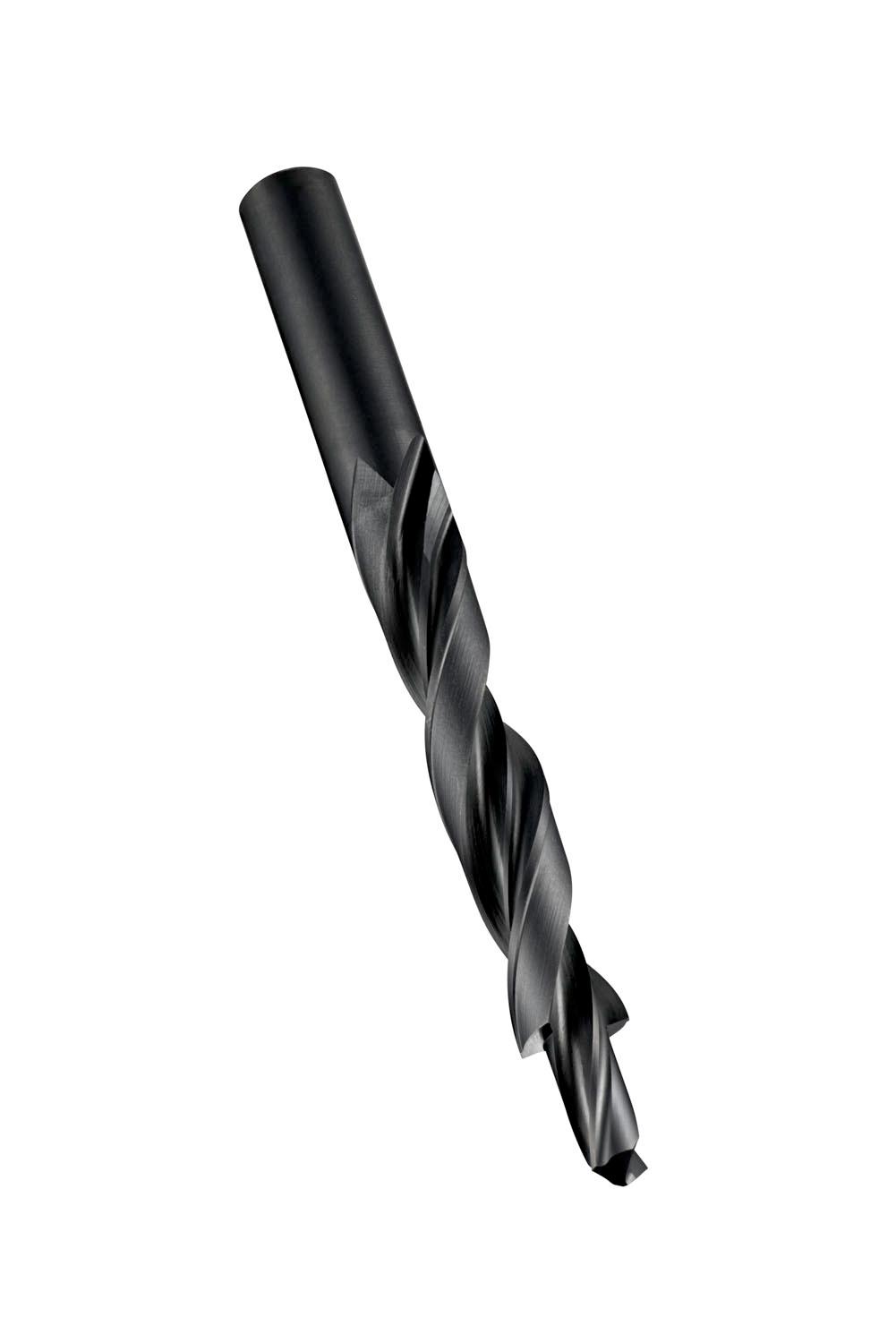

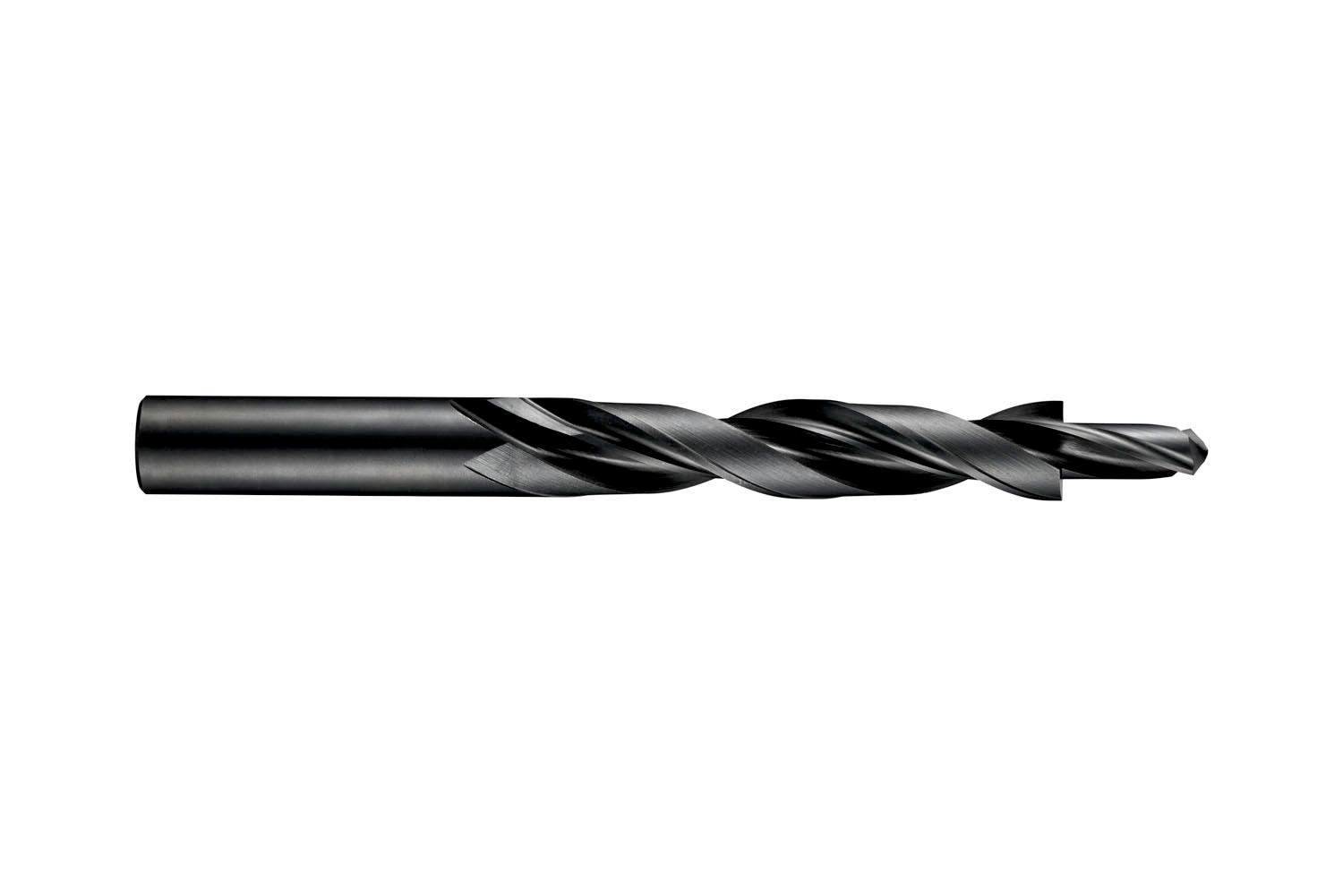

Subland drill with 180° included step angle, straight shank and a drilling-pilot diameter of 9.00mm with a length of 19.00mm, a large diameter of 15.00mm and an overall length of 169mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M8 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron

Additional information

Weight 0.2266 kg
Dimensions
barcode

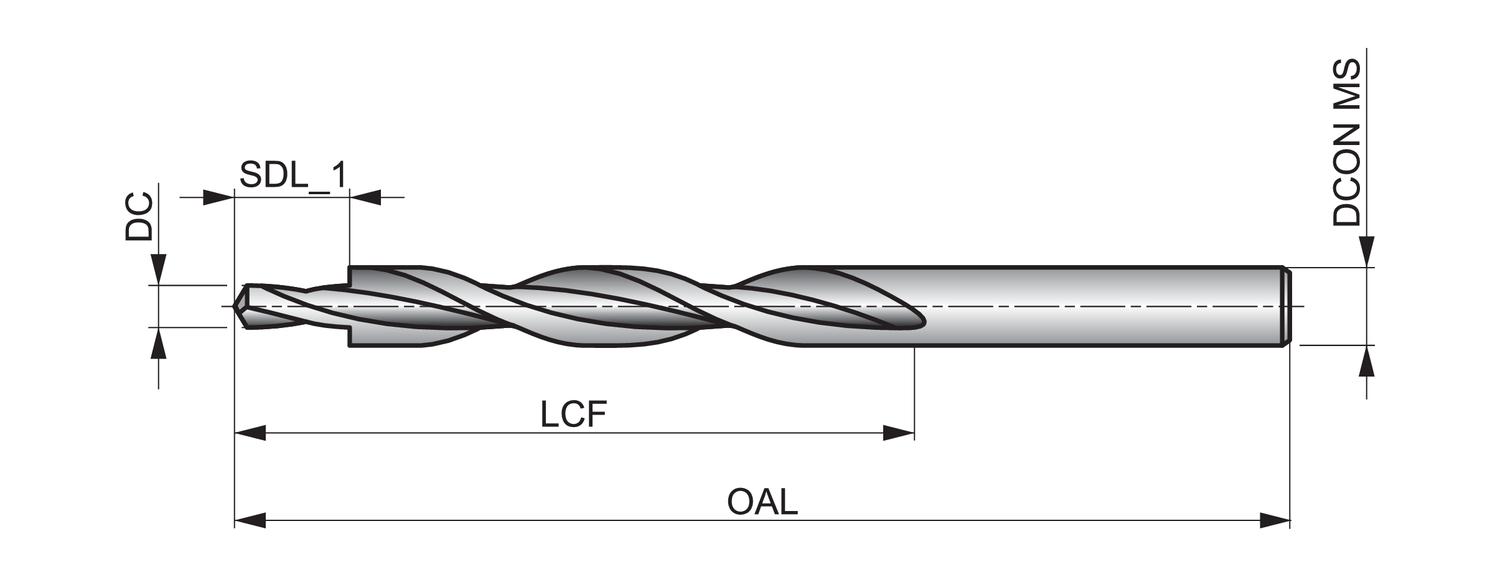

Additional Information

Description: Value
EAN number: 7320760034484
Product number (SAP): 86010310
Ordering code ANSI: A402M8
Gross weight – grams: 148
Thread diameter size (TDZ): M8
Cutting diameter – millimeter (DC): 9 mm
Cutting diameter – inch (DC): 0.3543 inch
Length chip flute – millimeter (LCF): 114 mm
Overall length – millimeter (OAL): 169 mm
Step diameter length first cutting step – millimeters (SDL_1): 19 mm
Connection diameter – millimeter (DCON MS): 15 mm
Step included angle (STA): 180
ISO: A402M8

Brand

DORMER
