DORMER A412M4 HSS/HSCo Drills

Product Code: A412M4

$92.35$83.95 Ex. GST

Product Code: A412M4 SKU A412M4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

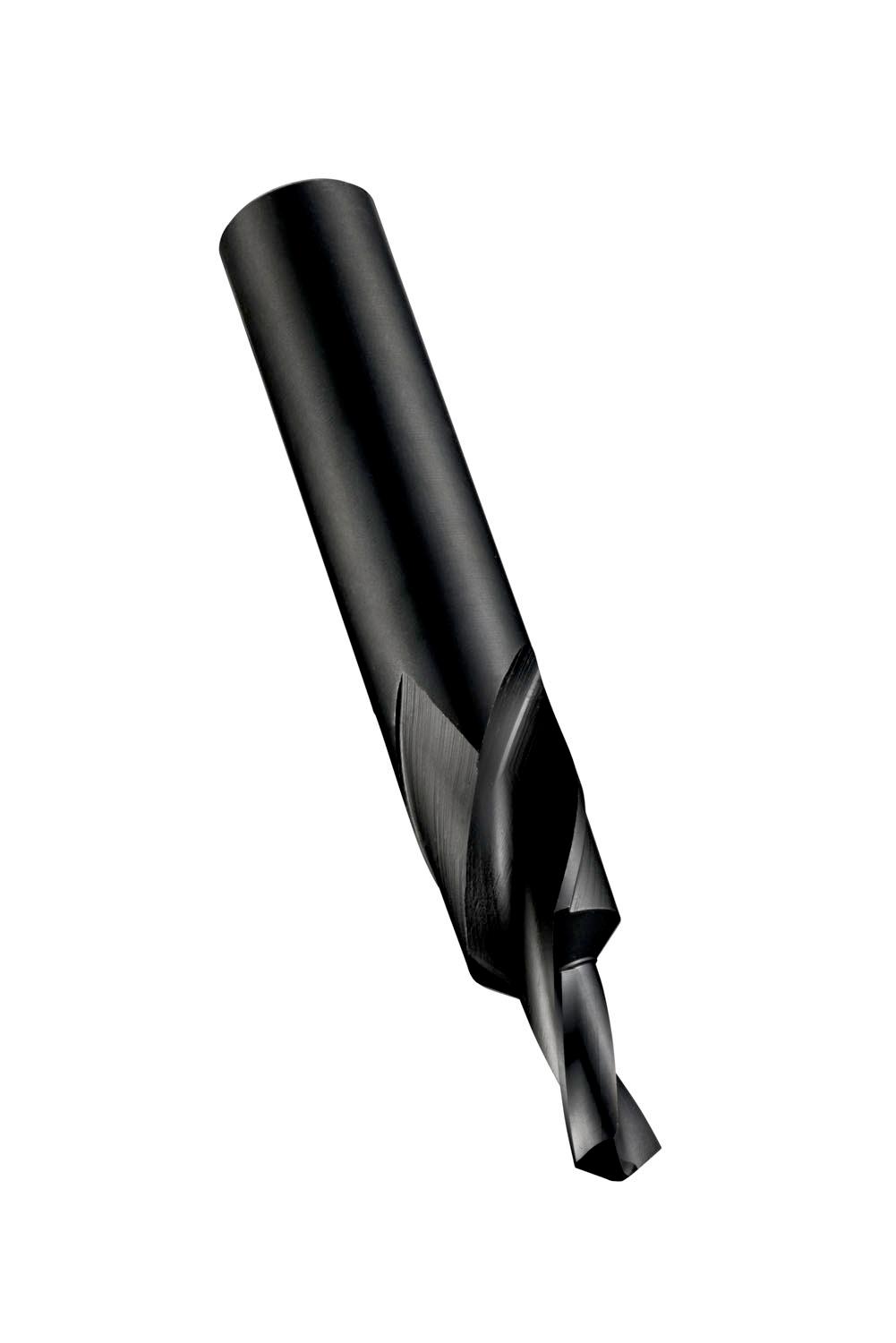

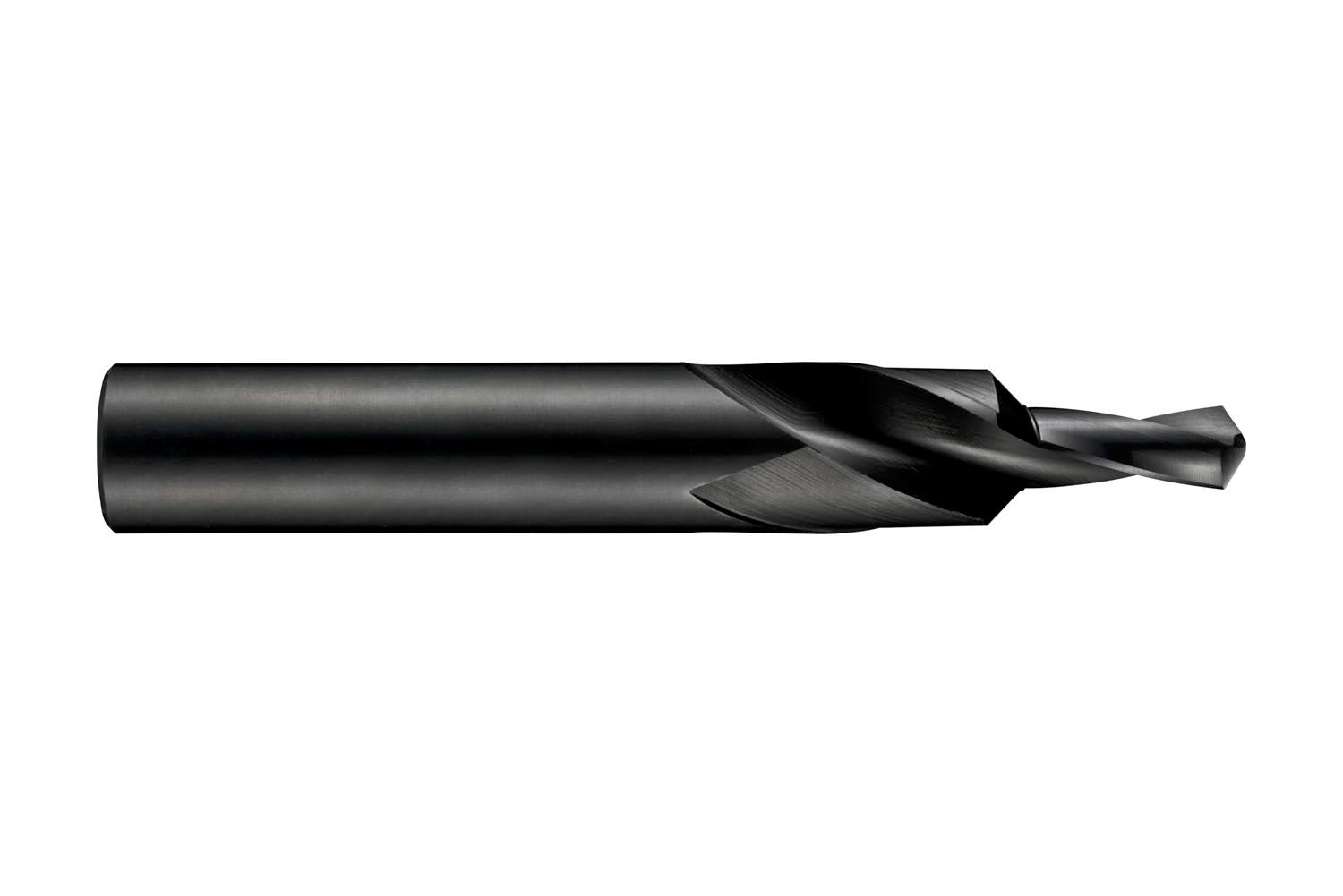

Step drill with 90° included step angle, straight shank and a drilling-pilot diameter of 4.50mm with a length of 11.00mm, a large diameter of 9.00mm and an overall length of 84mm, according to DORMER standard to produce a medium fit through hole and conical seat for M4 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron

Additional information

Weight 0.0897 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760213650
Product number (SAP): 86010322
Ordering code ANSI: A412M4
Gross weight – grams: 39.7

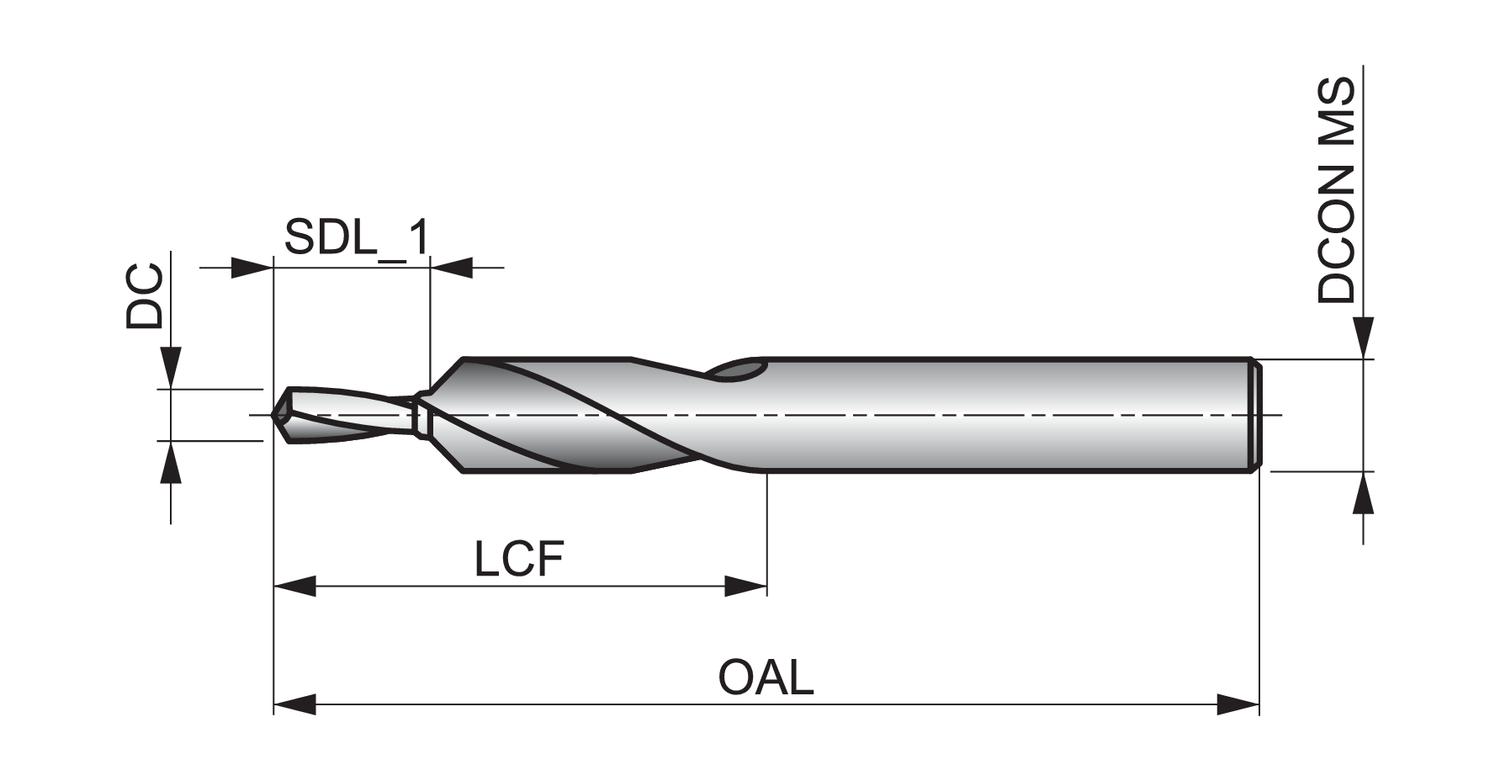

Thread diameter size (TDZ): M4
Cutting diameter – millimeter (DC): 4.5 mm
Cutting diameter – inch (DC): 0.1772 inch
Length chip flute – millimeter (LCF): 40 mm
Overall length – millimeter (OAL): 84 mm
Step diameter length first cutting step – millimeters (SDL_1): 11 mm
Connection diameter – millimeter (DCON MS): 9 mm
Step included angle (STA): 90
ISO: A412M4

Brand

DORMER
