DORMER A412M6 HSS/HSCo Drills

Product Code: A412M6

$145.02$131.84 Ex. GST

Product Code: A412M6 SKU A412M6 Categories , ,
DORMER A412M6 HSS/HSCo Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

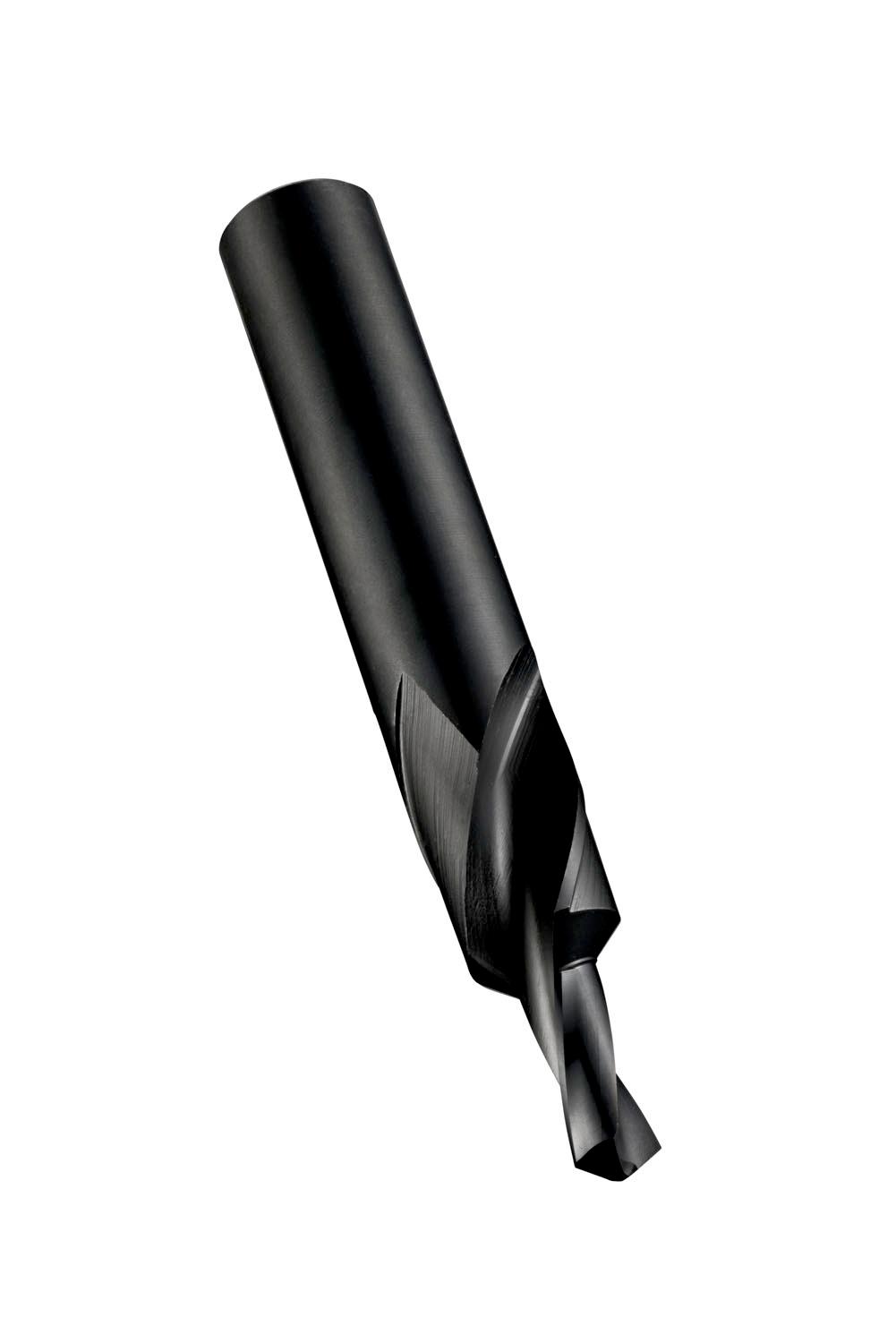

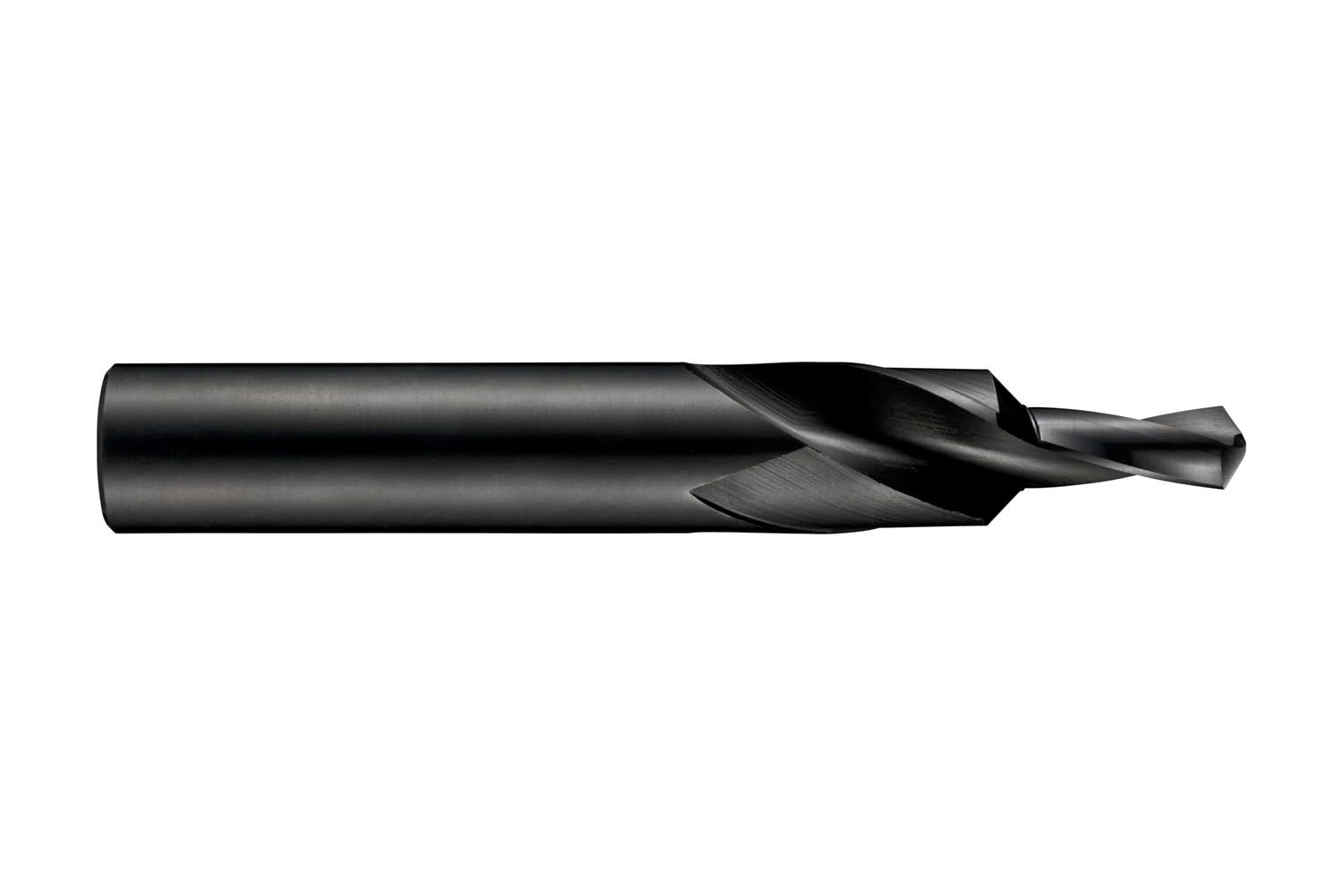

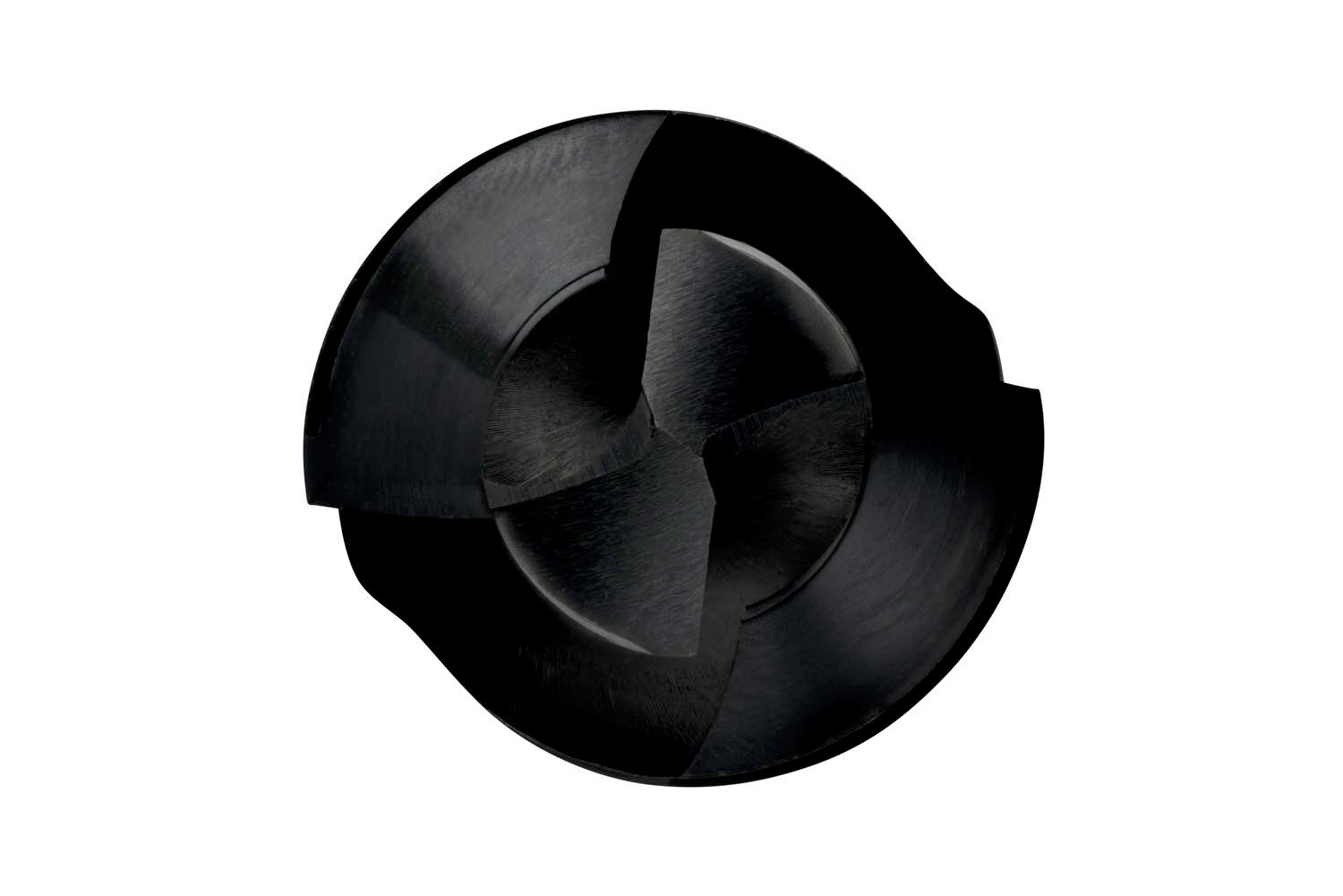

Step drill with 90° included step angle, straight shank and a drilling-pilot diameter of 6.60mm with a length of 15.00mm, a large diameter of 13.00mm and an overall length of 102mm, according to DORMER standard to produce a medium fit through hole and conical seat for M6 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron

Additional information

Weight 0.1408 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760213674
Product number (SAP): 86010324
Ordering code ANSI: A412M6
Gross weight – grams: 80.8
Thread diameter size (TDZ): M6

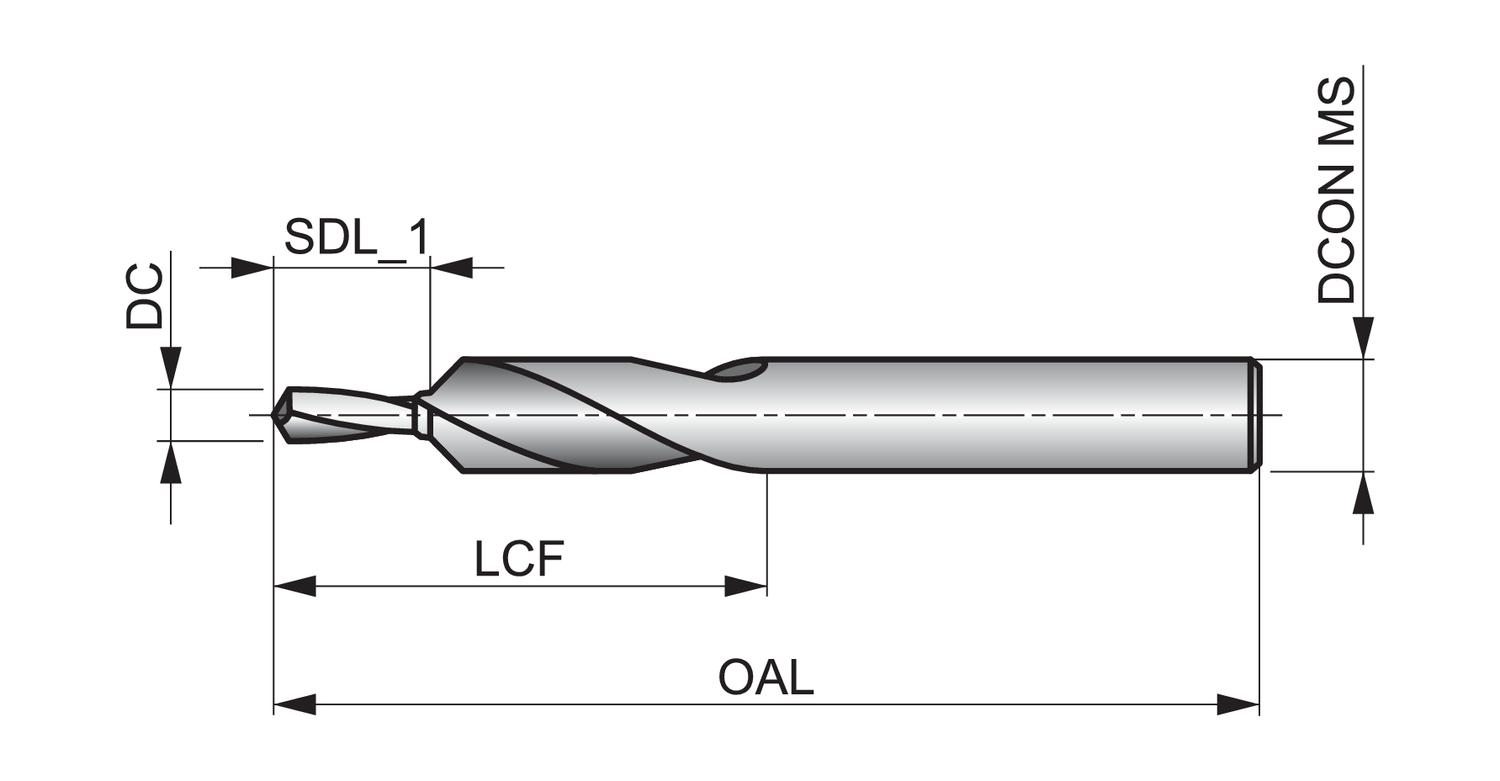

Cutting diameter – millimeter (DC): 6.6 mm
Cutting diameter – inch (DC): 0.2598 inch
Length chip flute – millimeter (LCF): 51 mm
Overall length – millimeter (OAL): 102 mm
Step diameter length first cutting step – millimeters (SDL_1): 15 mm
Connection diameter – millimeter (DCON MS): 13 mm
Step included angle (STA): 90
ISO: A412M6

Brand

DORMER
