DORMER A413M10 HSS/HSCo Drills

Product Code: A413M10

$225.47$204.97 Ex. GST

Product Code: A413M10 SKU A413M10 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

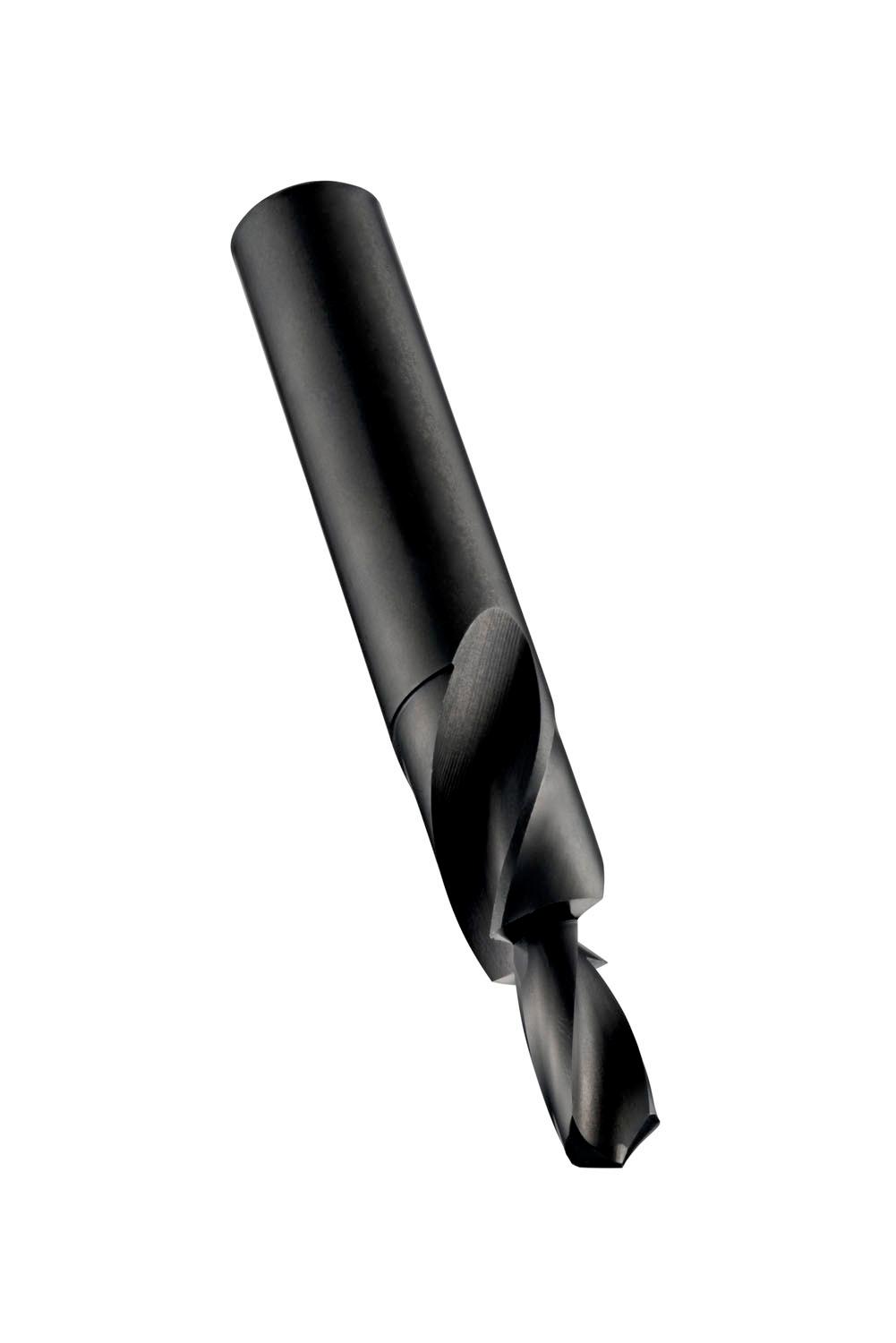

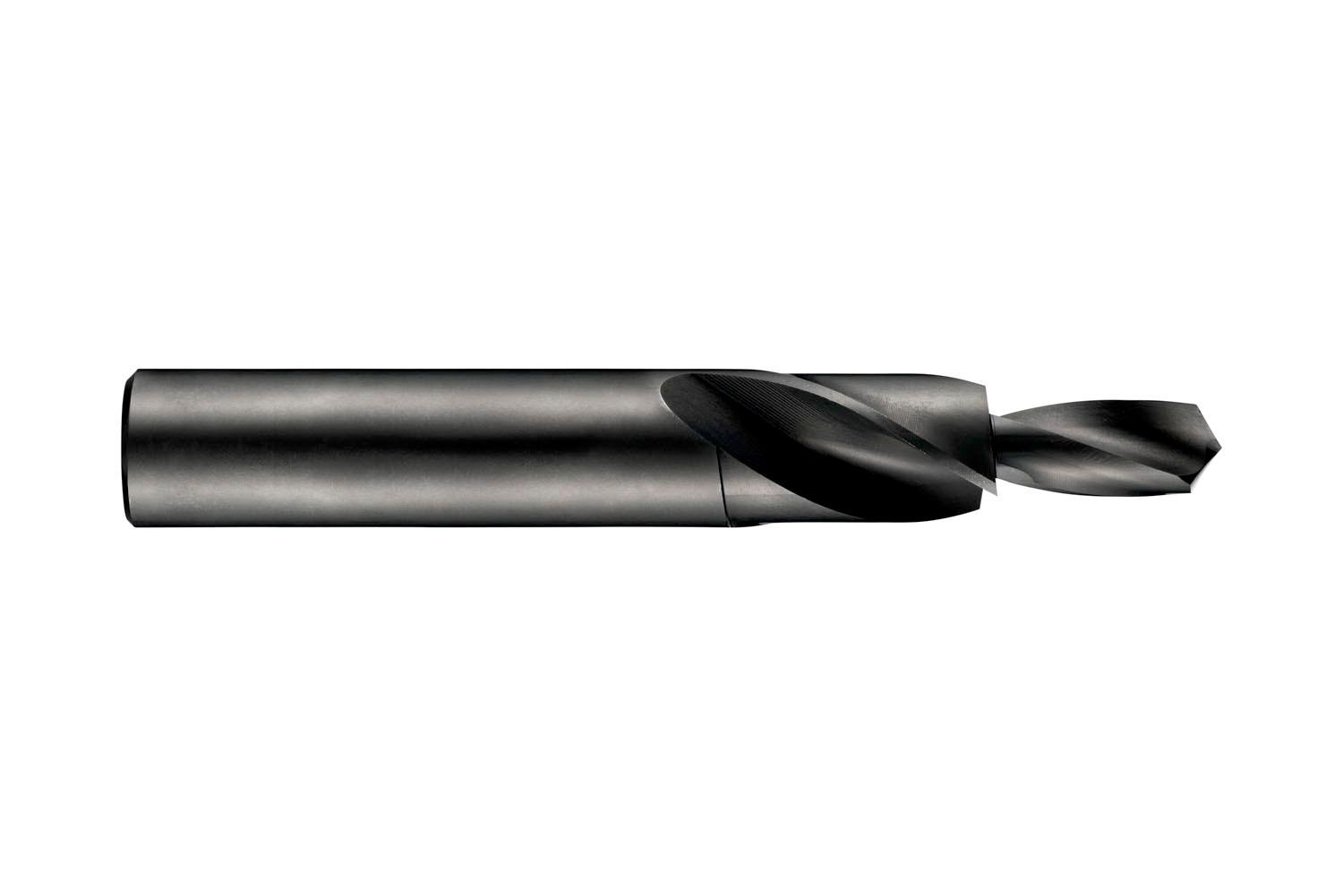

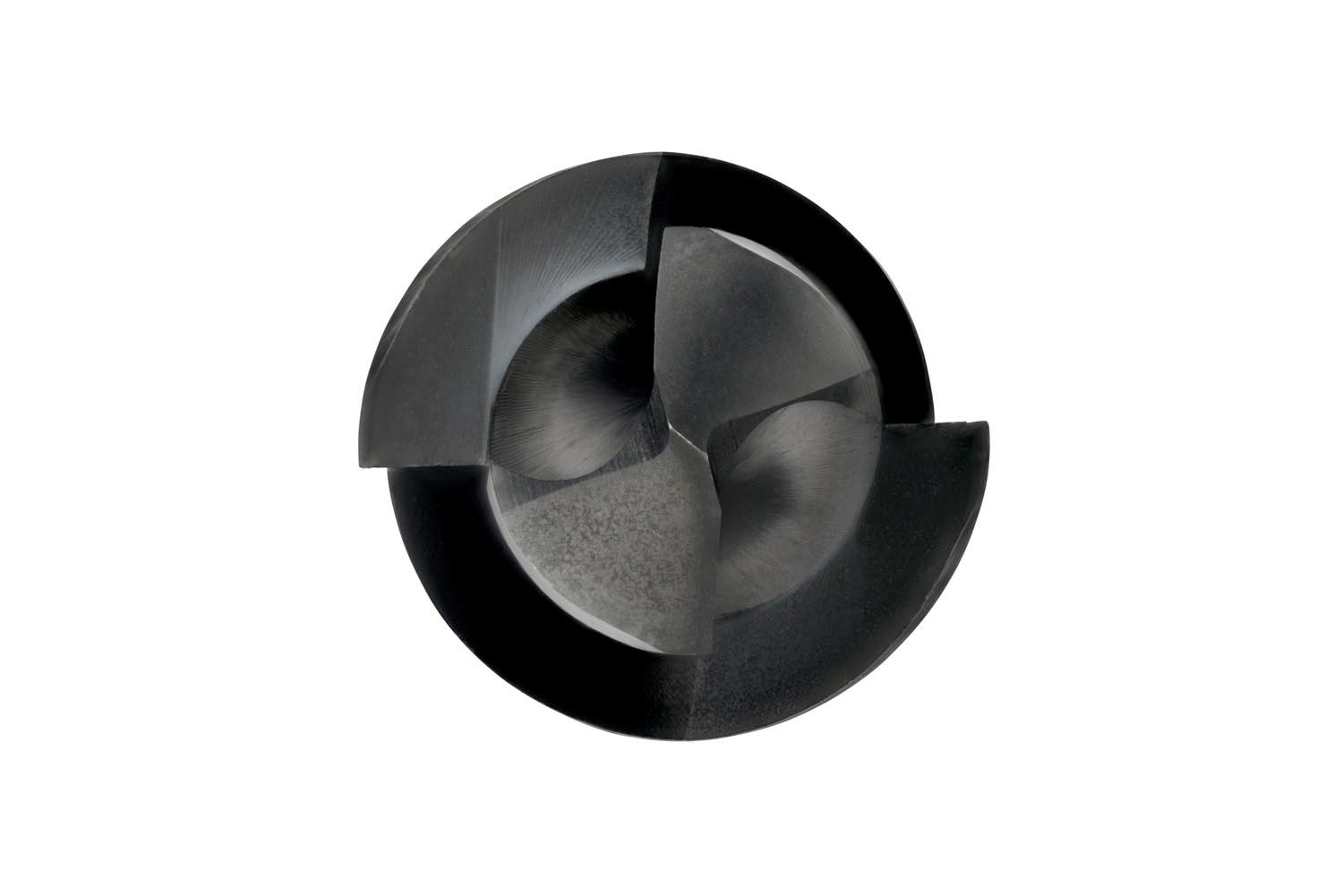

Step drill with 180° included step angle, straight shank and a drilling-pilot diameter of 11.00mm with a length of 23.00mm, a large diameter of 18.00mm and an overall length of 123mm, according to DORMER standard to produce a medium fit through hole and flat bottom seat for M10 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron

Additional information

Weight 0.2189 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760213759
Product number (SAP): 86010326
Ordering code ANSI: A413M10
Gross weight – grams: 187.6
Thread diameter size (TDZ): M10

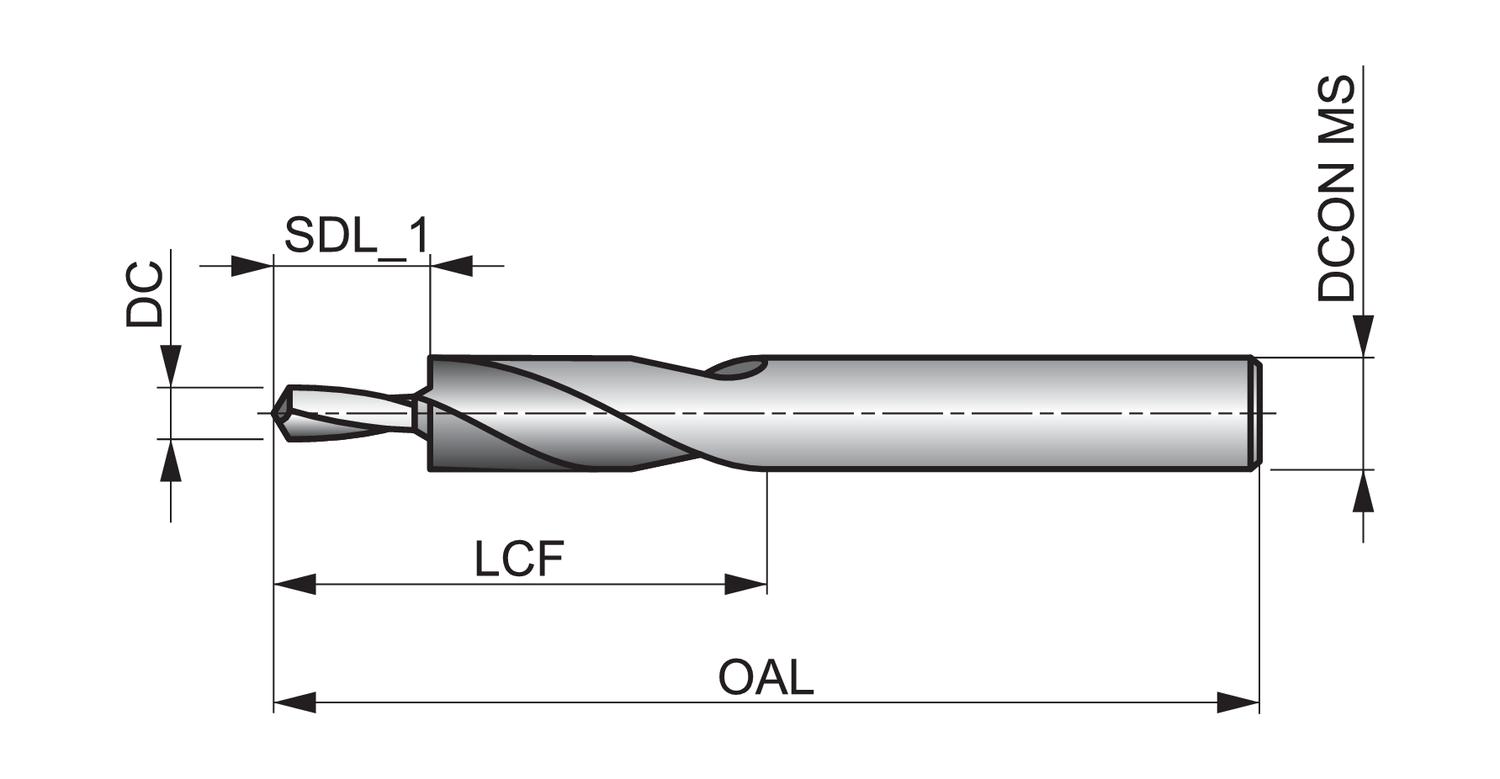

Cutting diameter – millimeter (DC): 11 mm
Cutting diameter – inch (DC): 0.4331 inch
Length chip flute – millimeter (LCF): 62 mm
Overall length – millimeter (OAL): 123 mm
Step diameter length first cutting step – millimeters (SDL_1): 23 mm
Connection diameter – millimeter (DCON MS): 18 mm
Step included angle (STA): 180
ISO: A413M10

Brand

DORMER
