DORMER A413M6 HSS/HSCo Drills

Product Code: A413M6

$125.76$114.33 Ex. GST

Product Code: A413M6 SKU A413M6 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

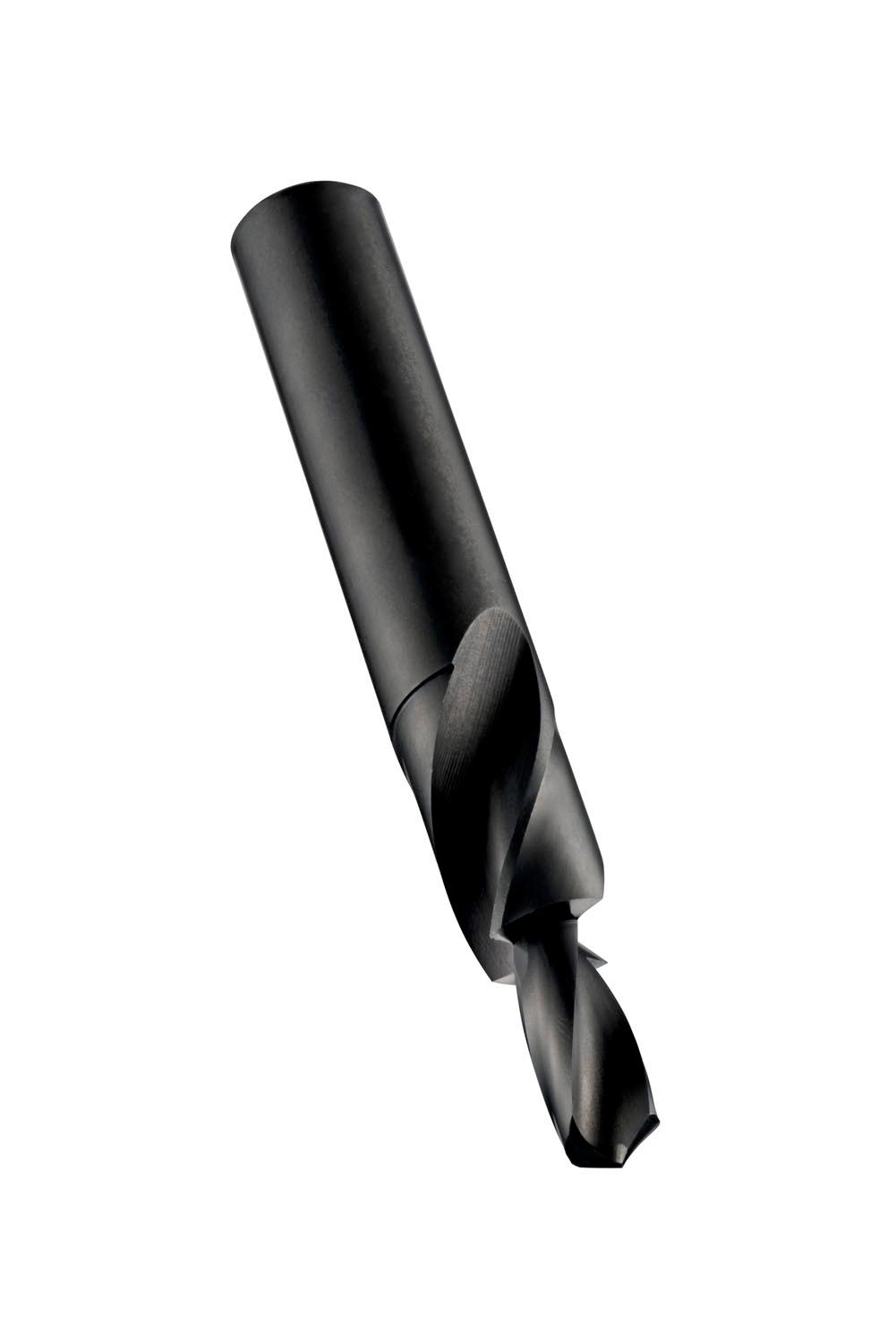

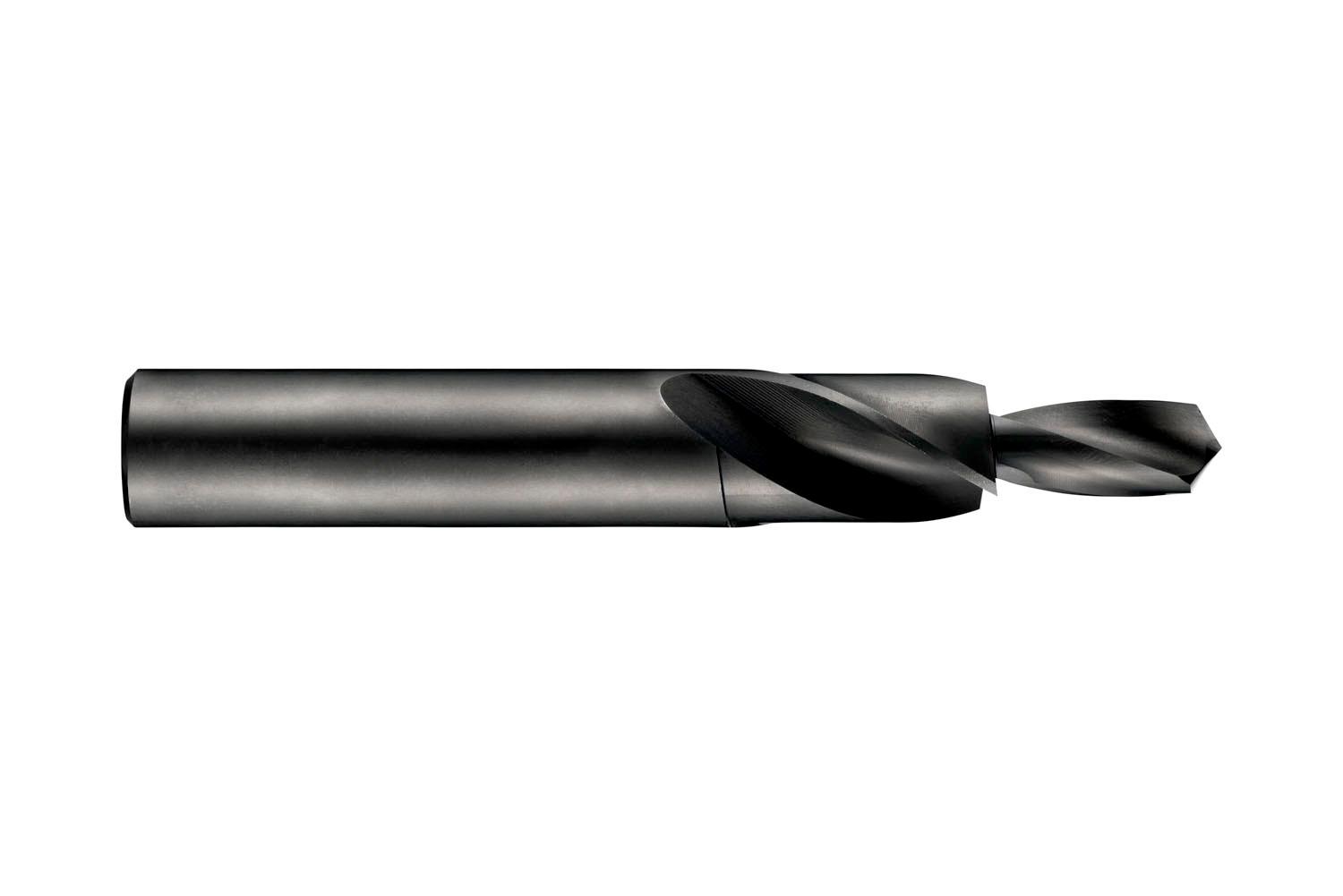

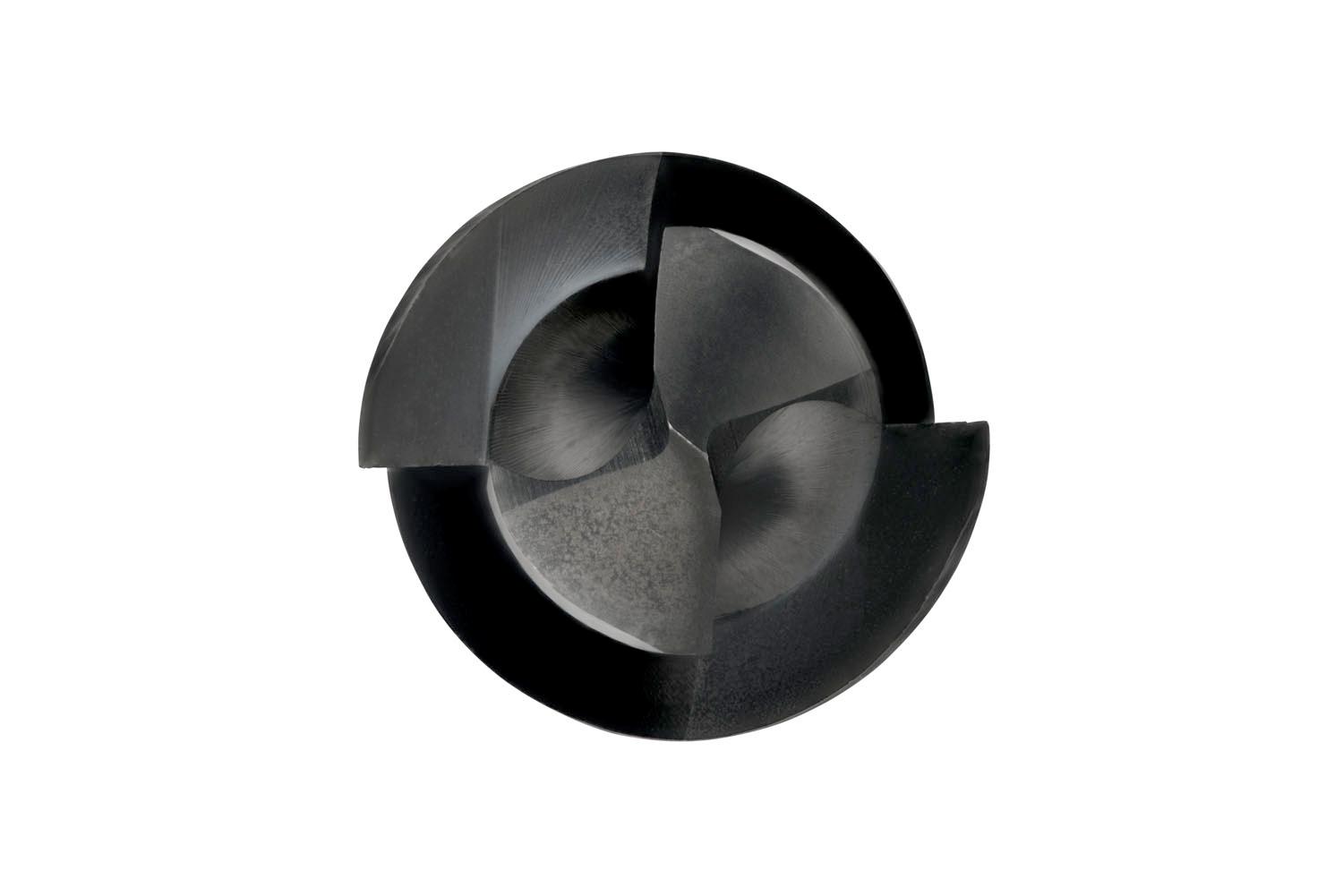

Step drill with 180° included step angle, straight shank and a drilling-pilot diameter of 6.60mm with a length of 15.00mm, a large diameter of 11.00mm and an overall length of 95mm, according to DORMER standard to produce a medium fit through hole and flat bottom seat for M6 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron

Additional information

Weight 0.1221 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760213735
Product number (SAP): 86010330
Ordering code ANSI: A413M6
Gross weight – grams: 60.7
Thread diameter size (TDZ): M6

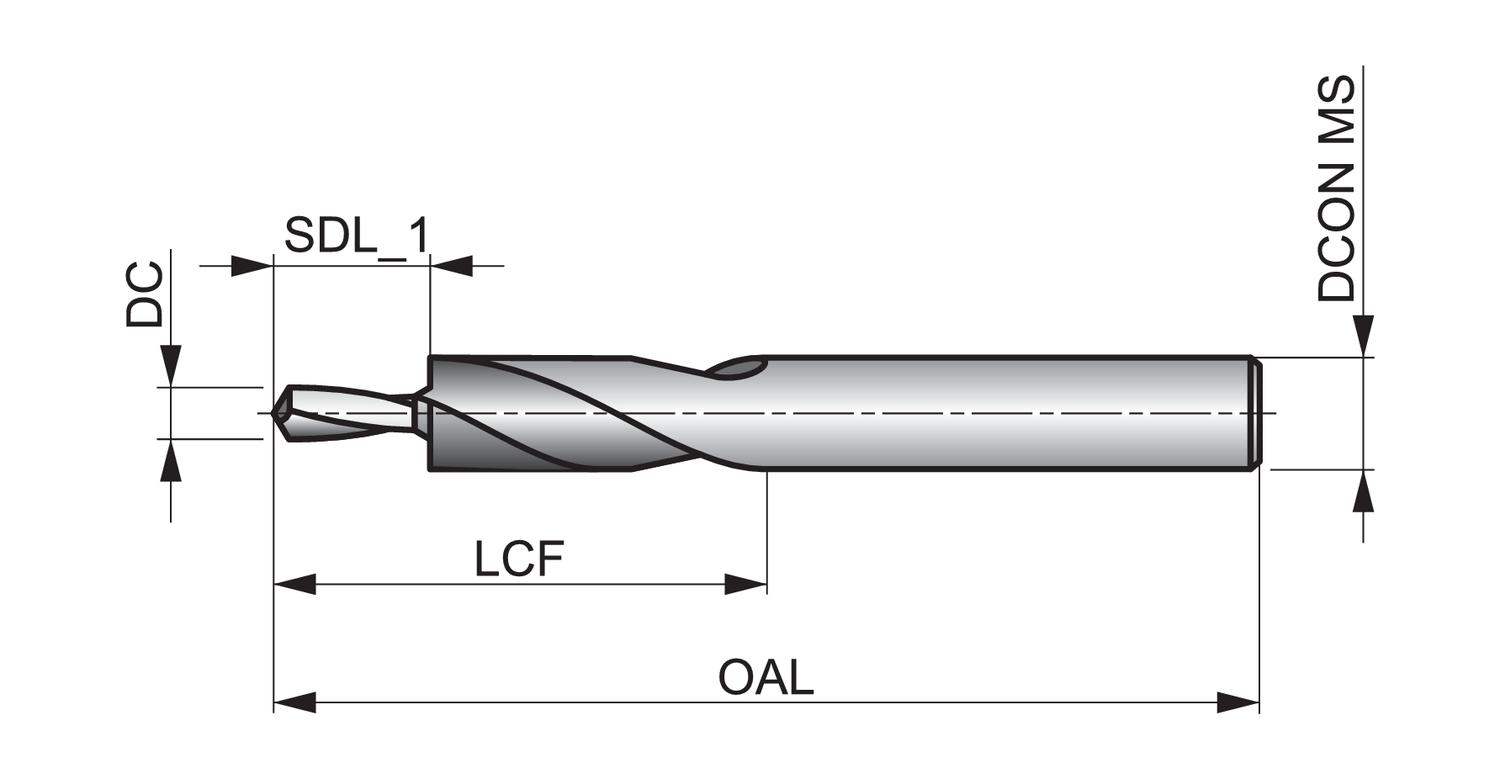

Cutting diameter – millimeter (DC): 6.6 mm
Cutting diameter – inch (DC): 0.2598 inch
Length chip flute – millimeter (LCF): 47 mm
Overall length – millimeter (OAL): 95 mm
Step diameter length first cutting step – millimeters (SDL_1): 15 mm
Connection diameter – millimeter (DCON MS): 11 mm
Step included angle (STA): 180
ISO: A413M6

Brand

DORMER
