DORMER A51015/64

Product Code: A51015/64

$67.42$61.29 Ex. GST

Product Code: A51015/64 SKU A51015/64 Categories , ,
DORMER A51015/64

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

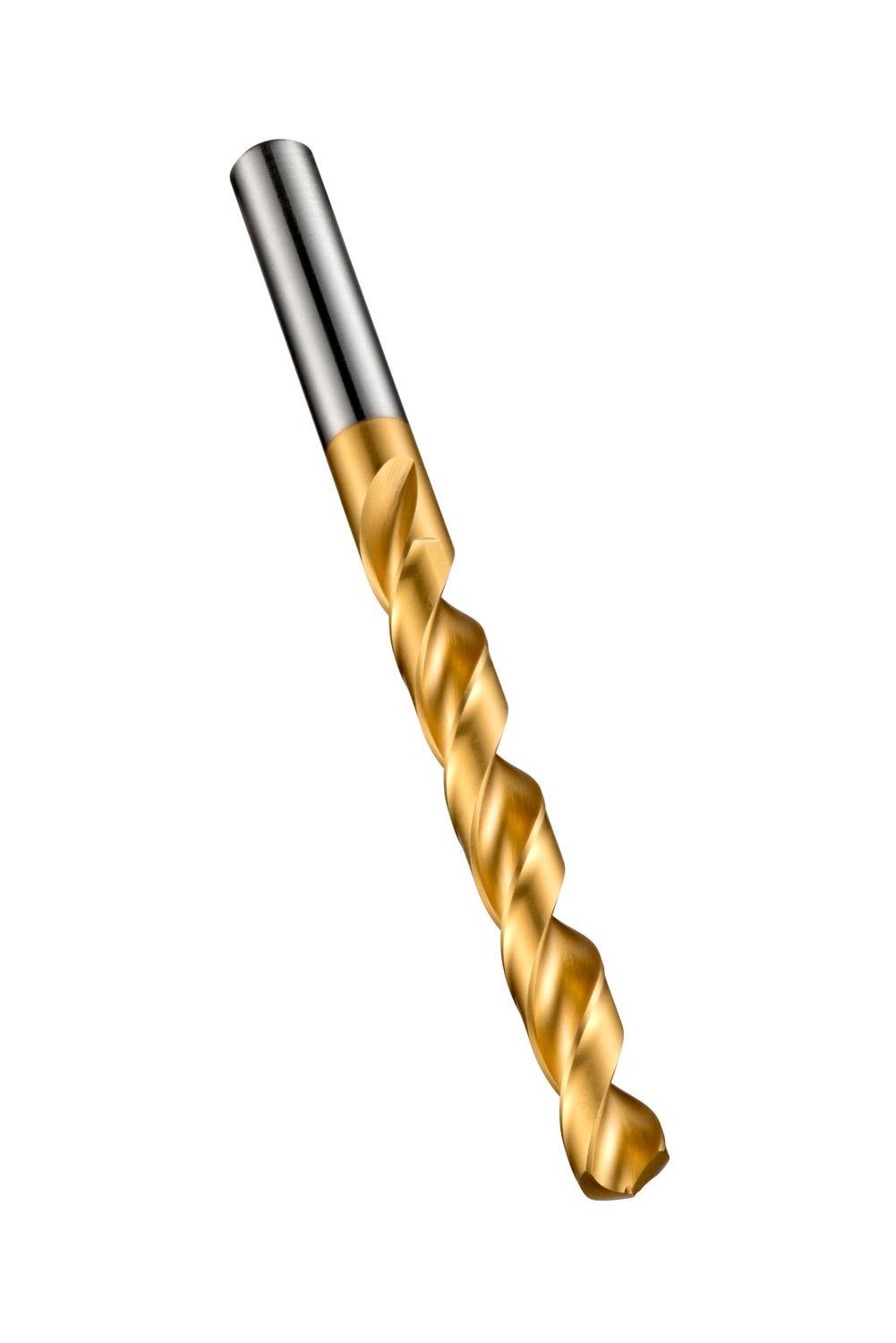

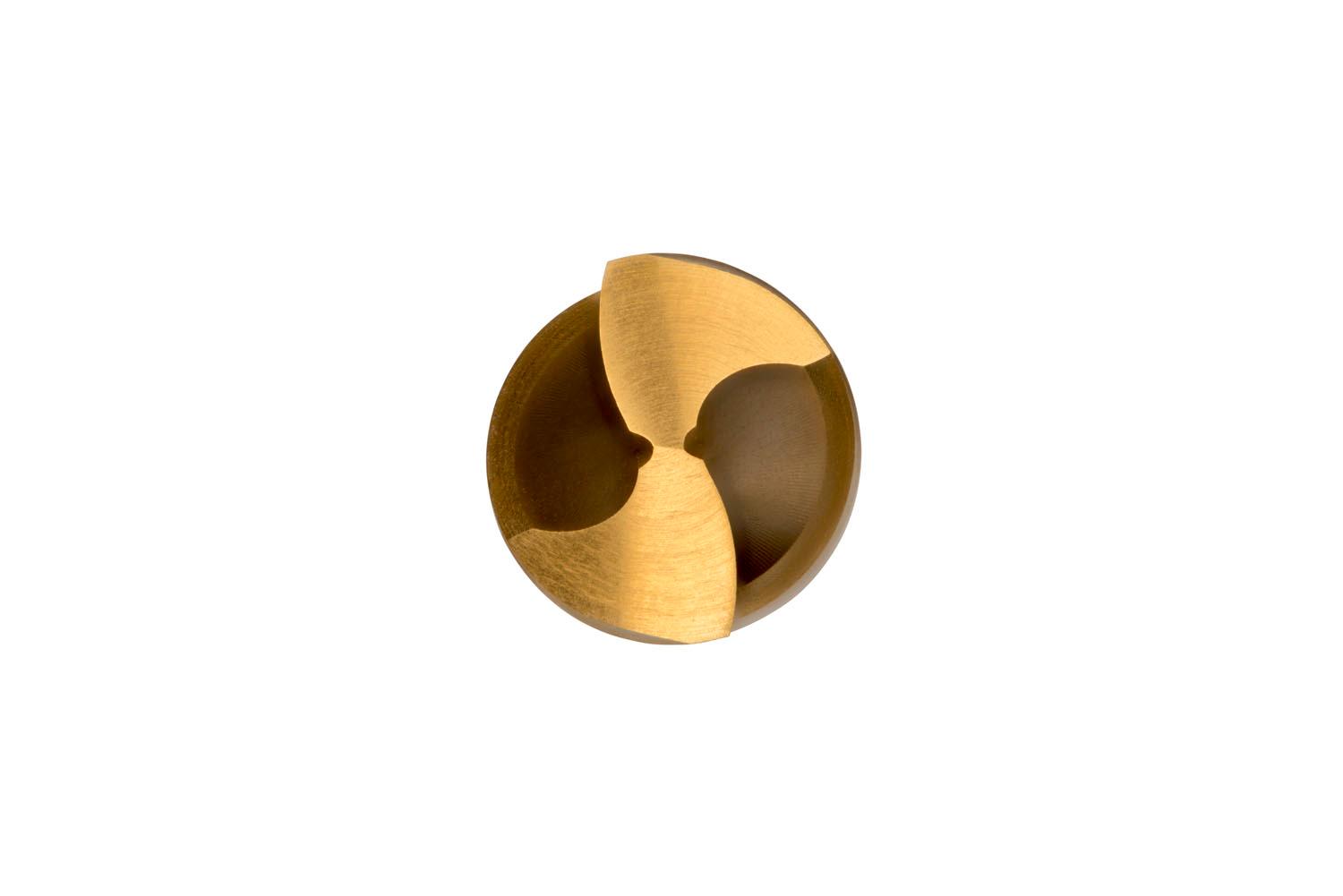

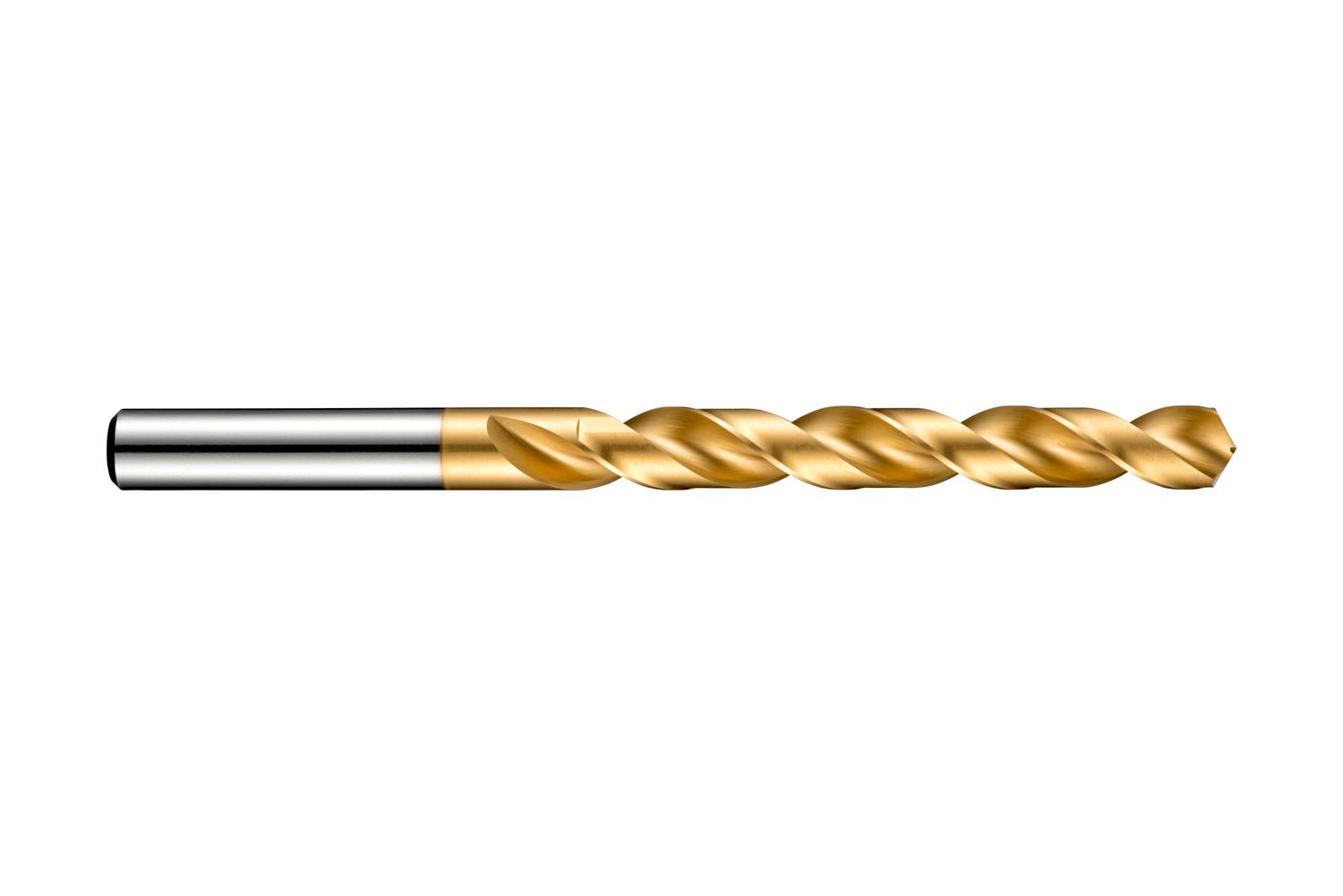

Jobber length ADX drill with straight shank, diameter 0.2344″ (15/64) with an overall length of 93mm and flute length of 57mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.0655 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760169049
Product number (SAP): 86010372
Ordering code ANSI: A51015/64
Product Line: ADX
Gross weight – grams: 21

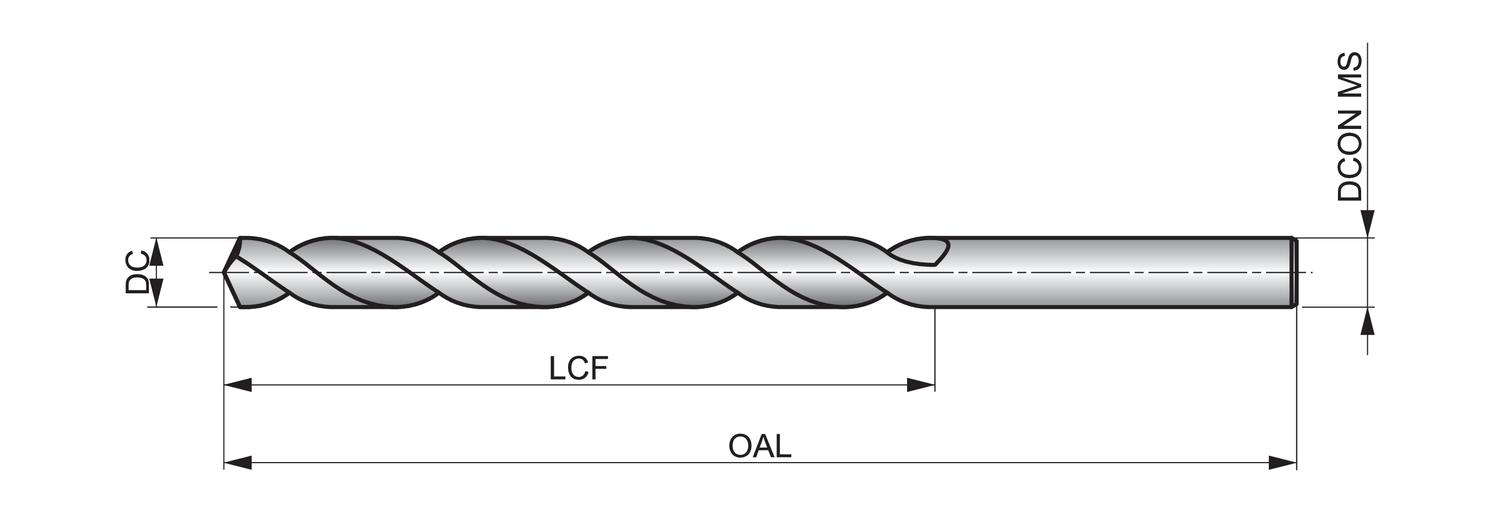

Cutting diameter – fractional inch (DC): 15/64
Cutting diameter – millimeter (DC): 5.95 mm
Cutting diameter – inch (DC): 0.2344 inch
Length chip flute – millimeter (LCF): 57 mm
Overall length – millimeter (OAL): 93 mm
Connection diameter – millimeter (DCON MS): 5.95 mm
Length chip flute – inch (LCF): 2.2441 inch
ISO: A51015/64

Brand

DORMER
