DORMER A5103/16

Product Code: A5103/16

$55.63$50.57 Ex. GST

Product Code: A5103/16 SKU A5103/16 Categories , ,
DORMER A5103/16

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

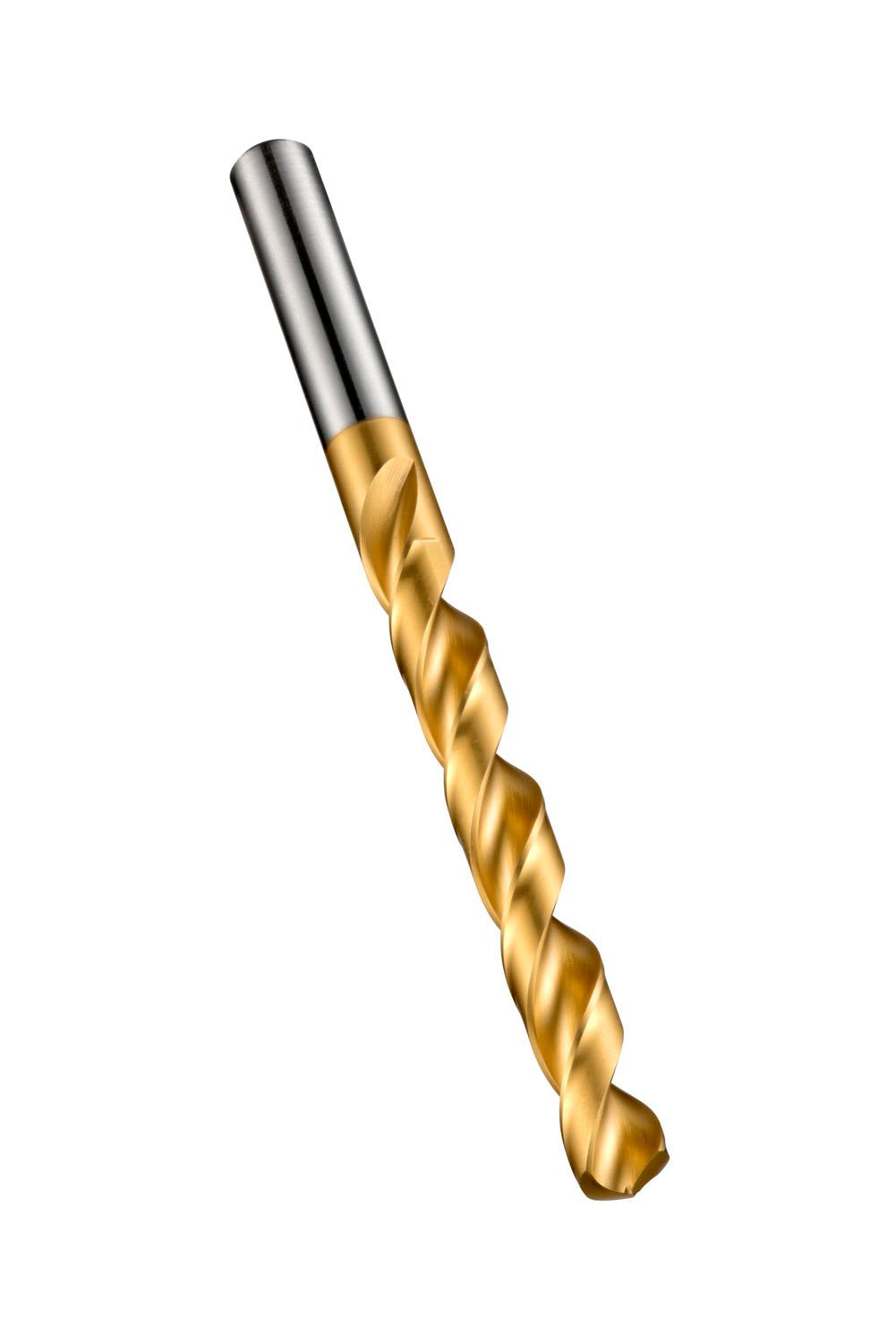

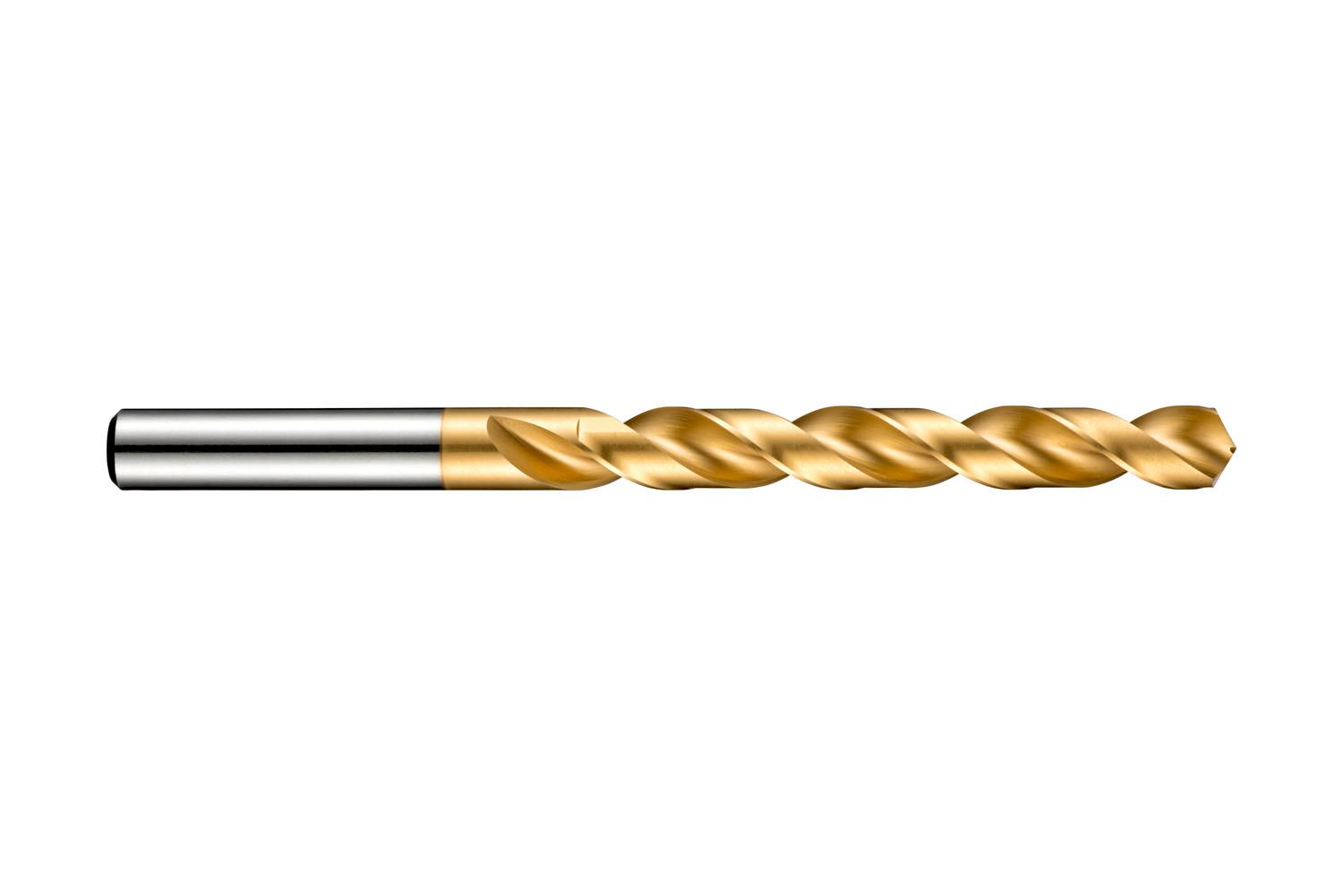

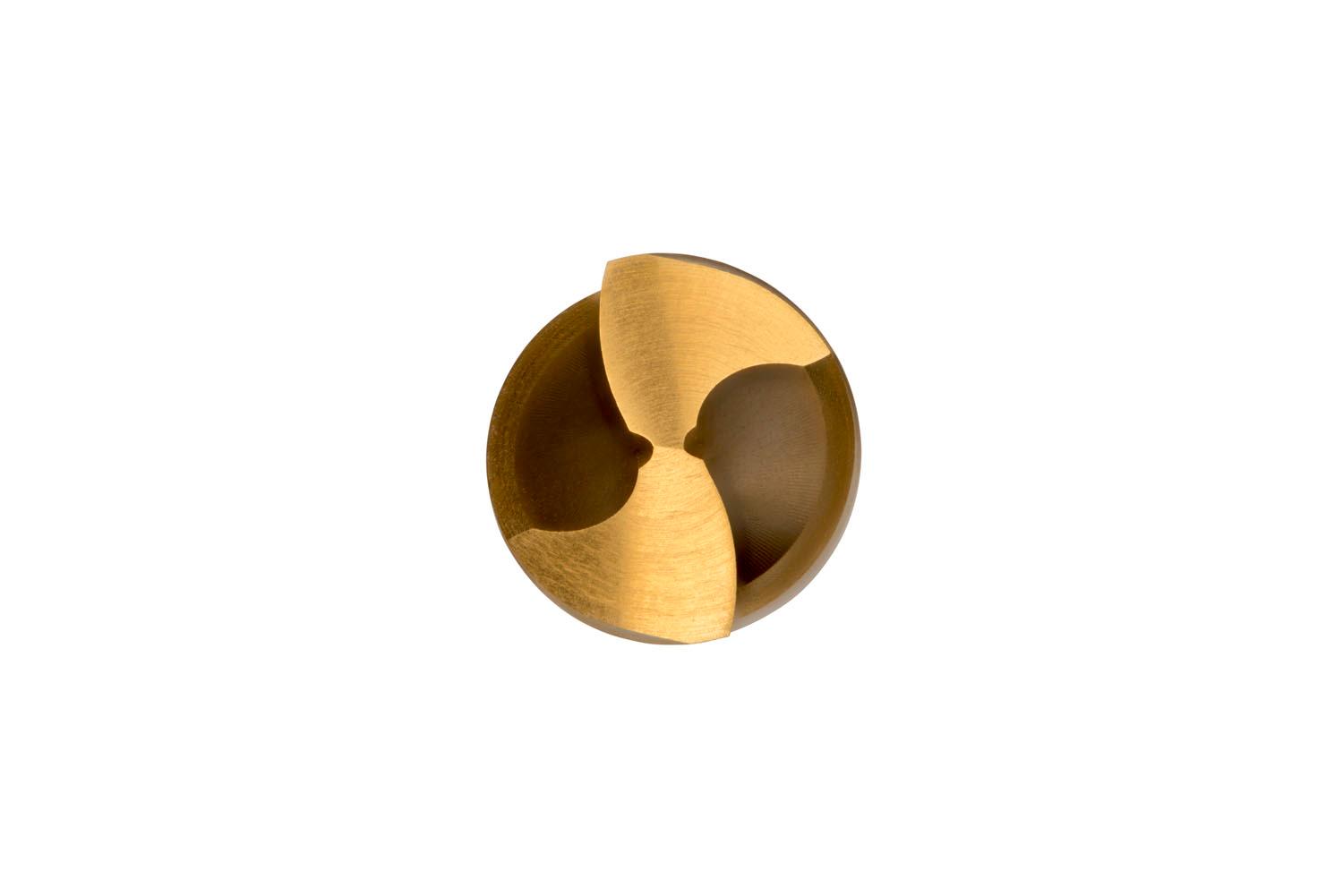

Jobber length ADX drill with straight shank, diameter 0.1875″ (3/16) with an overall length of 86mm and flute length of 52mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.0540 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760169018
Product number (SAP): 86010390
Ordering code ANSI: A5103/16
Product Line: ADX
Gross weight – grams: 8.689

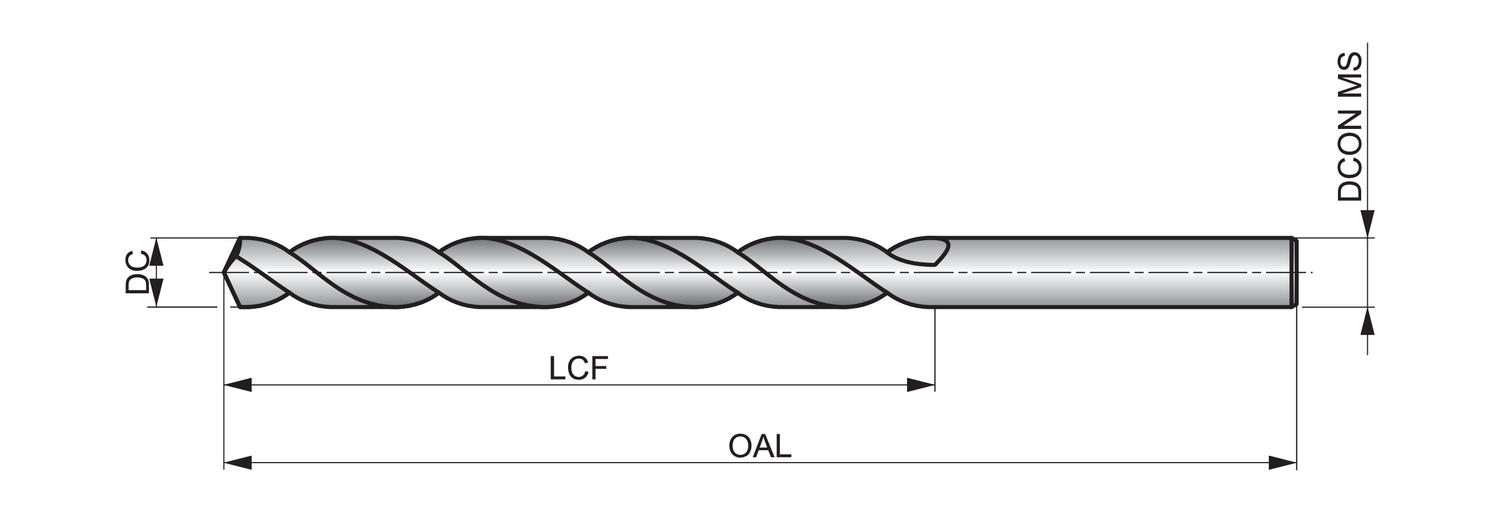

Cutting diameter – fractional inch (DC): 3/16
Cutting diameter – millimeter (DC): 4.76 mm
Cutting diameter – inch (DC): 0.1875 inch
Length chip flute – millimeter (LCF): 52 mm
Overall length – millimeter (OAL): 86 mm
Connection diameter – millimeter (DCON MS): 4.76 mm
Length chip flute – inch (LCF): 2.0472 inch
ISO: A5103/16

Brand

DORMER
