DORMER A5105.5

Product Code: A5105.5

$62.89$57.17 Ex. GST

Product Code: A5105.5 SKU A5105.5 Categories , ,
DORMER A5105.5

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

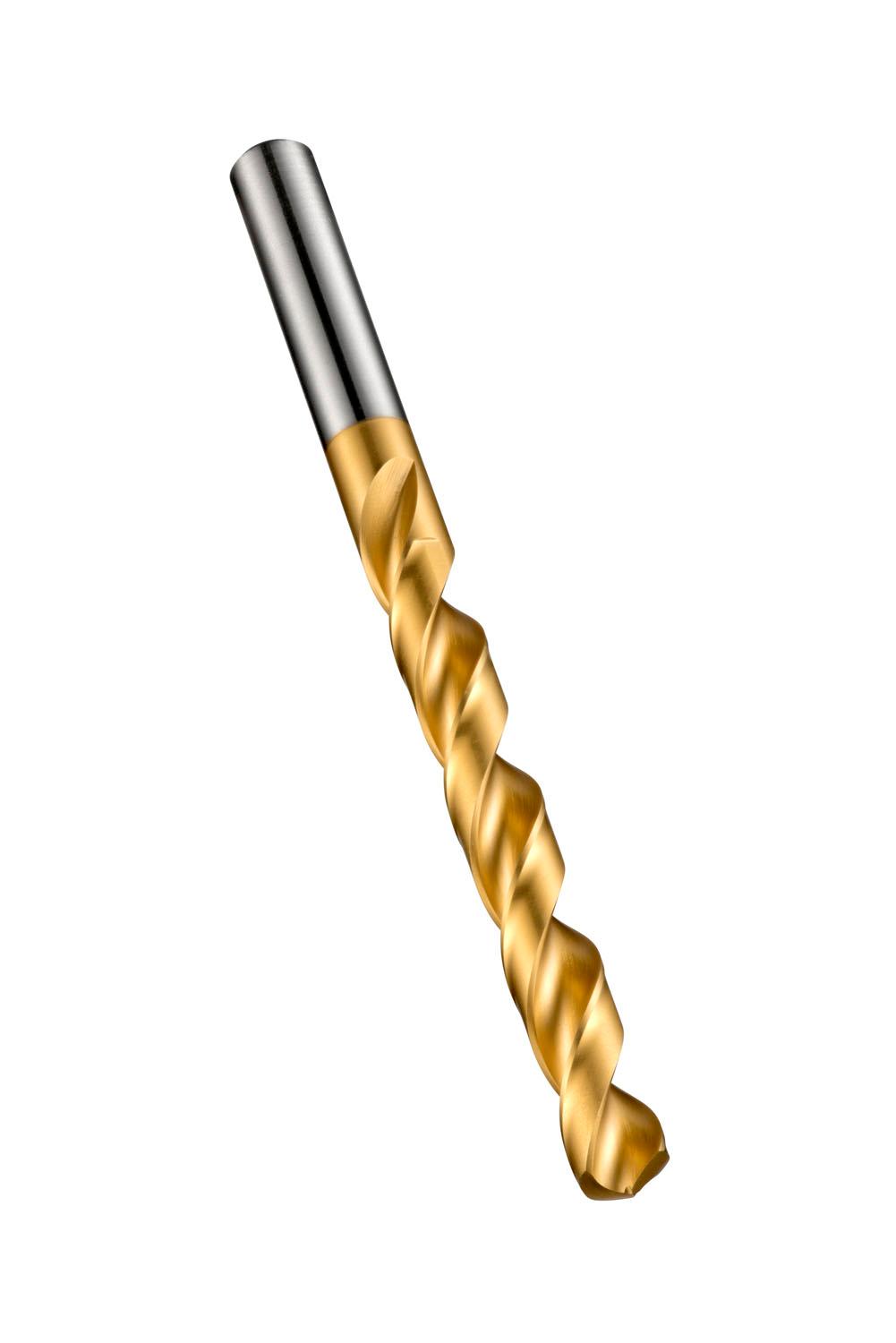

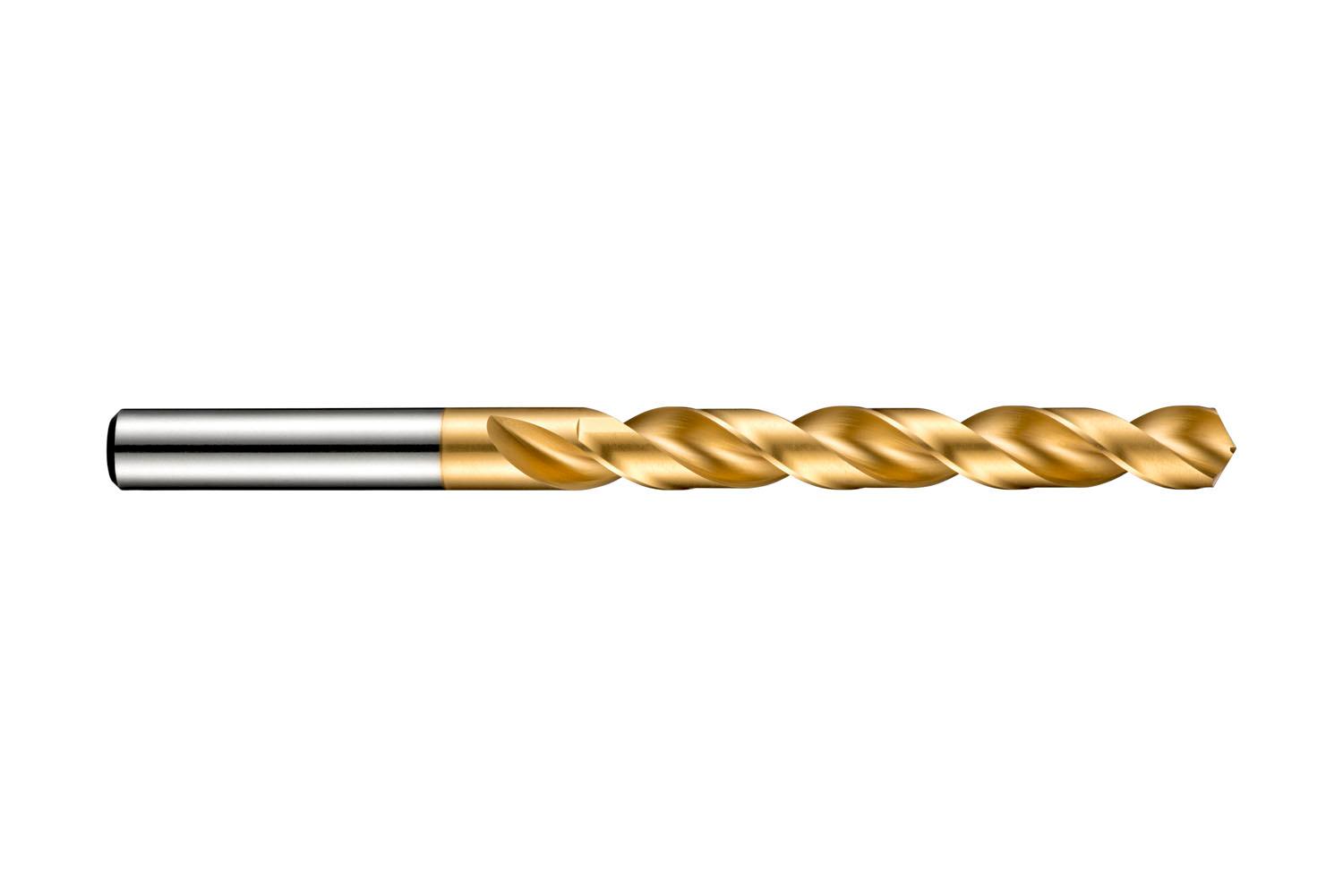

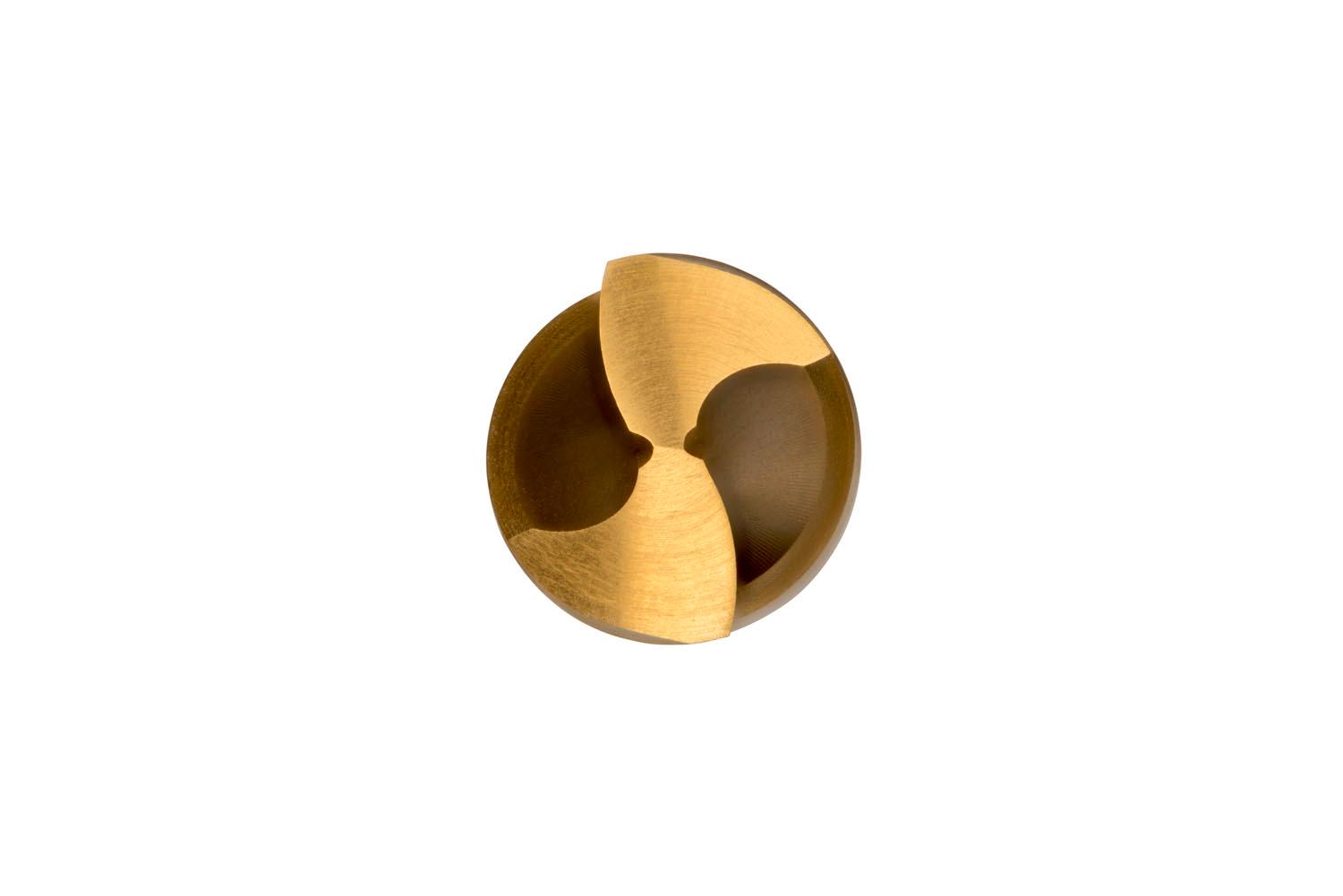

Jobber length ADX drill with straight shank, diameter 5.5mm with an overall length of 93mm and flute length of 57mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.0611 kg
Dimensions
barcode
Additional Information

Description: Value

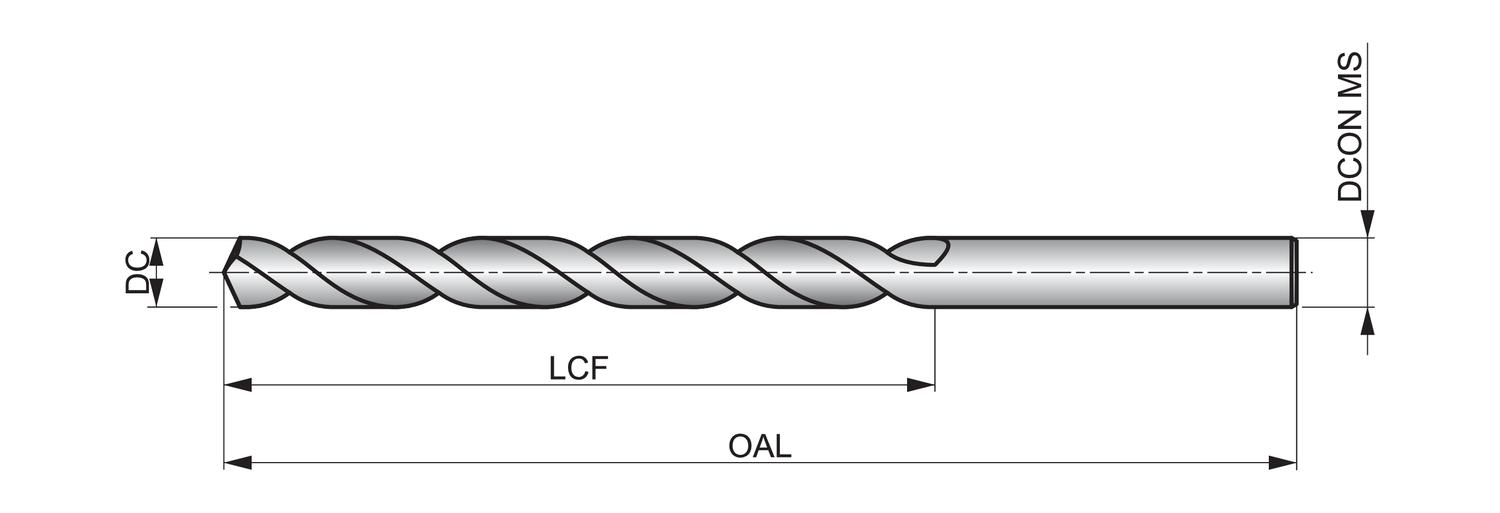

EAN number: 7320760036747 Product number (SAP): 86010408 Ordering code ANSI: A5105.5 Product Line: ADX Gross weight – grams: 18.6 Cutting diameter – millimeter (DC): 5.5 mm Cutting diameter – inch (DC): 0.2165 inch Length chip flute – millimeter (LCF): 57 mm Overall length – millimeter (OAL): 93 mm Connection diameter – millimeter (DCON MS): 5.5 mm Length chip flute – inch (LCF): 2.2441 inch ISO: A5105.5

Brand

DORMER
