DORMER A5106.5

Product Code: A5106.5

$75.35$68.50 Ex. GST

Product Code: A5106.5 SKU A5106.5 Categories , ,
DORMER A5106.5

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

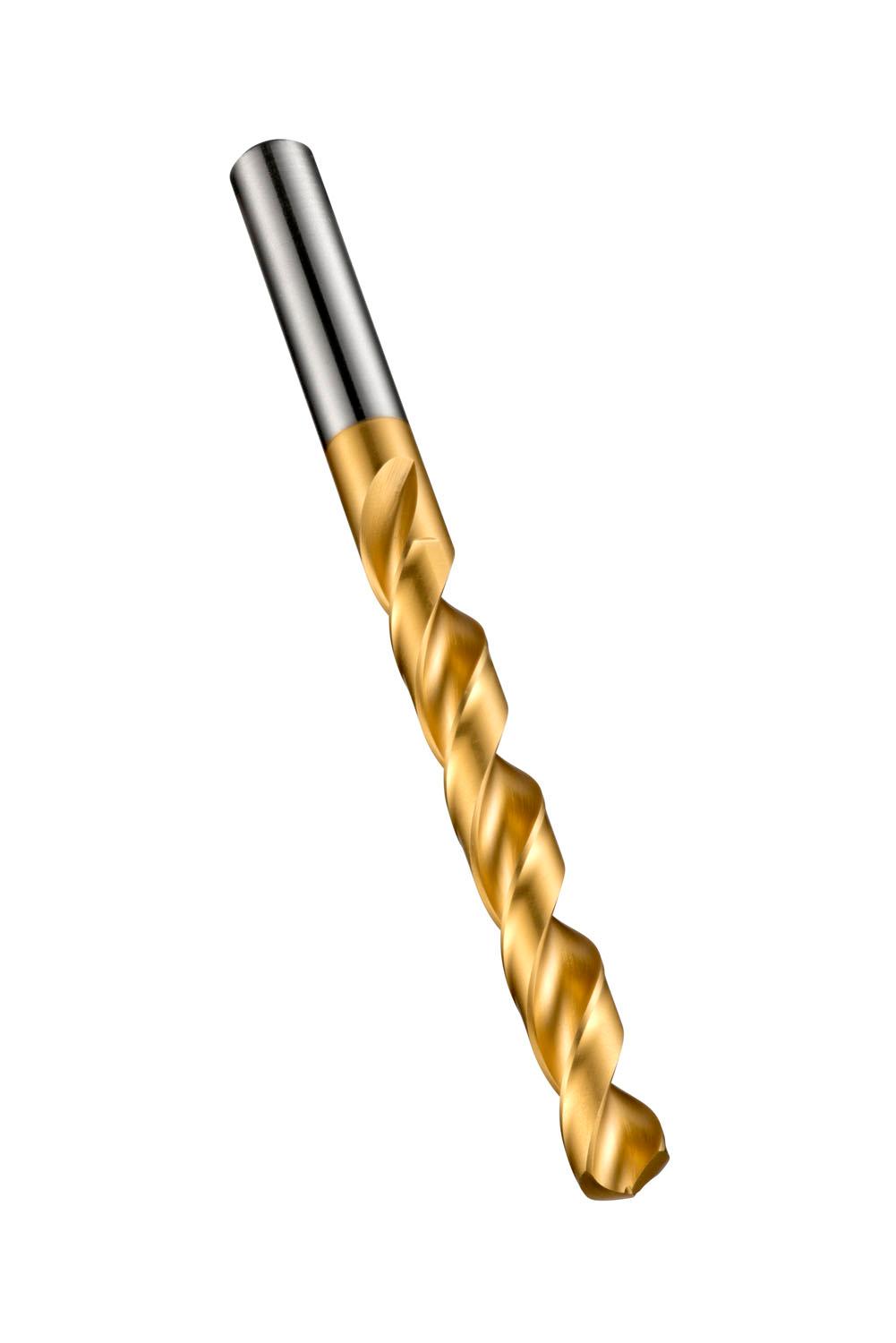

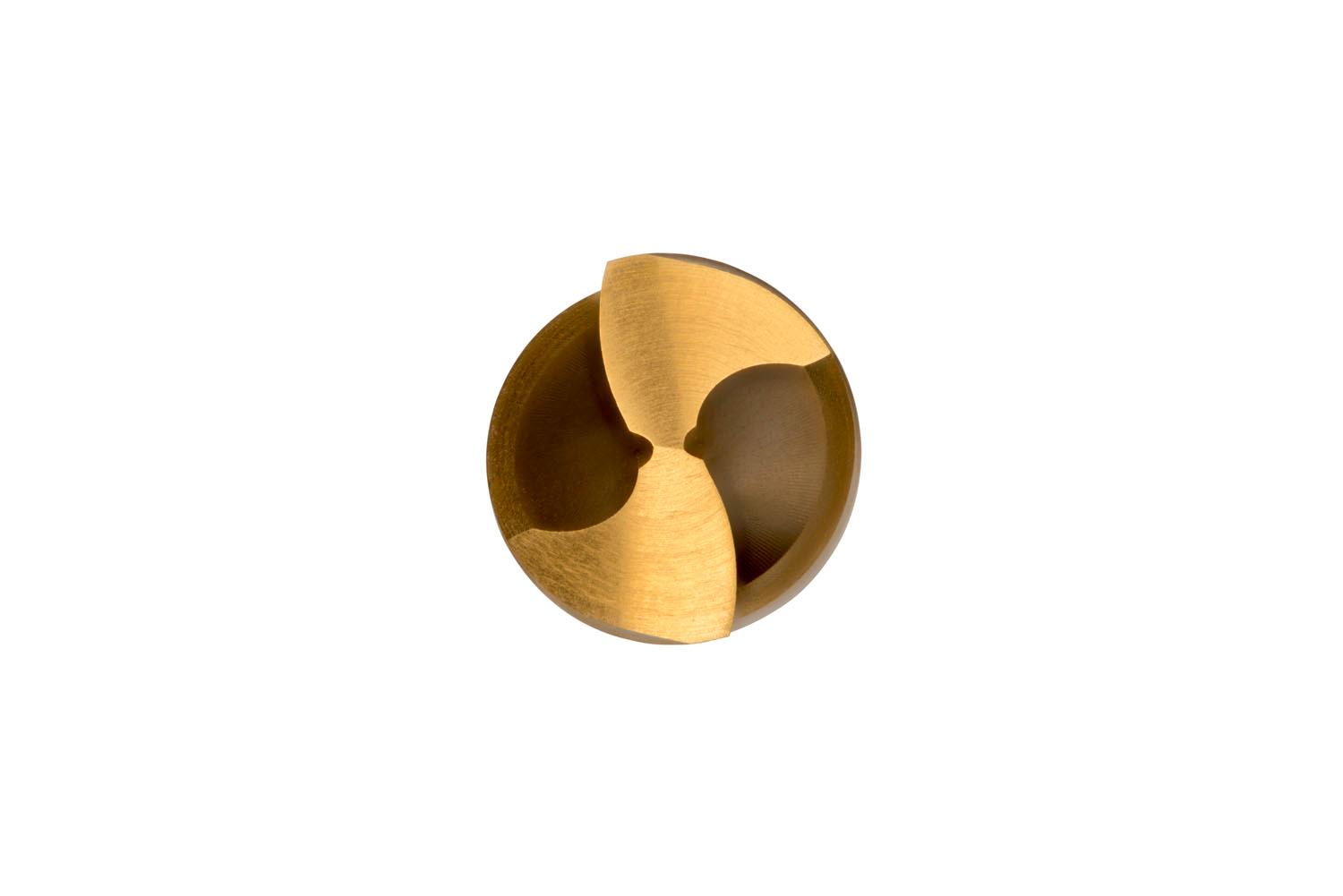

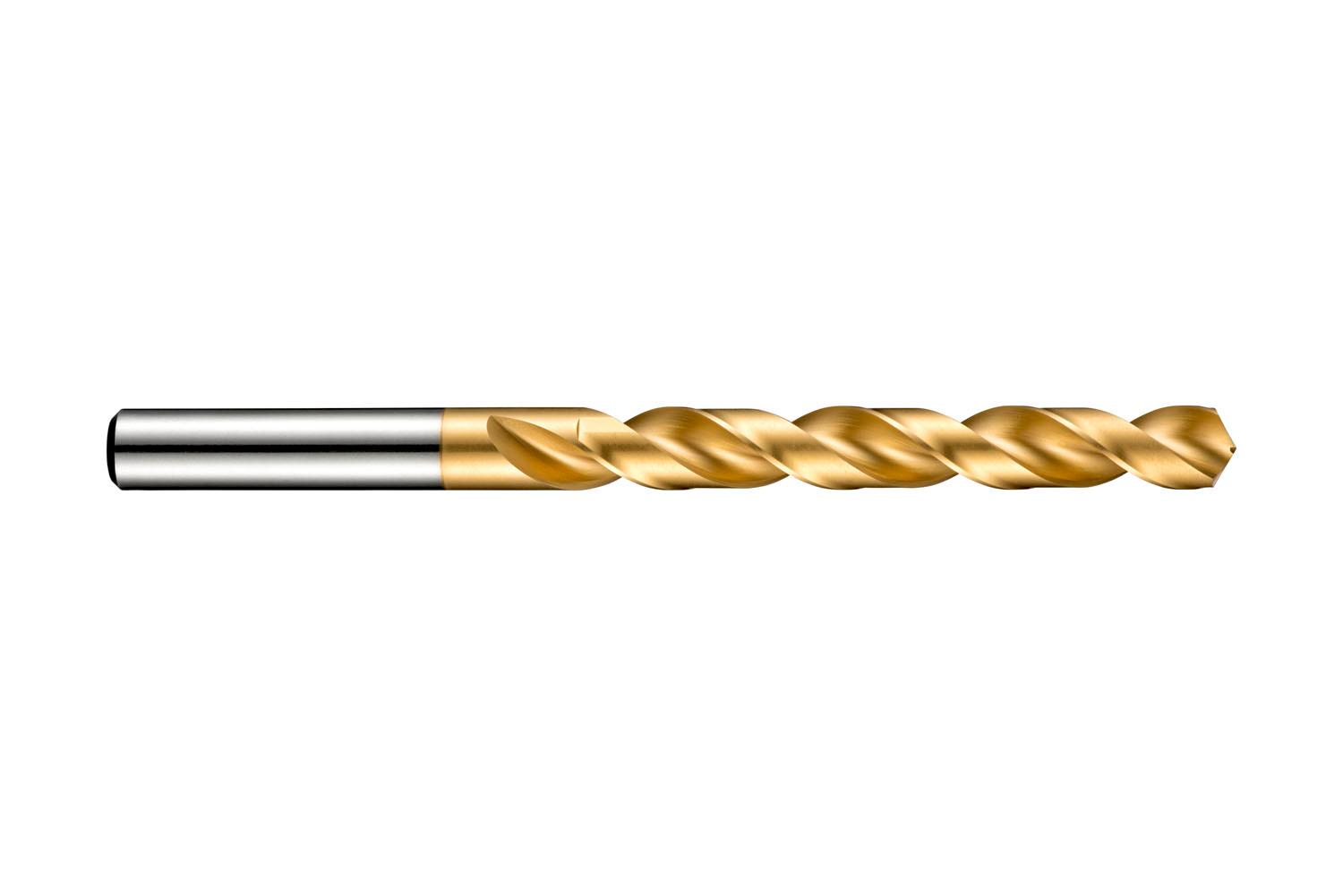

Jobber length ADX drill with straight shank, diameter 6.5mm with an overall length of 101mm and flute length of 63mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.0732 kg
Dimensions
barcode
Additional Information

Description: Value

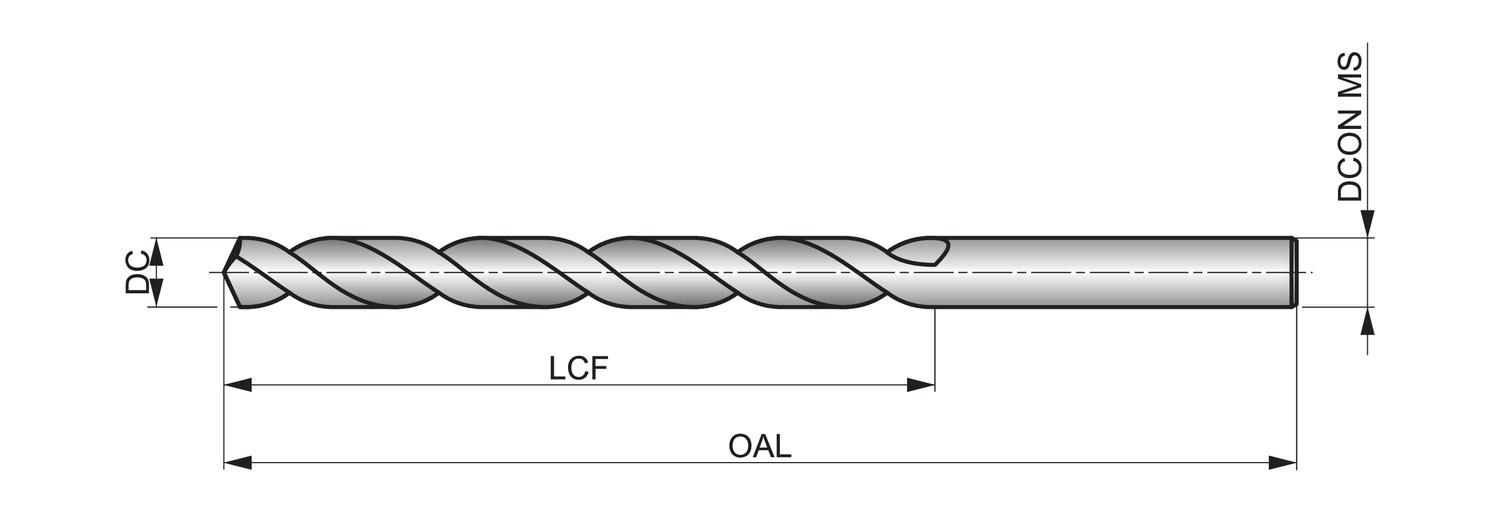

EAN number: 7320760036846 Product number (SAP): 86010420 Ordering code ANSI: A5106.5 Product Line: ADX Gross weight – grams: 25 Cutting diameter – millimeter (DC): 6.5 mm Cutting diameter – inch (DC): 0.2559 inch Length chip flute – millimeter (LCF): 63 mm Overall length – millimeter (OAL): 101 mm Connection diameter – millimeter (DCON MS): 6.5 mm Length chip flute – inch (LCF): 2.4803 inch ISO: A5106.5

Brand

DORMER
