DORMER A5107.1

Product Code: A5107.1

$95.17$86.52 Ex. GST

Product Code: A5107.1 SKU A5107.1 Categories , ,
DORMER A5107.1

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

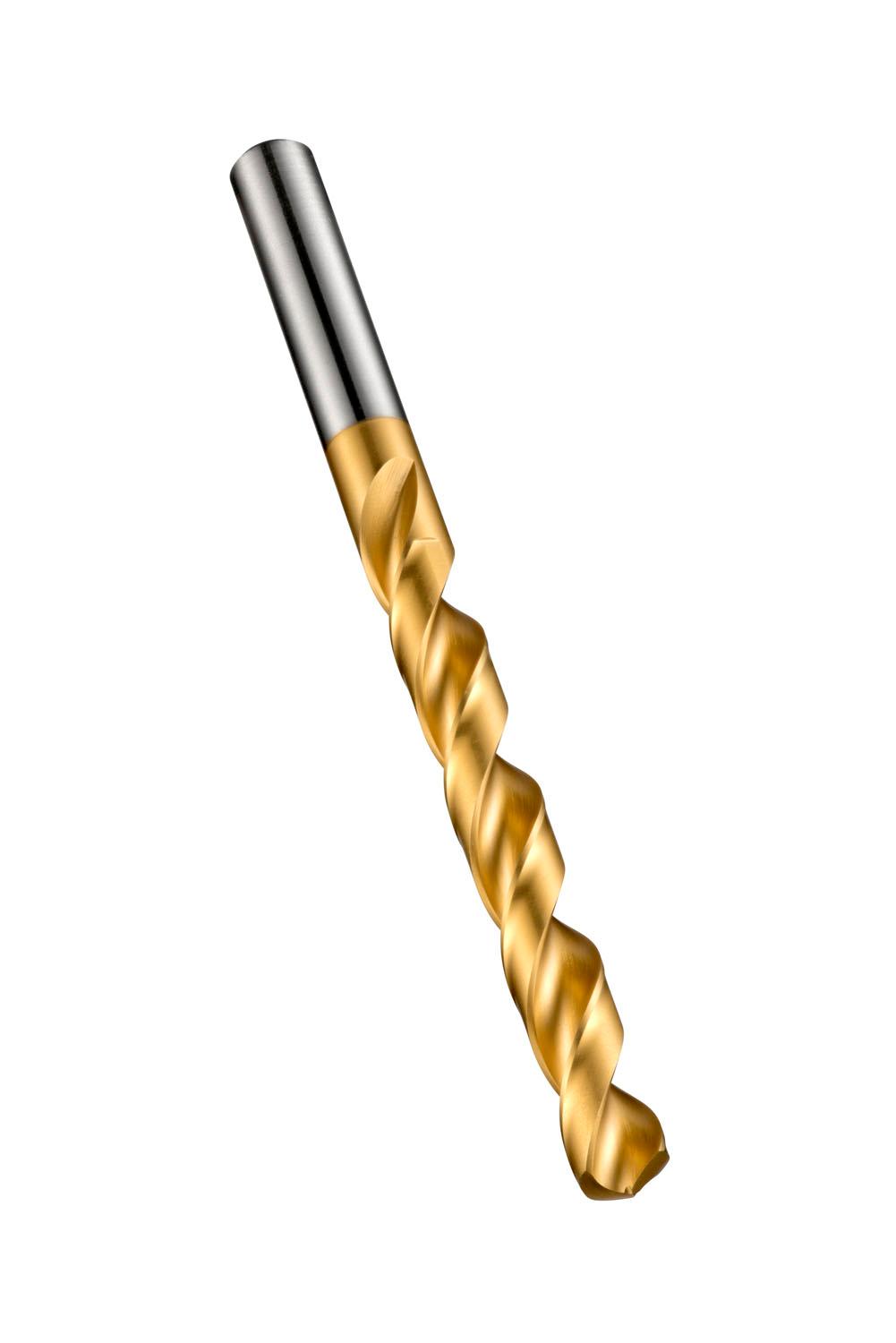

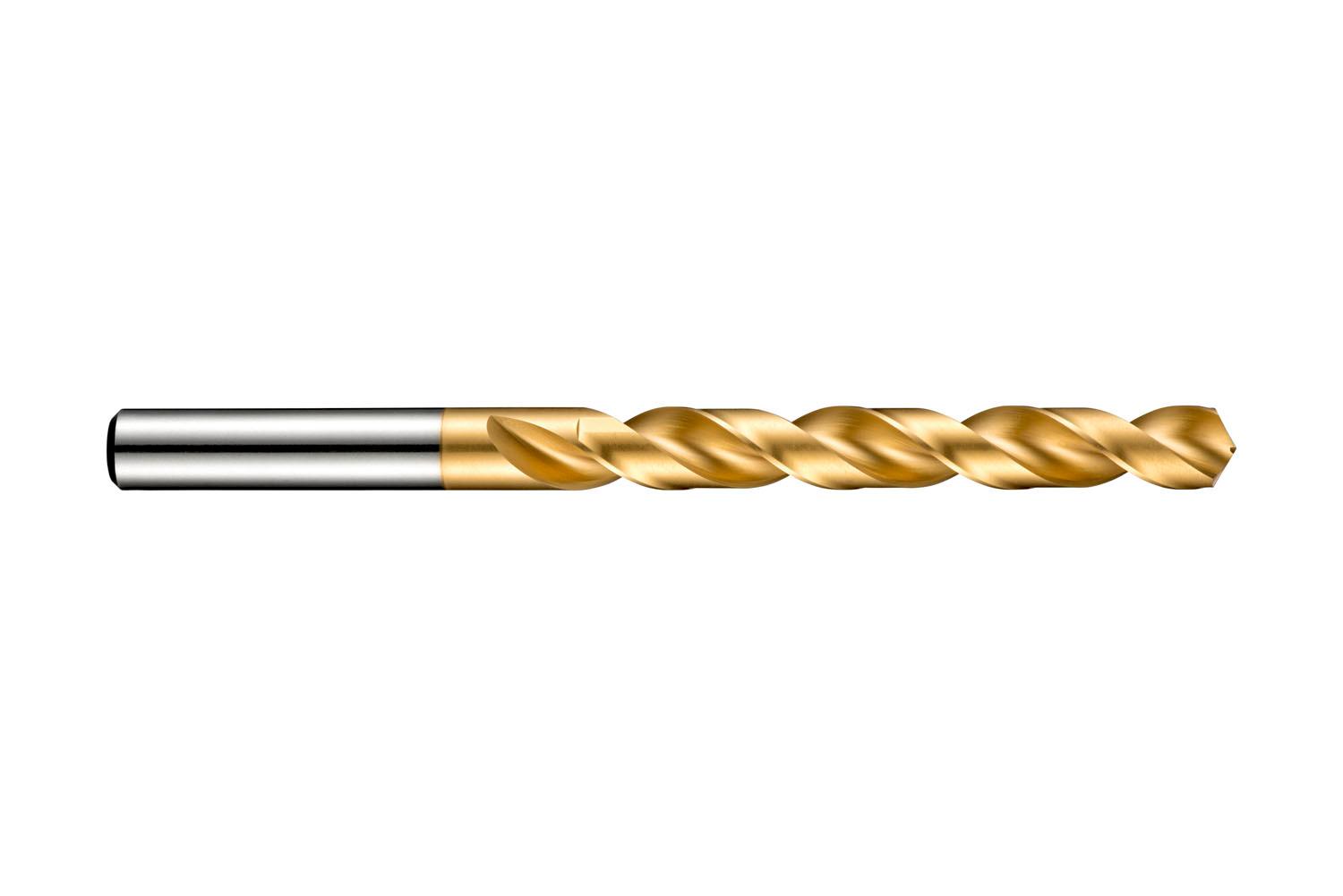

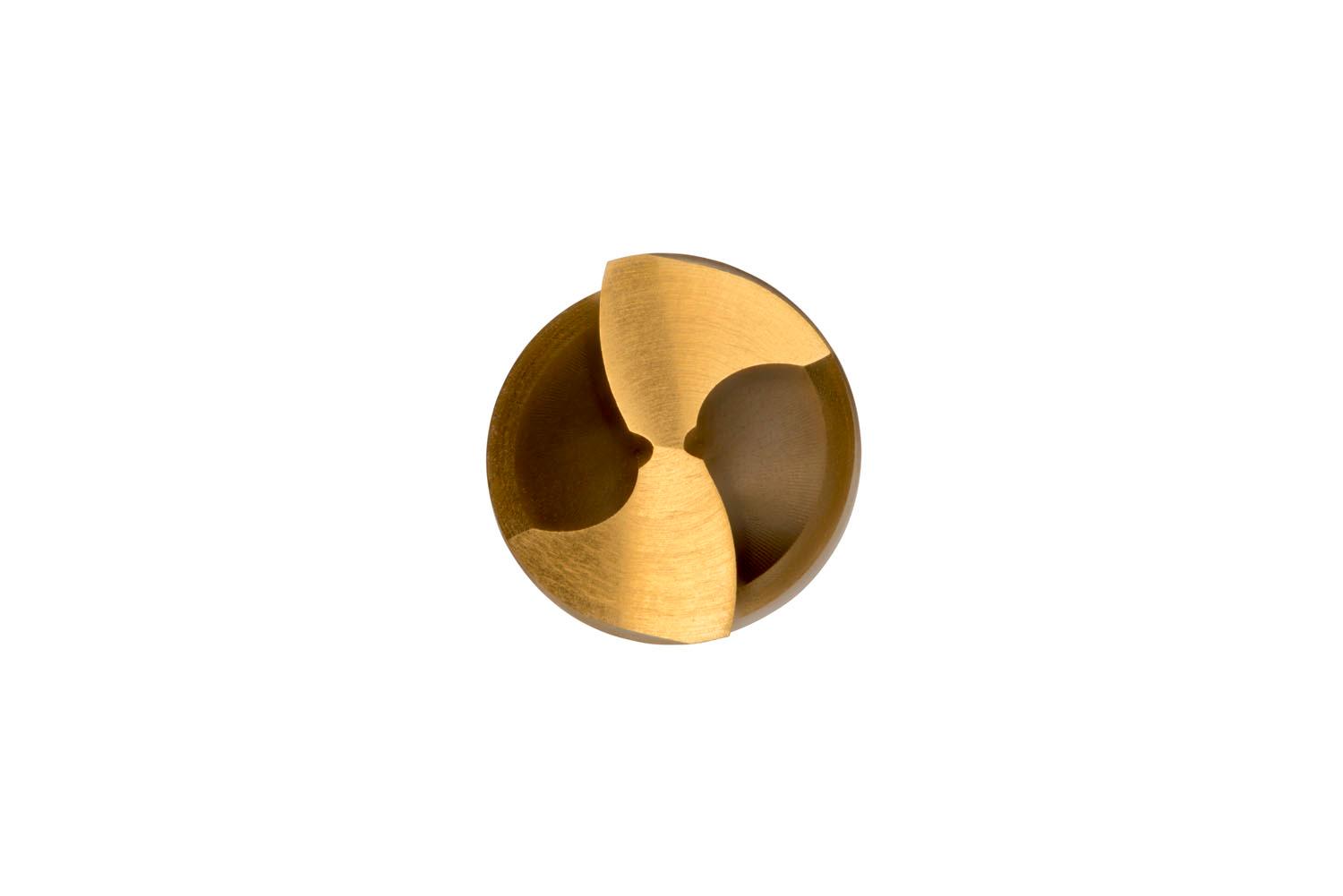

Jobber length ADX drill with straight shank, diameter 7.1mm with an overall length of 109mm and flute length of 69mm according to DIN 338 standard with 130° volute point, HSS with TiN coating for 4xD drilling without pecking in steel, stainless steel, cast iron and non-ferrous material

Additional information

Weight 0.0924 kg
Dimensions
barcode
Additional Information

Description: Value

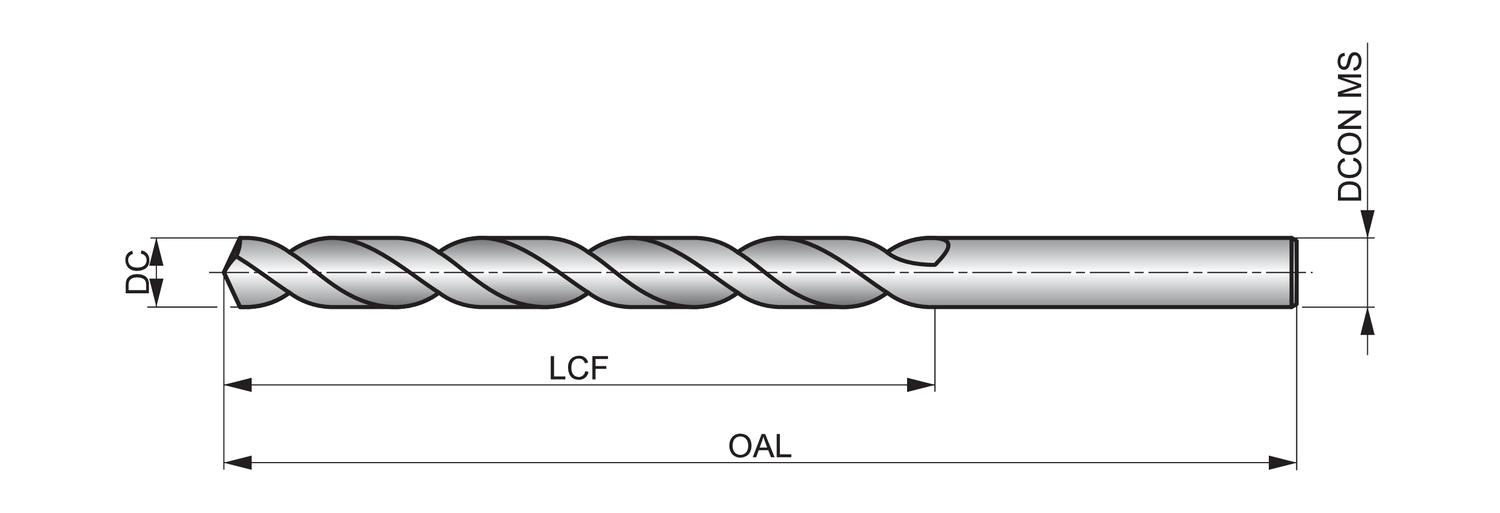

EAN number: 7320760036907 Product number (SAP): 86010426 Ordering code ANSI: A5107.1 Product Line: ADX Gross weight – grams: 32.9 Cutting diameter – millimeter (DC): 7.1 mm Cutting diameter – inch (DC): 0.2795 inch Length chip flute – millimeter (LCF): 69 mm Overall length – millimeter (OAL): 109 mm Connection diameter – millimeter (DCON MS): 7.1 mm Length chip flute – inch (LCF): 2.7165 inch ISO: A5107.1

Brand

DORMER
